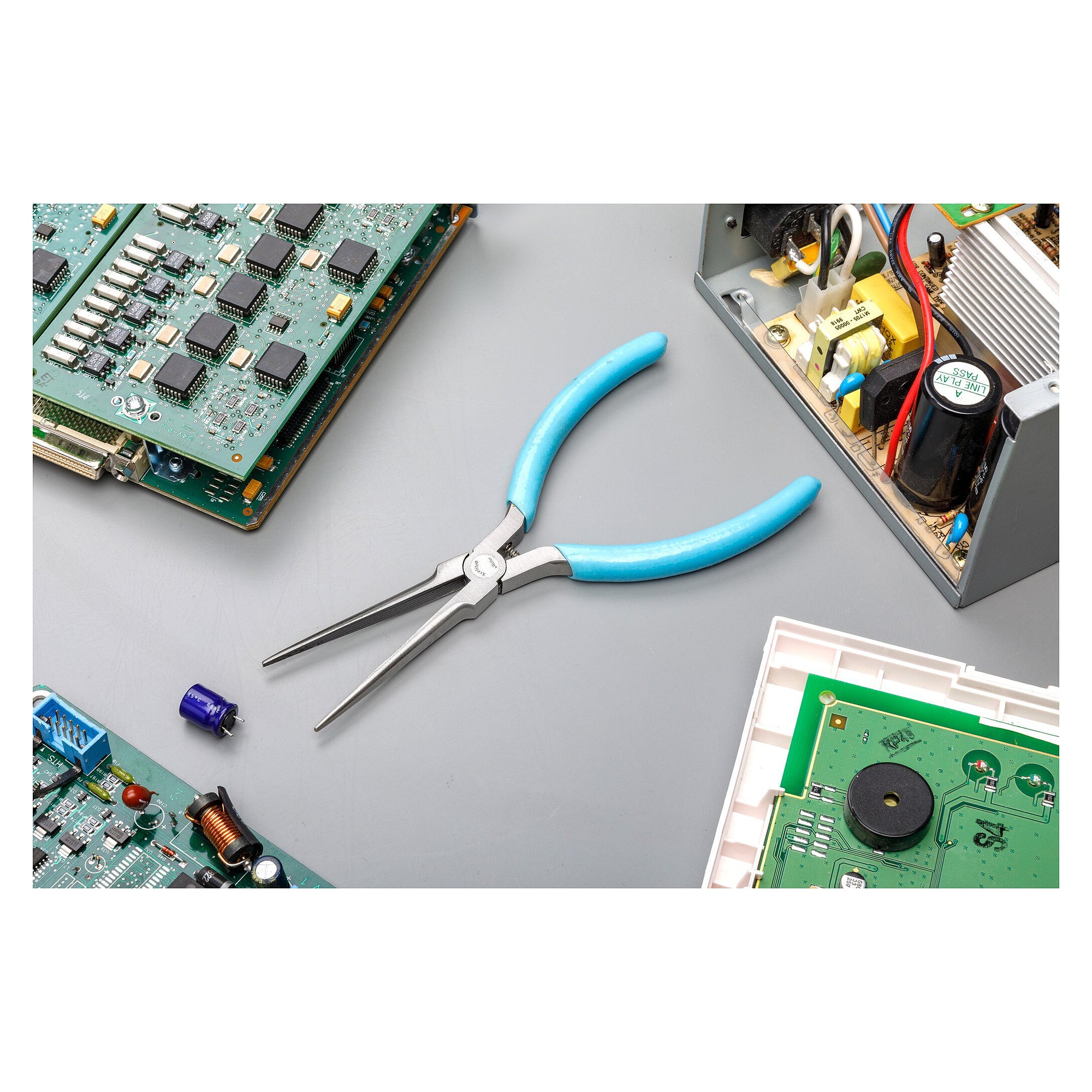

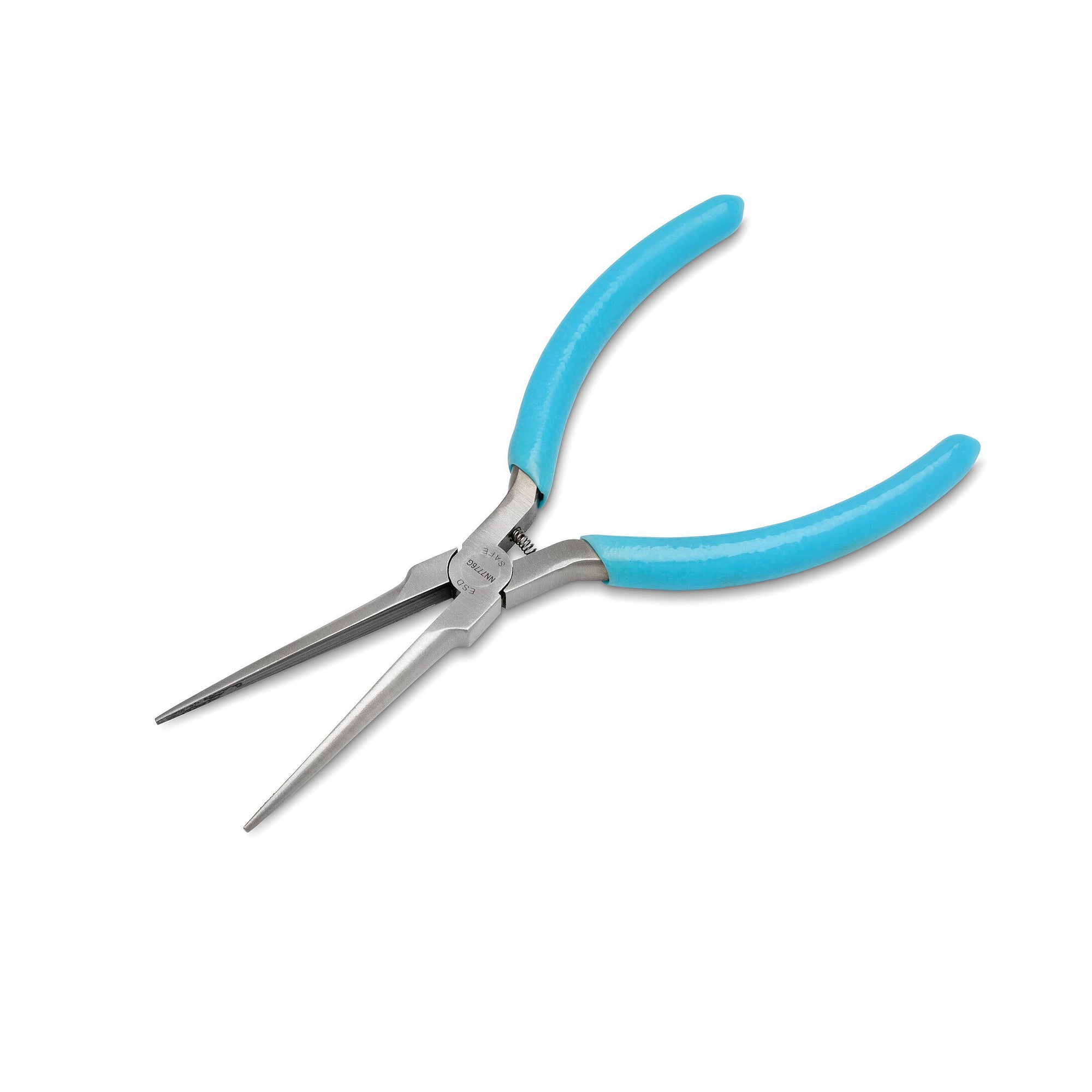

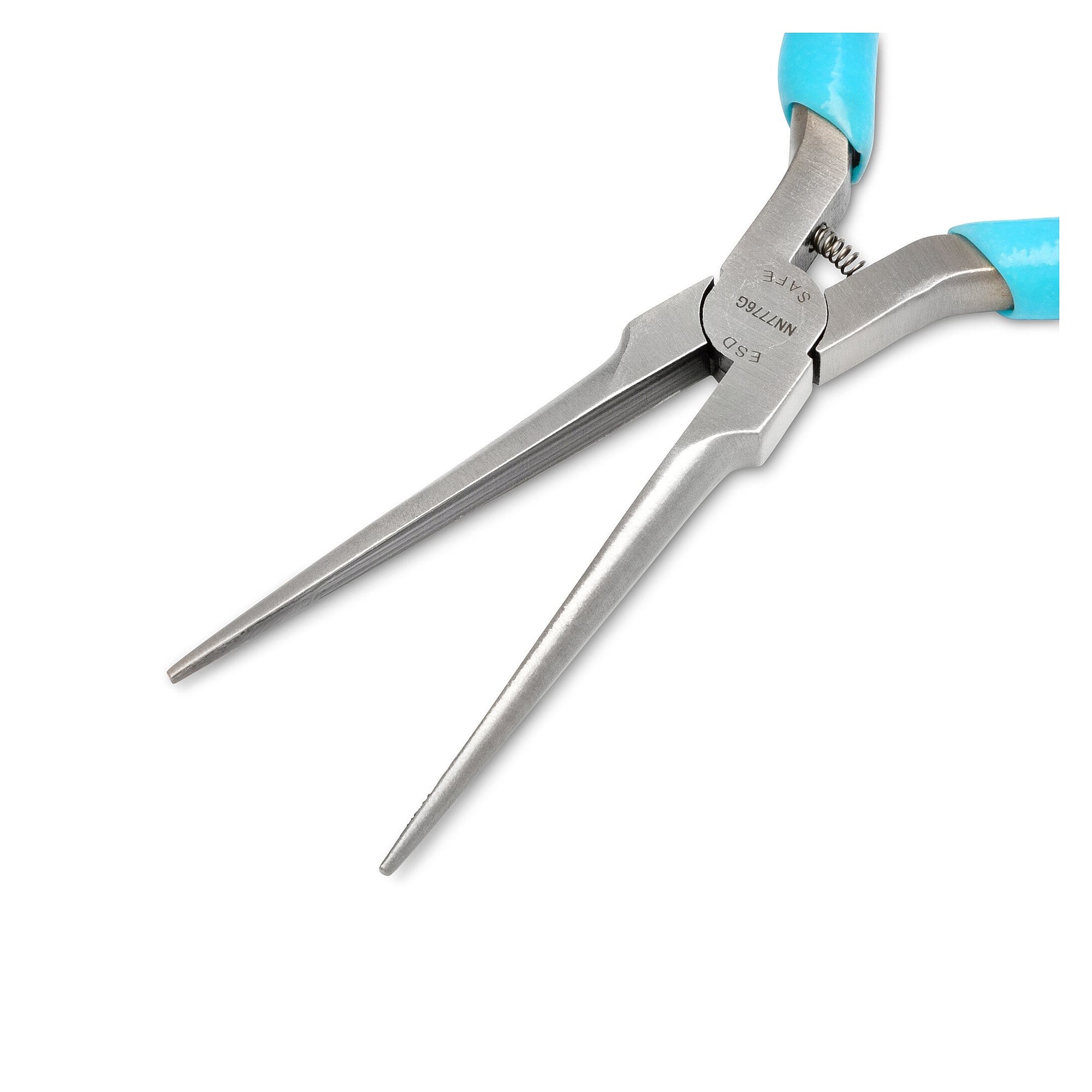

ESD-safe long nose pliers Xcelite 152.4 mm with smooth jaws and an extra long tip - Weller NN7776GN

The NN7776GN is made for grips that fingers no longer reach. A head length of 58.7 mm at 11.9 mm head width reaches deep into an assembly, and the smooth jaws decide how the part is held. Overall length is 152.4 mm.

Key benefits

• Smooth gripping faces take hold of sensitive parts without leaving marks.
• Head width 11.9 mm and head thickness 6.4 mm fit between closely spaced components.
• Head length 58.7 mm at 152.4 mm overall reaches components seated deep inside an assembly.
• Cushioned handles reduce hand load during longer assembly runs.
• Listed by the manufacturer as ESD safe and therefore suited to workstations inside an EPA.

Technical data

Applications

Typical jobs are positioning parts before soldering, gripping contacts inside connector shells and pulling wires out of narrow channels.

Scope of delivery

Sales unit 1 piece. The pliers are supplied without further accessories.

ESD and conformity

The manufacturer property table lists the pliers as ESD safe. Figures for surface resistance or a test standard are not available to us.
