ESD PCB magazine 7003.1 in polystyrene for boards up to 310 mm wide - cab 8917903

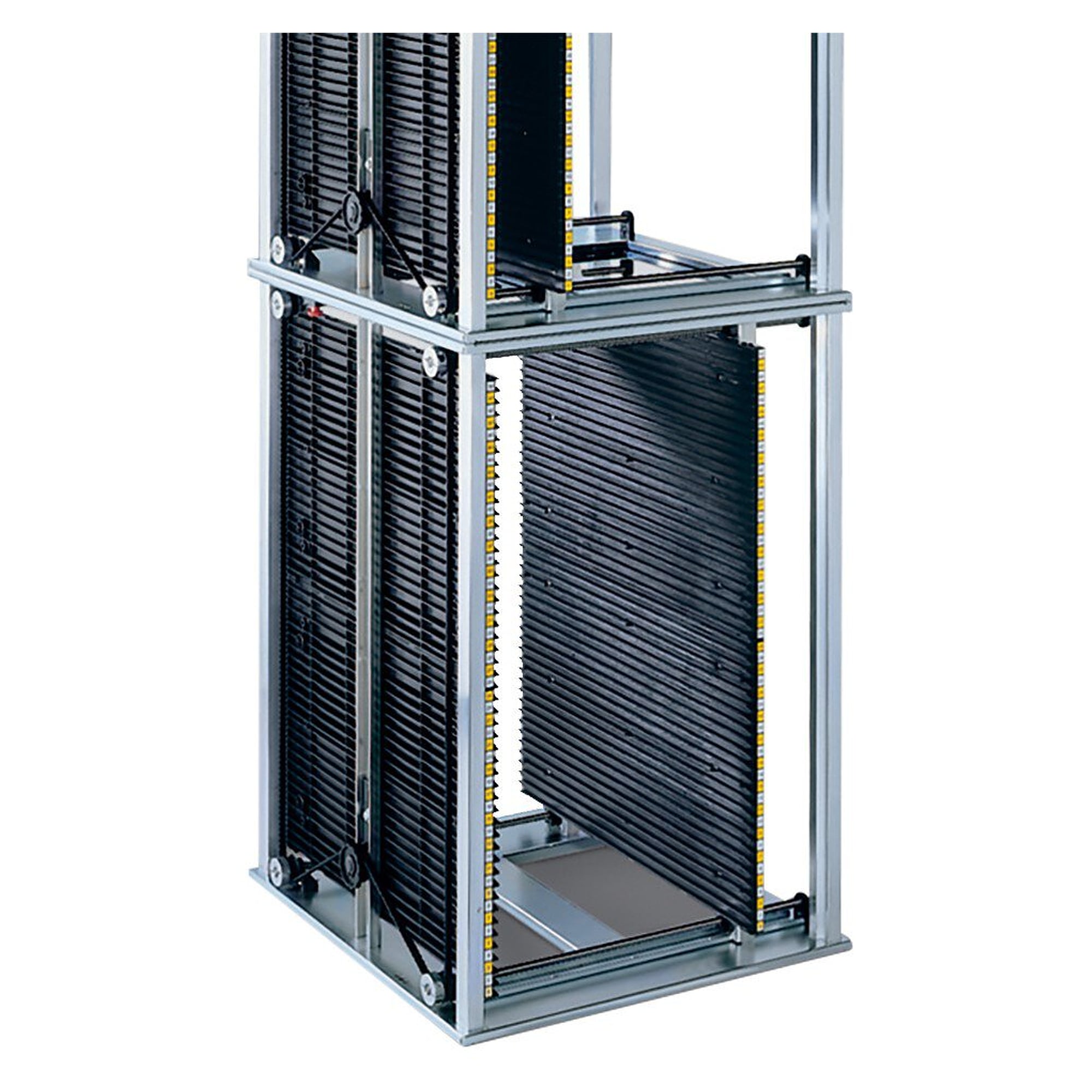

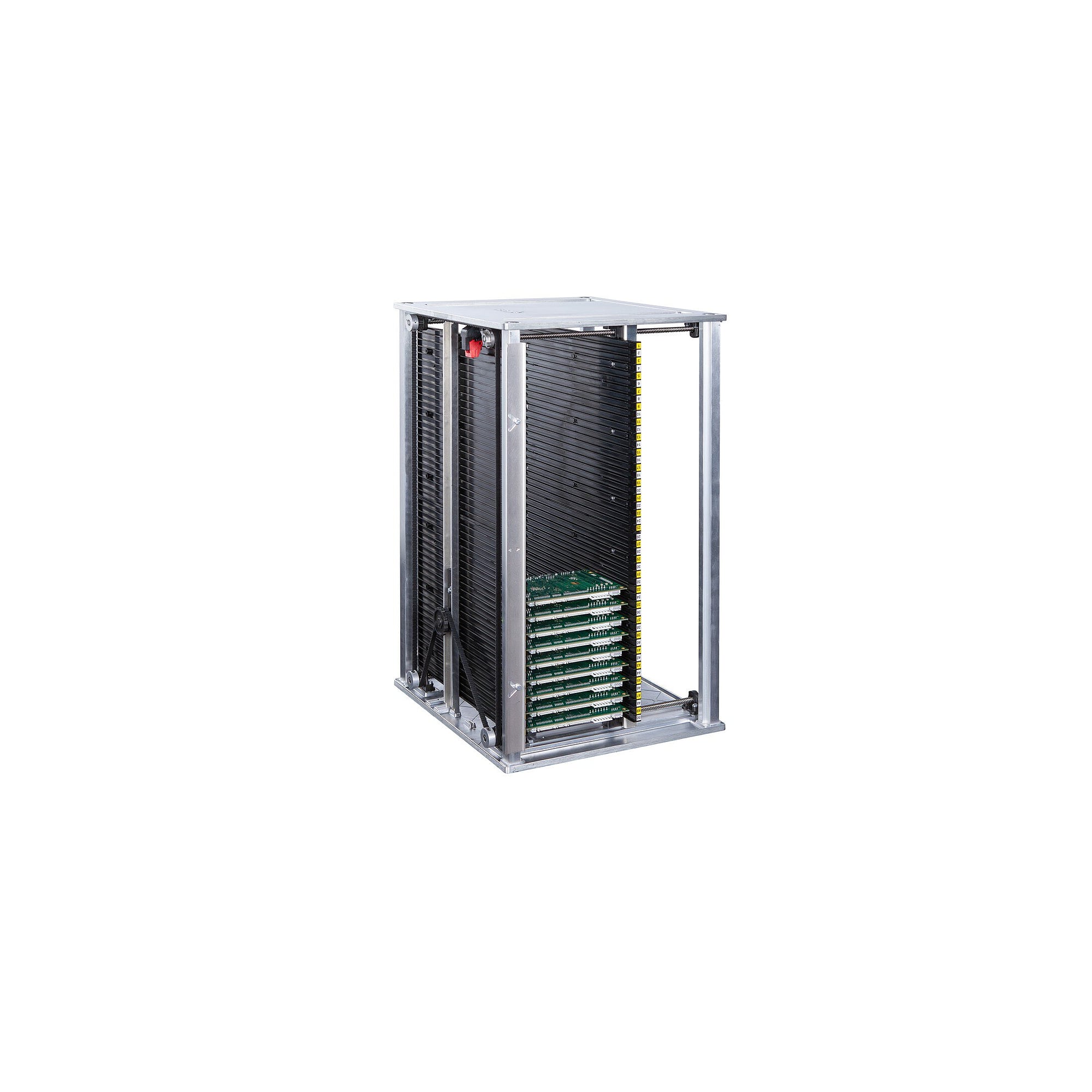

PCB magazine 7003.1 takes boards of 40 to 310 mm width and 387 mm length, and that width is not estimated but adjusted synchronously by four precision spindles. Cover and base plate are fully closed, so nothing enters from above or below and the magazine keeps its shape. The dissipative construction allows use inside the EPA.

Key benefits

• Synchronous partition wall adjustment through four precision spindles in backlash-free bearings, the 40 to 310 mm board width is set quickly and accurately.
• Closed cover and base plate protect the assemblies and raise the rigidity of the magazine.
• ESD-safe according to the manufacturer, therefore usable in a protected area to IEC 61340-5-1.

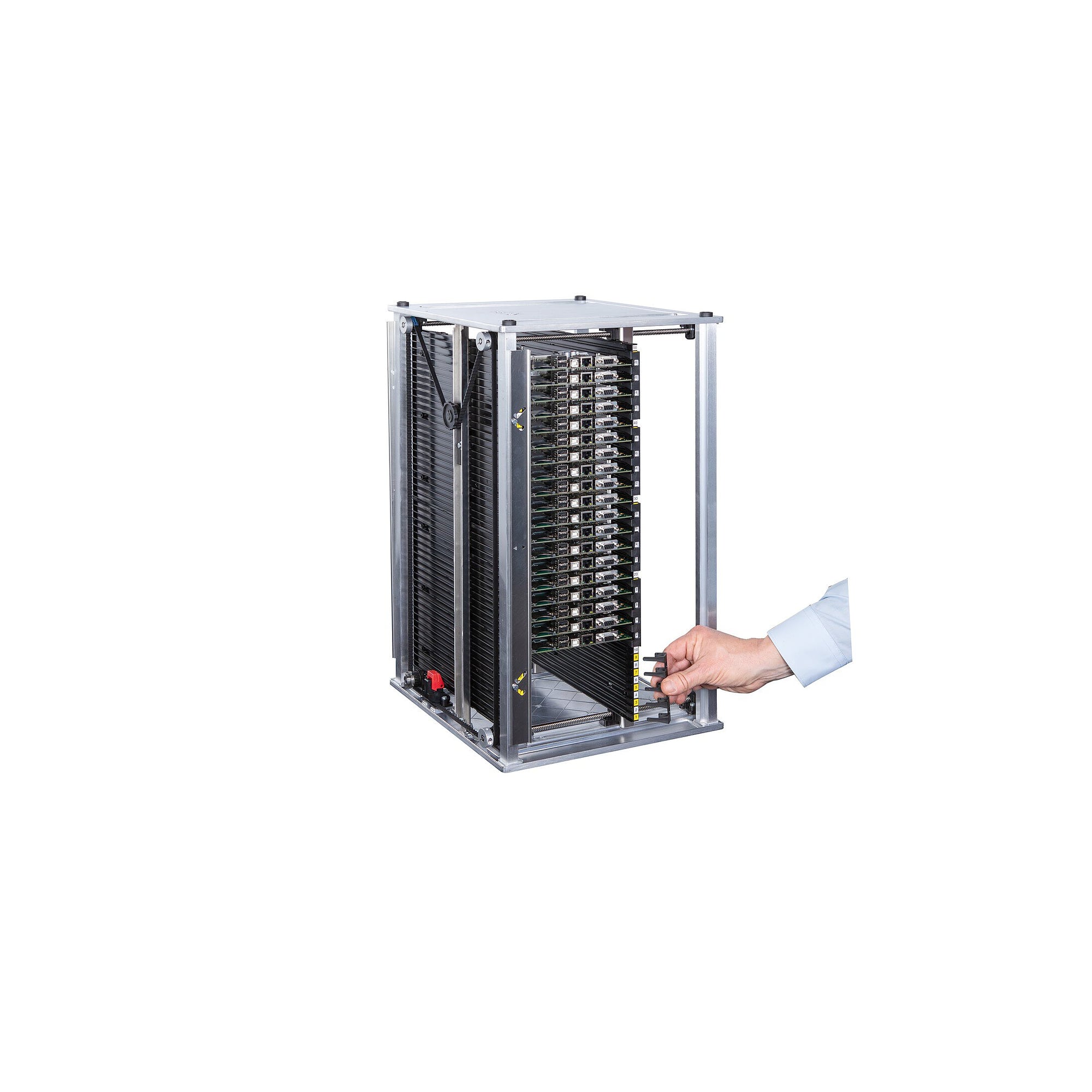

• Width set by hand via toothed belt and handwheel, or by motor through the clutch once the magazine sits in the unloader.
• The Fastlock quick-release fastener holds the toothed belt, so the set width survives transport.
• Slots rated to 60 °C and ambient to 50 °C, the magazine takes boards straight out of the reflow oven.
• Net weight of only 6.2 kg at outside dimensions of 380 x 563 x 400 mm.

Technical data

Applications

Buffering, storage and in-house transport of populated and bare boards between placement, reflow, test and dispatch.

Compatibility and scope of delivery

For boards of 40 to 310 mm width and 387 mm length. The magazine is supplied partially assembled including transport lock A and Fastlock. Transport locks B and C are available as an option, the partition wall is polystyrene and the base plate is cast aluminium.

Standards and notes

ESD-safe according to the manufacturer, suitable for work areas to IEC 61340-5-1. Manufacturer details under GPSR: CAB Produkttechnik, Wilhelm-Schickard-Straße 14, DE-76131 Karlsruhe, www.cabgmbh.com.
