CVC soldering tip cartridge, conical reach 0.4 x 7.9 mm, 330 °C, 600 series - Metcal CVC-6CN0004R

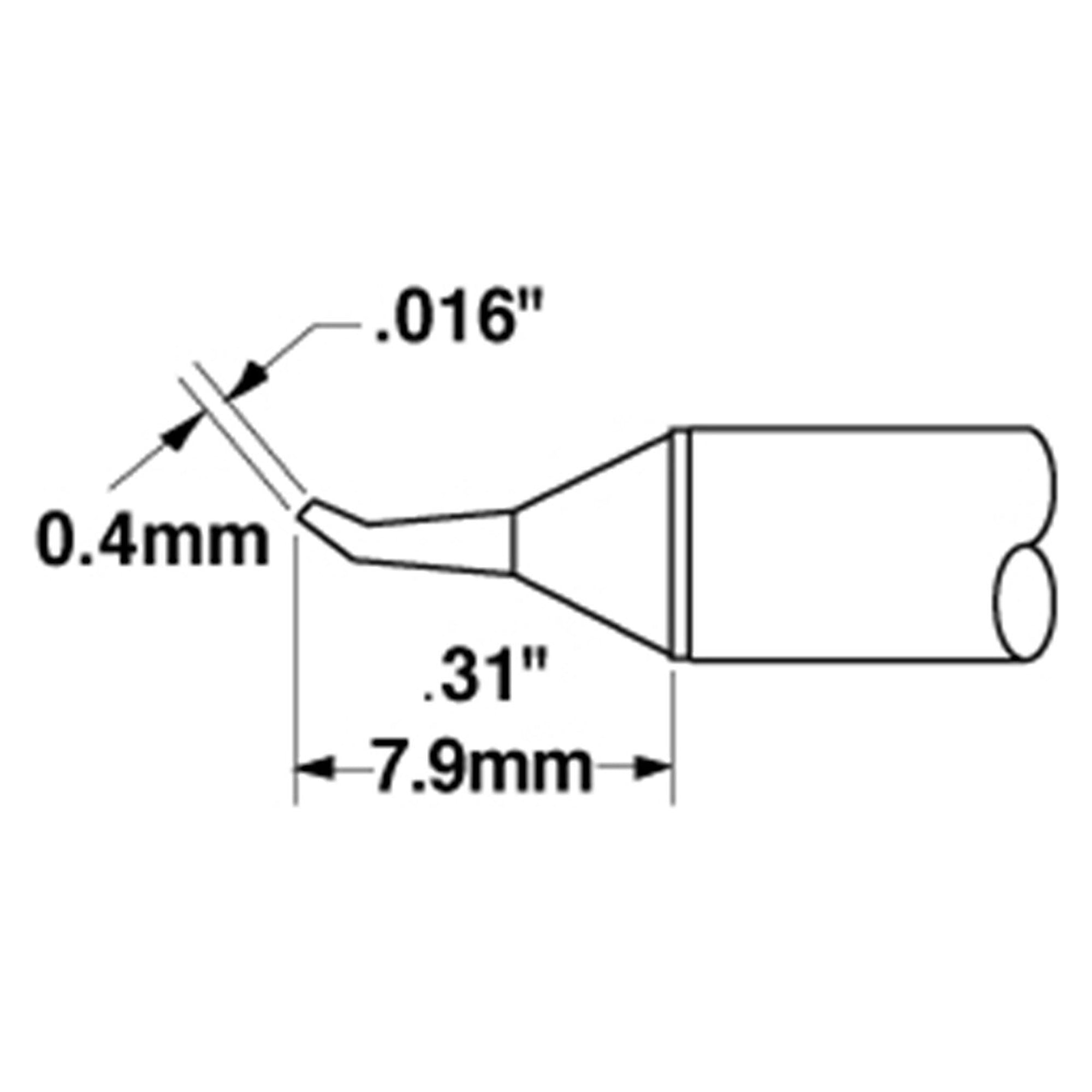

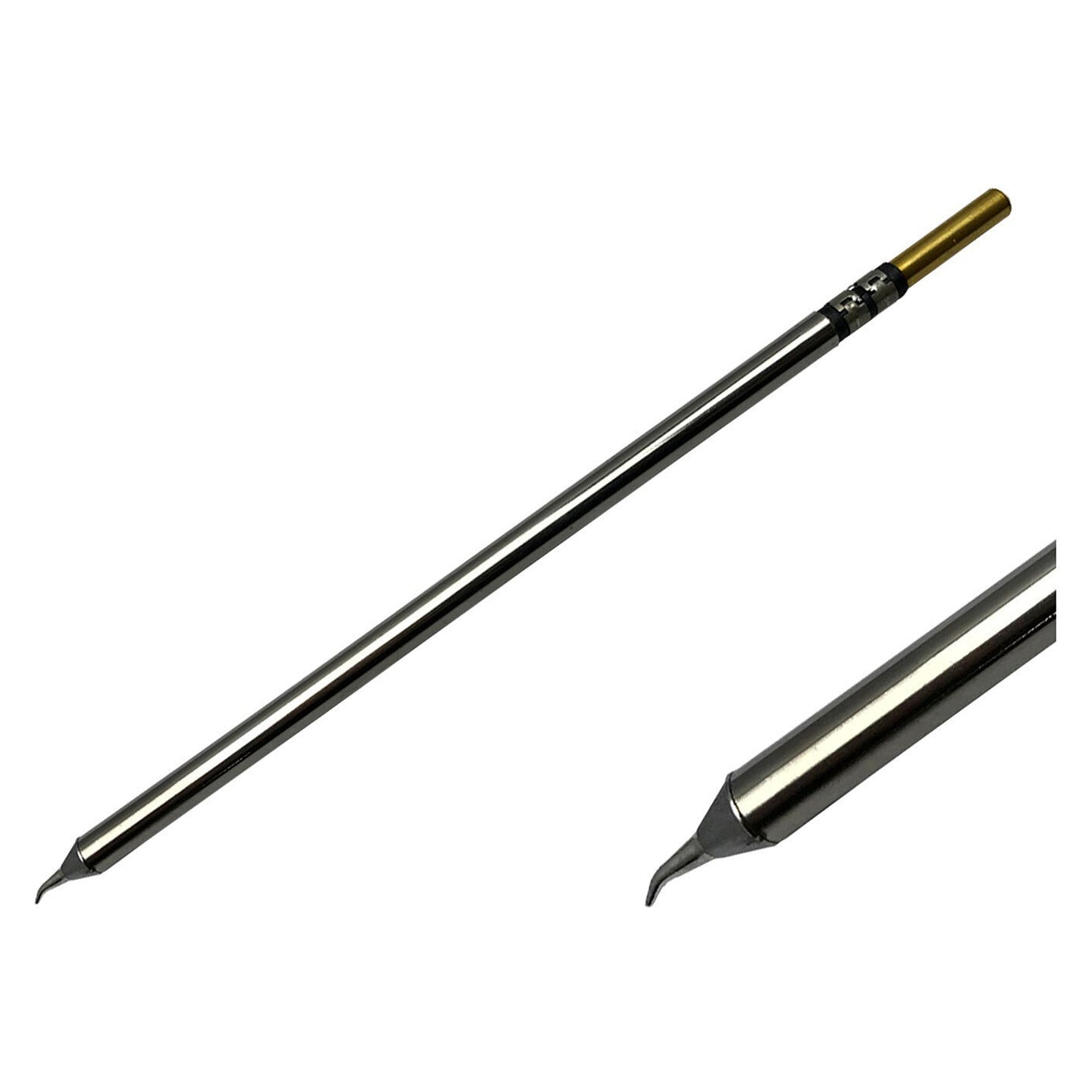

Fine joints between capacitors, connectors and heat sinks need a slim, long tip. The CVC-6CN0004R is a conical reach cartridge with a 0.4 mm tip width and 7.9 mm length, running at a nominal 330 °C.

Benefits

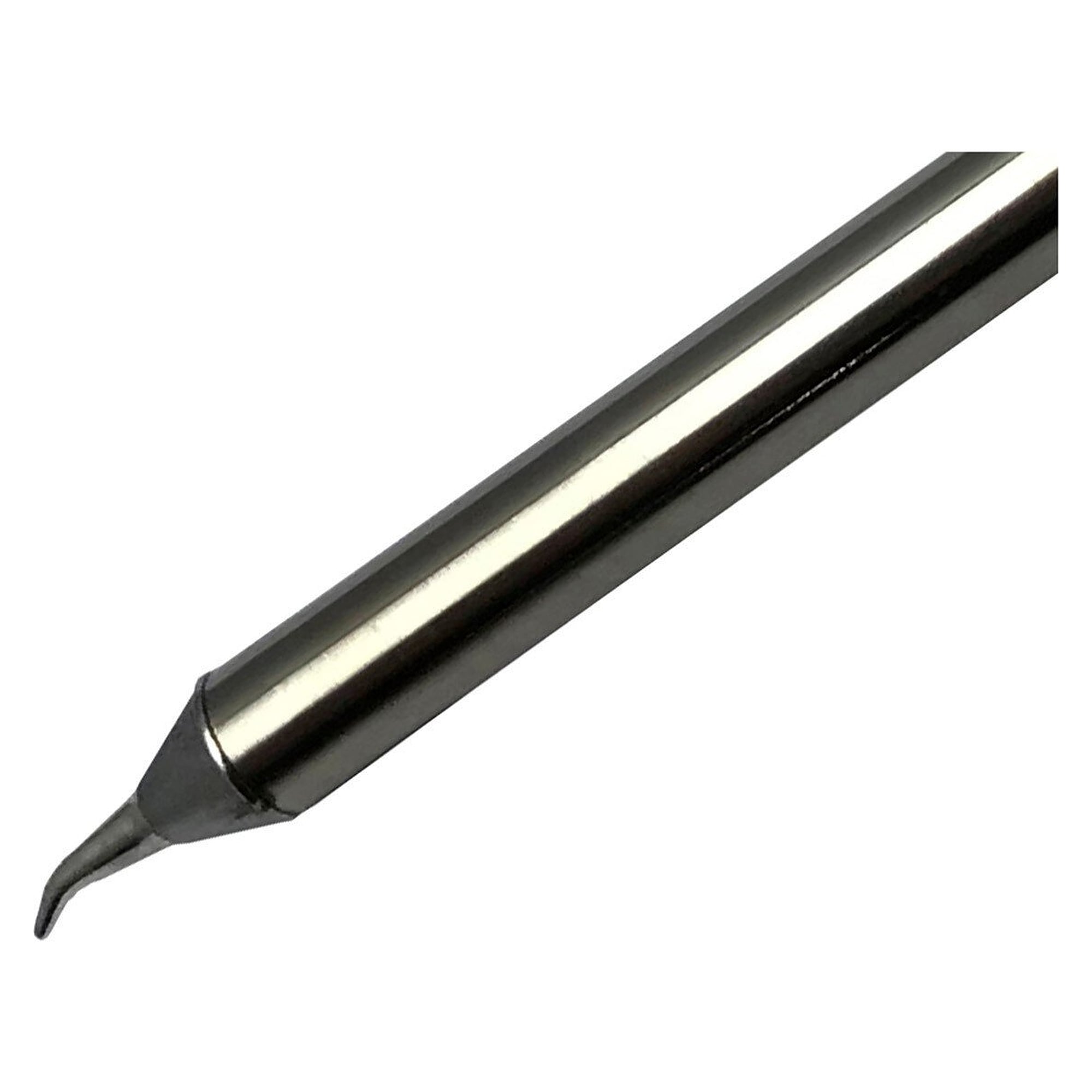

• Conical reach geometry: A 0.4 mm point on a 7.9 mm length reaches joints in narrow, deep areas of the assembly.
• Gentle 330 °C: Metcal intends the 600 series for low-load or low-temperature applications.
• 330 °C nominal: The 600 series runs at a fixed nominal temperature, and Metcal SmartHeat adjusts power automatically during every joint.
• Leaded and lead-free: The cartridge is suitable for both solder types.
• Systems: Part of the standard tip range for the Metcal CV-500, CV-5200, MX-500 and MX-5200 systems.

Cartridge series code

The first digit after the hyphen gives the temperature series: 6 for 330 °C, 7 for 390 °C, 8 for 440 °C and 9 for 470 °C. Metcal recommends the 700 series for most applications. The 600 series suits low thermal load and low temperatures, the 800 and 900 series high temperatures and high heat demand.

Applications

Hand soldering and touch-up of fine joints, work between tall components, temperature-sensitive assemblies.
