Festo MSB6-1/2:C3J1D1A1F3-WP (542269) Service Unit Combinat

Festo
€54,063.00
Excl. 19% VAT , excl. Shipping Cost
Article
FES-542269

Manufacturer Nr.
MSB6-1/2:C3J1D1A1F3-WP
Service Unit Combinat
Add to Wish List Add to Compare

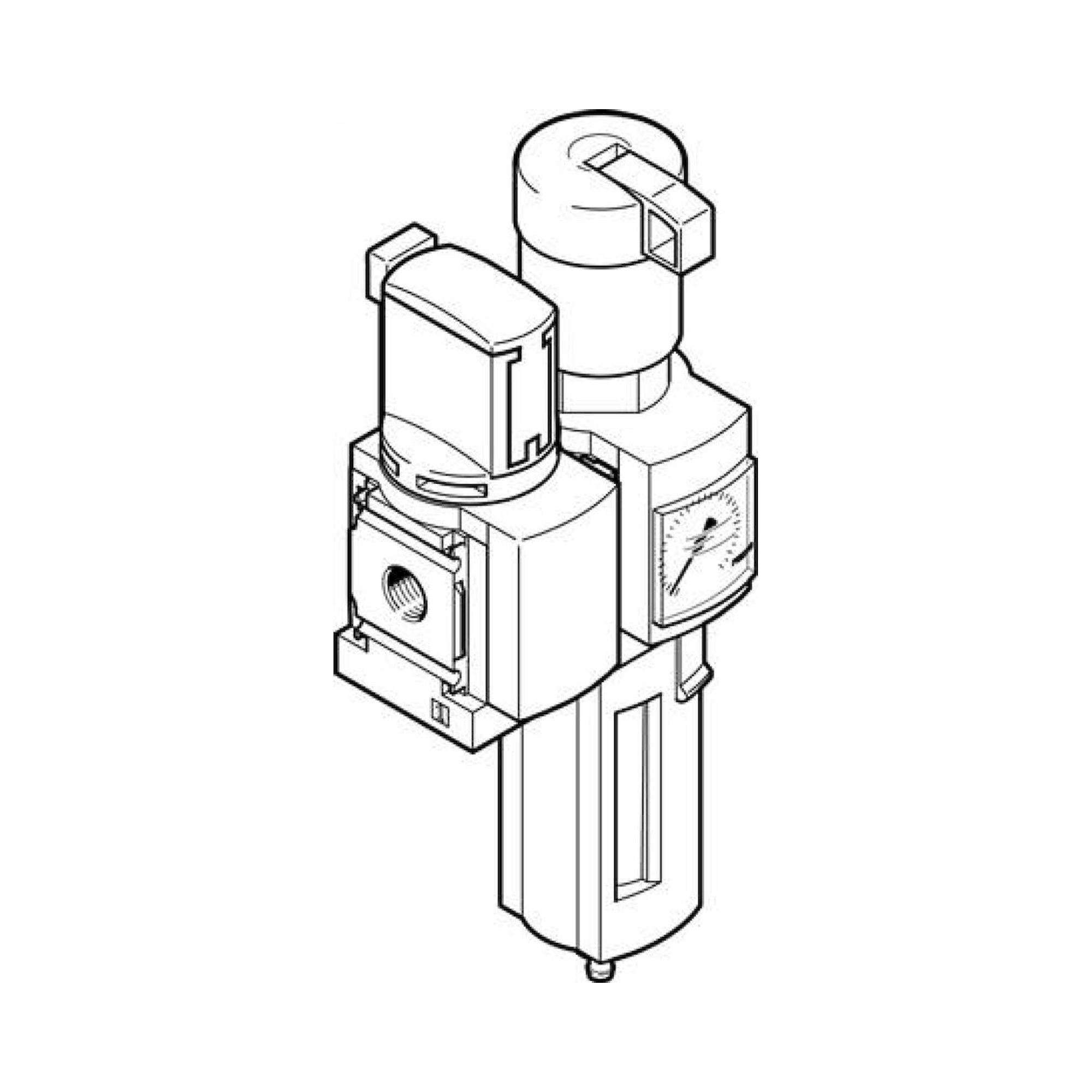

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price
size 6
Model series MS
Actuation fuse Rotary button with stopper
With Accessories lockable
installation position vertical ± 5°
Filter porosity [µm] 40
Condensate drain Manually rotating
Construction set up Branching module
Pressure build-up valve
pressure switch
Switch on valve
Filter regulator with pressure gauge
Controller function Output pressure constant
With Return current behaviour
With relieving
With Pre-pressure compensation
Clamp protection Plastic basket
pressure display with pressure gauge
Operating pressure [bar] 4.5 to 18
Pressure regulation range [bar] 4 to 12
Normal nominal flow [l/min] 3.100
Coil characteristic value 24 V DC: 1,5 W
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Inert gases
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 - moderate corrosion stress
Bearing temperature [°C] -10 to 60
Food compatibility See expanded material information
Air purity class at the output Compressed air to ISO 8573-1:2010 [7:4:4]
Medium temperature [°C] -10 to 60
ambient temperature [°C] -10 to 60
Product weight [g] 3.500
Fastening type With Accessories
Pneumatic connection 1 G1/2
Pneumatic connection 2 G1/2
Pneumatic connection 3 G1/2
Material information RoHs compliant
Housing material Aluminium die casting
Clamps material PC
More Information
Manufacturer Nr. MSB6-1/2:C3J1D1A1F3-WP
Manufacturer Festo
EAN 4052568180263
Weight 5.000000
HS-Code 84811005
GPSR manufacturer information Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Article authenticity Original product
Condition of article New
