Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.
Festo pneumatic component for industrial automation and compressed-air applications in proven quality.
Energy Efficiency Mo MSE6-E2M-5000-FB37-AGD - Festo 3992150
FESTO
Original product
Net price (excl. VAT)
€2,667.83
Item
FES-3992150
Manufacturer no.
MSE6-E2M-5000-FB37-AGD
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.MSE6-E2M-5000-FB37-AGD
EAN4052568273927
Customs tariff number90268020
ConditionNew
Article
FES-3992150
Frequently Bought Together
-
This Item:
€2,667.83
-

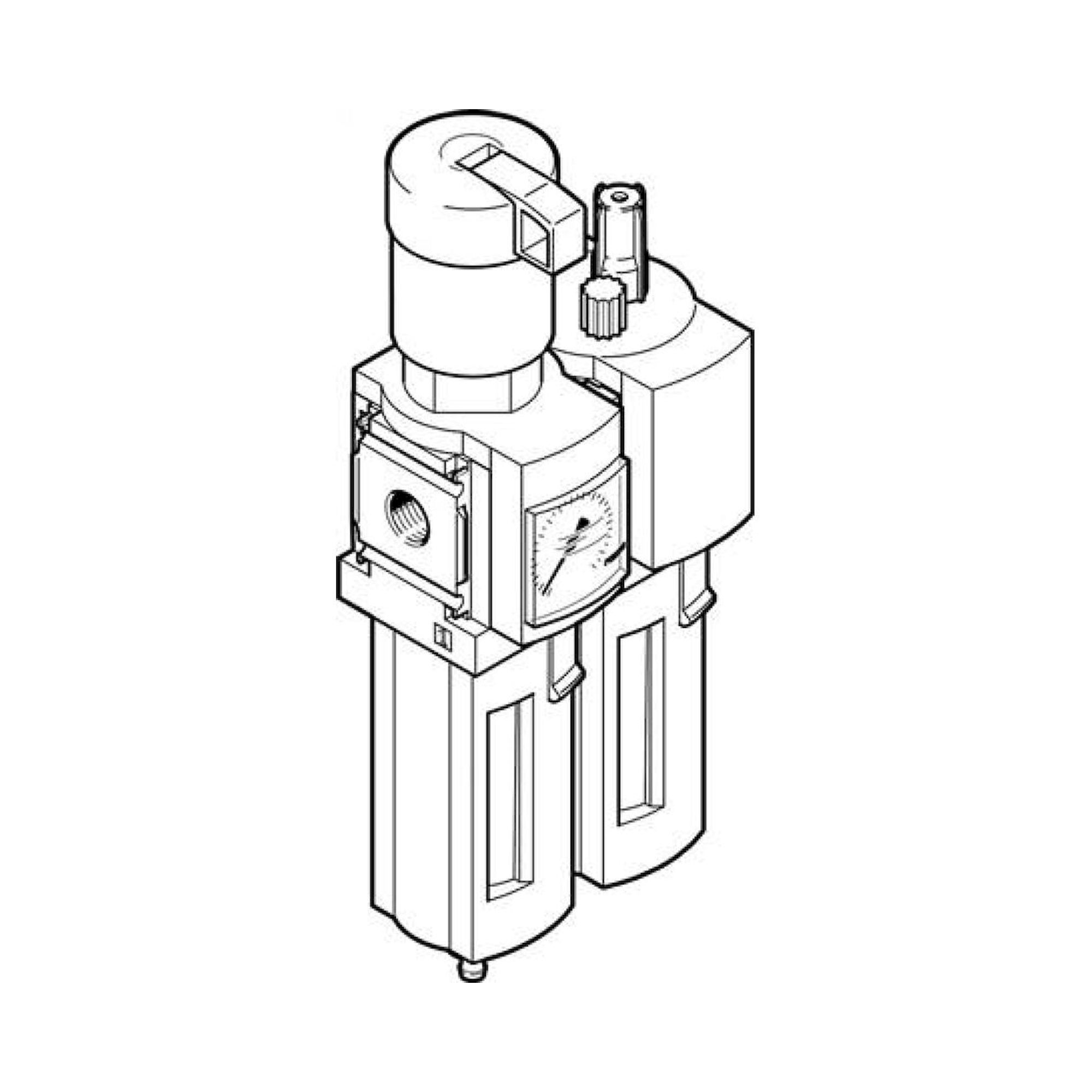

Service Unit Combinat MSB6-1/4-FRC5:J1M1 - Festo 530268
€149.78
-

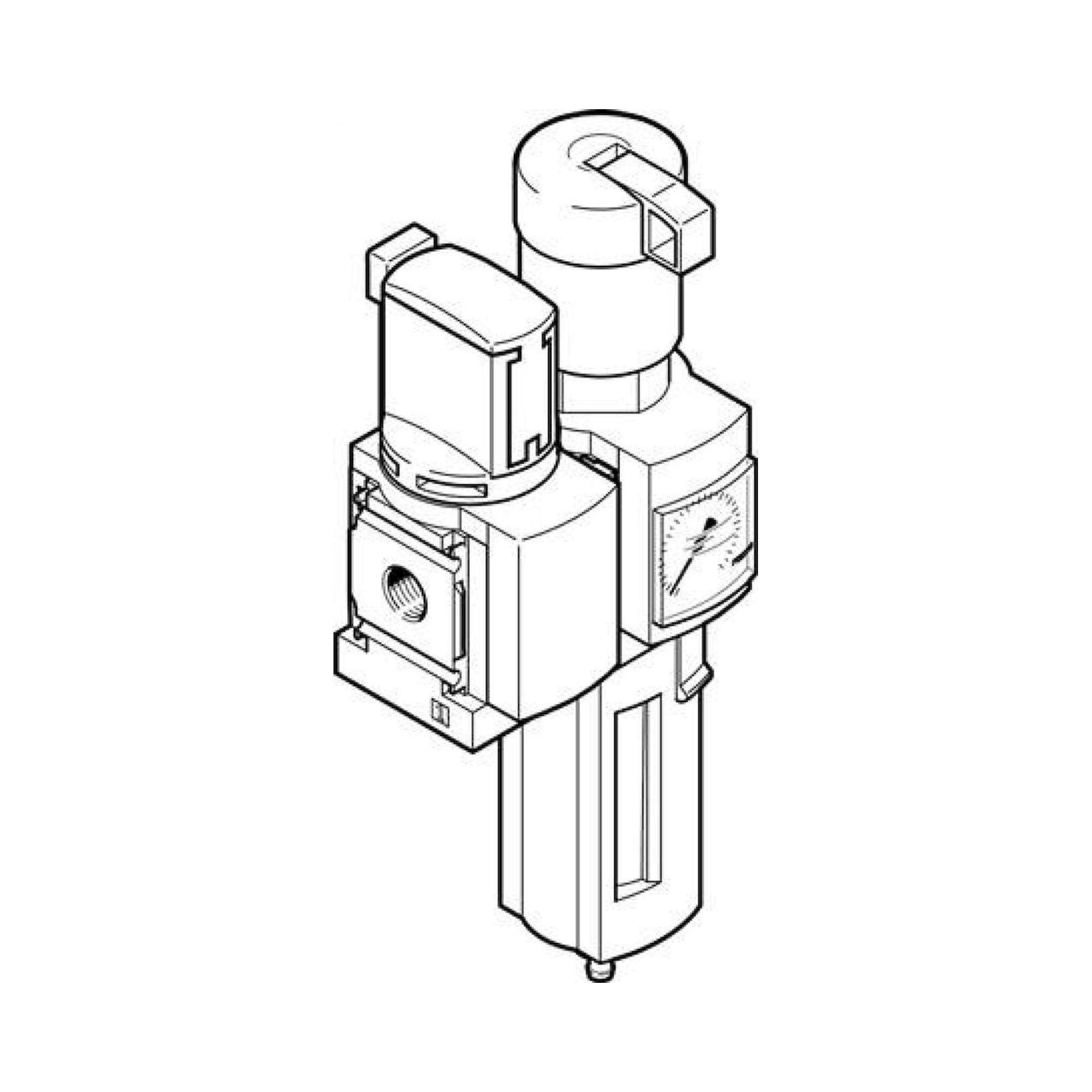

Service Unit Combina MSB6-1/2:C3:J120:D14-WP - Festo 8042670
€425.34
Total price
Festo pneumatic component for industrial automation and compressed-air applications in proven quality. The key technical data of this genuine Festo article are listed below.
| size | 6 |
| Model series | MSE |
| installation position | Horizontal ± 5° |
| Valve function | 2/2 open monostable |
| Operating pressure [bar] | 3.5 to 10 |
| Permission | RCM mark |
| KC-mark | KC-EMV |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation not possible |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Bearing temperature [°C] | -10 to 60 |
| Medium temperature [°C] | 0 to 50 |
| Protection category | IP65<br>With Socket |
| ambient temperature [°C] | 0 to 50 |
| Product weight [g] | 3.300 |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 |
| Seals material | NBR |
| Housing material | Aluminium die casting |
| Cover material | PA reinforced |
| Cover material | PA reinforced |
| Fieldbus interface | 2x Socket M12x1.4-pin, D-coded |
| Operating voltage range DC electronics / sensor [V] | 18 to 30 |
| Operating voltage DC load voltage [V] | 18 to 26.4 |
| Reverse polarity protection | for operating voltage connections |
| Presentable unit(s) | kPa<br>l<br>l/min<br>m3<br>mbar<br>psi<br>scf<br>scfm |
| Flow measurement range starting value [l/min] | 50 |
| Flow measurement range end value [l/min] | 5.000 |
| Accuracy flow value | ± (3% o.m.v. + 0,3% FS) |
| Pressure measurement range starting value [bar] | 0 |
| Pressure measurement range end value [bar] | 14 |
| Accuracy FS [%FS] | 3 |
| Operating conditions | ISO 8573-1 |
|---|---|
| Manufacturer Nr. | MSE6-E2M-5000-FB37-AGD |
| Manufacturer | Festo |
| EAN | 4052568273927 |
| Weight | 4.000000 |
| HS-Code | 90268020 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
| Temperature (max.) | 50 |
| Material | Aluminium |
| Betriebsdruck max [bar] | 10.000000 |
| Pneumatic connection | G1/2 |
| Protection rating | IP65 |
| Series | MSE6 |
| Dichtmaterial | NBR |
| Medium | Compressed air |
| Funktion | 2/2 open monostable |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| Mounting position | Horizontal ± 5° |
| Position sensing | No |
