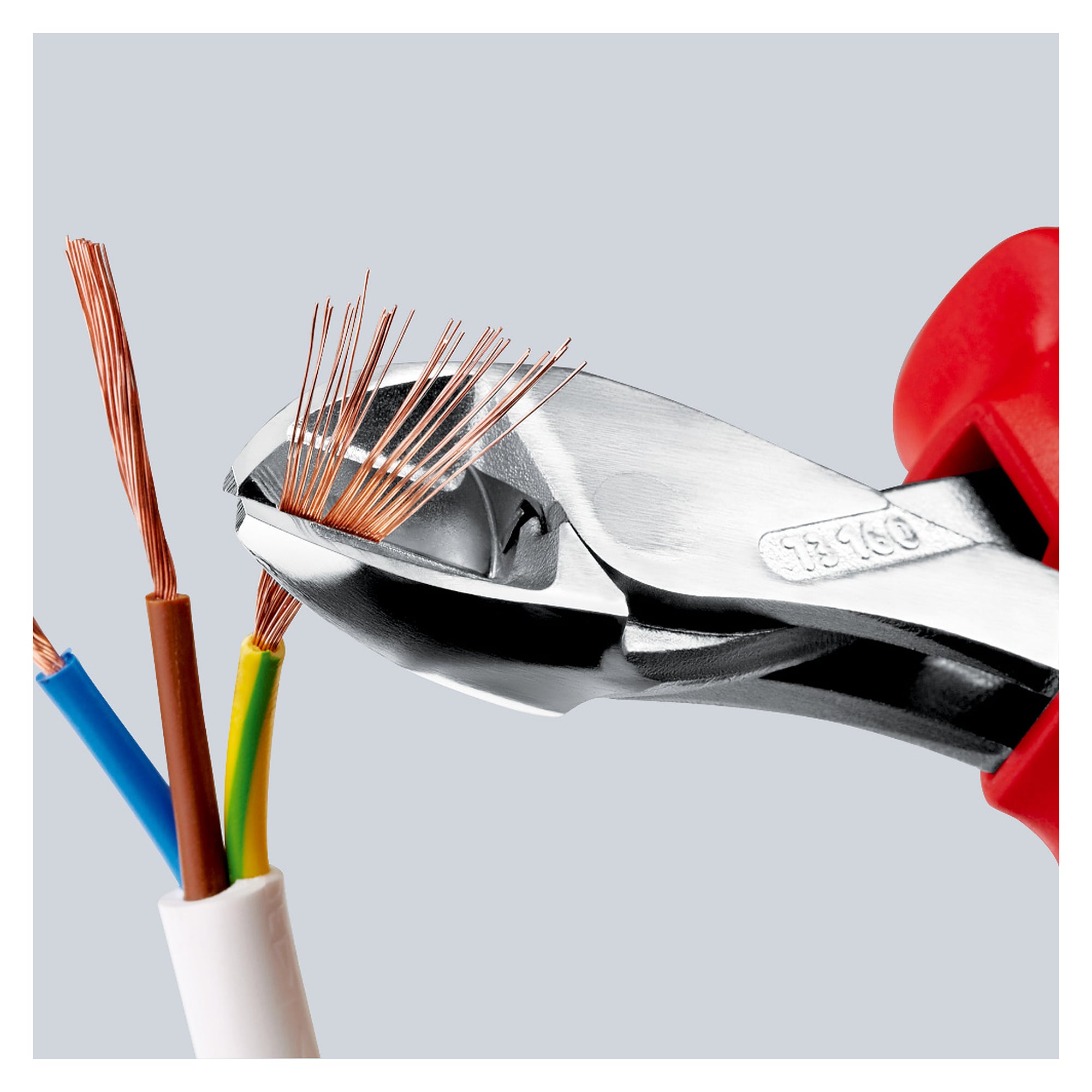

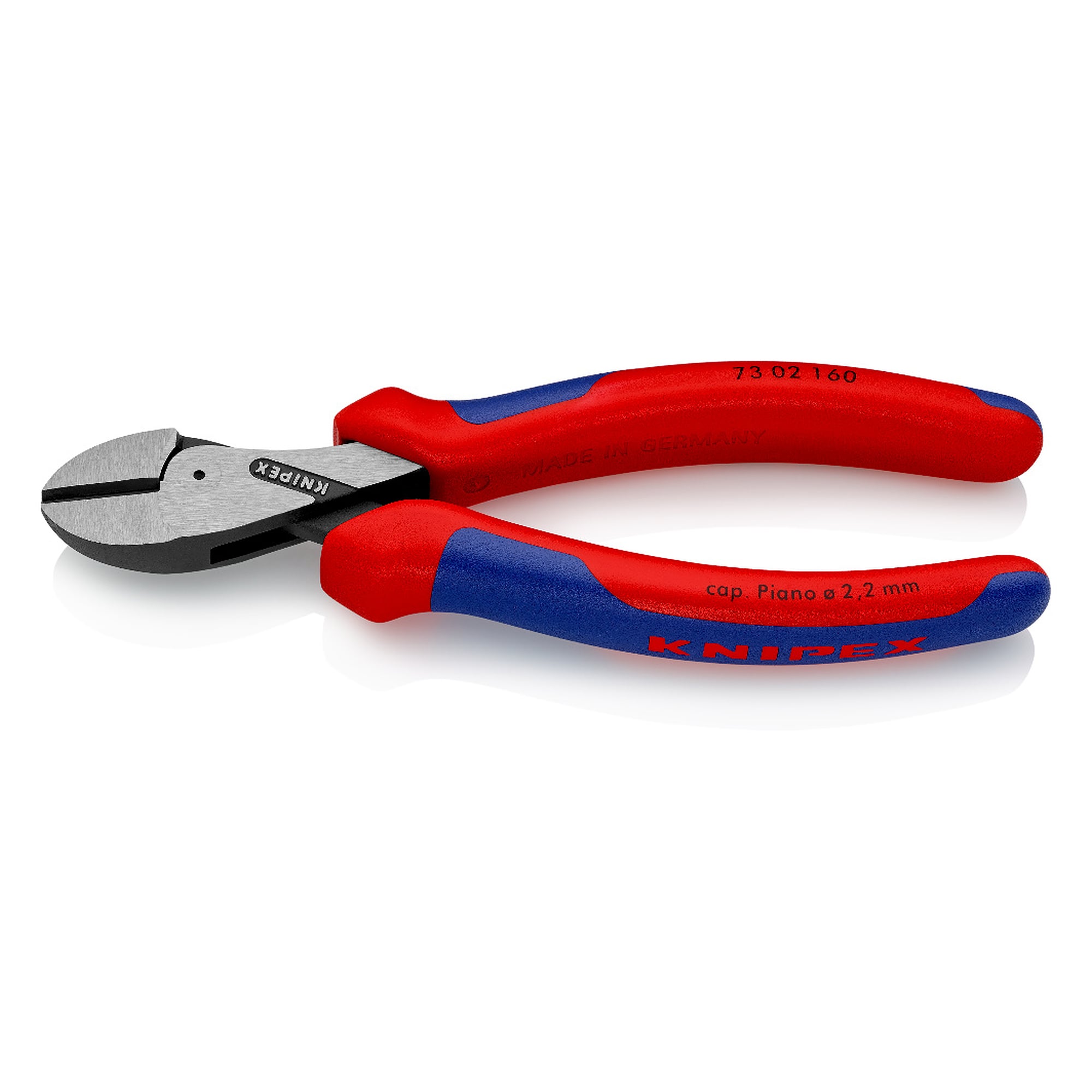

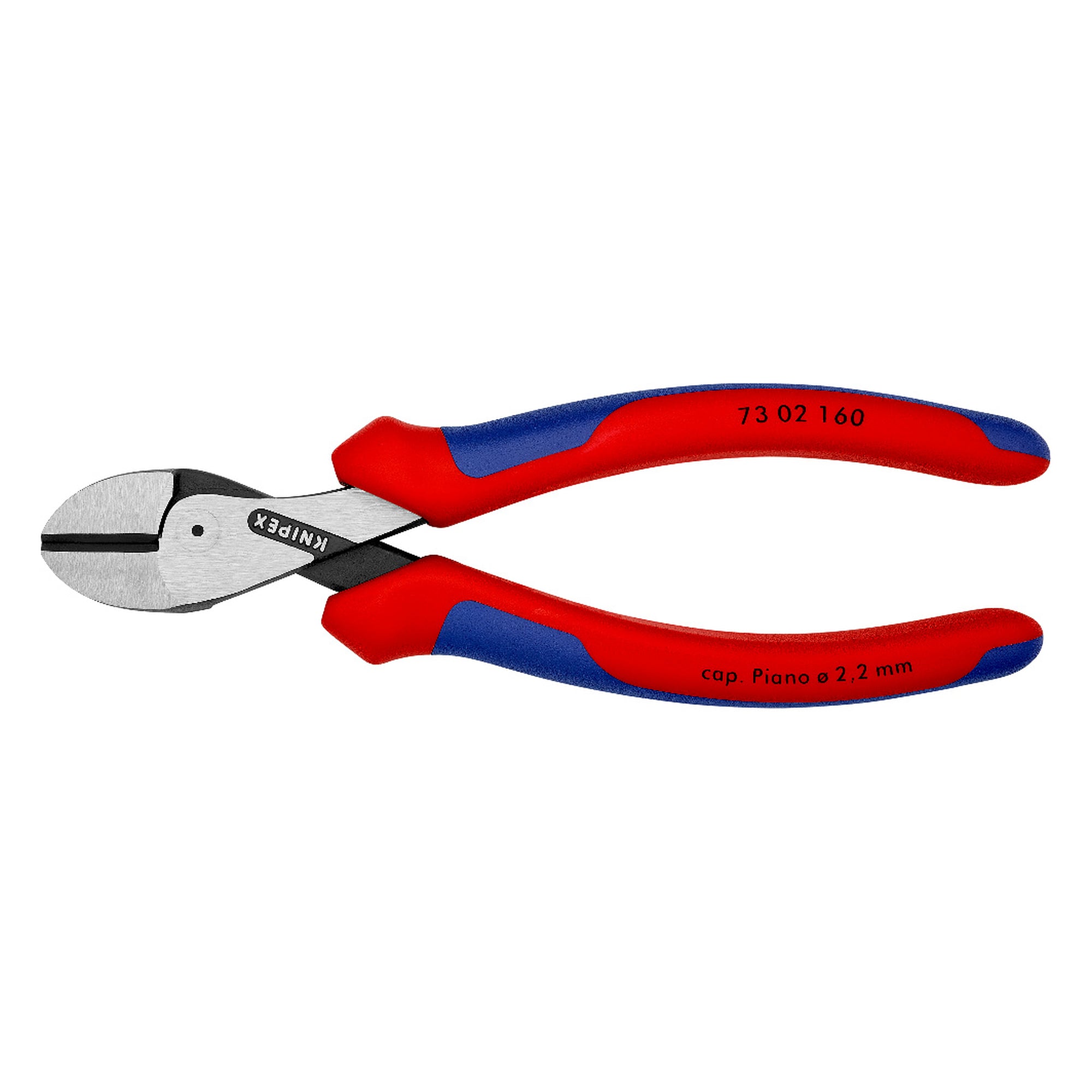

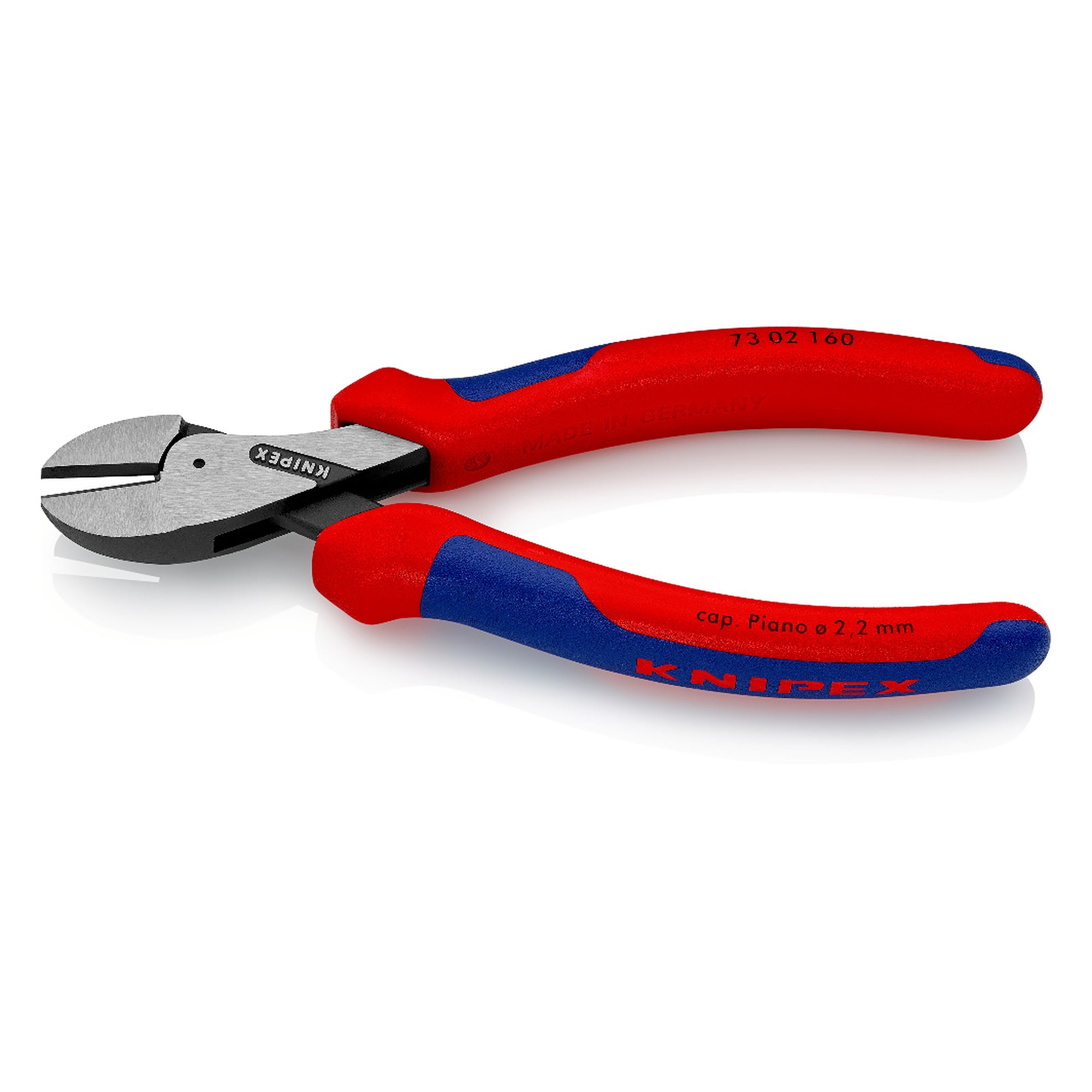

KNIPEX X-Cut® precisely cuts finest wires as well as multi-stranded cables and hard piano wire. Powerful, light and universal. High cutting performance with low effort due to optimum coordination of cutting edge angle and transmission ratio. Through-hole joint: maximum stability with low weight. Double-bearing joint axle for hard, permanent use. Large opening width for thicker cables. Precise cut even with fine copper wires. Compact, weight-saving design. Universally applicable in assembly, maintenance and production. 40 % force savings compared to standard side cutters of the same length. - Cutting values medium hard wire (diameter): Ø 3,8mm - Cutting values hard wire (diameter): Ø 2,7mm - Cutting values piano wire (diameter): Ø 2,2mm - Cutting values Cu-cable, stranded: Ø 12,0mm - Cutting values soft wire (diameter): Ø 4,8mm
- High cutting performance with low effort due to optimum coordination of cutting edge angle and transmission ratio
- Through-hole joint: highest stability with low weight
- Double-bearing joint axle for hard, permanent use
- Large opening width for thicker cables
- Precise cut even with fine copper wires
- Compact, weight-saving design
- Universally applicable, in assembly, maintenance and production
- 40 % force saving compared to standard side cutters of the same length
Product details
| item number | WL27689 |
| model | 73 02 160 |
| manufacturer | KNIPEX |
| manufacturer item number | 73 02 160 |
| dimensions (LxWxH) | 165 mm x 60 mm x 21 mm |
| dimensions with packaging (LxWxH) | 264 mm x 94 mm x 51 mm |
| Packaging volume | 1.266 dm³ |
| order unit | piece |
| type of packaging | single pack |
| standards | DIN ISO 5749 |
| product series | X-Cut® |
| RoHS conform | no |
| surface | black atramentised |
| VDE | no |
| ESD safe | no |
| tool length | 160 mm |
| type of side cutter | side cutter |
| type of handle | with multi-component sleeves |
| Cutting value copper cable, multistranded | 12 mm² |
| Cutting value copper cable, multistranded (diameter) | 12 mm |
| cutting value wire diameter hard | 2.7 mm |
| cutting value wire diameter medium | 3.8 mm |
| cutting value wire diameter soft | 4.8 mm |
| cutting value diameter piano wire | 2.2 mm |
