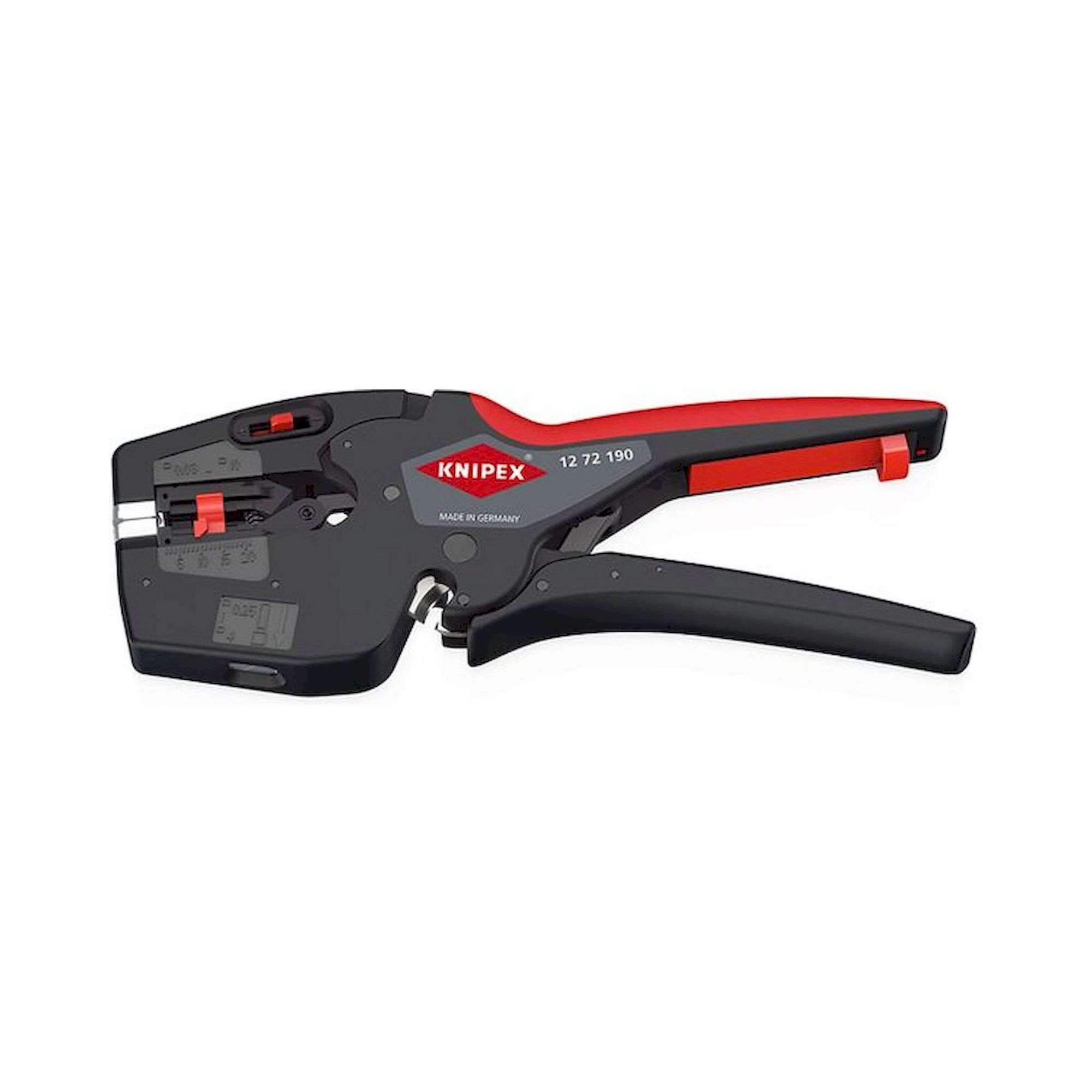

NexStrip multi tool for electricians, crimping, stripping and cutting, 190 mm - Knipex 12 72 190

Wiring work means switching between stripping, crimping and cutting all the time, and every change of tool costs time. The NexStrip multi tool for electricians 12 72 190 combines those three steps in a single tool 190 mm long and weighing 170 g.

Benefits

• Quick, precise square crimp of single wire ferrules according to DIN 46228 parts 1 and 4, self-adjusting between 0.25 and 4 mm² as well as 2 x 2.5 mm², so different sizes follow one another without any change of dies.
• The ratchet mechanism only releases the tool after a complete crimping cycle, which keeps crimp quality consistently high.
• Stripping of flexible and solid conductors between 0.03 and 10 mm², which is AWG 32 to 8, with automatic size adaptation and a length stop for repeatable stripping lengths.
• Fine adjustment for special insulating materials or unusual temperature conditions.
• Clean cut of copper and aluminium conductors, fine-stranded up to 10 mm² or AWG 8, solid up to 6 mm² or AWG 10.
• Sturdy housing made of glass fibre reinforced plastic, handles with non-slip plastic grips and an ergonomic two-component grip.

Areas of use

For electrical professionals wiring electronic equipment such as programmable logic controllers, for domestic installations and for camper van conversions. The tool pays off wherever stripping, crimping and cutting alternate and each step would otherwise call for a separate tool in the hand.

Standards and conformity

The square crimp follows DIN 46228 parts 1 and 4 for wire ferrules. According to the manufacturer the tool contains substances of very high concern under the REACH regulation, and the RoHS directive does not apply.
