Tool case for photovoltaics, 7 pieces for solar connectors MC4, 4.0 to 10.0 mm² - Knipex 97 91 04 V02

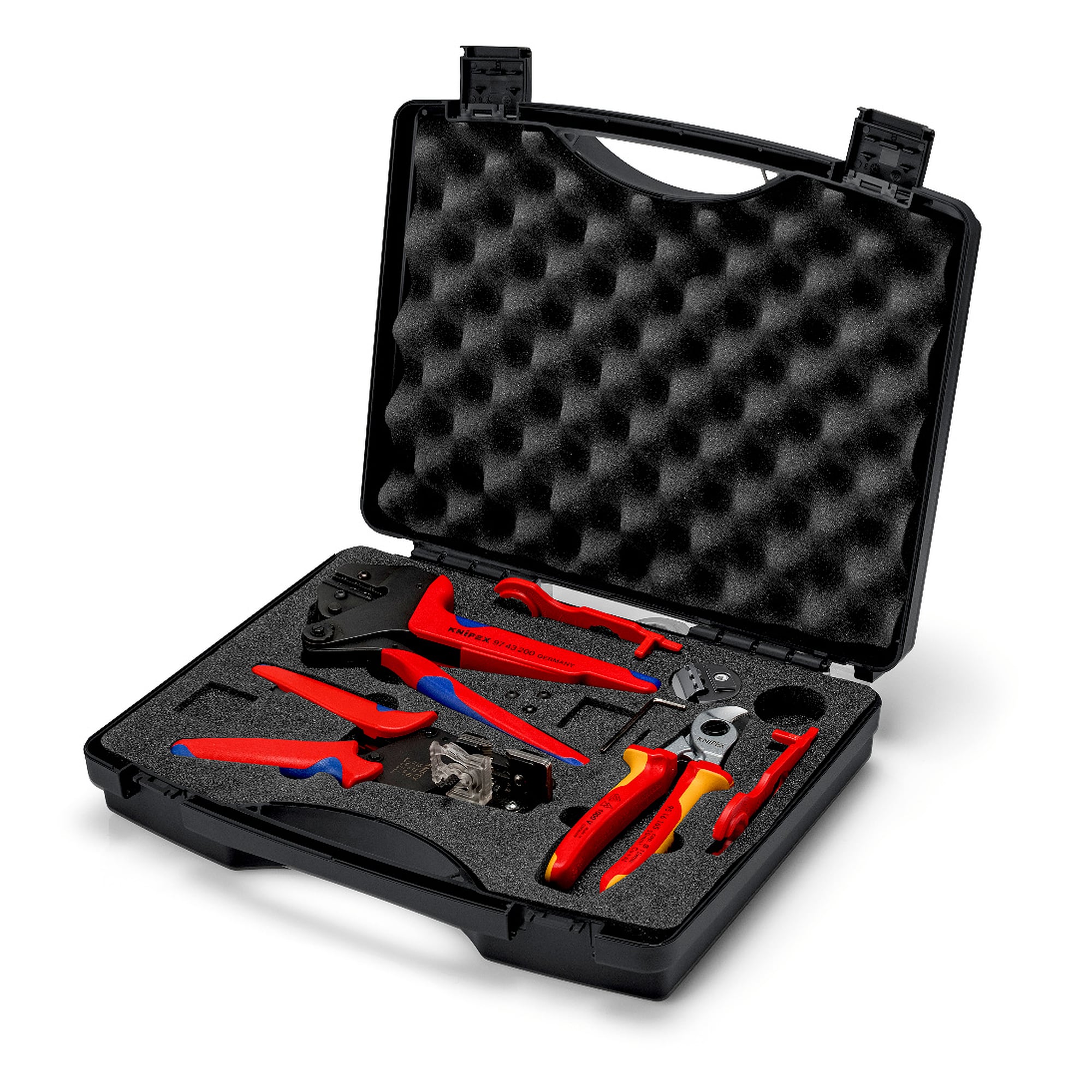

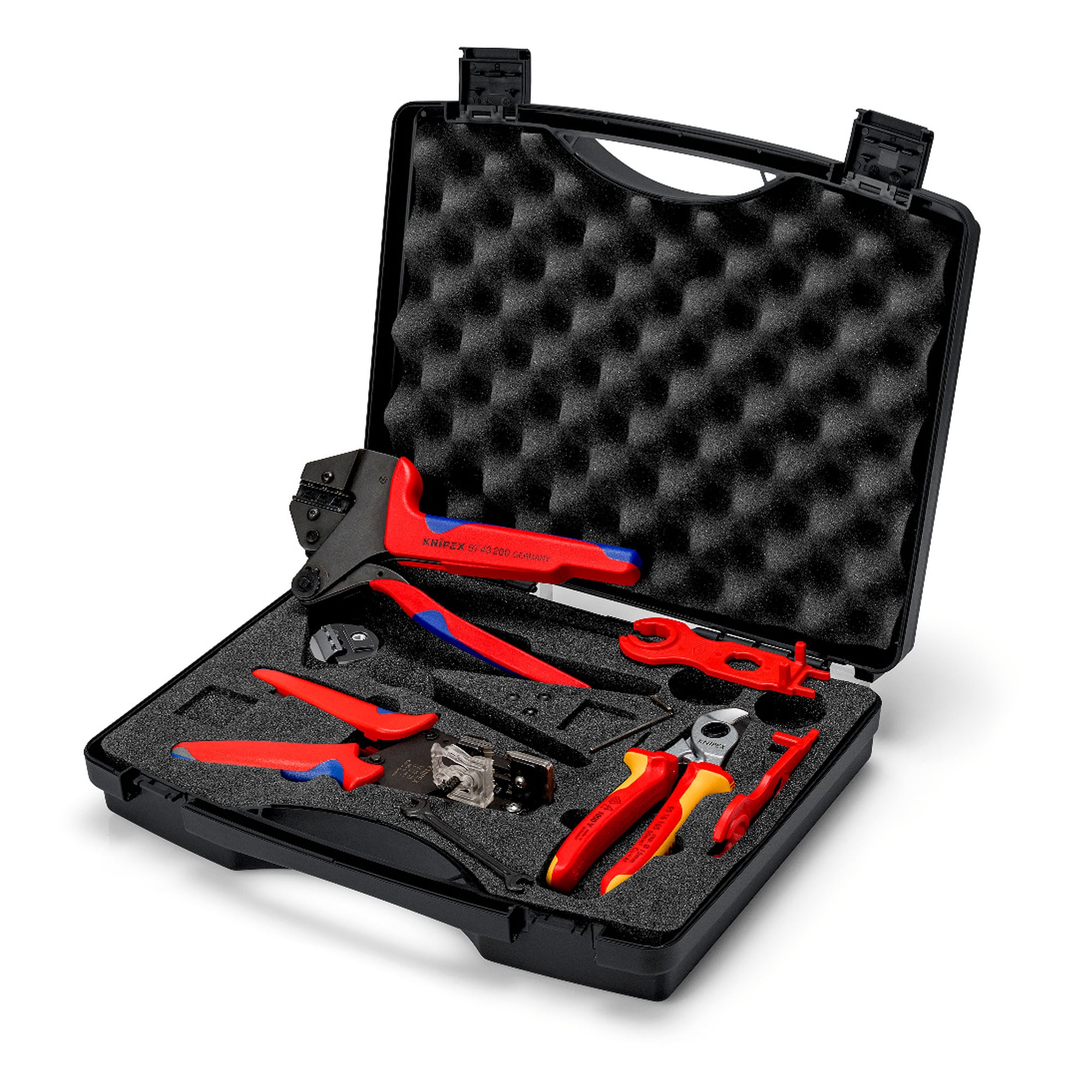

String cables and long runs to the inverter are wired in 6.0 and 10.0 mm², where the matching crimping die and the right blade profile decide the contact resistance. Tool case 97 91 04 V02 brings together 7 tools for MC4 solar connectors and covers 4.0 to 10.0 mm².

Benefits

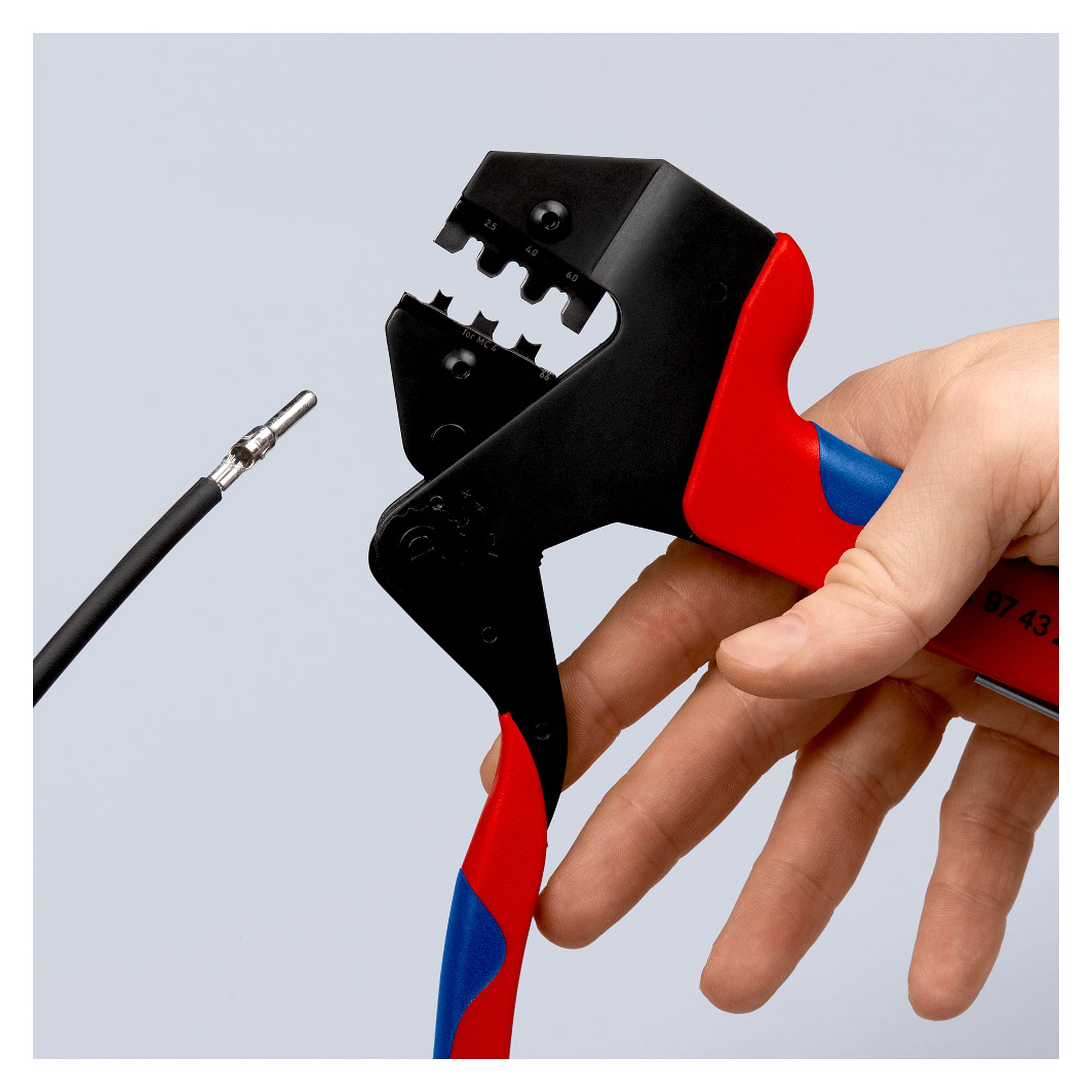

• Crimp System Pliers 97 43 200 A for interchangeable crimping dies, the crimping pressure is precisely set and calibrated at the factory.
• Crimping die 97 49 71 for MC4 solar connectors in 4.0 / 6.0 / 10.0 mm² together with locator 97 49 71 1.
• Precision Insulation Stripper 12 12 12 with adapted blades for 4.0 / 6.0 / 10.0 mm², covering the larger stripping capacities.
• Cable shears 95 16 165 for copper cables up to Ø 15 mm, plus an Allen key for changing the crimping dies.
• Set of mounting tools 97 49 66 2 for tightening the cable glands of MC4 solar connectors and for releasing the locking of MC4 housings.

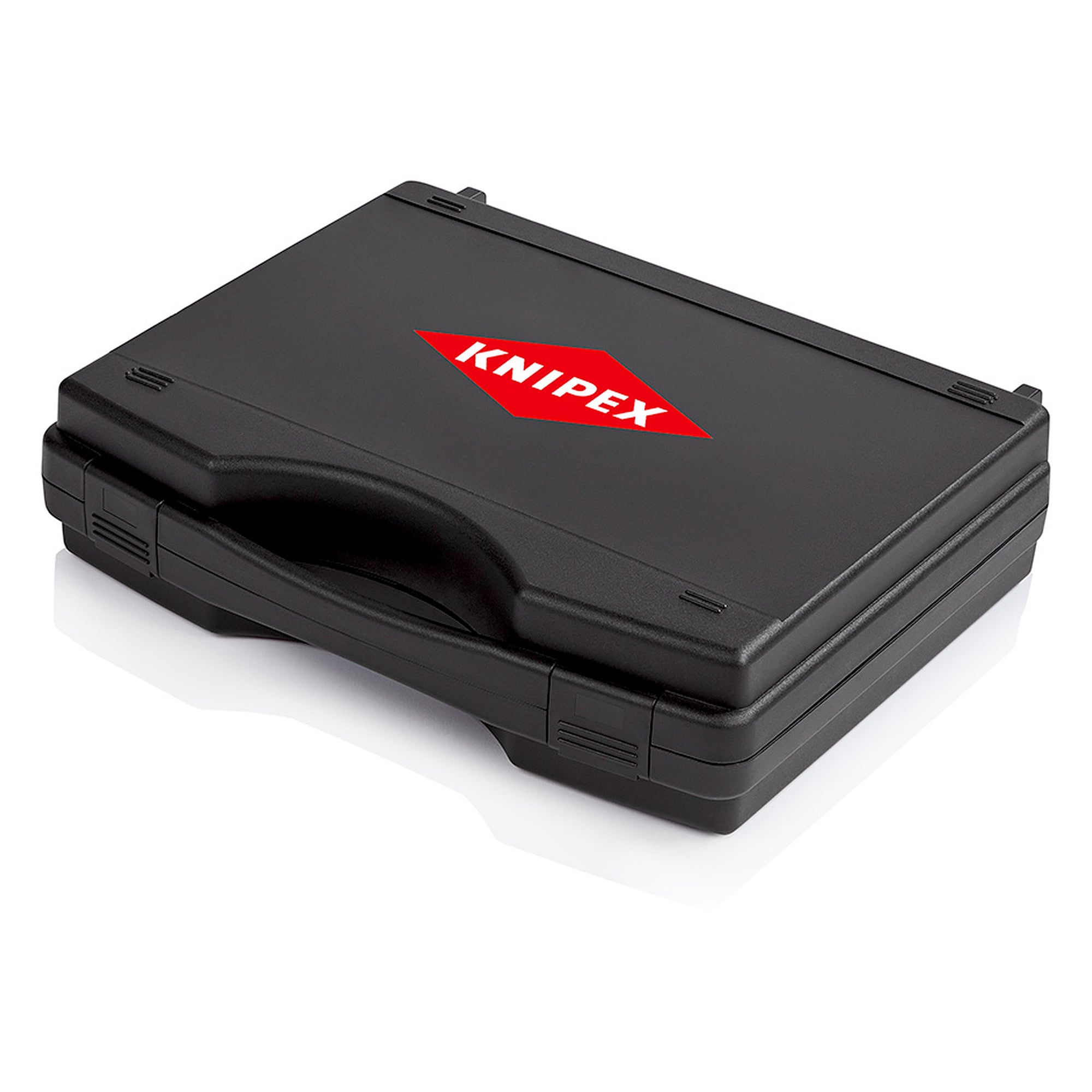

• Foam insert with recesses for the tools as well as for 2 crimping dies and 2 locators inside the impact-resistant plastic case.

Areas of use

Construction and maintenance of photovoltaic systems with larger conductor cross-sections, assembly of string and main cables on the roof and at the inverter. For 2.5 to 6.0 mm² the manufacturer offers case 97 91 04 V01.

Standards and conformity

The manufacturer does not state a tool standard for this case. According to the manufacturer the contents include substances of very high concern under REACH, the RoHS directive does not apply.
