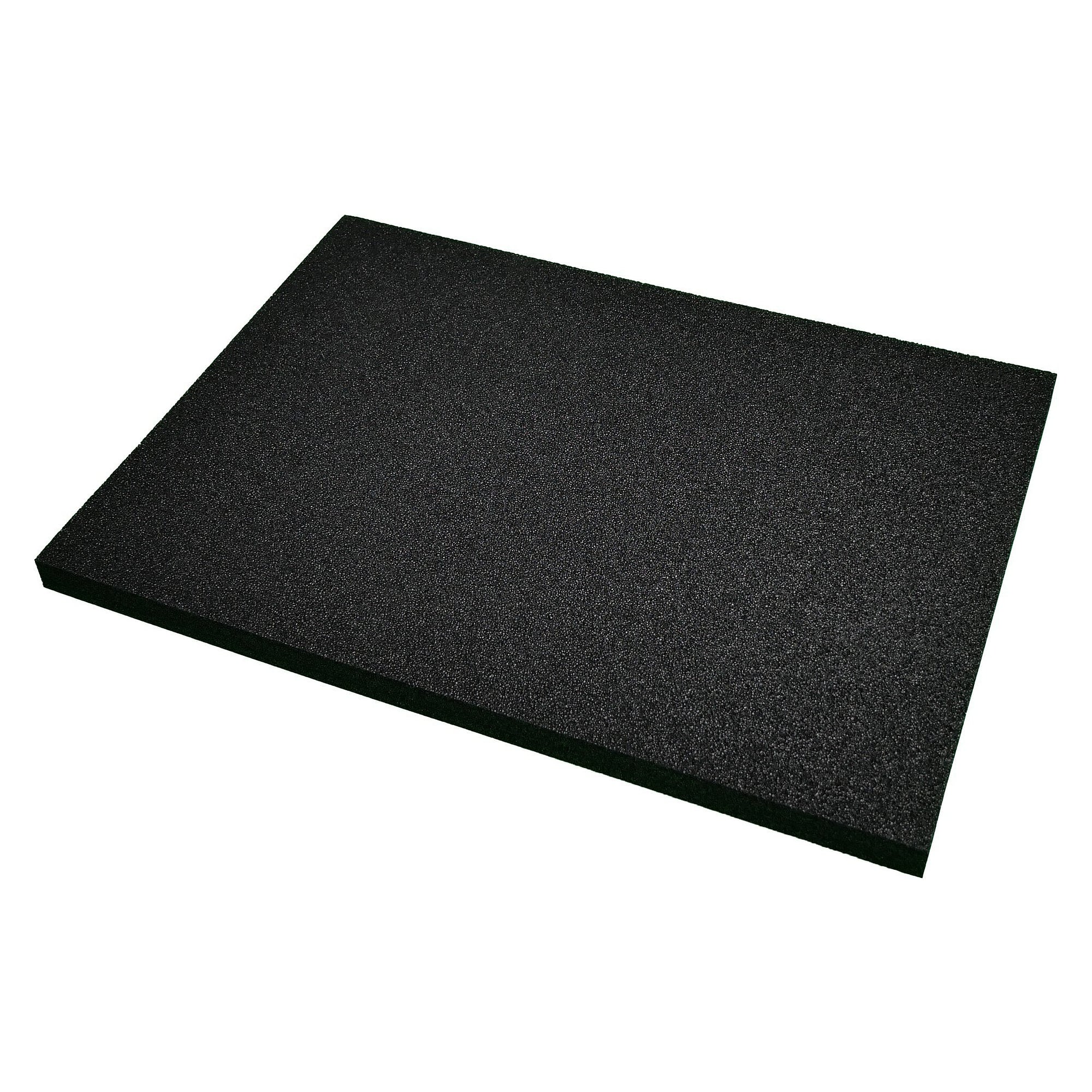

ESD PUR foam EL23 conductive, black, 353 x 253 mm, 15 mm thick - A1-ESD EP0705141

The taller the components on an assembly, the more padding depth the container needs. This PUR foam EL23 sheet offers 15 mm of thickness in a 353 x 253 mm format and stays conductive at 10E3 to 10E4 ohms, so the cushioning itself holds no charge.

Benefits

• 15 mm thickness - room to take in heat sinks, electrolytic capacitors and upright connectors.
• Conductive at 10E3 to 10E4 ohms - charge is led through the material rather than stored in it.
• Soft grade - components press in and the assembly then rests quietly in the container.
• 353 x 253 mm sheet - an insert for ESD cartons and containers in this format.
• 0.1 kg per sheet - no meaningful addition to the shipping weight.

Technical data

Application

The sheet works as a base or lid insert in ESD containers used to move or store populated boards with tall components. In deeper cartons it also serves as an interlayer between two tiers of assemblies.

The same format is also available in 6 mm and 10 mm thickness. Minimum order quantity is 10 pieces, in increments of 1.
