MultiGround Monitor with Personnel Grounding and Grounding Monitoring
Permanent ESD monitor that combines personnel grounding via the wrist strap and continuous grounding monitoring of operator and worksurface in one device. Multi-colour LED bar, internal buzzer, relay output. Meets IEC 61340-5-1 and ANSI/ESD S20.20.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

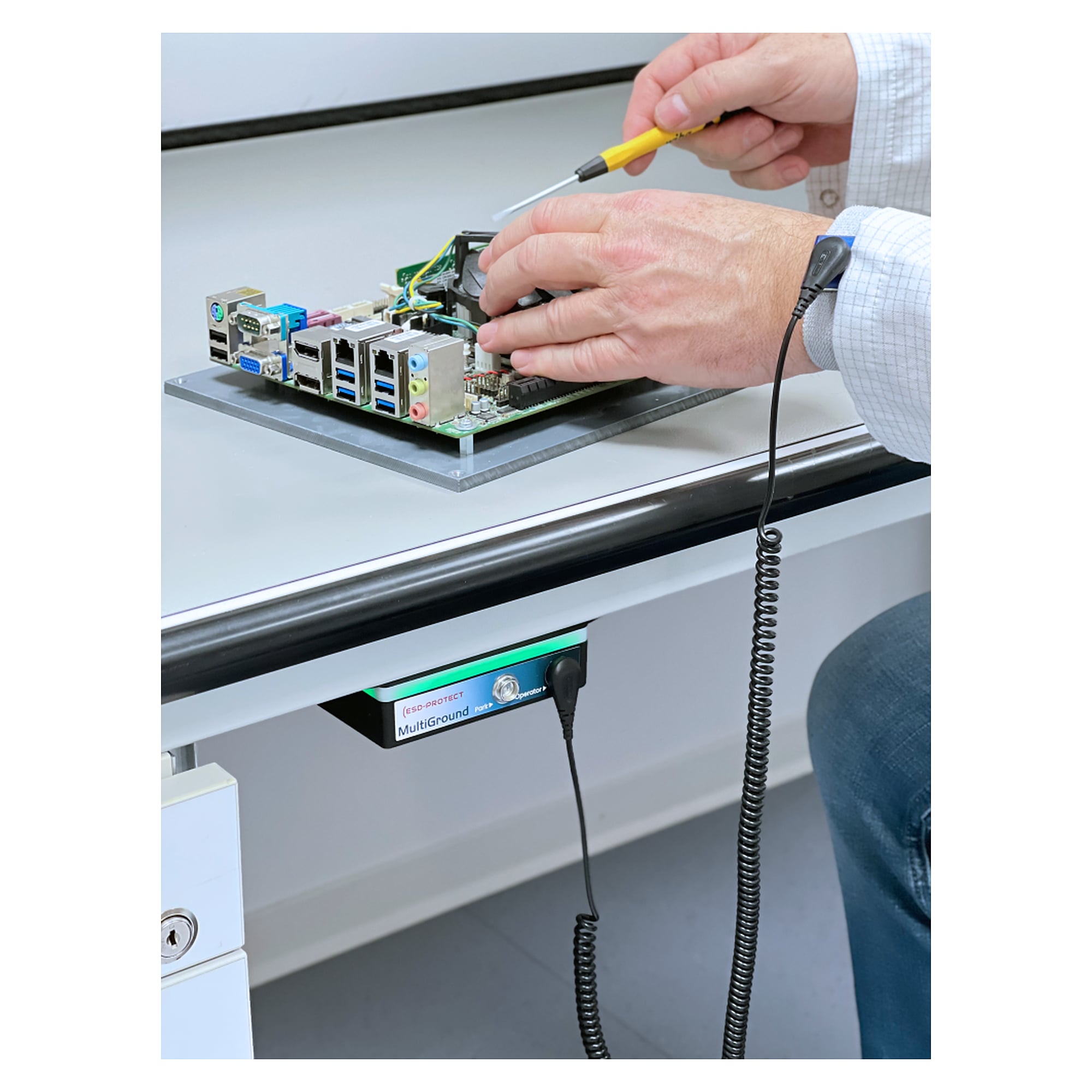

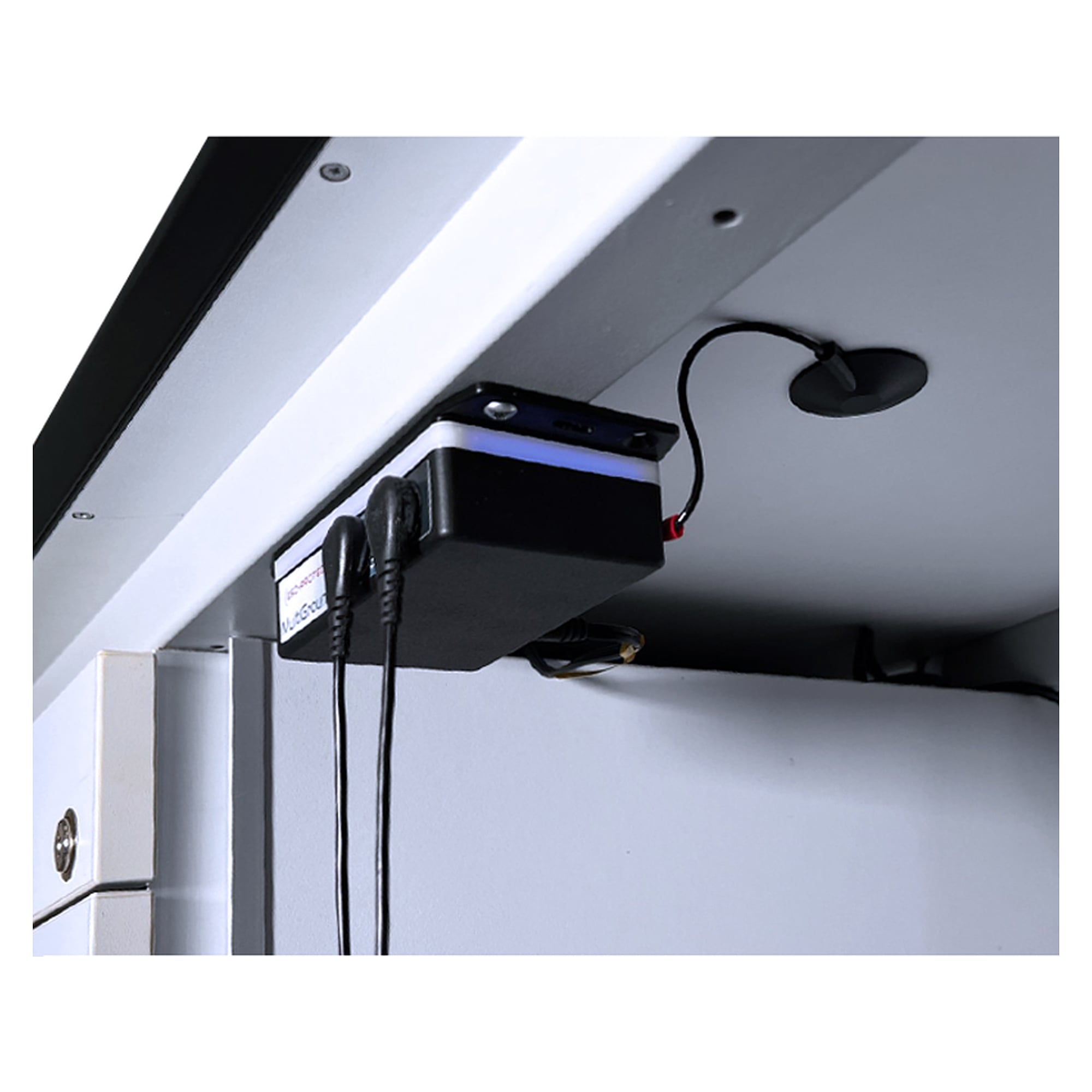

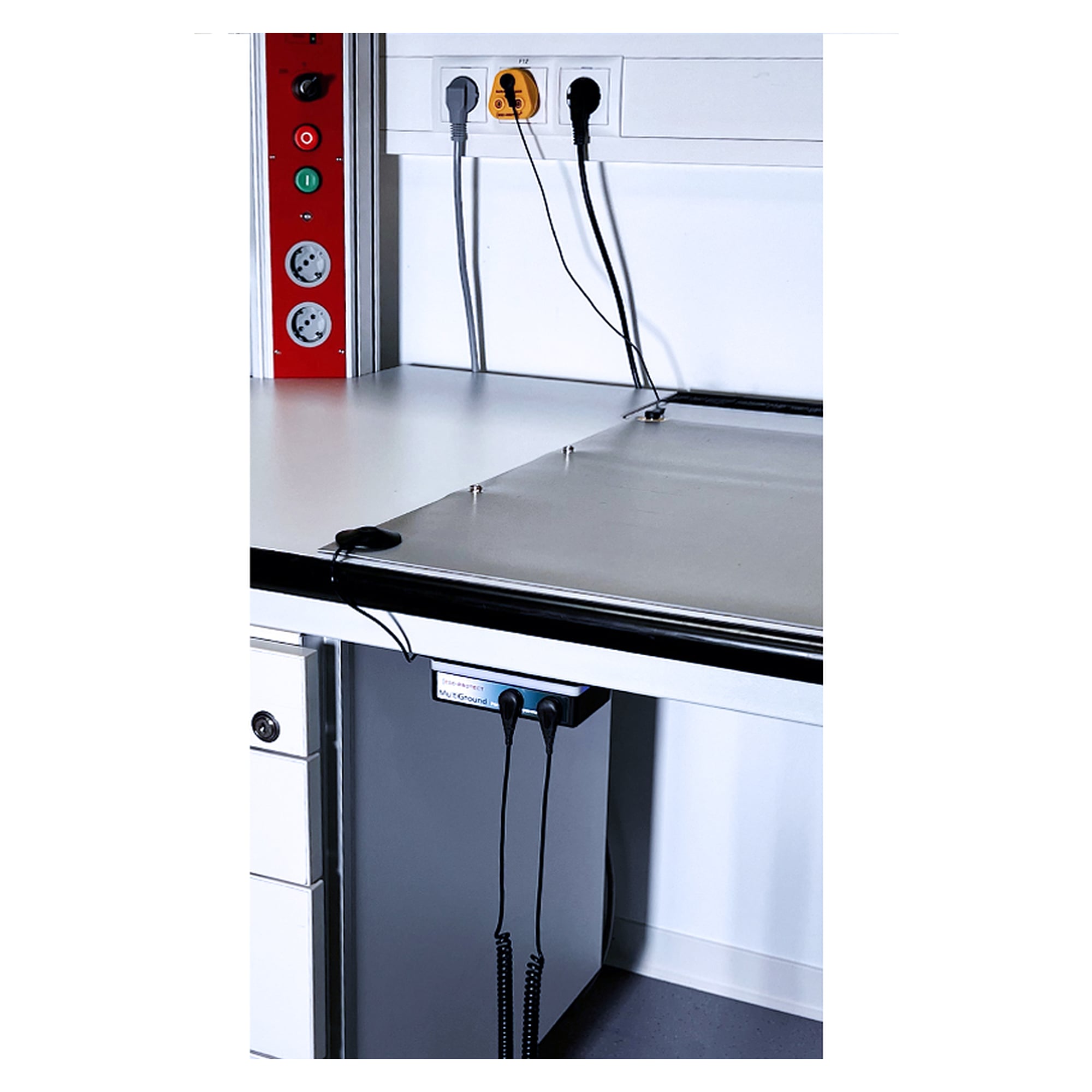

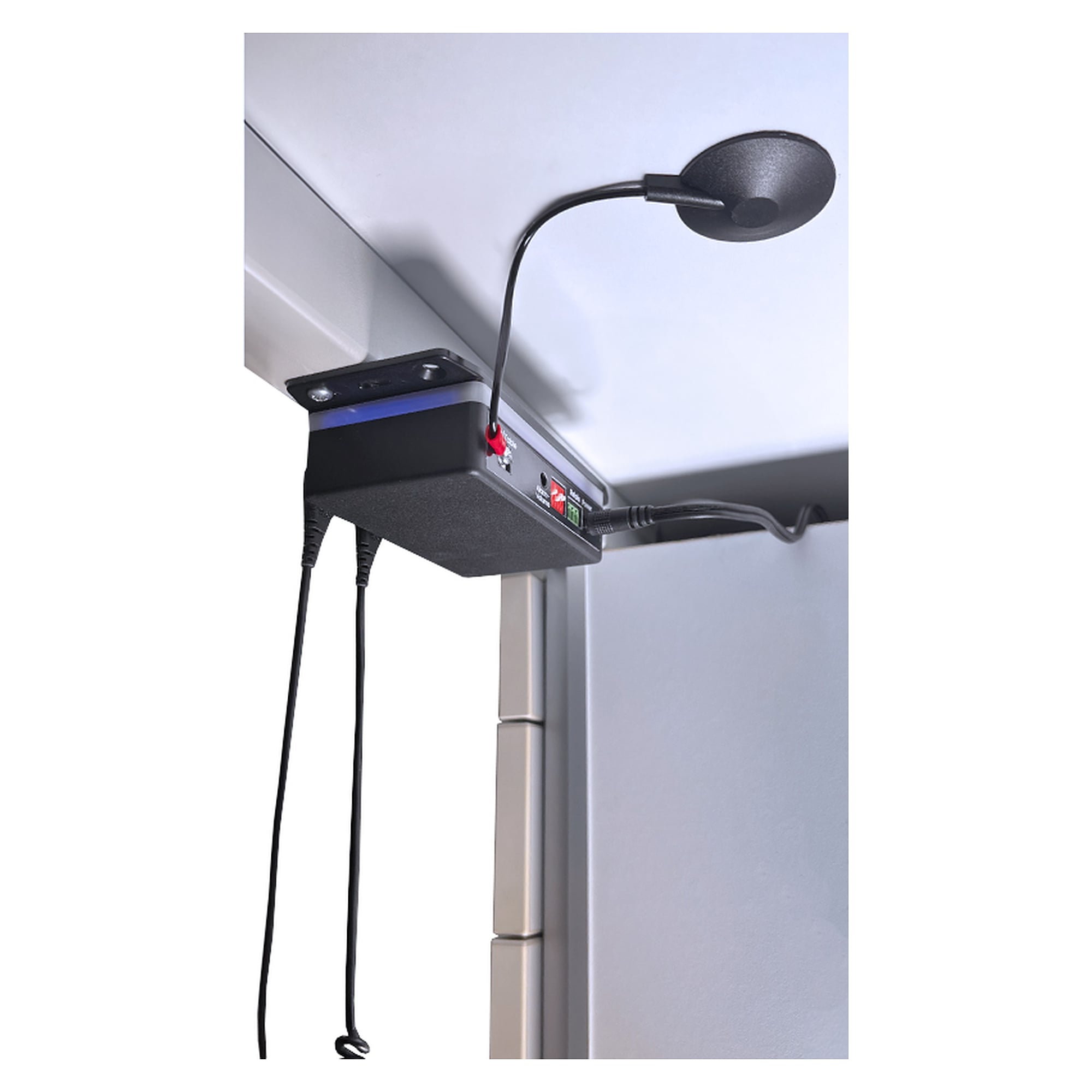

The MultiGround Monitor ensures permanent grounding of the worksurface and wrist strap. It combines two functions in one device: personnel grounding via the wrist strap and continuous, precise monitoring of the grounding of operator and worksurface.
Benefits
- All in one, no separate personnel grounding required
- Fast and exact measurement of worksurface and wrist strap grounding
- Internal buzzer for audible alarm

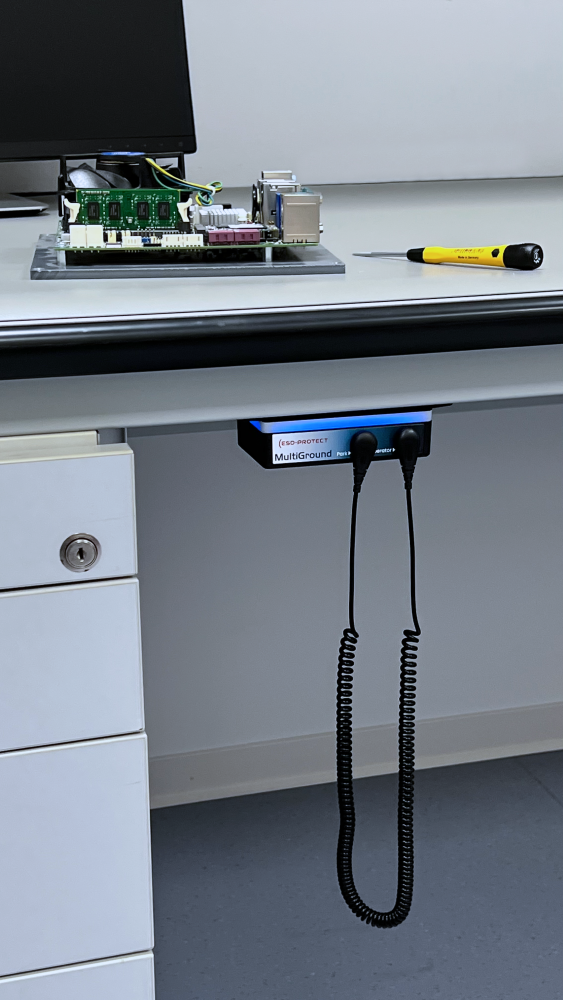

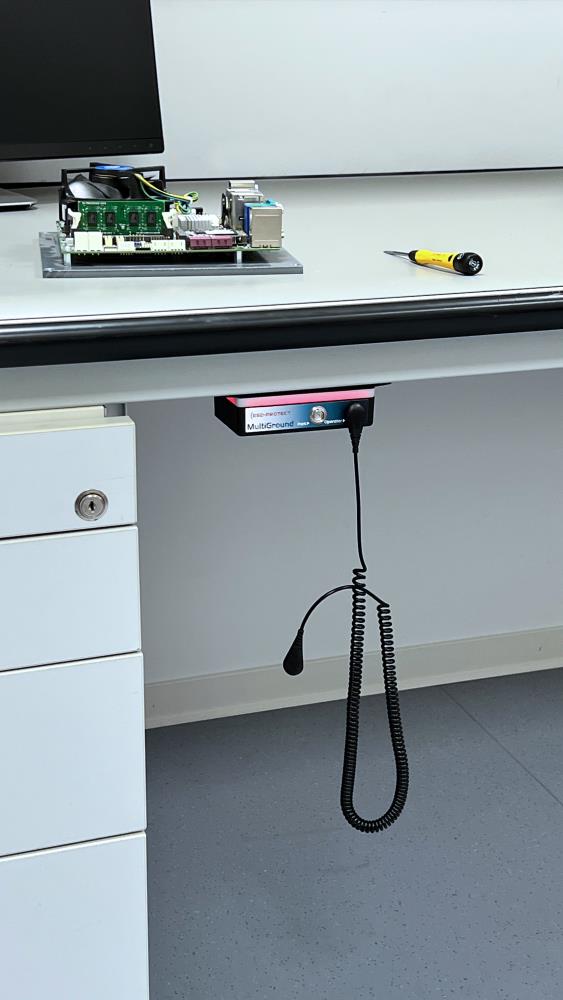

- LED bar for status display: green = ok, blue = park position, red = fault with audible alarm

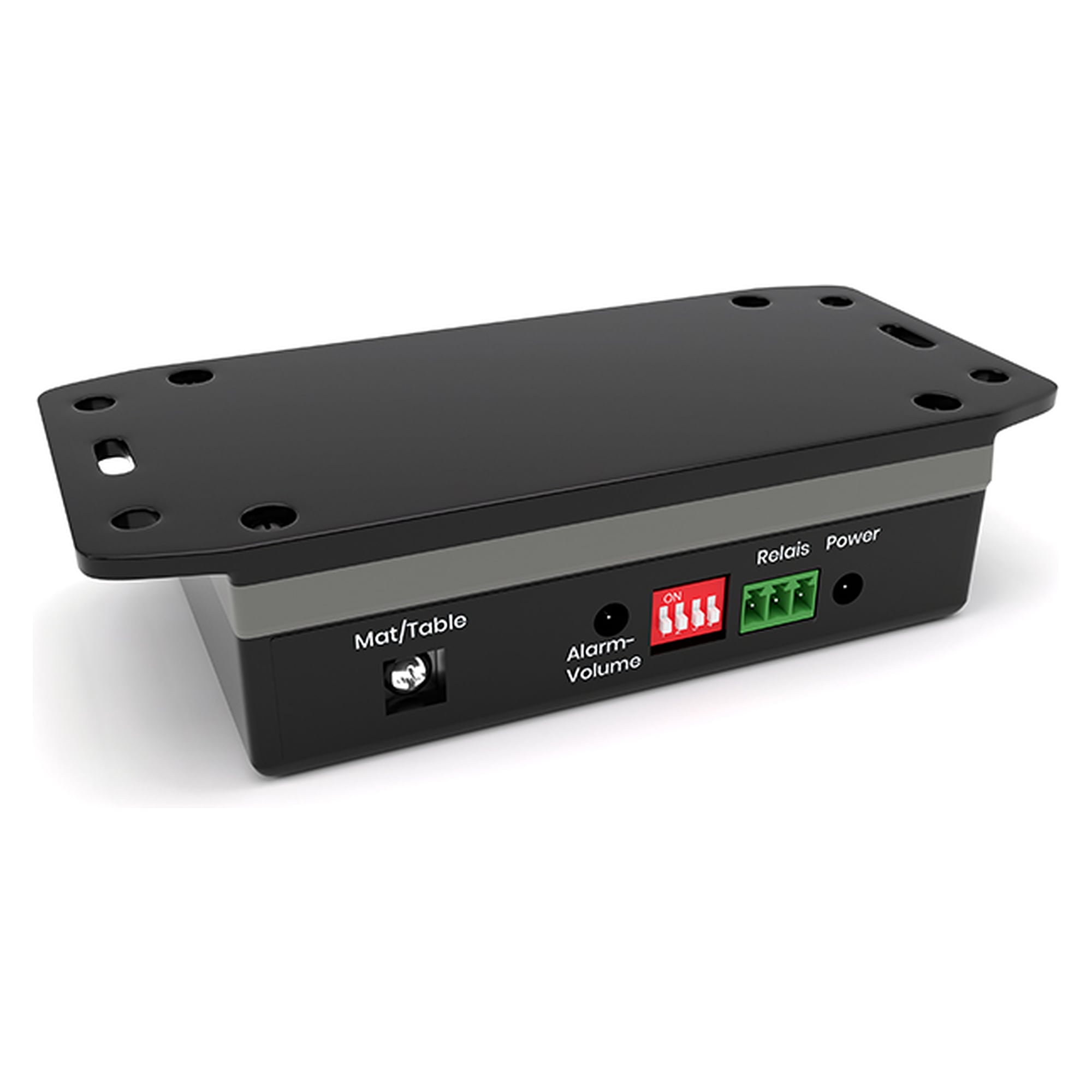

- Relay output for connecting external devices
Standards and compliance
Complies with the ESD standards IEC 61340-5-1 and ANSI/ESD S20.20.
Technical data
| Function | personnel grounding + permanent grounding monitoring (operator and worksurface) |
|---|---|
| Status display | LED bar (green/blue/red) with audible alarm on fault |
| Dimensions | 145 x 65 x 35 mm (L x W x H) |
| Relay output | for connecting external devices |
| Operating voltage | 230 V AC / 24 V DC |
| Weight | approx. 0.9 kg |
| Manufacturer | A1-ESD |
| Manufacturer Nr. | EP0205040 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Sales unit | 1 Stück |
| Height | 35 |
| Width | 65 |
| Depth | 145 |
| ESD version | ESD (antistatic) |
| Norm | ANSI/ESD S20.20 |
| Certification | IEC 61340-5-1 |
Scope of delivery
- 1 MultiGround monitoring monitor
- 1 power supply, 24 VDC, grounded output, with IEC mains plug
- 1 connection cable for work mat
- 1 hook and loop strap to fix the power supply
- 1 earth connection set, 1 screw mounting set
