ESD Safety Low Shoe ERGO-MED 1300 S1, Width 14, mesh upper, anthracite/black - Atlas 31214

Anyone who needs orthopaedic insoles or a modified sole finds a very short list in a safety shoe catalogue. The Atlas ERGO-MED 1300 is on it. Under DGUV 112-191 it is approved not only for insoles but also for sole and heel elevation, and it comes in four widths from 10 to 14. The ESD build to DIN EN 61340-5-1 leads the wearer's charge away in a controlled way, so no discharge reaches the assembly.

What the shoe delivers in an EPA

• Charge dissipation to DIN EN 61340-5-1. By the person-shoe-floor method Atlas guarantees less than 100 megohms, the figure DIN EN 61340-5-1 calls for inside an EPA. The plain antistatic requirement of EN ISO 20345 allows anything between 100 kilohms and 1000 megohms. Anyone handling assemblies needs the tighter figure.
• Safety class S1 in plain words. Closed seat region, antistatic construction, energy absorbing heel area and a protective toe cap.
• Toe protection with an alu-tec aluminium toe cap. The cap is tested to EN ISO 20345 for 200 joules of impact energy and 15 kN of compression. The carbon fibre bumper above it absorbs the abrasion that hits the toe area first during kneeling work.
• Approved for orthopaedic modifications. Unlike most safety shoes the ERGO-MED 1300 is certified under DGUV 112-191 for sole and heel elevation as well. That saves the case by case assessment when an employee needs a modification.
• Fit in width 14. Width 14 is the widest version in this range, the answer for feet that still press against a width 13.

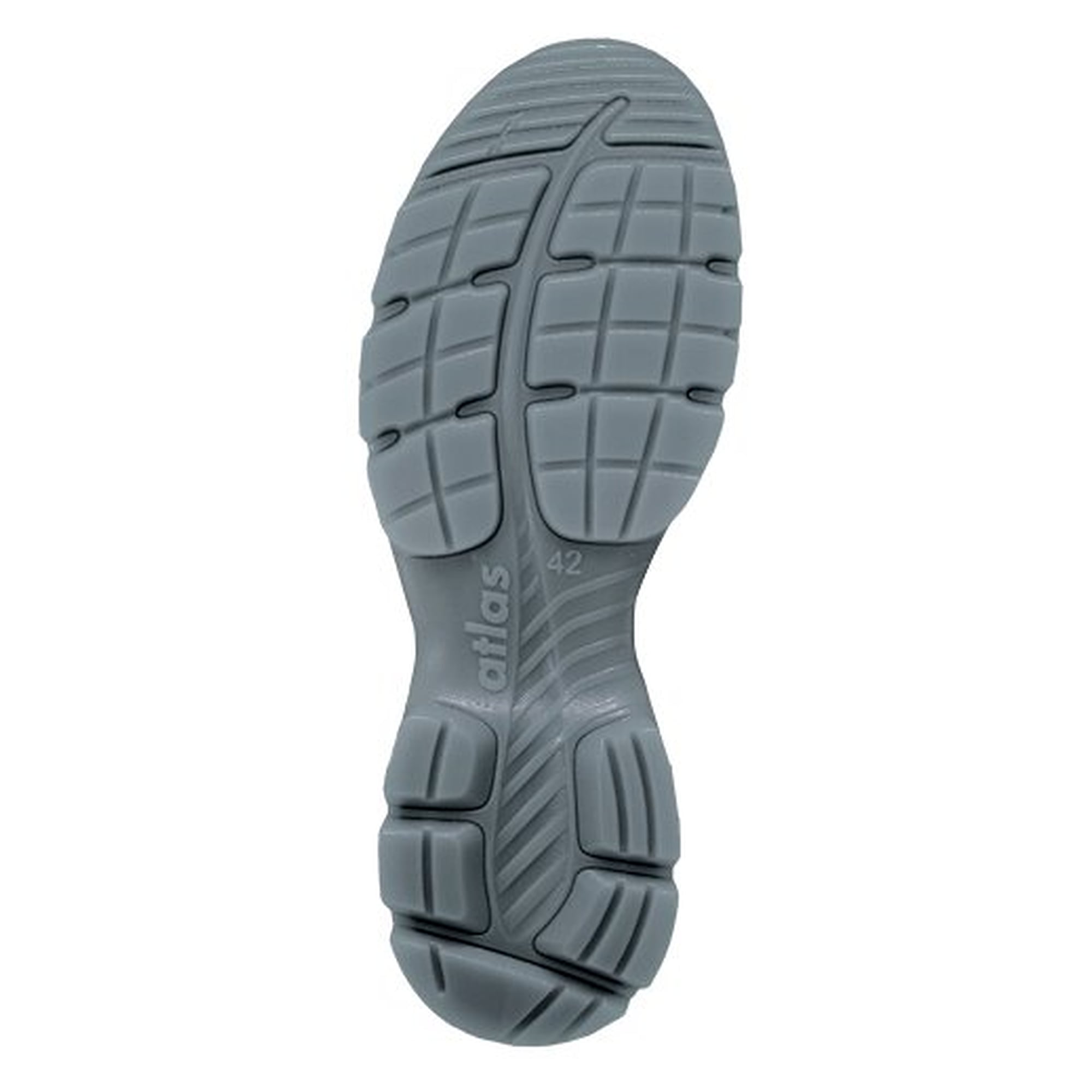

• MPU INNOFLEX sole with a CLOUDZONE in the heel. The multifunctional polyurethane midsole takes up the impact in the heel area and returns part of the energy into the next step. Slip resistance SRC, the top level of the previous classification.
• Mesh upper and aktiv-X functional lining. The fabric lets air reach the foot, the lining regulates moisture actively, does not bleed colour. The clima-stream concept handles the air exchange inside the shoe.
• Orthopaedic insoles to DGUV 112-191. The shoe is released for swapping the footbed for an orthopaedic insole without voiding the type examination.

Applications

• Electronics manufacturing inside an EPA with orthopaedic insoles
• Workplaces with orthopaedic modification to DGUV 112-191
• Test area, assembly and final inspection
• Warehouse and order picking
• Sites with staff who need special widths 13 and 14

Standards and conformity

• EN ISO 20345, safety class S1, slip resistance SRC. Supplier data sheet and the Atlas website agree on this marking.
• ESD equipment to DIN EN 61340-5-1, the base standard for electrostatic protected areas.
• PPE Regulation (EU) 2016/425, risk category 2.
• Approved for orthopaedic insoles to DGUV 112-191.

Sizes

The item covers EU sizes 36 to 50. Pick the size at checkout, delivery is one pair.
