Ultrasonic Bath 28 L with Heating and Power Control, 35 kHz - Bandelin Sonorex Digiplus DL 1028 H
Heated laboratory ultrasonic bath with 28 L capacity, 35 kHz and adjustable power from 20 to 100 percent. SweepTec and Degas provide even cleaning and degassing of large loads, while a wipe-clean keypad with display sets time and temperature. Ideal for labs and process engineering.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Sonorex Digiplus DL 1028 H is a heated laboratory ultrasonic bath with 28 L capacity and adjustable power from 20 to 100 percent in 10 percent steps. At 35 kHz, intense cavitation bubbles remove contamination thoroughly and gently, while the adjustable power matches the ultrasonic field to sensitive or stubborn tasks. Time and bath temperature are set on a wipe-clean keypad and shown on the display.
Benefits
- Adjustable power from 20 to 100 percent for sensitive to stubborn applications
- Large 28 L capacity with 1300 W heating for high-volume loads
- SweepTec prevents standing waves for especially even cleaning
- Degas function for fast degassing of solvents, for example for HPLC
- Corrosion-resistant V2A stainless steel tank with ball-valve drain
Applications
The DL 1028 H suits cleaning sensitive materials, mixing and homogenizing samples for analysis, and fast degassing of solvents for HPLC. The large capacity and adjustable power make it versatile for laboratory and process engineering work in batch operation.
Matching insert baskets, lids and cleaning and disinfection concentrates are available as Bandelin accessories.
Technical data
| Order no. | 7186 |
|---|---|
| Capacity | 28 L |
| Working volume | 19 L |
| Inner dimensions (L×W×D) | 500 × 300 × 200 mm |
| Outer dimensions (L×W×H) | 535 × 325 × 400 mm |
| Ultrasonic frequency | 35 kHz |
| HF peak power | 1020 W |
| HF nominal power | 255 W |
| Heating power | 1300 W |
| Tank material | Stainless steel V2A (1.4301) |
| Drain | Ball valve G ½, left side |
| Weight | 17.323 kg |
| Manufacturer | Bandelin |
| Manufacturer Nr. | 7186 |
| HS-Code | 84798997 |
| GPSR manufacturer information | BANDELIN electronic GmbH & Co. KG, Heinrichstraße 3-4, DE-12207 Berlin, bandelin.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
| Volumen (l) | 28 |
Downloads
Datasheet
Brochure
CAD Data
Accessories

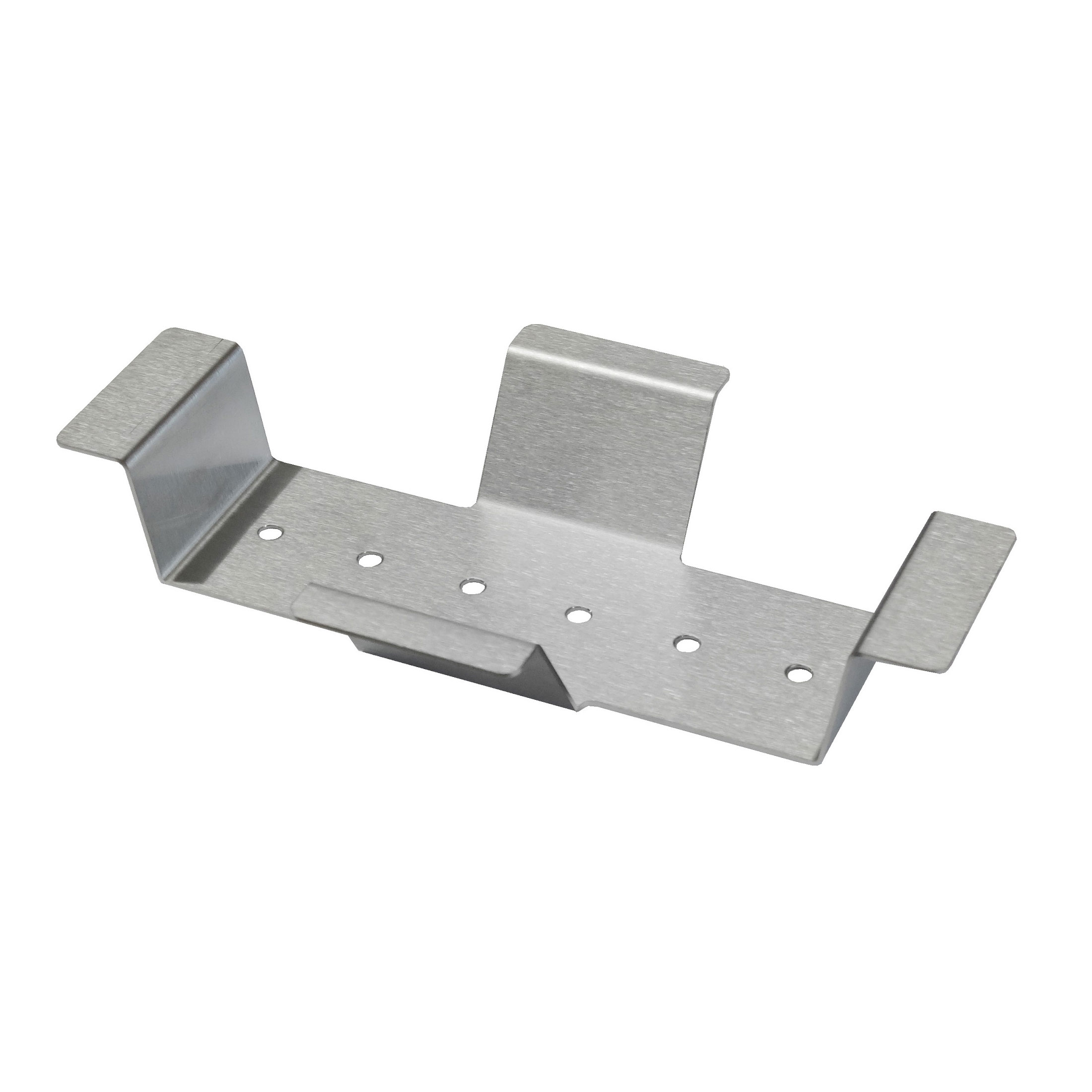

Insert Strip for Insert Beakers, Indirect Sonication - Bandelin Sonorex ES 4
