TASS brake test element TR1, 1 to 2 Nm - Bosch Rexroth 3609438112

Short test cycles instead of flying blind in production: the TASS TR1 brake test element for 1 to 2 Nm makes daily spindle checks practical, because the spindle stays installed and three parameters are checked in one pass. As the smallest size of the TASS elements, TR1 has a 15 mm width across flats and a length l3 of 121 mm, and weighs 0.22 kg.

Benefits

• Immediate feedback after the test run, so release or readjustment can be decided on the spot
• Suitable for short intervals, for example daily, so deviations are detected before they carry over into many joints
• Three parameters in one pass: two torque values, angle and linearity, no second test setup required
• Characteristic values M1 1 Nm and M2 2 Nm cover the working range stated in the designation, M3 is specified as 2.5 Nm
• Size TR1 at 0.22 kg with a 15 mm width across flats, easy to handle at the station

Specifications

Applications

• Daily validation of tightening stations in the 1 to 2 Nm range
• Setting nutrunners after maintenance or modification of the spindle
• Checks of handheld and fixtured nutrunners with a target value in this torque band

System compatibility

• TASS (Tool Analysis and Setup System) by Bosch Rexroth, size TR1 with elements from 1 to 10 Nm

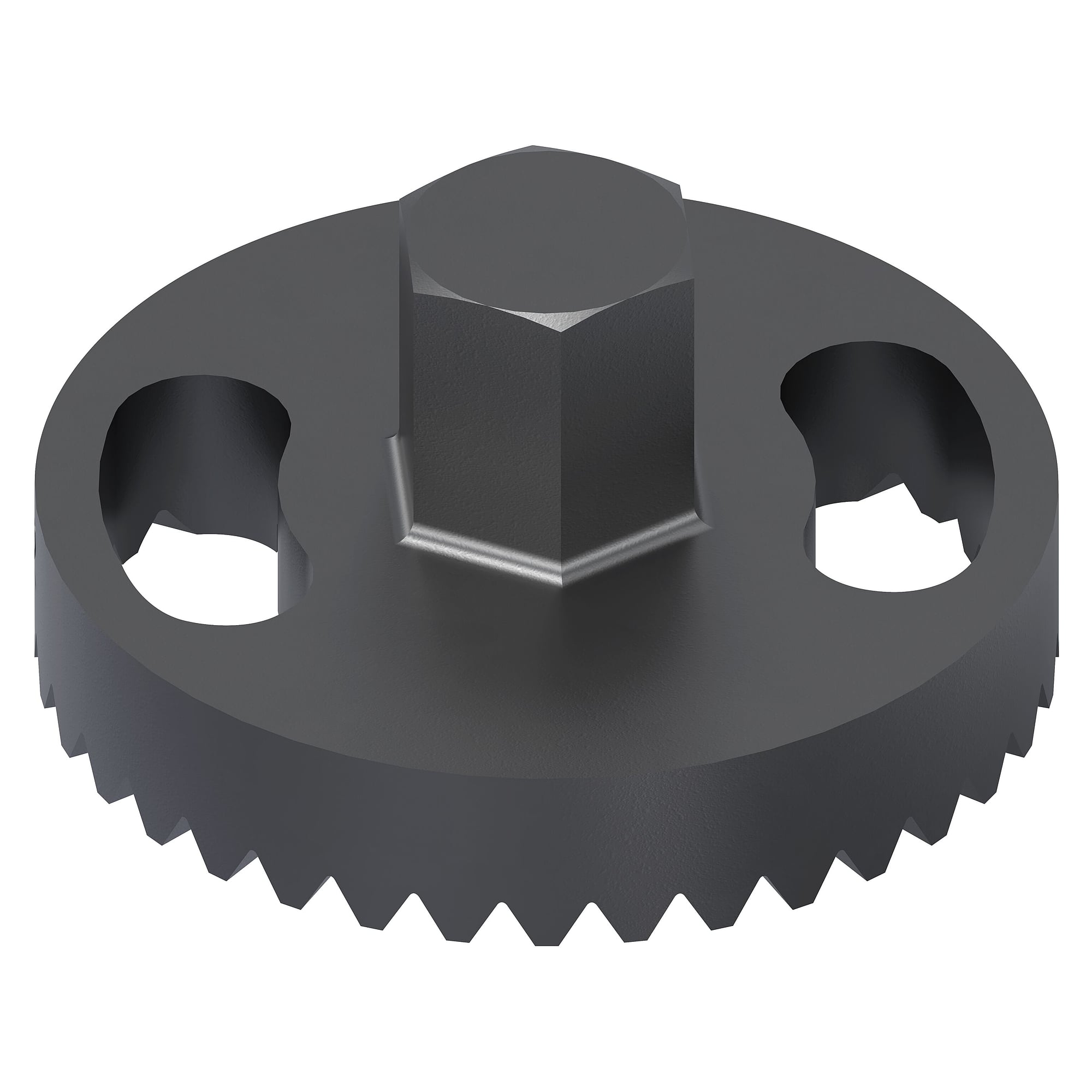

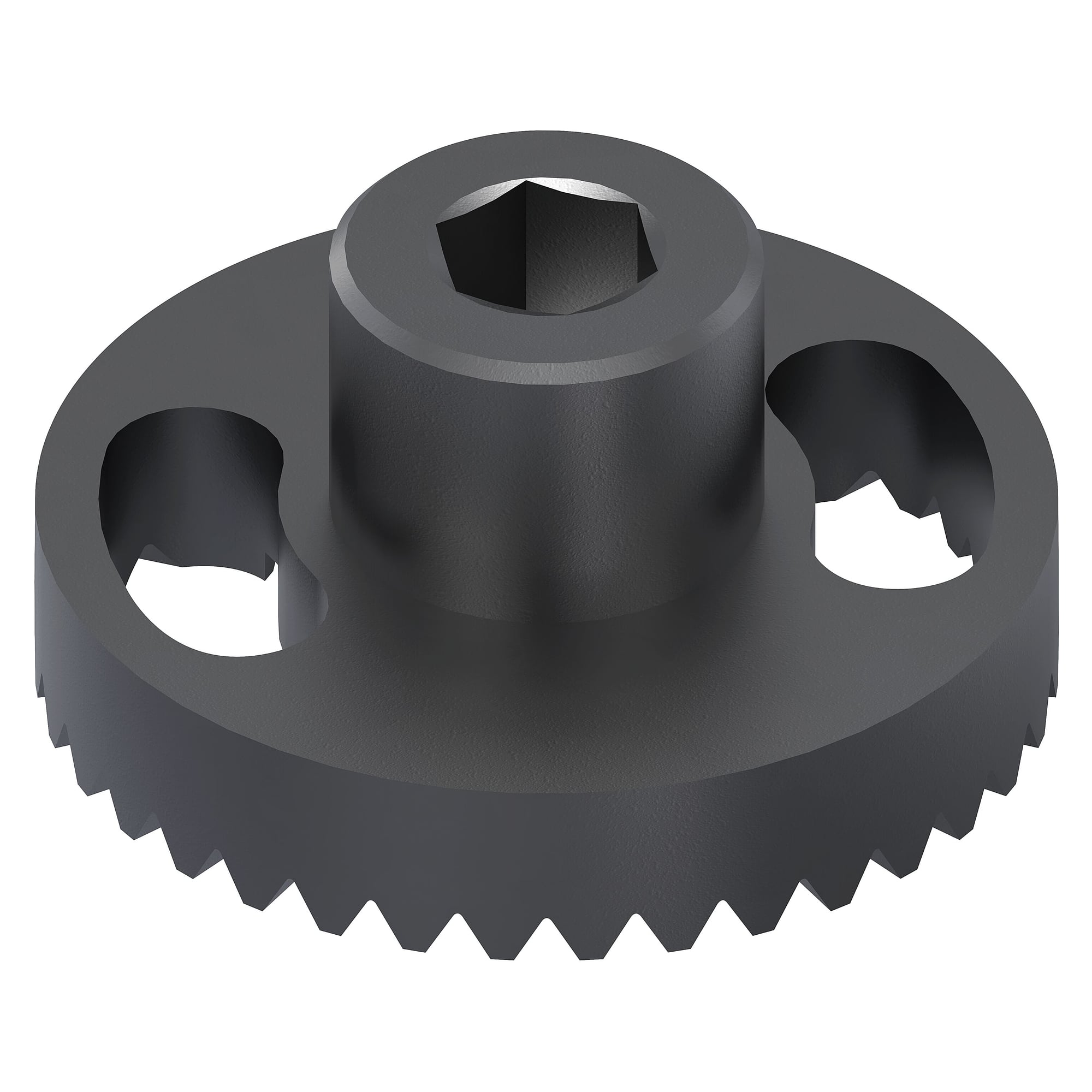

• Adapters match the interface to the joint (hex socket, external hex, Torx, internal thread)
• TASS FIX TR1 fixture (Bosch Rexroth 3609438001) for fixed mounting at the test station
