The product may differ from the illustration
Anodized aluminum strut profile 45x60 with 4 open slots (slot 10) and ESD certification for use in electrostatically protected assembly environments. Supplied as a pack of 20 pieces in standard length 6070 mm, individual mass 3 kg. Recommended accessories: cover caps 45x60 in black ESD or signal gray.
Strut Profile 45x60, ESD, Natural, L=6070mm, Pack of 20 - Bosch Rexroth 3842557200
BOSCH REXROTH Original product
Net price (excl. VAT)
€4,174.10
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842557200
Manufacturer no. 3842557200
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842557200
Country of originSweden
Customs tariff number76042100
ConditionNew
Article
BRR-3842557200
Frequently Bought Together
- This Item: €4,174.10Excl. 19% VAT , excl. Shipping Cost
- Belt Section CSS/NT-5, 5-Track, up to 160 °C, Length 550-3000 mm - Bosch Rexroth 3842998635 €4,861.64Excl. 19% VAT , excl. Shipping Cost
- Sliding Rail 65+ STS 30° Top, Stainless Steel 1.4301, VarioFlow plus - Bosch Rexroth 3842557030 €159.68Excl. 19% VAT , excl. Shipping Cost
Total price
The strut profile 45x60 (Bosch Rexroth 3842557200) in anodized aluminum is ESD-compliant and designed for building workstation and assembly systems in electrostatic discharge protected areas. The 45 mm modular dimension allows direct combination with the full Bosch Rexroth aluminum profile range of the 45-series.
- 4 open slots (profile slot 10) for flexible connection and mounting options
- ESD-tested - safe for use in ESD-protected areas in line with applicable standards
- Profile surface 11 cm², high rigidity at low weight (3 kg per bar)
- Multiple profile machining options: D9.8/D17 in slots B/D, D9.8V/D17V in slots A/C, LF in slots A/C, F1 in slot A
- Pack of 20 pieces in standard length 6070 mm, total pack weight 380 kg
Technical data
| Attribute | Value |
|---|---|
| Cross-section | 45x60 mm |
| Length [L] | 6070 mm |
| Modular dimension | 45 mm |
| Profile slot | 10 |
| Open slots | 4 |
| Profile type | Standard |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD | Yes |
| Profile surface [A] | 11 cm² |
| Mass per bar [m] | 3 kg |
| Area moment of inertia x-direction [lx] | 37.2 cm⁴ |
| Area moment of inertia y-direction [ly] | 22.7 cm⁴ |
| Moment of resistance x-direction [Wx] | 12.4 cm³ |
| Moment of resistance y-direction [Wy] | 10.1 cm³ |
| Torsional moment of inertia [It] | 6.7 cm⁴ |
| Moment of torsion resistance [Wt] | 4.09 cm³ |
| Delivery unit | 20 pieces |
| Pack weight | 380 kg |
| Profile machining | D9.8, D17: slots B/D - D9.8V, D17V: slots A/C - LF: slots A/C - F1: slot A |
| Recommended accessories | Cover cap 45x60 black ESD, cover cap 45x60 signal gray, cover cap with hole 45x60 black ESD, cover cap with hole 45x60 signal gray |
| Manufacturer Nr. | 3842557200 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Sweden |
| Weight | 380.000000 |
| Lenght | 6070 mm |
| HS-Code | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
Download
Write Your Own Review
Customers Who Bought This Item Also Bought
Strut Profile 45x45L R, Anodized Aluminum, ESD, 6070 mm, Pack of 20 - Bosch Rexroth 3842557948
€2,514.75
Excl. 19% VAT , excl. Shipping Cost
EcoSafe Adapter Plate for Compact Swing Doors, Profile Slot 8 - Bosch Rexroth 3842554136
€31.17
Excl. 19% VAT , excl. Shipping Cost
Sliding Rail 90+ STS 45° Top for VarioFlow plus Chain Conveyor System - Bosch Rexroth 3842557033
€159.68
Excl. 19% VAT , excl. Shipping Cost
Grab Container GB-1710 Red, 3050 cm³, ABS - Bosch Rexroth 3842555685
€23.95
Excl. 19% VAT , excl. Shipping Cost
Handbook VarioFLOW plan, Chain Conveyor System - Bosch Rexroth 3842532965
€598.50
Excl. 19% VAT , excl. Shipping Cost
Substructure AC Pillar 110-220 V - Bosch Rexroth 3842554209
€2,254.92
Excl. 19% VAT , excl. Shipping Cost
Related Products
Check items to add to the cart or
-
Cover Cap 45x60 D17 Signal Gray, Profile Slot 10, PP - Bosch Rexroth 3842548802€1.80Excl. 19% VAT , excl. Shipping Cost -
-
Cover Cap 45x60 Signal Gray, PP, Profile Slot 10 - Bosch Rexroth 3842548754€1.49Excl. 19% VAT , excl. Shipping Cost -

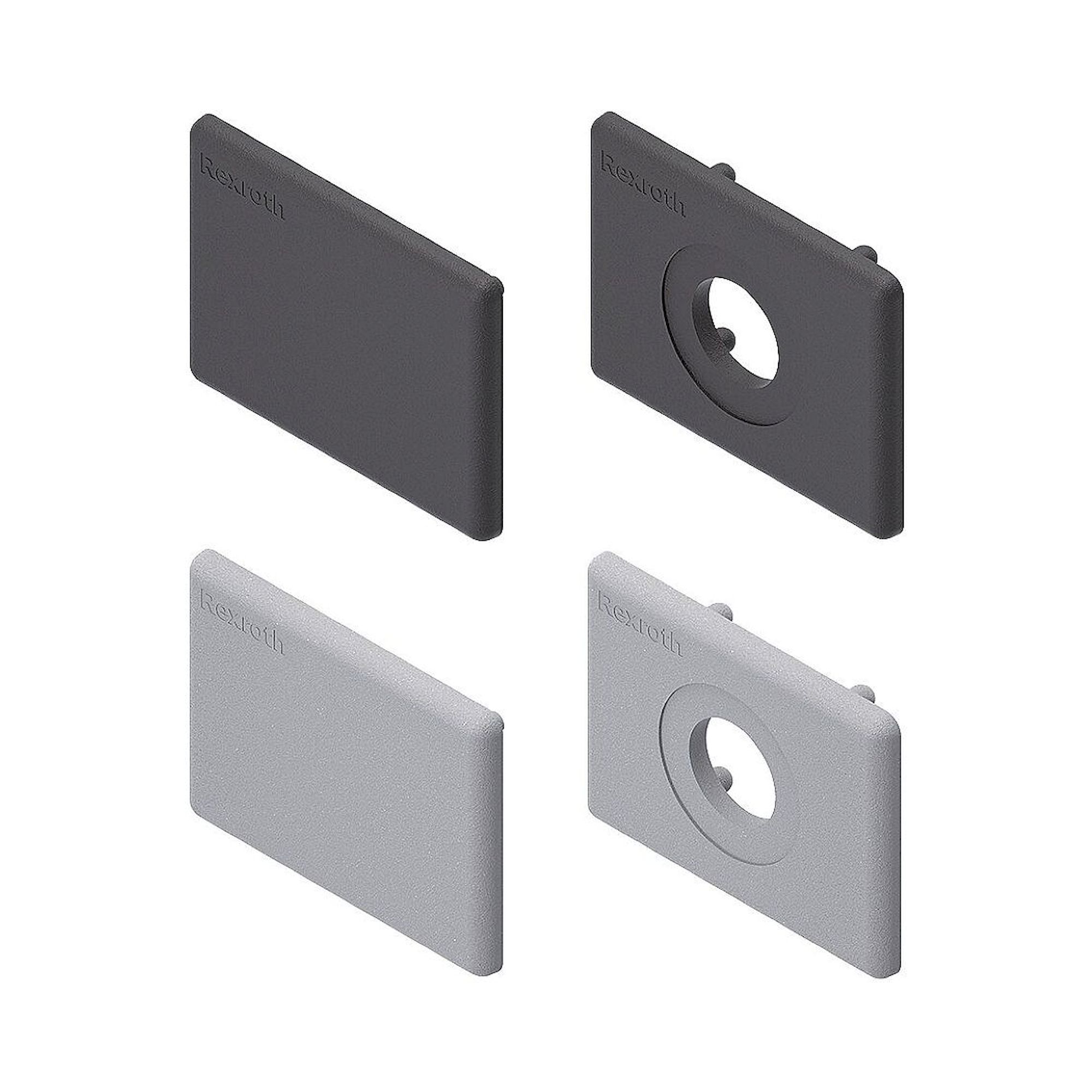

ESD Cover Cap 45x60 mm, Profile Slot 10, PP Black - Bosch Rexroth 3842548803€1.93Excl. 19% VAT , excl. Shipping Cost
