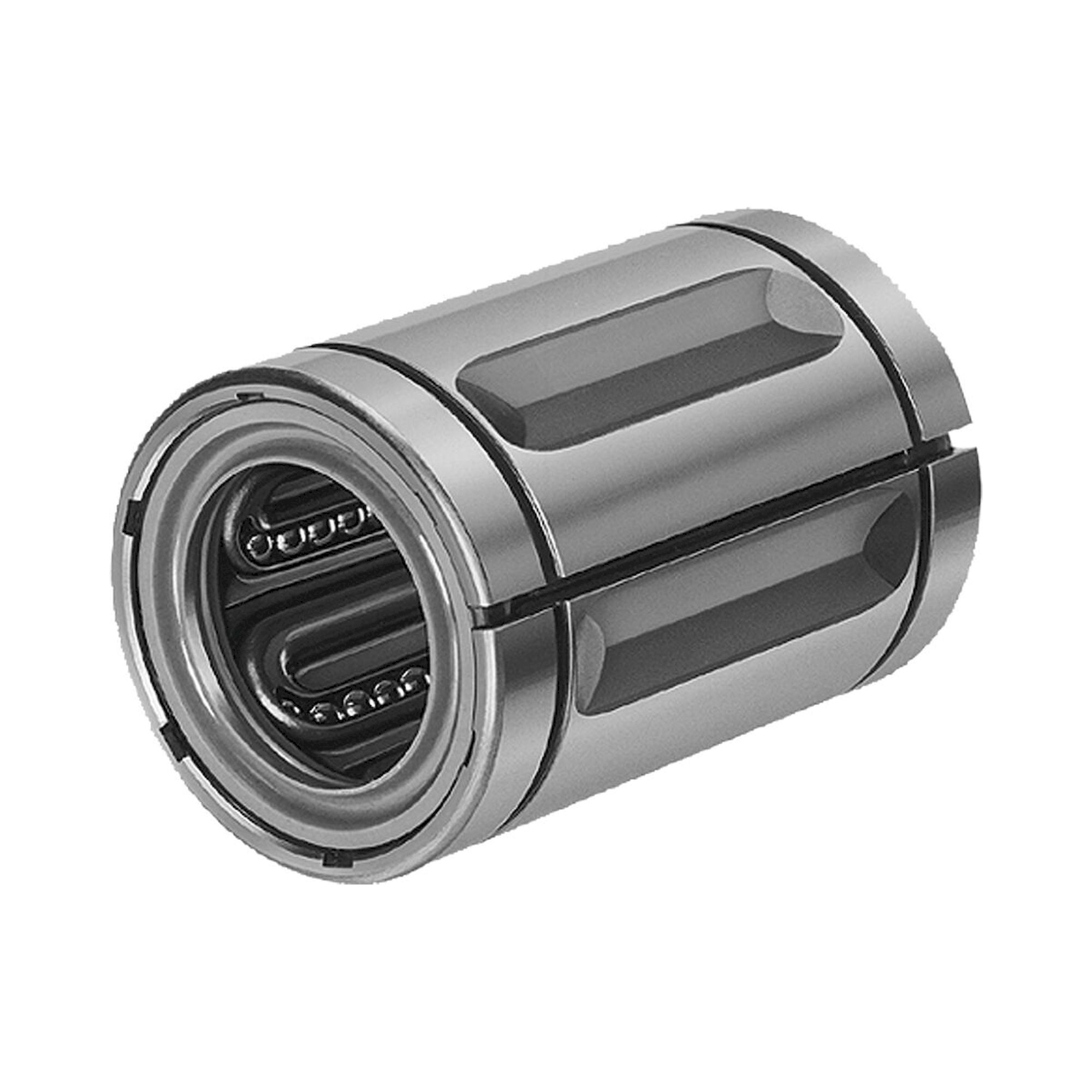

Images are examples, some edited with AI. The technical data are authoritative. AI notice
Rotations Kb KBRON-5-DD - Bosch Rexroth R066700500
Rotations Kb KBRON-5-DD by Bosch Rexroth, material number R066700500. Seal 2 integrated wiper seals and lubrication Not lubricated.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Rotations Kb KBRON-5-DD by Bosch Rexroth, material number R066700500. Seal 2 integrated wiper seals and lubrication Not lubricated. The static load capacity is 140 N. Permissible values are up to 2.5 m/s travel speed and 100 m/s² acceleration. The weight is 0.04 kg.
Technical data
| Lubrication | Not lubricated |
|---|---|
| Maximum permissible linear speed vmax | 2.5 m/s |
| Length of linear bushing | 22 mm |
| Type | Linear bushing |
| Static load capacity C0 | 140 N |
| Series | Combined linear and rotary motion (rotation) |
| Retaining ring footnote | Seeger-Orbis GmbH |
| Retaining ring | SB19 |
| Rows of balls | 4 |
| Maximum acceleration rate amax | 100 m/s² |
| Outer diameter D | 19 mm |
| Shaft diameter d | 5 mm |
| Linear guide type | Linear bushing and shaft |
| Format of linear bushings | N - With needle bearing |
| Dynamic load capacity C | 180 N |
| Version | Standard |
| Seal | 2 integrated wiper seals |
| Permissible ambient temperature (min) | <prefix>-</prefix>10<suffix></suffix> °C |
| Permissible ambient temperature (max) | <prefix>+</prefix>80<suffix></suffix> °C |
| Weight | 0.04 kg |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Manufacturer | Bosch Rexroth |
| Manufacturer Nr. | R066700500 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
