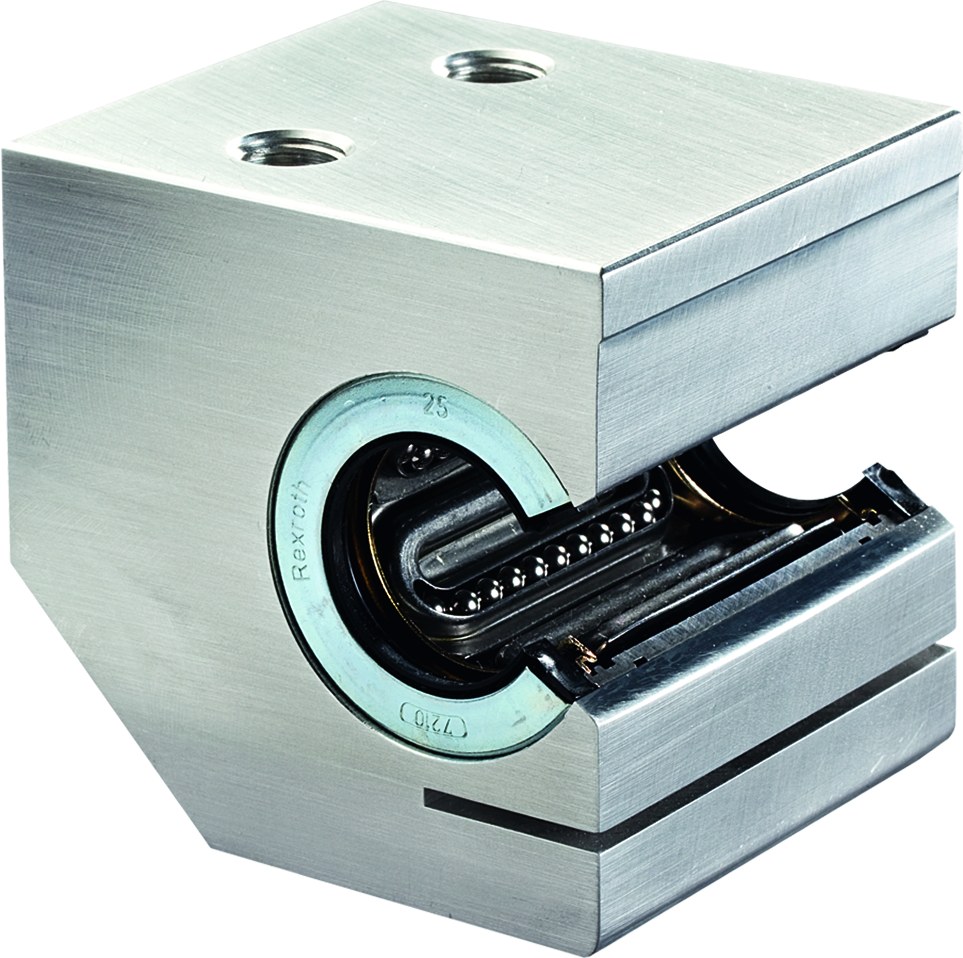

Linear set LSG-M-25 - Bosch Rexroth R106512500
Linear set LSG-M-25 by Bosch Rexroth, material number R106512500. The static load capacity is 1560 N.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Linear set LSG-M-25 by Bosch Rexroth, material number R106512500. The static load capacity is 1560 N. Permissible values are up to 2.5 m/s travel speed and 100 m/s² acceleration. The weight is 0.92 kg.
Technical data
| Maximum permissible linear speed vmax | 2.5 m/s |
|---|---|
| Type | Linear set |
| Static load capacity C0 | 1560 N |
| Series | Standard (metal) |
| Shaft radial clearance h6 | <prefix>+</prefix>25<suffix></suffix> |
| Breakaway force | 14 N |
| Maximum acceleration rate amax | 100 m/s² |
| Outer diameter D | 40 mm |
| Shaft diameter d | 25 mm |
| Linear guide type | Linear bushing and shaft |
| Format of linear bushings | – Closed |
| Dynamic load capacity C | 2080 N |
| Dimension B1 | 40 mm |
| Friction force FR | 5 N |
| Permissible ambient temperature (min) | <prefix>-</prefix>10<suffix></suffix> °C |
| Permissible ambient temperature (max) | <prefix>+</prefix>100<suffix></suffix> °C |
| Weight | 0.92 kg |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +100 °C |
| Manufacturer | Bosch Rexroth |
| Manufacturer Nr. | R106512500 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
