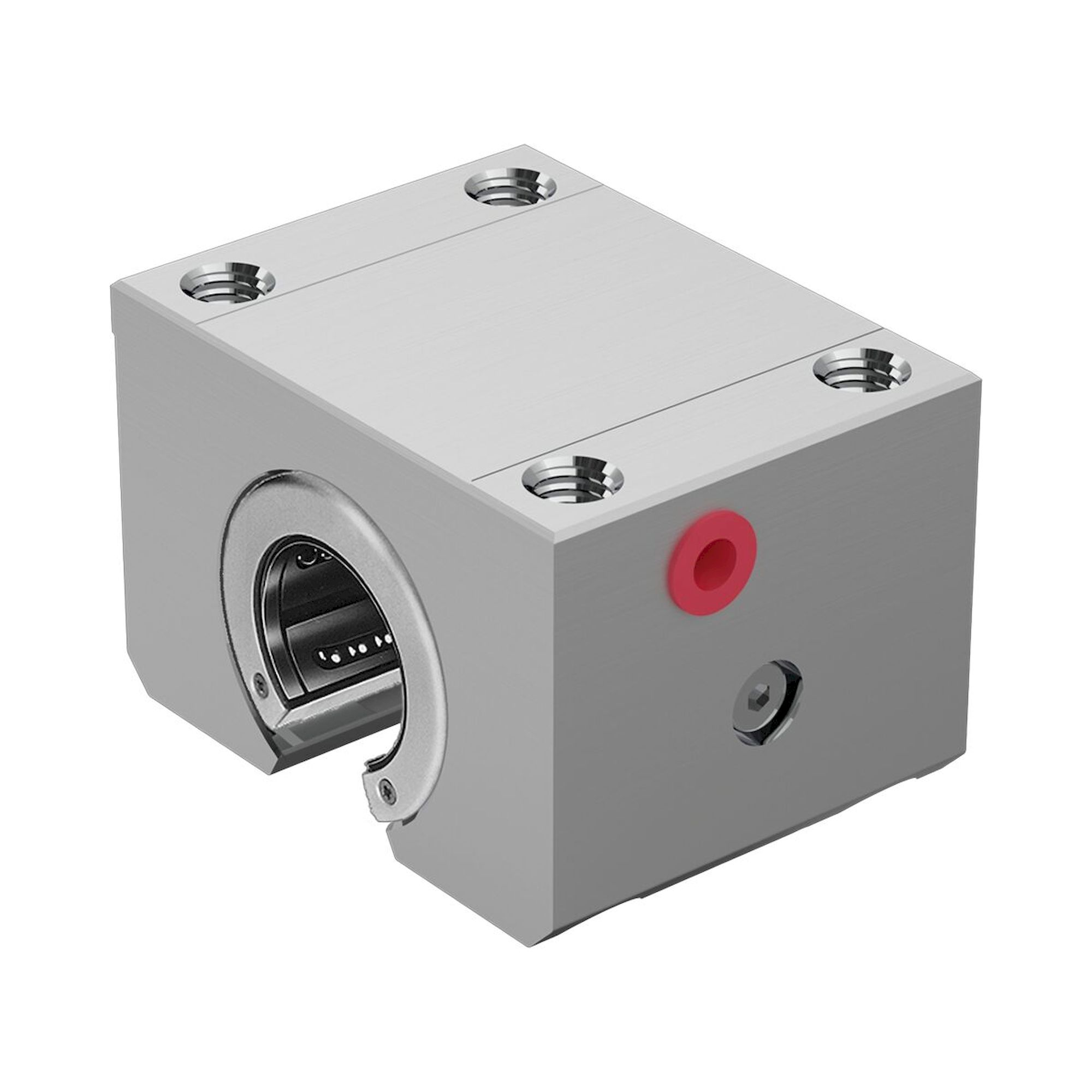

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Linear set (aluminum) LSADR2T-30-WV-900 for 30 mm shaft - Bosch Rexroth R109953085

Name: Linear set (aluminum) LSADR2T-30-WV-900 for 30 mm shaft - Bosch Rexroth R109953085
Brand: Bosch Rexroth
SKU: BRR-R109953085
Price: 627.17 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

Linear set (aluminum) LSADR2T-30-WV-900 by Bosch Rexroth for shafts of 30 mm diameter. Dynamic load capacity 6000 N, static load capacity 5580 N, torque up to 60 Nm. Weight 8.39 kg, material number R109953085.

Net

€627.17

excl. VAT

Item BRR-R109953085

Manufacturer no. R109953085

Question about this item

Datasheet (PDF) User manual 5 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

A linear set saves you designing your own bearing housing: linear bushing and housing arrive ready to install and are simply bolted to the mounting structure. The Linear set LSADR2T-30-WV-900 is designed for shafts of 30 mm diameter and carries 6000 N dynamic and 5580 N static load. Weight: 8.39 kg.

Benefits

Load capacity: dynamic load capacity C = 6000 N, static load capacity C0 = 5580 N
Torque transmission: dynamic torsional moment load capacity Mt = 60 Nm
Dynamics: up to 3 m/s, acceleration up to 150 m/s²
Design: T - Tandem, series Torque
Installation dimensions: outer diameter D = 47 mm
Temperature range: -10 °C ... +80 °C

Technical data

Manufacturer	Bosch Rexroth
Manufacturer part number	R109953085
Type designation	LSADR2T-30-WV-900
Maximum permissible linear speed vmax	3 m/s
Mass m (kg/m)	5.5 kg/m
Dynamic torsional moment load capacity Mt	60 Nm
Static load capacity C0	5580 N
Series	Torque
Maximum acceleration rate amax	150 m/s²
Outer diameter D	47 mm
Shaft diameter d	30 mm
Format of linear bushings	T - Tandem
Dynamic load capacity C	6000 N
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight	8.39 kg
Manufacturer Nr.	R109953085
GPSR manufacturer information	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
