€1,714.21
Excl. 19% VAT ,
excl. Shipping Cost
Article
BRR-R107826020
Manufacturer Nr.
R107826020
Linear-Set (Stahl), SE-60, Mit zwei Dichtungen
Frequently Bought Together
-
This Item:
€1,714.21Excl. 19% VAT , excl. Shipping Cost
-
Bosch Rexroth R161360000. Linear-Set KB-RCS-E-60-VD &
€1,779.27Excl. 19% VAT , excl. Shipping Cost
-

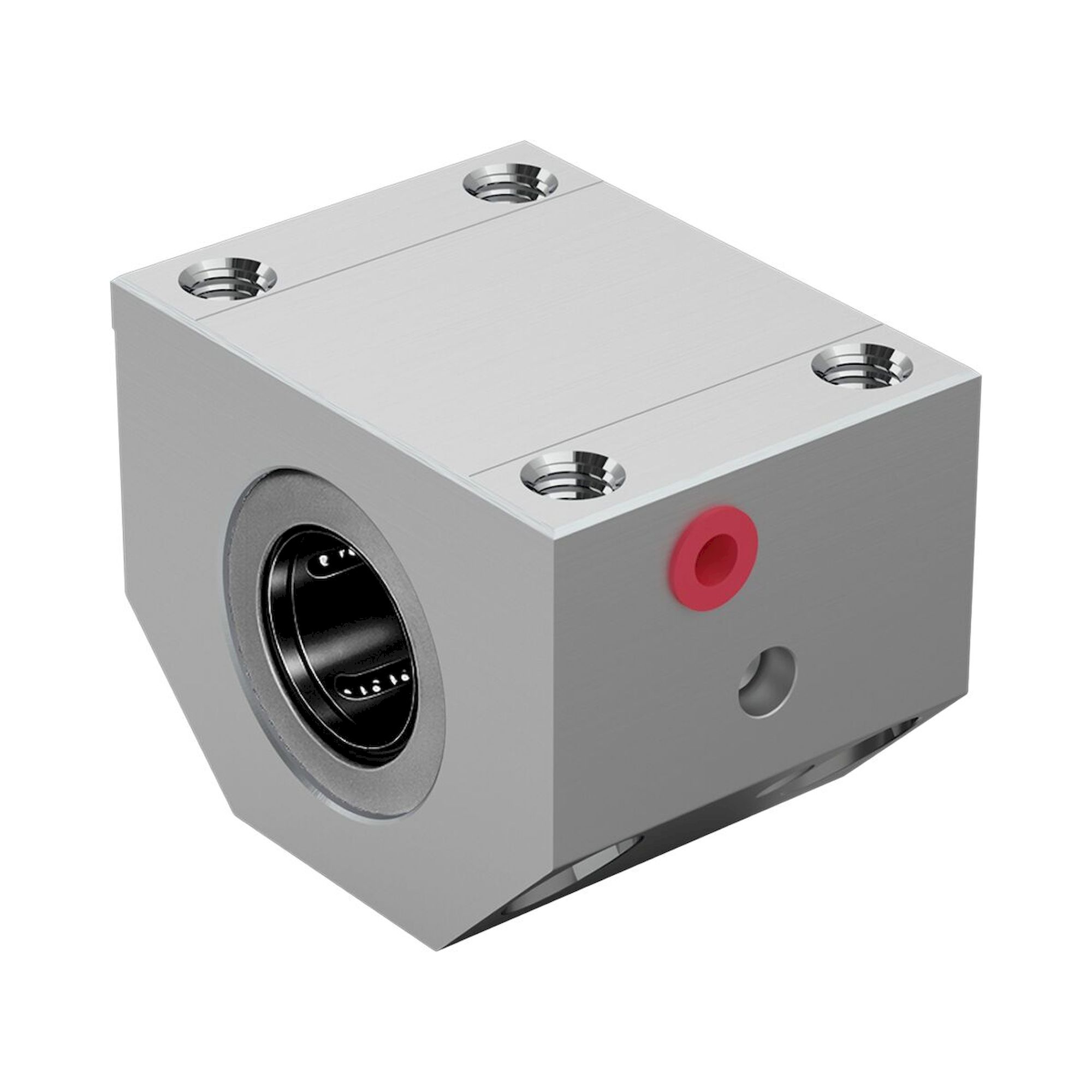

Bosch Rexroth R170145020. Linear-Set LSAH-SH-50-DD
€294.14Excl. 19% VAT , excl. Shipping Cost
Total price
Linear-Set (Stahl)
Mit Radial-KB, seitlich offen, einstellbar
Wellendurchmesser d = 60
Mit zwei Dichtungen
Ausführung: Normal
Mit Radial-KB, seitlich offen, einstellbar
Wellendurchmesser d = 60
Mit zwei Dichtungen
Ausführung: Normal
- Präzisions-Gehäuse mit seitlicher Öffnung (Stahl)
- Radial-Kugelbüchse
- Zwei Dichtringe
- Nachschmierbar
| Produkteigenschaften | |
|---|---|
| Wellendurchmesser d [mm] | 60 |
| Bauform Kugelbüchsenführungen | SE - Seitlich offen, Einstellbar |
| Baureihe | Radial, seitlich offen |
| Dynamische Tragzahl C [N] | 29500 |
| Hinweis dynamische Tragzahl C | Die angegebenen Tragzahlen gelten für die Hauptlastrichtung in Pfeilrichtung FH1 oder FH2. |
| Maximale Beschleunigung amax [m/s²] | 50 |
| Maximal zulässige lineare Geschwindigkeit vmax [m/s] | 2 |
| Radialluft | ab Werk mit h5-Welle (Untergrenze) spielfrei eingestellt |
| Außendurchmesser D [mm] | 110 |
| Zulässige Umgebungstemperatur (min. … max.) | -20 °C ... +80 °C |
| Hinweis zulässige Umgebungstemperatur (min. ... max.) | kurzzeitig 100 °C |
| Gewicht [kg] | 40 |
| Statische Tragzahl C0 [N] | 34100 |
| Hinweis statische Tragzahl C0 | Die angegebenen Tragzahlen gelten für die Hauptlastrichtung in Pfeilrichtung FH1 oder FH2. |
| Losbrechkraft [N] | 48 |
| Produkthinweis | Lieferzeit bitte nachfragen! |
| Typ | Linear-Set |
| Abmessung A js16 [mm] | 200 |
| Abmessung A1 js16 [mm] | 150 |
| Abmessung A2 js16 [mm] | 50 |
| Abmessung D [mm] | 110 |
| Abmessung E2 [mm] | 215 |
| Abmessung E3 (Profilschienenführungen) [mm] | 60 |
| Abmessung E4 [mm] | 115 |
| Abmessung H [mm] | 85 |
| Abmessung H1 js16 [mm] | 205 |
| Abmessung H2 js16 [mm] | 55 |
| Abmessung L js16 [mm] | 275 |
| Abmessung L1 | 163 |
| Abmessung O Gewindedurchmesser x Steigung [mm] | M24x60 |
| Abmessung S [mm] | 26 |
| Abmessung SW1 [mm] | 30 |
| Abmessung SW2 [mm] | 10 |
| Abmessung V js16 [mm] | 35 |
| Abmessung V1 [mm] | 20.5 |
| Abmessung W [mm] | 29 |
| Manufacturer Nr. | R107826020 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.100000 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
