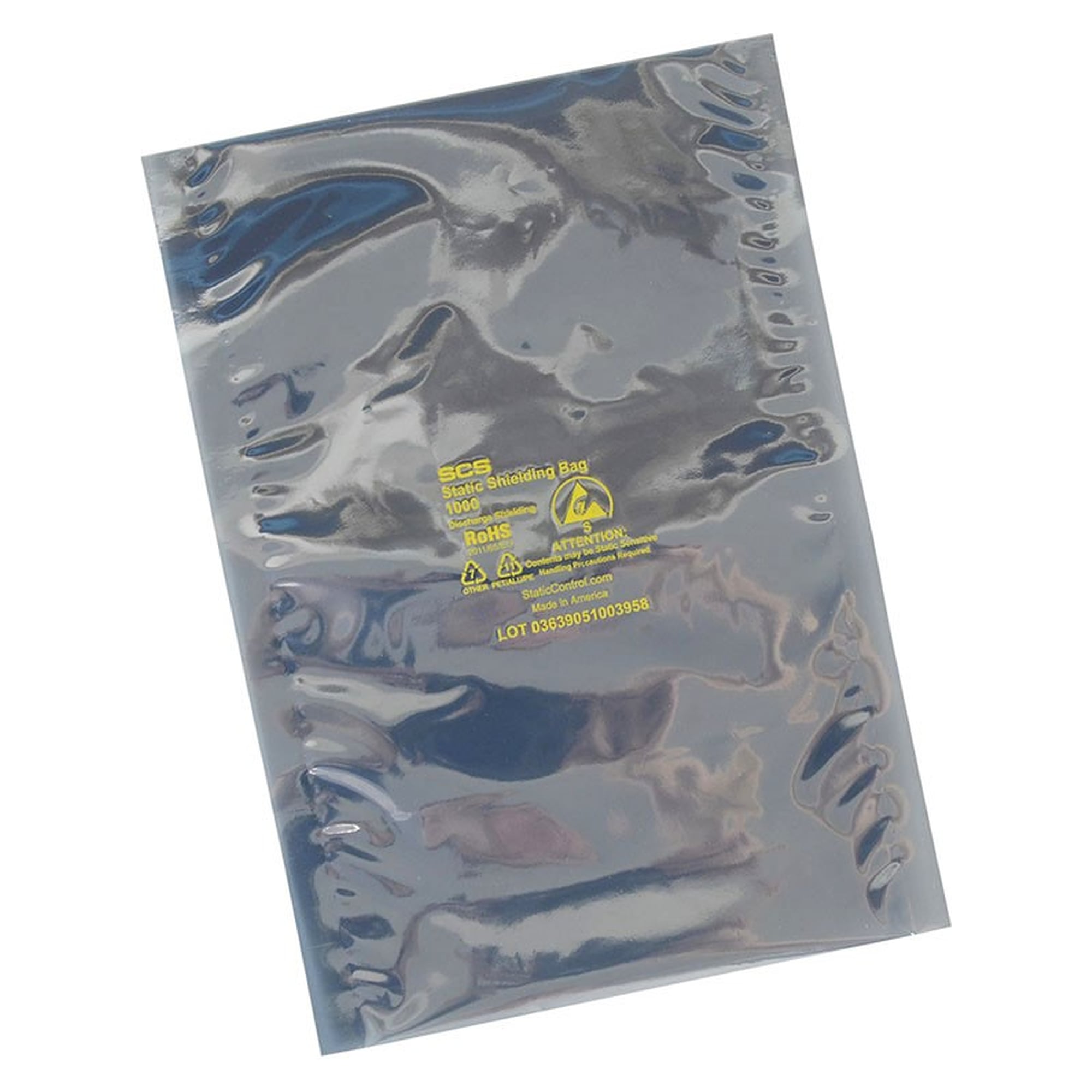

Metal-In Static Shielding Bag, 1000 Series, Open Top, 180 x 405 mm, Pack of 100 - Desco 100716
Transparent metal-in shielding bag, 180 x 405 mm, open top. The metal layer limits discharge energy to < 10 nJ per ANSI/ESD STM11.31, and dissipative surfaces allow use inside and outside the EPA. Pack of 100.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Storing and shipping PCBs, assemblies and components calls for packaging that keeps electrostatic fields and discharges away from the contents. This SCS 1000 Series shielding bag measures 180 x 405 mm (width x length) and is made from a polyester, metal and polyethylene laminate that limits the discharge energy reaching the inside to less than 10 nJ. With about 40 % transparency the contents stay visible without opening the bag.
Key benefits
- Discharge protection: shielding < 10 nJ per ANSI/ESD STM11.31, approved as ESD packaging inside and outside the EPA per ANSI/ESD S541.
- Groundable: dissipative interior and exterior at 1 x 104 to < 1 x 1011 ohms. Charges drain when the bag lies on a grounded surface or is held by a grounded operator.
- Durable: 0.071 mm laminate with 53 N puncture resistance and 32 MPa tensile strength.
- Traceable: printed with the ESD protective symbol and a lot code for quality control per ANSI/ESD S541.
- Sealable: open top, heat sealable at 149 to 190 °C.
Applications
Storage and shipping of PCBs, assemblies and individual components, transport between EPA, warehouse and customer. Store bags in a dry, well ventilated room at around 24 °C and away from direct sunlight so the aluminium layer does not oxidise. Discard bags that are torn or scratched.
Standards
Meets ANSI/ESD S20.20, ANSI/ESD S541 and ANSI/ESD S11.4 Level 3. Lead-free, compliant with RoHS 2, REACH and Conflict Minerals. Free of amines, silicones and heavy metals. Made in the USA.
Technical data
| Part number | 100716 |
|---|---|
| Manufacturer | Desco (SCS) |
| Series | 1000 Series, open top |
| Material | Metal-in laminate of polyester, aluminium and polyethylene |
| Thickness | 0.071 mm (2.8 mil), ±10 % |
| ESD shielding | < 10 nJ per ANSI/ESD STM11.31 |
| Surface resistance, interior | 1 x 104 to < 1 x 1011 ohms per ANSI/ESD STM11.11 |
| Surface resistance, exterior | < 1 x 1011 ohms per ANSI/ESD STM11.11 |
| Static decay | < 2 s |
| Transparency | 40 % |
| Tensile strength | 32 MPa (ASTM D882) |
| Puncture resistance | 53 N |
| Seal strength | 48 N (ASTM D882) |
| Heat sealing | 149 to 190 °C, 0.5 to 3.5 s, 206 to 482 kPa |
| Tolerance | width -0/+6.4 mm, length ±3.2 mm |
| Marking | ESD protective symbol and lot code |
| Size (width x length) | 180 x 405 mm |
| Sales unit | pack of 100 |
| Weight | 1.409 kg per pack |
| Country of origin | USA |
| Manufacturer Nr. | 100716 |
| HS-Code | 39232100 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | United States |
| Abmessung | 180 x 405 mm |
| ESD version | ESD (antistatic) |
| ESD-Eigenschaft | shielding |
| Certification | RoHS 2011/65/EU |
