ESD In-Plant Handler with Lid and Partitions, Cell Sizes 152 x 165 to 305 x 206 mm - Desco

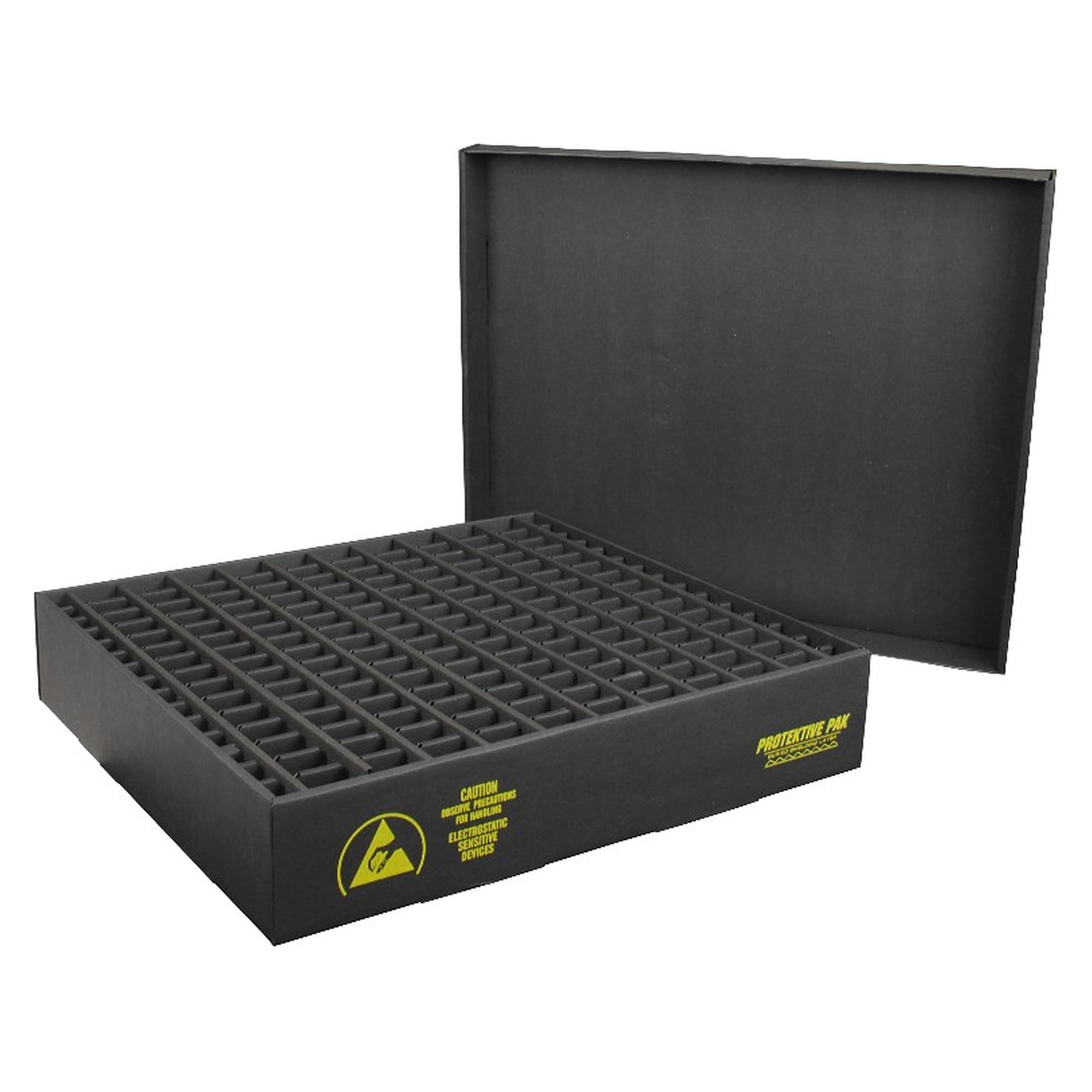

Moving several boards or assemblies between process steps needs a separate cell for each part and protection from discharges. The Desco Protektive Pak in-plant handler is a box of impregnated corrugated board with partitions and a lid. Cells come in sizes from 152 x 165 to 305 x 206 mm with depths from 19 to 70 mm. With the lid in place discharge shielding is below 10 nJ per ANSI/ESD STM11.31.

Key benefits

• Shields contents from charges and discharges with the lid in place, discharge shielding < 10 nJ.
• Each assembly in its own cell, no part-to-part contact, plus physical protection.
• Adjustable double thick partitions, reversible for longer use.
• Dissipative surface of 1 x 10⁶ to < 1 x 10⁹ ohms, buried shielding layer with low sloughing.
• Assembled without tape, glue or staples. Made from 100% recycled material and 100% recyclable.

Applications

In-plant transport and buffer storage of circuit boards and assemblies between placement, test and assembly, kitting and line-side supply.

Standards

Meets the required limits of ANSI/ESD S20.20 and packaging standard ANSI/ESD S541. Surface resistance tested per ANSI/ESD STM11.11, discharge shielding per ANSI/ESD STM11.31.
