Dino-Lite AM4115T-FUW

Name: Dino-Lite AM4115T-FUW
Brand: Dino-Lite
SKU: AM4115T-FUW
Price: 639 EUR
Availability: InStock

Lead time

1 week

€639.00

Excl. 19% VAT , excl. Shipping Cost

Article

AM4115T-FUW

Manufacturer Nr.

AM4115T-FUW

The UW series has two types of LED lights that are switchable between white and UV light. This model has a filter to filter out the returning UV light so that an image with natural colors can be obtained. The Dino-Lite Edge models provide superior image quality and a high level of flexibility due to the adaptable cap design. » Also available with 390-400nm LEDs (model AM4115T-FVW).

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Dino-Lite AM4115T-FUW
€639.00
Excl. 19% VAT , excl. Shipping Cost
Dino-Lite PodoScope
€1,168.83
Excl. 19% VAT , excl. Shipping Cost
Dino-Lite AM4023X
€409.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Additional Info

Dino-Lite range:	Dino-Lite Special lighting

Lighting

Light/ LED type:	~375 nm UV + white
Number of LEDs:	4+4
LED on/off switchable:	Yes
Infrared filter:	IR cut-filter >650 nm
Diffuser available:	MSAA111A1 (optional accessory)
Emission filter:	Yes, Emission barrier filter 375 nm
Polarizer:	No

Optics

Magnification:	20-220x
Macro zoom:	No
Working distance:	Standard
Lens type:	Glass with anti-reflection coating

Sensor

Sensor type:	CMOS
Resolution:	1.3 Megapixel (1280x1024)
Maximum frame rate:	30 fps

Compatibility

Interface:	USB 2.0
Operating system:	Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up
Included software:	DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows):	BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows):	WMV, FLV, SWF
Supported image formats (MacOS):	JPEG, PNG
Supported video formats (MacOS):	MOV
Imaging standards:	DirectShow, UVC

Housing

Housing material:	Composite/ plastic housing
Magnification lock:	Yes
Dimensions:	10.5cm (L) x 3.2cm (D)
Weight:	105g
Cable length:	1.8m

Features

Special feature:	No
Measurement:	Yes
Calibration:	Yes
Microtouch sensor:	Yes
ESD safe:	No

Information

Package contents:

Microscope, Carry pouch, Software CD, Calibration target, User manual

Warranty information:

2 years European warranty

Regulatory approval:

CE, FCC, ROHS

Price range:

€350,00 - €550,00

Working distance/ field of view/ depth of field:

Magnification Rate	Working Distance 1	Working Distance 2*	Field of View(x)	Field of View(y)	Depth of Field
Listed values may differ slightly		* Without front cap			Unit = mm
20	52.7	60.2	19.5	15.6	2.5
30	26.0	33.5	13.0	10.4	1.8
40	13.4	20.9	9.8	7.8	1.5
50	6.4	13.9	7.8	6.3	-
60	2.2	9.7	6.5	5.2	-
70	-	7.1	5.6	4.5	1.0
80	-	5.5	4.9	3.9	-
90	-	4.5	4.3	3.5	-
100	-	4.1	3.9	3.1	-
110	-	4.0	3.6	2.8	-
120	-	4.1	3.3	2.6	-
130	-	4.5	3.0	2.4	-
140	-	5.0	2.8	2.2	-
150	-	5.6	2.6	2.1	-
160	-	6.3	2.4	2.0	-
170	-	7.1	2.3	1.8	-
180	-	8.0	2.2	1.7	-
190	-	8.9	2.1	1.6	-
200	-	9.9	2.0	1.6	-
210	-	10.9	1.9	1.5	-
220	-	11.9	1.8	1.4	0.1

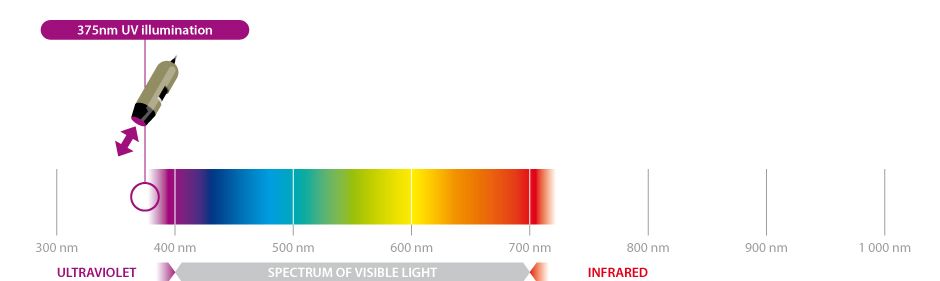

Special Light:

Information

More Information
Execution	TEC
Manufacturer Nr.	AM4115T-FUW
Manufacturer	Dino-Lite
Country of Manufacture	Taiwan, Province of China
EAN	4712805475506
ESD equipment	USB Mikroskop
Lead time	1 week
Weight	1.000000
HS-Code	90119090
GPSR manufacturer information	A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Article authenticity	Original product
Condition of article	New
