The Dino-Lite AM4115T-FVW switches between white light and UV so that brighteners, adhesives and coatings become visible. Measurement function with calibration via the supplied calibration target. Two year manufacturer warranty, shipped from Germany.
USB Edge Microscope 1.3 MP 20-220x UV 390-400 nm Fluorescence - Dino-Lite AM4115T-FVW
DINO-LITE
Original product
Net price (excl. VAT)
€522.00
Item
AM4115T-FVW
Manufacturer no.
AM4115T-FVW
RoHS 2011/65/EU
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.AM4115T-FVW
EAN4712805478156
Country of originTaiwan
Customs tariff number90118000
ConditionNew
Article
AM4115T-FVW
Frequently Bought Together
-
This Item:
€522.00
-
Flexible arm for RK-10 stand - Dino-Lite RK-10-FX
€54.00
-
Closed cap for AD polarizer models - Dino-Lite FC-Z-CC3
€10.80
Total price
The Dino-Lite AM4115T-FVW switches between white light and UV so that brighteners, adhesives and coatings become visible.
What it does for you
- A 1.3 MP sensor and a 20-220x magnification range, so overview and detail come from the same device.
- Measurement function with calibration via the supplied calibration target.
- The MicroTouch trigger on the housing captures the image without shaking the camera.
Technical data
| Property | Value |
|---|---|
| Magnification | 20x ~ 220x |
| Working distance | Standard |
| Macro zoom | No |
| Lens type | Glass with anti-reflection coating |
| Sensor type | CMOS |
| Resolution | 1.3 Megapixel (1280x1024) |
| Frame rate | 30 fps |

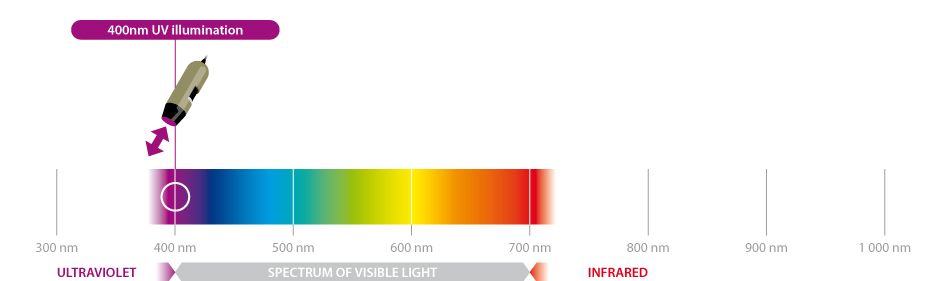

| Illumination | 395 nm UV + white |
| Number of LEDs | 4+4 |
| LEDs switchable | Yes |
| Polarizer | No |
| Infrared filter | IR cut-filter >650 nm |
| Emission filter | Yes, Emission barrier filter 375 nm |
| Diffuser cap | Yes (N3C-D included) |
| Measurement | Yes |
| Calibration | Yes |
| MicroTouch sensor | Yes |
| Magnification lock | Yes |
| Interface | USB 2.0 |
| Imaging standards | DirectShow, UVC |
| Operating system | Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Housing | Composite/ plastic housing |
| Dimensions | 10.5cm (L) x 3.2cm (D) |
| Weight | 100g |
| Cable length | 1.8m |
| ESD safe | No |
| Country of origin | Taiwan |
| Warranty | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Package contents | Microscope, carry pouch, software CD, calibration target, user manual, Microscope, carry pouch, software CD, calibration target, user manual, N3C-C (Close Cap) N3C-EB (Extended Open Black Cap) N3C-L (Long Cap) N3C-OB (Black Open Cap) N3C-S (Sidelight Cap) |
Magnification, working distance and field of view
| Magnification | Working distance (mm) | Field of view X (mm) | Field of view Y (mm) | Depth of field (mm) |
|---|---|---|---|---|
| 20 | 60.2 | 19.5 | 15.6 | 2.5 |
| 30 | 33.5 | 13.0 | 10.4 | 1.8 |
| 40 | 20.9 | 9.8 | 7.8 | 1.5 |
| 50 | 13.9 | 7.8 | 6.3 | - |
| 60 | 9.7 | 6.5 | 5.2 | - |
| 70 | 7.1 | 5.6 | 4.5 | 1.0 |
| 80 | 5.5 | 4.9 | 3.9 | - |
| 90 | 4.5 | 4.3 | 3.5 | - |
| 100 | 4.1 | 3.9 | 3.1 | - |
| 110 | 4.0 | 3.6 | 2.8 | - |
| 120 | 4.1 | 3.3 | 2.6 | - |
| 130 | 4.5 | 3.0 | 2.4 | - |
| 140 | 5.0 | 2.8 | 2.2 | - |
| 150 | 5.6 | 2.6 | 2.1 | - |
| 160 | 6.3 | 2.4 | 2.0 | - |
| 170 | 7.1 | 2.3 | 1.8 | - |
| 180 | 8.0 | 2.2 | 1.7 | - |
| 190 | 8.9 | 2.1 | 1.6 | - |
| 200 | 9.9 | 2.0 | 1.6 | - |
| 210 | 10.9 | 1.9 | 1.5 | - |
| 220 | 11.9 | 1.8 | 1.4 | 0.1 |
Values without front cap, as published by the manufacturer.
Typical uses
- Forensics and test labs: security features, residues, comparison images.
- Quality control and incoming inspection: surface defects, burrs, coatings, dimensional checks.
- Print and textiles: halftone dots, fibre orientation, ink build-up.
| Certification | RoHS 2011/65/EU |
|---|---|
| ESD version | TEC |
| Manufacturer Nr. | AM4115T-FVW |
| Manufacturer | Dino-Lite |
| Country of Manufacture | Taiwan |
| EAN | 4712805478156 |
| ESD equipment | USB Mikroskop |
| Weight | 0.100000 |
| HS-Code | 90118000 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment, info@esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Warranty | 2 years |
| Material | ABS plastic |
| Polarizer | No |
| Long Working Distance | No |
| Interface | USB 2.0 |
| Position sensing | No |
