Opal diffuser front cap for Edge and Edge PLUS microscopes - Dino-Lite N3C-D2
The opaque Dino-Lite N3C-D2 diffuser cap scatters the LED light before it reaches the object and takes the harsh glare off shiny surfaces. According to the manufacturer it fits standard Edge models (ZT, ZTL, MZT, MZTL, ZTW) and the AM5216 and AM5218, but not UV, IR, fluorescence or high magnification models. Supplied as a set of 2 caps.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Metal, paint, PCBs and other glossy surfaces throw the microscope's LED light back as bright patches. The Dino-Lite N3C-D2 is an opaque diffuser cap for the front mount of the Edge series. It scatters the light before it reaches the object, so the illumination becomes more even.
The cap is the same diffuser cap that comes with an Edge microscope and is supplied as a set of 2. The translucent version is the N3C-D.
Works with
Microscopes: according to the manufacturer's matrix, all standard models of the Edge and Edge PLUS family with the N3 front mount. These are the AM4115, AM4117, AM4515, AM4517, AM4815, AM4917, AM7115, AM7515, AM7915, AM73115, AM73515 and AM73915 series in the ZT, ZTL, MZT, MZTL and ZTW versions, plus the VGA and HDMI models AM5216 and AM5218 (ZT, ZTL). DinoConnect (AF) versions and wireless kits (WF) with the same model number share the same front mount. Examples: AM4117MZT, AM4517MZTL, AM7915MZT, AM73515MZT, AM5216ZTL, AF7115MZT and WF4515ZT. The 8 MP models AM8117, AM8517 and AM8917 are not listed in the matrix.
Not suitable: according to the manufacturer, UV and IR models (FVW, FUW, FIT, FJT, FKT, FUT, FVT, e.g. AM4115-FIT, AM7115MT-FUW), fluorescence models (CFVW, DFRW, GFBW, G2FBW, GRFBY, YFGW, RFYW, e.g. AM4115T-DFRW, AM4517MT-YFGW), high magnification models (ZT4, T5, T8, MT4A, MT8A, e.g. AM4515T5, AM73515MT8A) and extra long working distance models (TF, ZTF, MTF, e.g. AM4115TF, AM73115MTF). For UV, IR and fluorescence models the manufacturer specifies the black open cap N3C-OB, for high magnification and extra long working distance the open cap N3C-O.
Combines with: the N3C-D translucent diffuser cap, the N3C-C closed cap, the N3C-E extended open cap, the N3C-L long cap, the N3C-O open cap, the N3C-S sidelight cap and the N3C-ESD ESD cap set.
Technical data
| Property | Value |
|---|---|
| Type | Diffuser front cap, opaque |
| Mount | N3 front mount of the Edge series |
| Material | Plastic |
| Regulatory approval | RoHS |
| Warranty | 2 years manufacturer warranty |
| Package contents | 2 N3C-D2 opaque diffuser caps |
| Manufacturer | Dino-Lite |
| Manufacturer Nr. | N3C-D2 |
| HS-Code | 90119090 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment, info@esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Taiwan |
Downloads
Datasheet
User Manual
Brochure
Accessories
Side light front cap for Edge and Edge PLUS microscopes - Dino-Lite N3C-S
Item N3C-SOpen front cap with 3 mm extension for Edge microscopes - Dino-Lite N3C-E
Item N3C-EHigh-magnification USB digital microscope 8 MP 700-900x with AMR, EDOF and EDR - Dino-Lite AM8917MT8A
Item AM8917MT8AShow 10 more items
USB 3.0 Digital Microscope 5 MP 10-220x with EDOF and Polarizer - Dino-Lite AM73915MZT
Item AM73915MZTUSB 3.0 Digital Microscope 5 MP 10-140x LWD with EDOF and Polarizer - Dino-Lite AM73915MZTL
Item AM73915MZTLHigh-magnification USB digital microscope 8 MP 415-460x with AMR, EDOF and EDR - Dino-Lite AM8917MT4A
Item AM8917MT4AHigh-magnification USB digital microscope 8 MP 700-900x with AMR, EDOF and EDR - Dino-Lite AM8917MT8

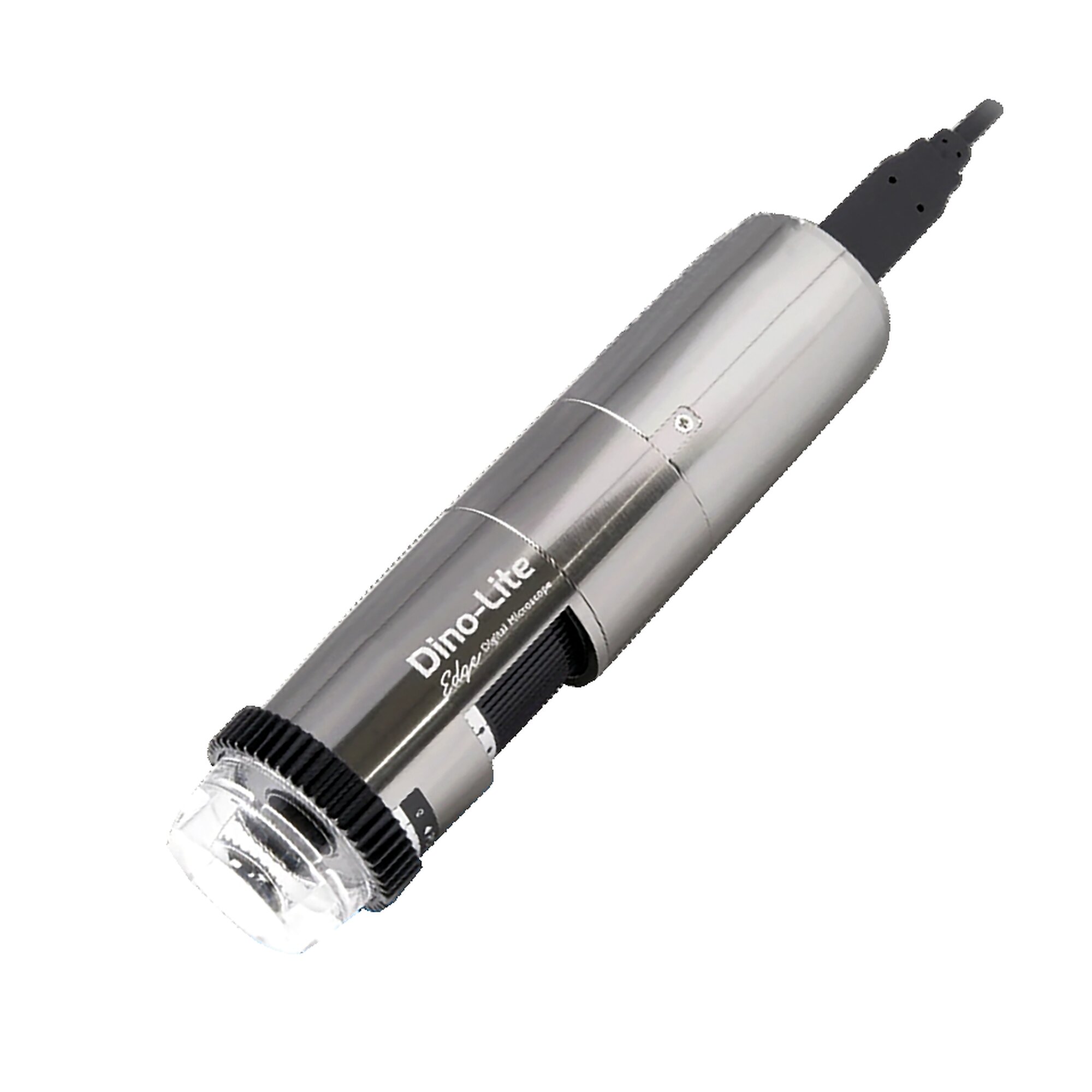

Item AM8917MT8High-magnification USB digital microscope 8 MP 400-470x with AMR, EDOF and EDR - Dino-Lite AM8917MZT4
