USB 3.0 Edge Microscope 5 MP 10-220x with AMR and Polarizer - Dino-Lite AM73515MZT

Over USB 3.0 the Dino-Lite AM73515MZT delivers the live image without stutter and at full sensor resolution.

What it does for you

• A 5 MP sensor and a 10-220x magnification range, so overview and detail come from the same device.
• The built-in polarizer suppresses reflections on metal, glass, plastic and circuit boards.
• AMR reads the set magnification automatically, so measurements stay correct without recalibrating.
• Flexible LED Control switches individual LED segments to take out cast shadows and hot spots.
• ESD safe housing for use at EPA workstations to IEC 61340-5-1.
• The MicroTouch trigger on the housing captures the image without shaking the camera.

Magnification, working distance and field of view

Values without front cap, as published by the manufacturer.

Typical uses

• Electronics manufacturing and repair: solder joints, BGA edges, tracks, placement errors.
• Quality control and incoming inspection: surface defects, burrs, coatings, dimensional checks.
• Materials testing: fracture surfaces, welds, corrosion, microstructure.
• Print and textiles: halftone dots, fibre orientation, ink build-up.

Compatible accessories

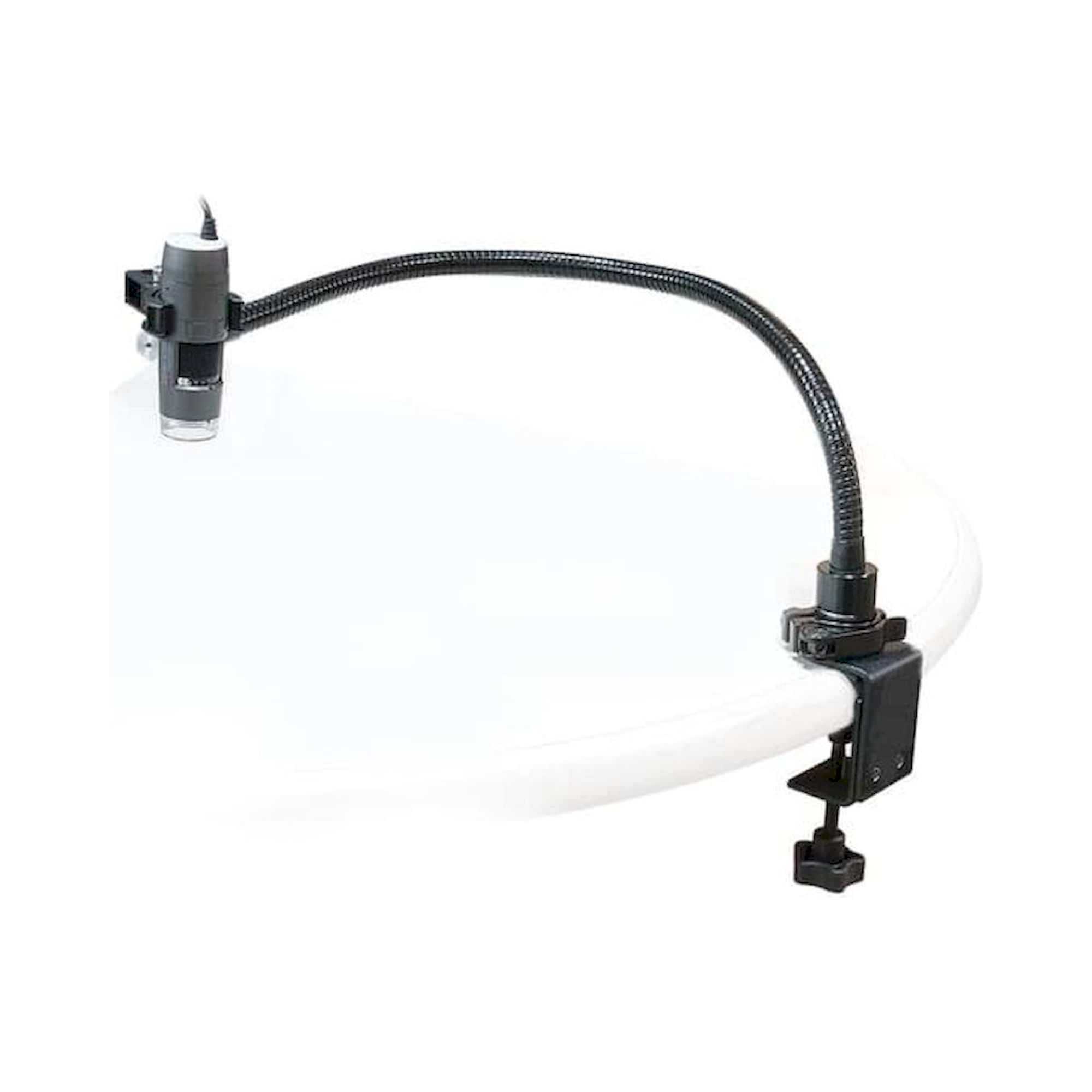

Stands: RK-10A (high-precision stand, ESD safe), RK-10FS (precision stand with heavy antistatic base), RK-10F (precision stand with anti-backlash focus), RK-06A (precision stand with fine focus), RK-06-AE (ESD version of the RK-06A), RK-06F (tabletop stand with fine focus), MS53B (articulating arm with table clamp), MS53BA2 (articulating arm with heavy table base), RK-04 (compact stand), RK-04F (compact stand with fine focus), RK-05 (compact stand with 30 degree tilt), RK-05F (compact stand, tilt and fine focus), MS08B (compact table stand), MS-W1 (wheeled stand for flat and curved surfaces), RK-02 (gooseneck with table clamp).

Holders: HD-P2 (quick-clamp holder), HD-M1 (metal holder 8-10 mm), HD-M2A (metal holder 10 mm, not for RK-04 and RK-05), HL2 (universal holder). The HD-M2B holder does not fit RK stands.

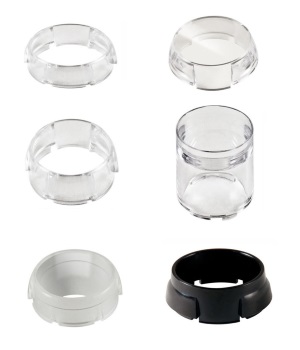

Front caps: N3C-O (open), N3C-OB (open, black), N3C-E (open, 3 mm extended), N3C-C (closed), N3C-L (long), N3C-LB (long, black), N3C-D (diffuser), N3C-D2 (opal diffuser), N3C-S (side light), N3C-ESD (ESD safe set).

Lighting: SL-ZW1 (polarized USB gooseneck light), BL-ZW2 (backlight stage with removable polarizer), BL-CDW (backlight with bright and dark field), N3C-R (ring diffuser).

Other accessories: SW-F1 (USB foot pedal for capture), CS-41 (calibration slide with auto calibration target), CS-21 (calibration sheets), MSAH303 (large protective enclosure), MSAH352 (silicone cover), CA1070 (watertight case).

Based on the manufacturer's compatibility data.
