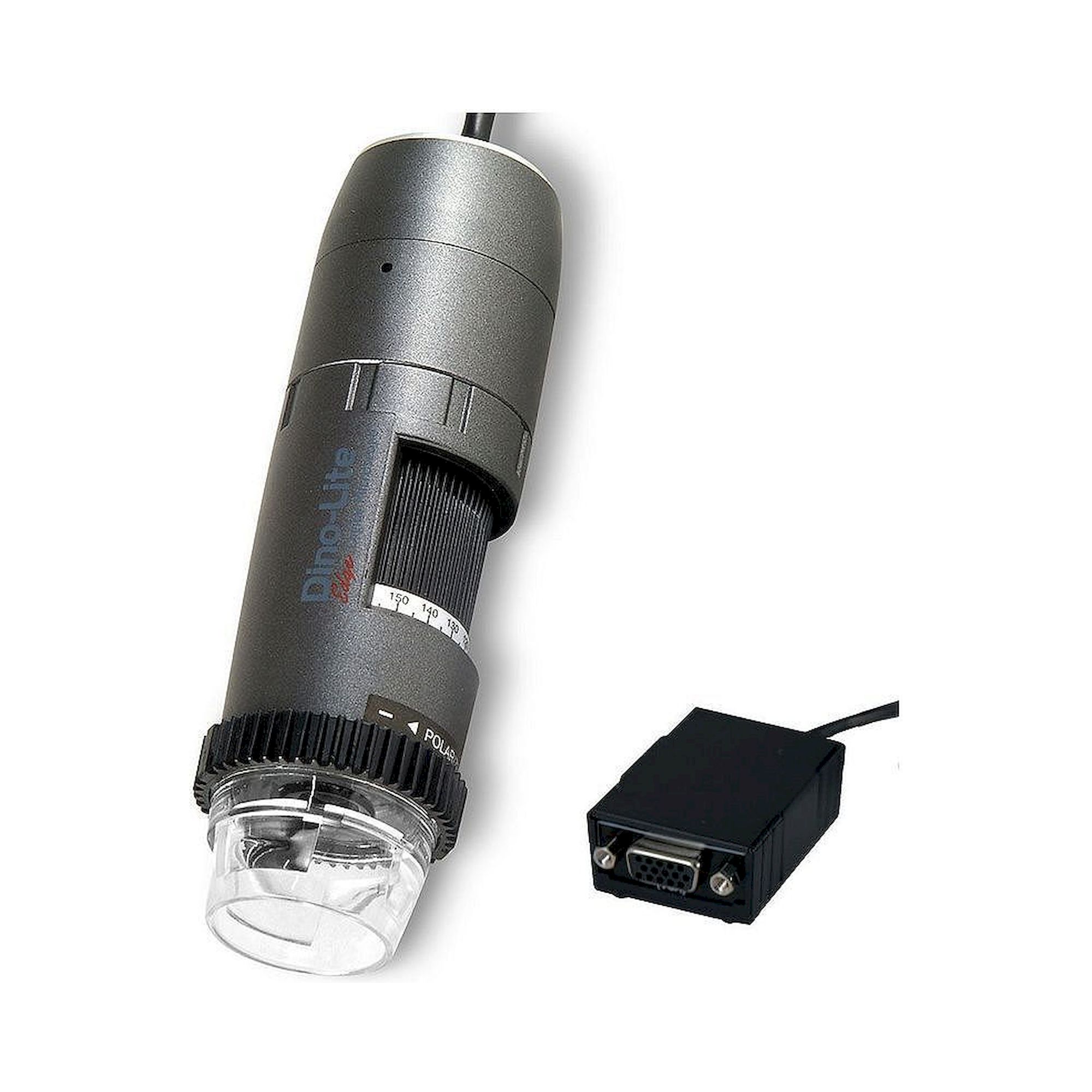

USB Handheld Microscope 720p 60 fps 10-140x LWD with Polarizer - Dino-Lite AM5216ZTL

Dino-Lite ✓ Original product Brand new Made in Taiwan

At 60 frames per second the Dino-Lite AM5216ZTL follows moving objects without smearing. The built-in polarizer suppresses reflections on metal, glass, plastic and circuit boards. Two year manufacturer warranty, shipped from Germany.

Net
€505.20
excl. VAT
Item AM5216ZTL
Manufacturer no. AM5216ZTL
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

At 60 frames per second the Dino-Lite AM5216ZTL follows moving objects without smearing.

What it does for you

  • A VGA sensor and a 10-140x magnification range, so overview and detail come from the same device.

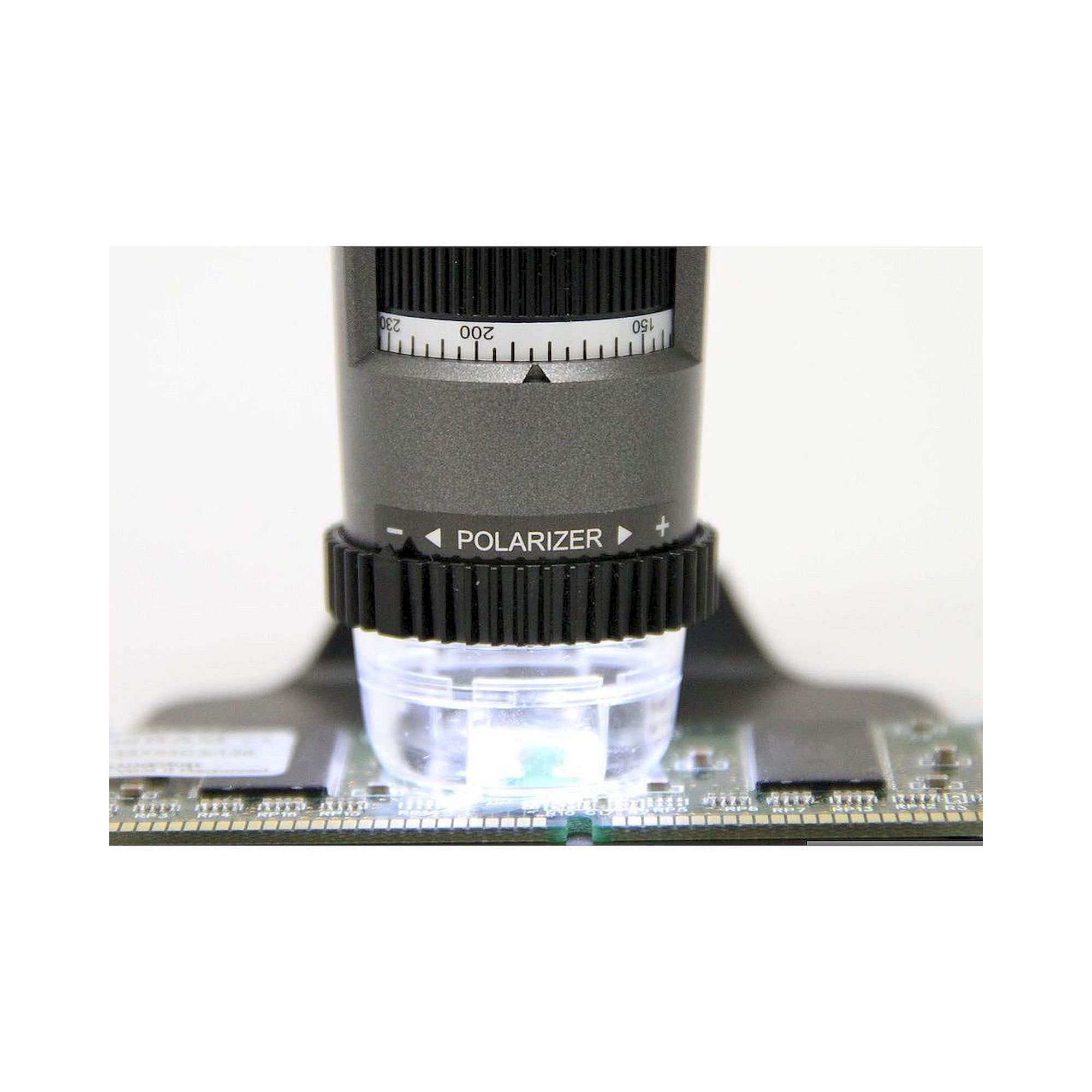

  • The built-in polarizer suppresses reflections on metal, glass, plastic and circuit boards.

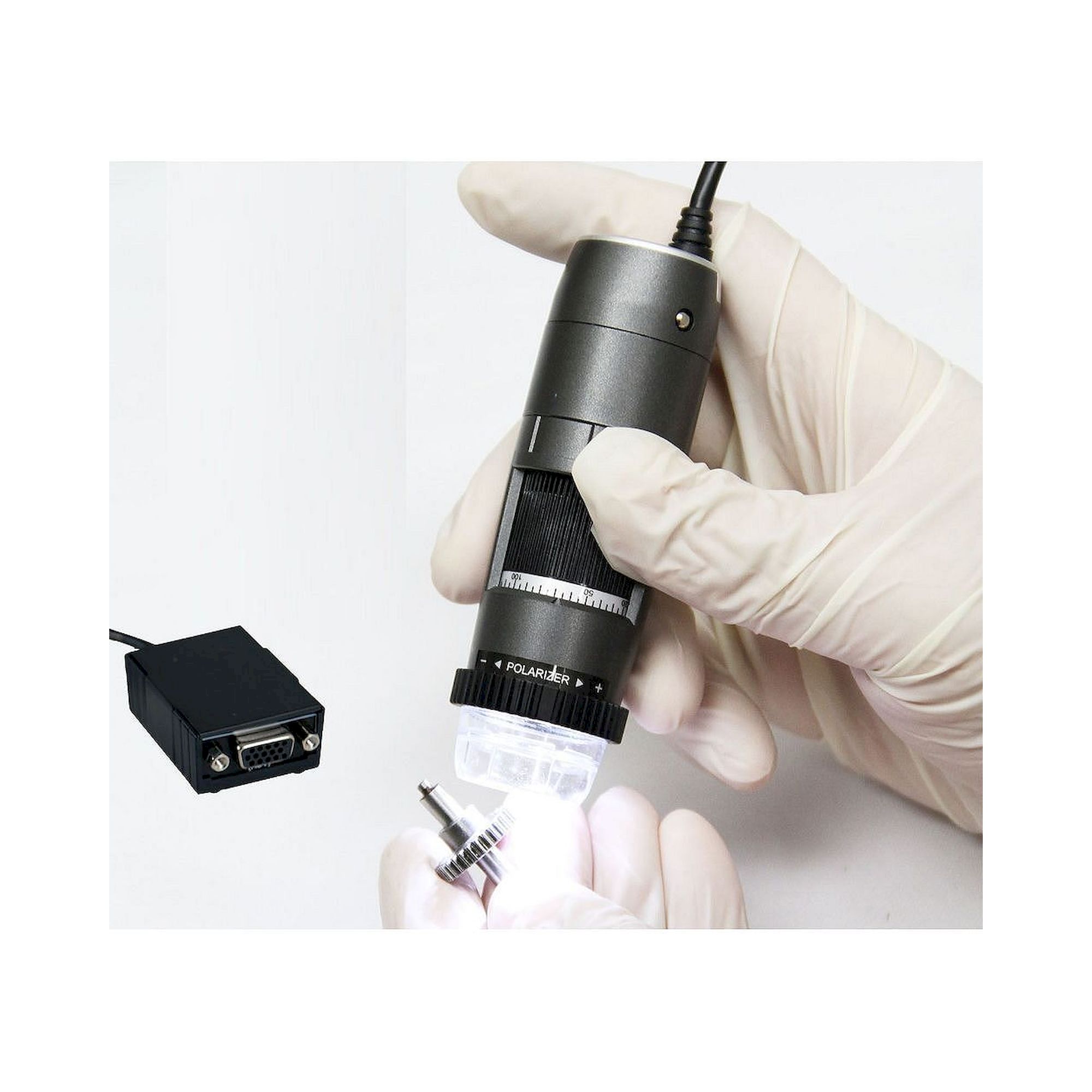

  • The long working distance leaves room for tweezers, an iron or a probe between optics and object.
  • The MicroTouch trigger on the housing captures the image without shaking the camera.

Magnification, working distance and field of view

MagnificationWorking distance (mm)Field of view X (mm)Field of view Y (mm)Depth of field (mm)
10234.539.02212
20112.519.5114.5
3072.513.07.33.1
4054.59.85.51.8
5043.57.84.41.2
6037.56.53.70.9
7033.75.63.20.6
8031.34.92.80.5
9029.94.32.40.37
10029.23.92.20.28
11029.13.520.22
12029.33.31.90.17
13029.83.01.70.12
14030.52.81.60.09

Values without front cap, as published by the manufacturer.

Typical uses

  • Electronics manufacturing and repair: solder joints, BGA edges, tracks, placement errors.
  • Quality control and incoming inspection: surface defects, burrs, coatings, dimensional checks.
  • Materials testing: fracture surfaces, welds, corrosion, microstructure.
  • Print and textiles: halftone dots, fibre orientation, ink build-up.

Compatible accessories

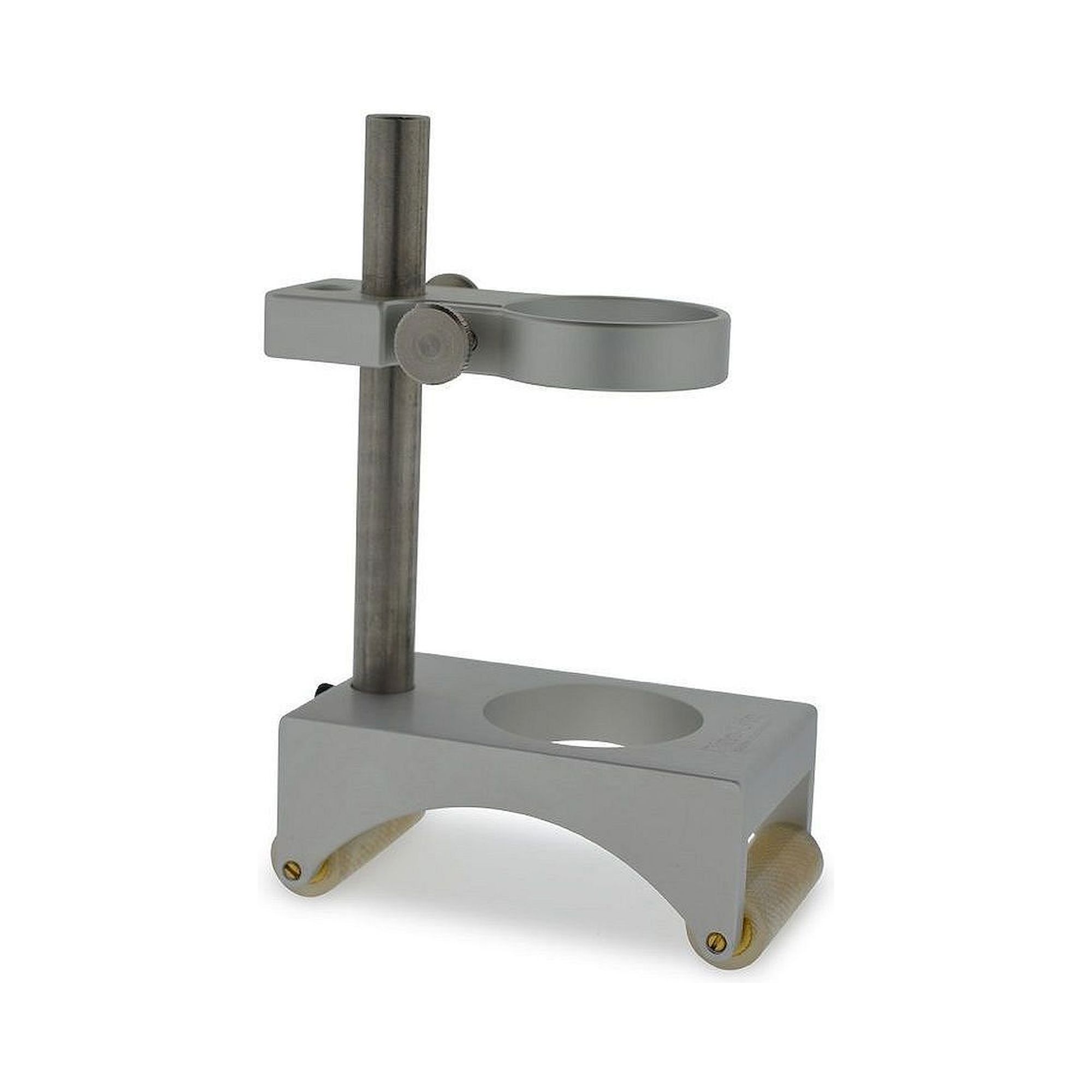

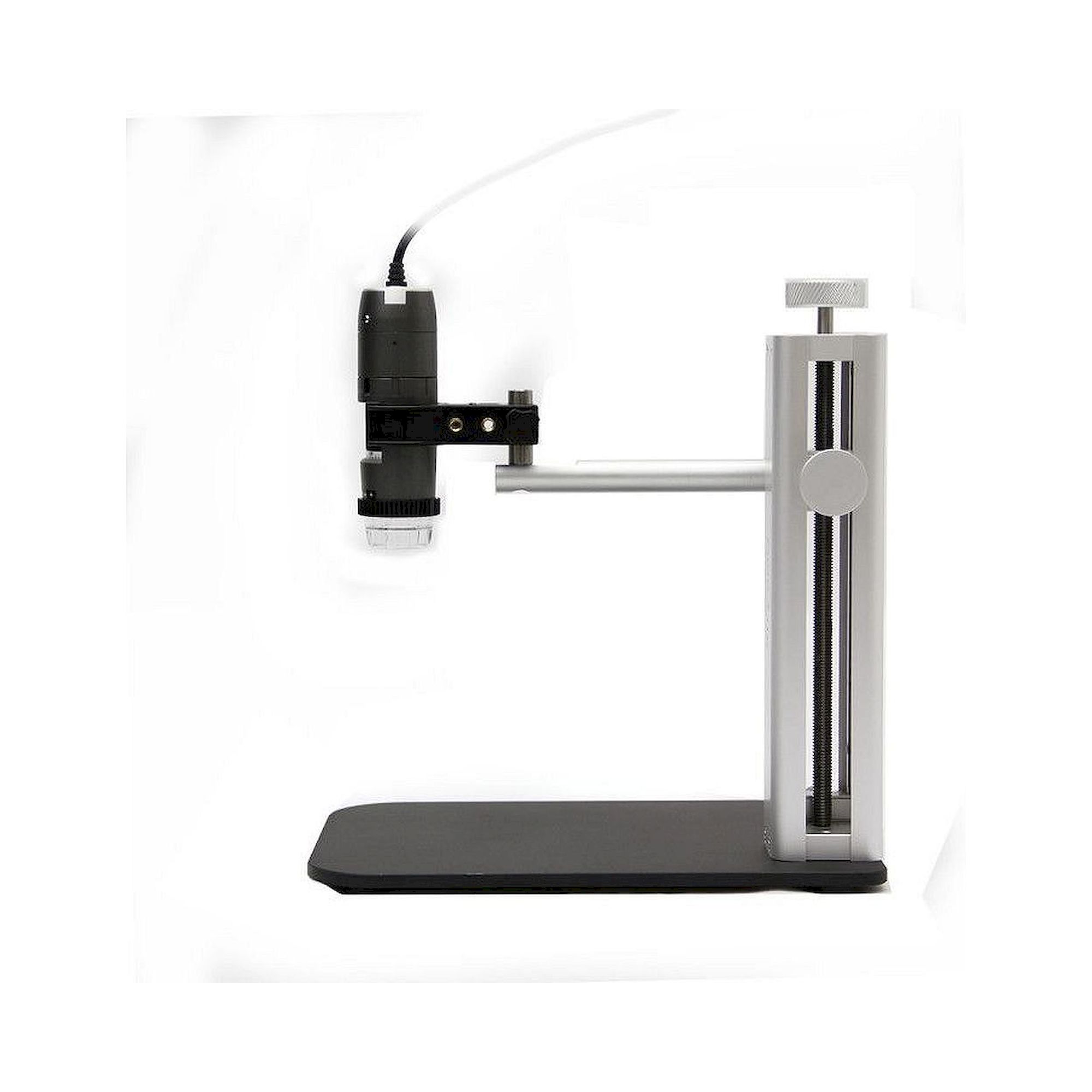

Stands: RK-10A (high-precision stand, ESD safe), RK-10FS (precision stand with heavy antistatic base), RK-10F (precision stand with anti-backlash focus), RK-06A (precision stand with fine focus), RK-06-AE (ESD version of the RK-06A), RK-06F (tabletop stand with fine focus), MS53B (articulating arm with table clamp), MS53BA2 (articulating arm with heavy table base), MS08B (compact table stand), MS-W1 (wheeled stand for flat and curved surfaces), RK-02 (gooseneck with table clamp).

Holders: HD-P2 (quick-clamp holder), HD-M1 (metal holder 8-10 mm), HD-M2A (metal holder 10 mm, not for RK-04 and RK-05), HL2 (universal holder). The HD-M2B holder does not fit RK stands.

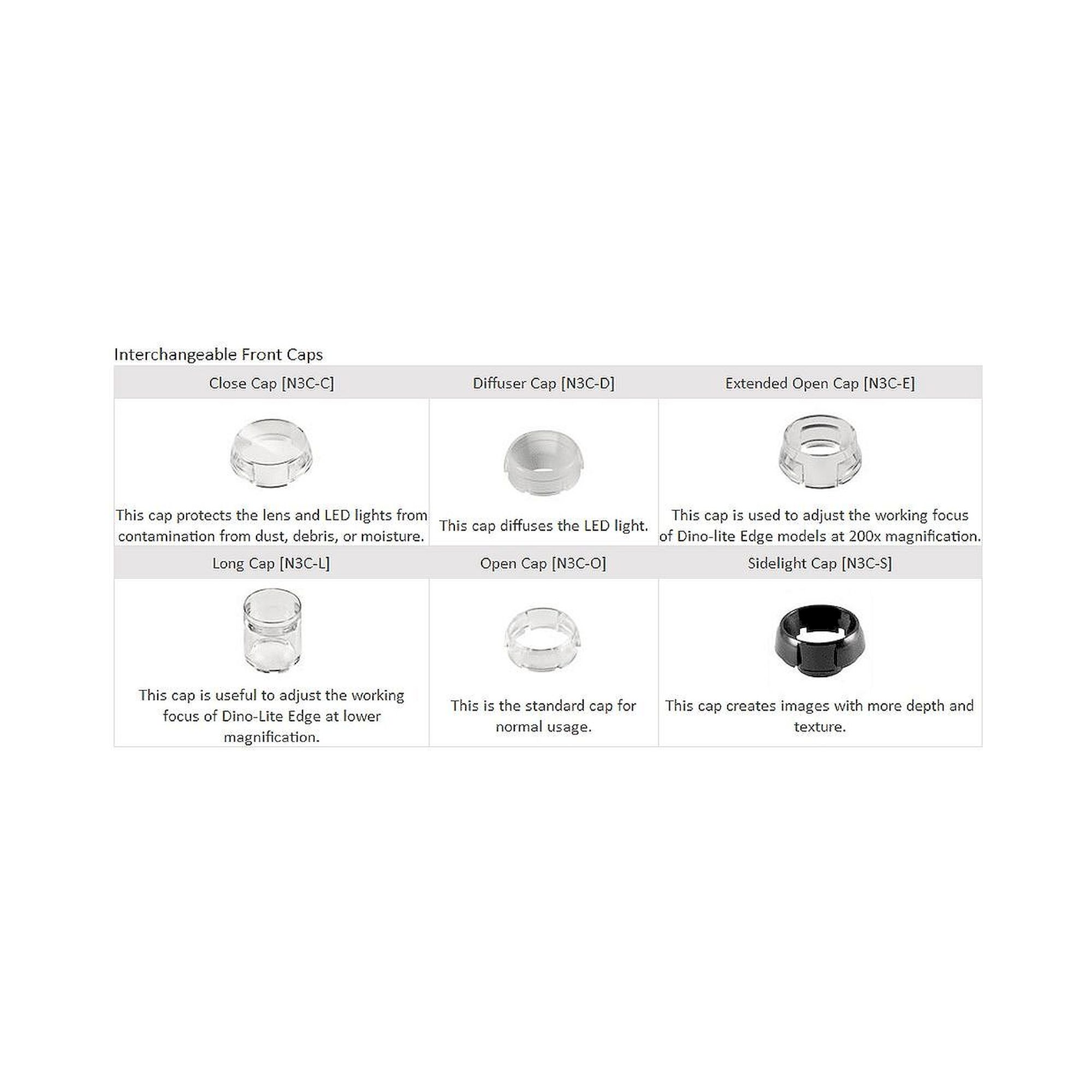

Front caps: N3C-O (open), N3C-OB (open, black), N3C-E (open, 3 mm extended), N3C-C (closed), N3C-L (long), N3C-LB (long, black), N3C-D (diffuser), N3C-D2 (opal diffuser), N3C-S (side light), N3C-ESD (ESD safe set).

Lighting: SL-ZW1 (polarized USB gooseneck light), BL-ZW2 (backlight stage with removable polarizer), N3C-A (coaxial light cap, cuts working distance by 5 mm), N3C-R (ring diffuser).

Other accessories: SW-F1 (USB foot pedal for capture), CS-41 (calibration slide with auto calibration target), CS-21 (calibration sheets), MSAH352 (silicone cover), CA1070 (watertight case).

Not suitable: The manufacturer does not approve the compact RK-04, RK-04F, RK-05 and RK-05F stands for long working distance models.

Based on the manufacturer's compatibility data.

Technical data

PropertyValue
Magnification10x ~ 140x
Working distanceLong
Macro zoomNo
Lens typeGlass with anti-reflection coating
Sensor typeCMOS
ResolutionHD 720p
Frame rate60 fps
IlluminationWhite
Number of LEDs8
LEDs switchableYes
PolarizerYes, linear
Infrared filterIR cut-filter >650 nm
Emission filterNo
Diffuser capYes (N3C-D included)
MeasurementNo
CalibrationNo
MicroTouch sensorYes
Magnification lockYes
InterfaceVGA (D-Sub)
Wi-FiNo
HousingComposite/ plastic housing
Dimensions10.5cm (L) x 3.2cm (D)
Weight105g
Cable length0.6m
ESD safeNo
Warranty2 years European warranty
Regulatory approvalCE, FCC, ROHS
Package contentsMicroscope, carry pouch, power adapter, front cover box, user manual
ManufacturerDino-Lite
Manufacturer Nr.AM5216ZTL
EAN4712805476206
HS-Code90118000
GPSR manufacturer informationA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment, info@esd.equipment
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureTaiwan
MaterialABS plastic
ESD versionTEC
ESD equipmentUSB Mikroskop
CertificationRoHS 2011/65/EU
Magnification max (x)140
Long Working DistanceJa
