USB trichoscope camera 1.3 MP 10-200x with polarizer - Dino-Lite MEDL4HM
The Dino-Lite MEDL4HM belongs to the Dino-Lite medical range and documents findings directly on the patient. The built-in polarizer suppresses reflections on metal, glass, plastic and circuit boards. Two year manufacturer warranty, shipped from Germany.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

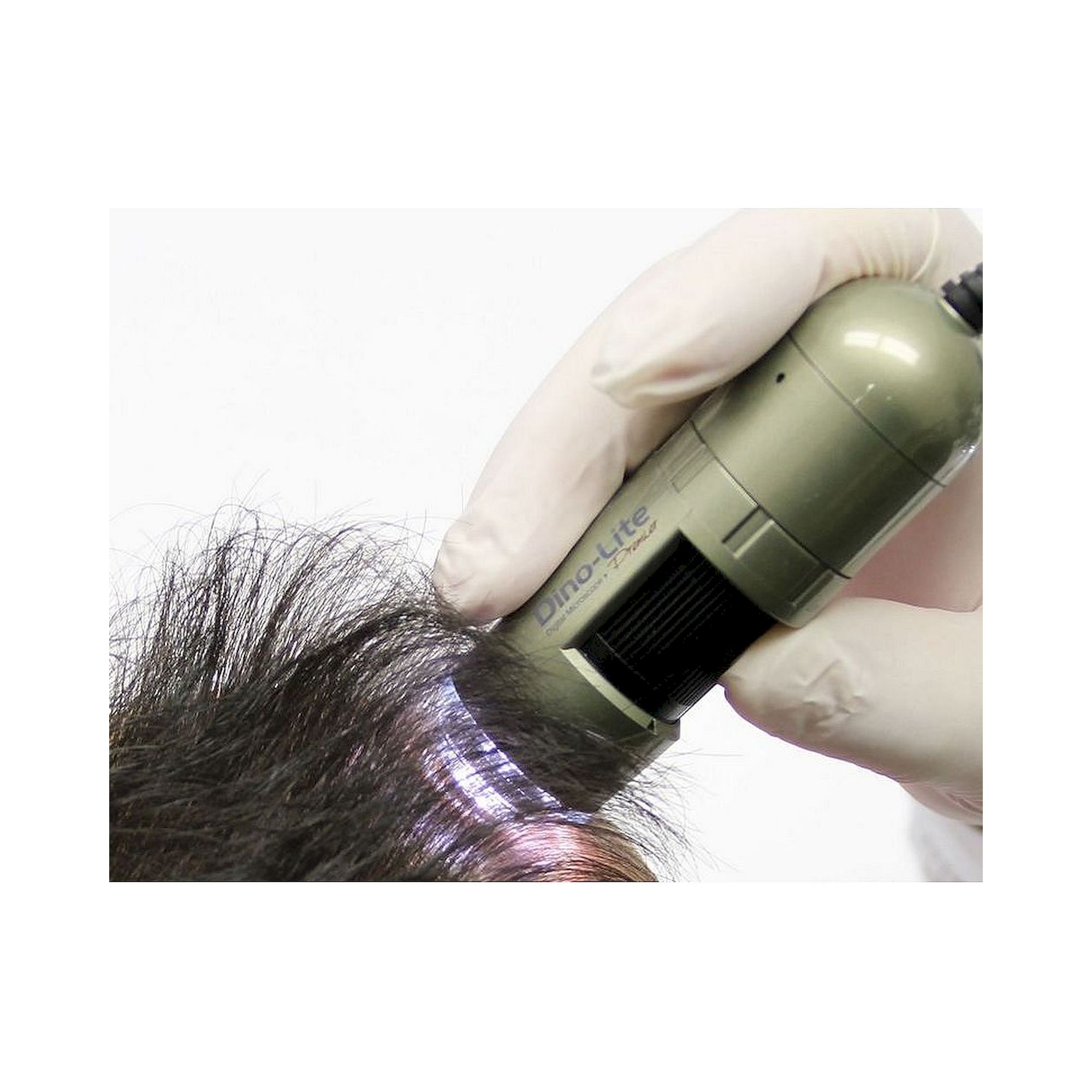

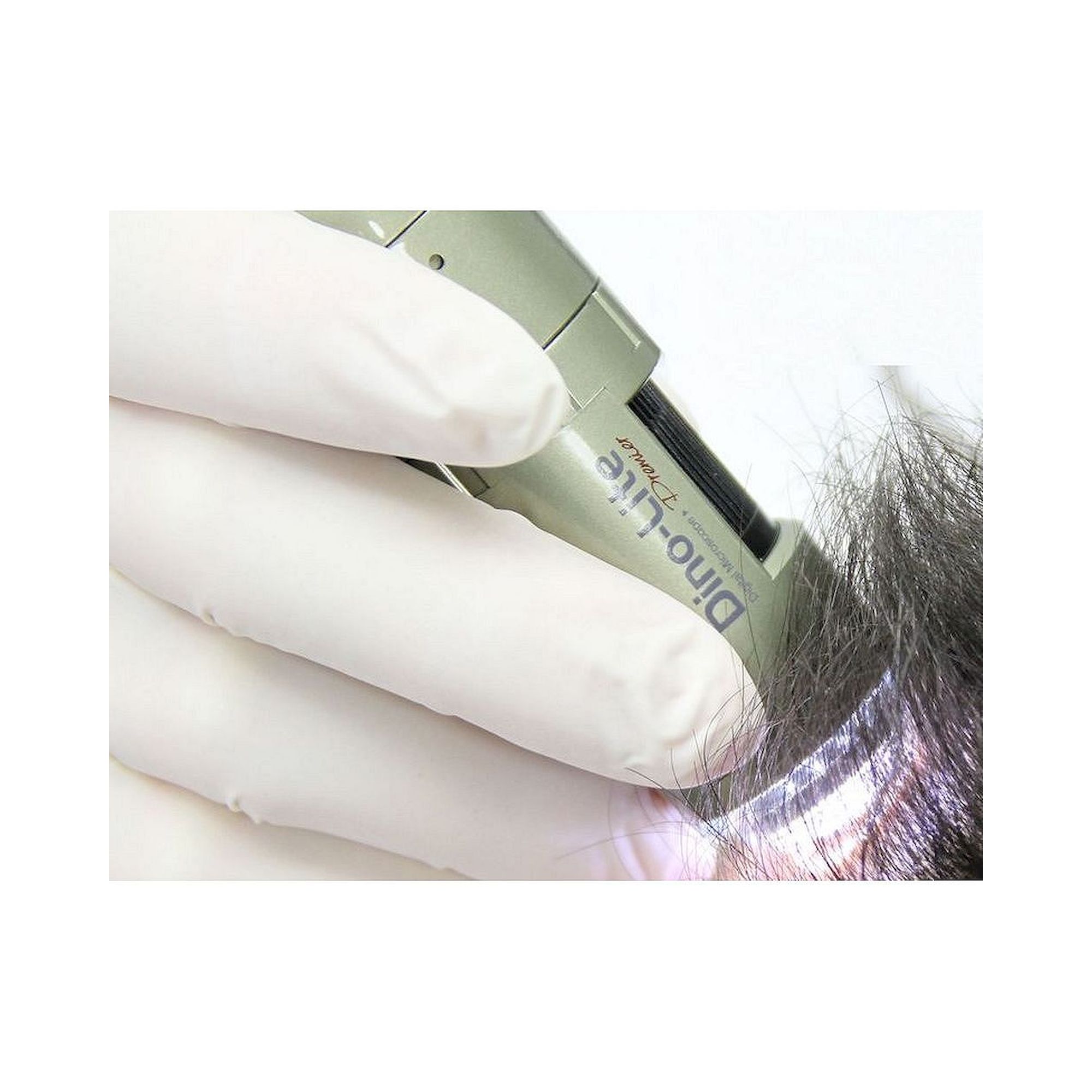

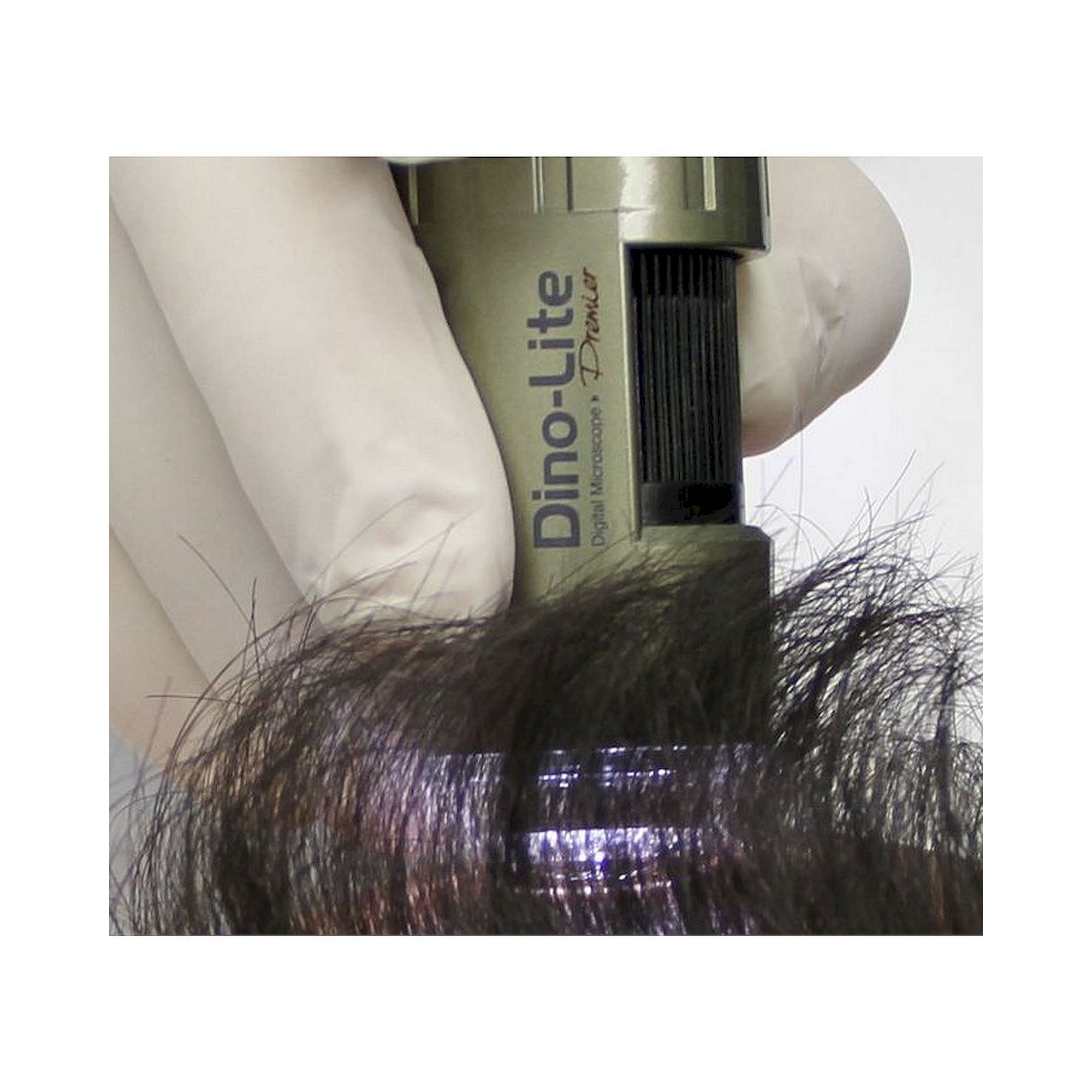

The Dino-Lite MEDL4HM belongs to the Dino-Lite medical range and documents findings directly on the patient.
What it does for you
- A 1.3 MP sensor and a 10-200x magnification range, so overview and detail come from the same device.
- The built-in polarizer suppresses reflections on metal, glass, plastic and circuit boards.
- The MicroTouch trigger on the housing captures the image without shaking the camera.
Typical uses
- Practice and clinic: documenting findings and following up on the patient.
Technical data
| Property | Value |
|---|---|
| Magnification | 10-70x, 200x |
| Lens type | Glass with anti-reflection coating |
| Sensor type | CMOS |
| Resolution | 1.3 Megapixel (1280x1024) |
| Frame rate | 30 fps |
| Illumination | White |
| Number of LEDs | 8 |
| LEDs switchable | Yes |
| Polarizer | Yes, linear |
| Infrared filter | IR cut-filter >650 nm |
| Diffuser cap | No |
| Measurement | No |
| Calibration | No |
| MicroTouch sensor | Yes |
| Magnification lock | Yes |
| Interface | USB 2.0 |
| Imaging standards | DirectShow, UVC |
| Operating system | Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Housing | Composite/plastic housing |
| Dimensions | 10.5cm (L) x 3.2cm (D) |
| Weight | 95 g |
| Cable length | 1.8m |
| Country of origin | Taiwan |
| Warranty | 2 years European warranty |
| Regulatory approval | Medical Device Class 1 - Medical Devices Regulation (EU) 2017/745 |
| Package contents | Microscope, carry pouch, software CD, ZT-Z-CC1 cap closure, user manual |
| Manufacturer | Dino-Lite |
| Manufacturer Nr. | MEDL4HM |
| HS-Code | 90118000 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment, info@esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Taiwan |
| Material | ABS plastic |
| ESD version | TEC |
| ESD equipment | USB Mikroskop |
| Magnification max (x) | 200 |
