Two-layer ESD bench mat made of synthetic rubber in grey, 60 x 100 cm at 2 mm thickness. Dissipative surface with a low-resistance conductive backing and a discharge resistance of 10⁶ to 10⁹ ohm for safe charge removal at the ESD workstation.
ESD Bench Mat Premium 60 x 100 cm, synthetic rubber, grey, 2 x DK 4
A1-ESD
Original product
Net price (excl. VAT)
€26.40
Item
EP0504018
Manufacturer no.
EP0504018
Zertifiziert nach
ESD · IEC 61340-5-1
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.EP0504018
ConditionNew
Article
EP0504018
Frequently Bought Together
-
This Item:
€26.40
-
ESD Table Mat Alfaplan S, roll material, platinum grey
As low as €39.10Show details
-
ESD Bench Mat Premium 60 x 90 cm, synthetic rubber, grey, 2 x DK 10
€24.80
Total price

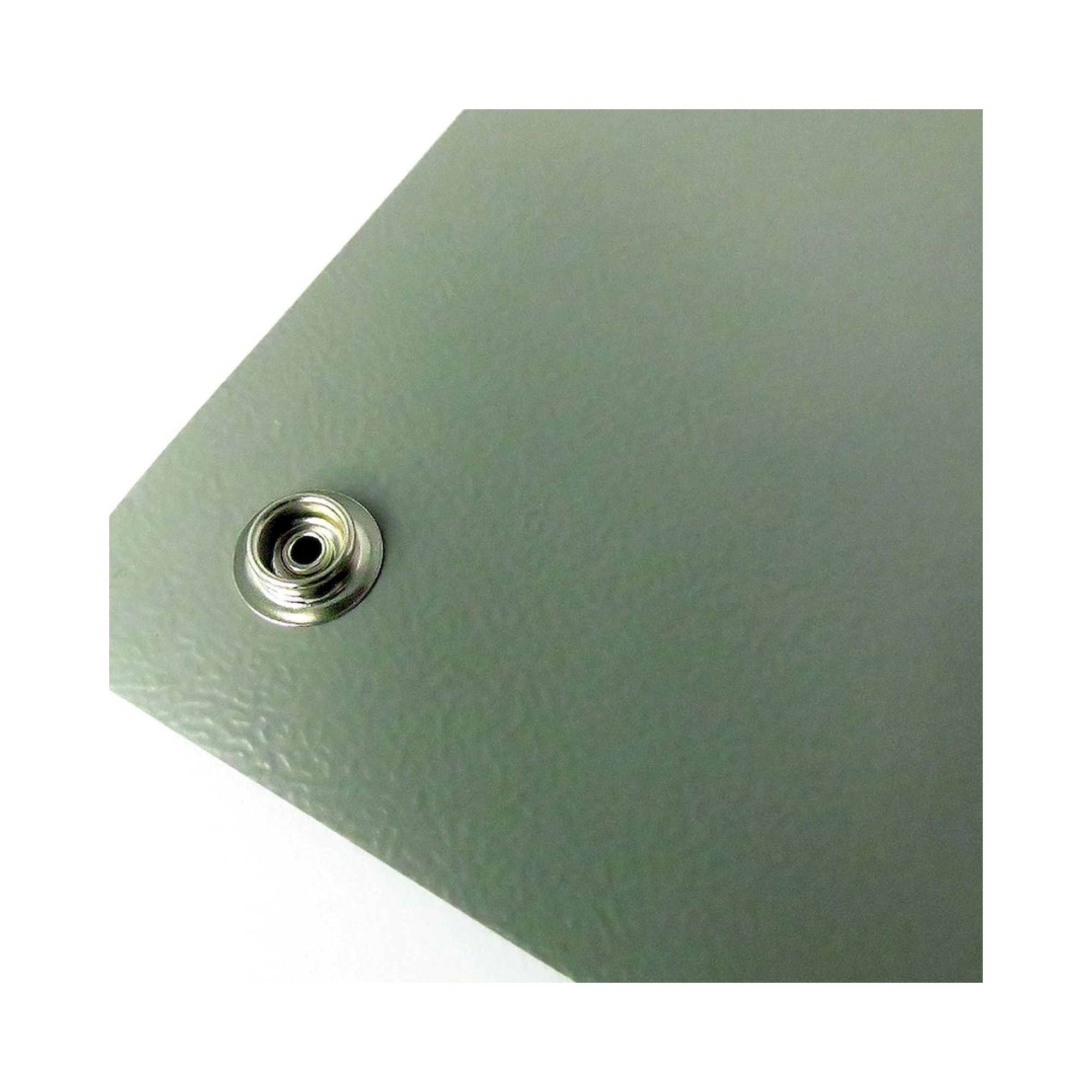

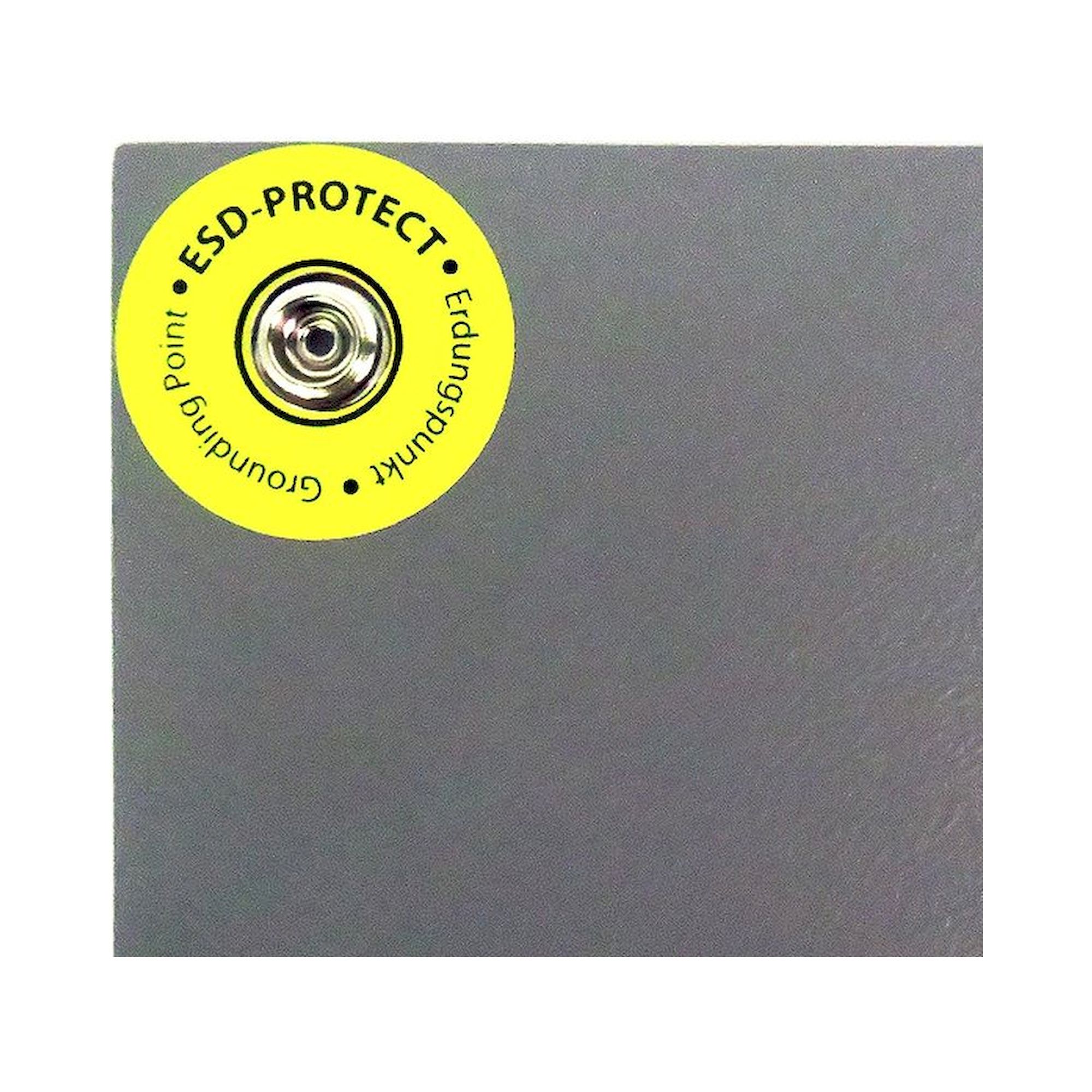

The A1-ESD ProMAT bench mat Premium forms the dissipative work surface at the ESD workstation and reliably protects electronic assemblies against electrostatic discharge. The 60 x 100 cm cut connects to the grounding system through its two DK 4 snap fasteners.
Benefits
- Two-layer build with a dissipative top surface and a conductive low-resistance backing for controlled charge removal
- Discharge resistance in the 10⁶ to 10⁹ ohm range as required for dissipative work surfaces
- Heat resistant against solder splashes and resistant to chemicals and oil
- Anti-reflective surface, permanently elastic and abrasion resistant
Technical data
- Dimensions: 60 x 100 cm
- Thickness: 2 mm
- Material: synthetic rubber
- Colour: grey
- Discharge resistance: 10⁶ to 10⁹ ohm
- Snap fasteners: 2 x DK 4
- Construction: two-layer (dissipative/conductive)
Applications
Suitable for soldering and assembly benches, test and repair stations and EPA areas in electronics manufacturing.
Standards and compliance
Supports building an EPA in line with IEC 61340-5-1.
| Certification | IEC 61340-5-1 |
|---|---|
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | EP0504018 |
| Manufacturer | A1-ESD |
| Weight | 0.100000 |
| Colour | Grey |
| Height | 2 |
| Width | 1000 |
| Depth | 600 |
| Sales unit | 1 Stück |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
