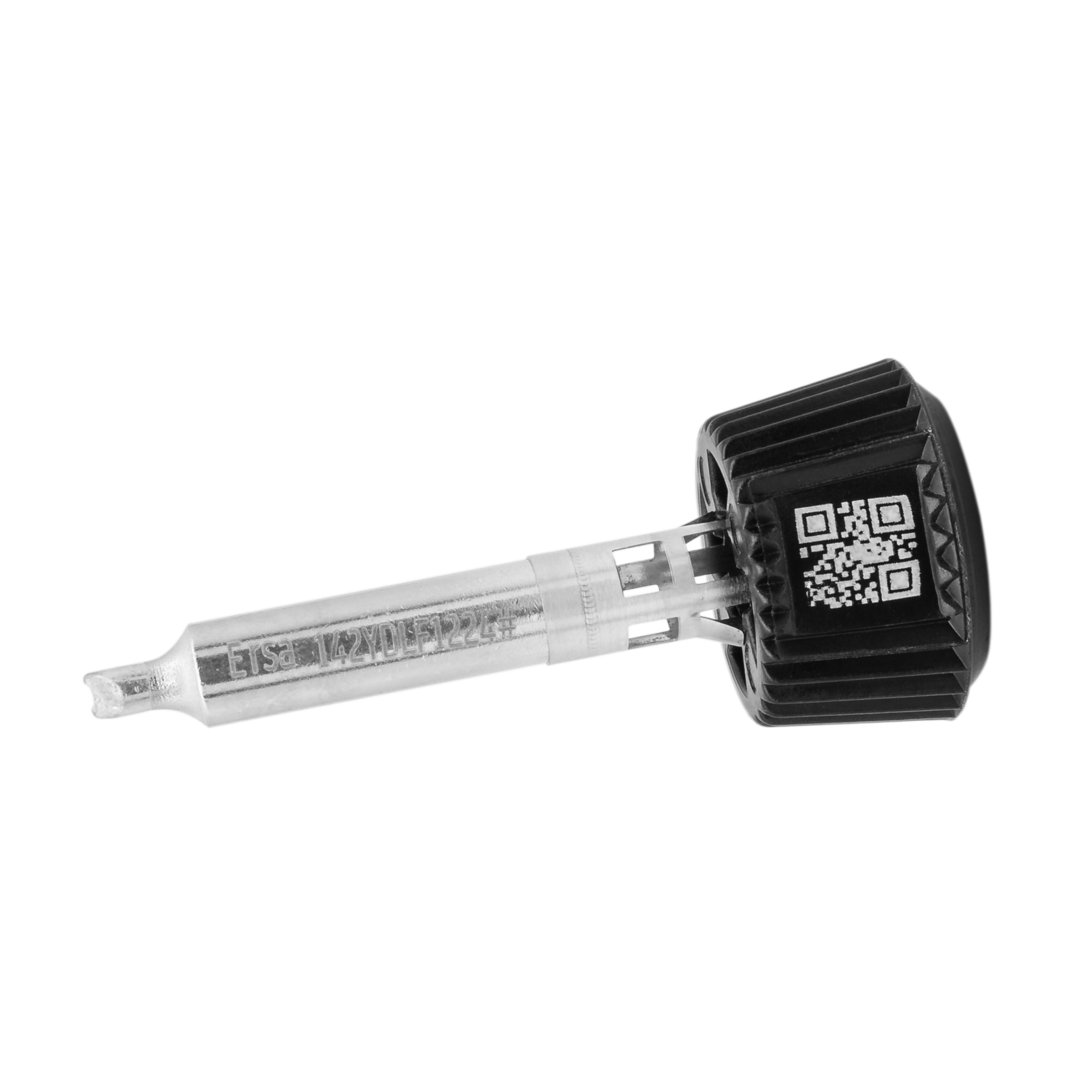

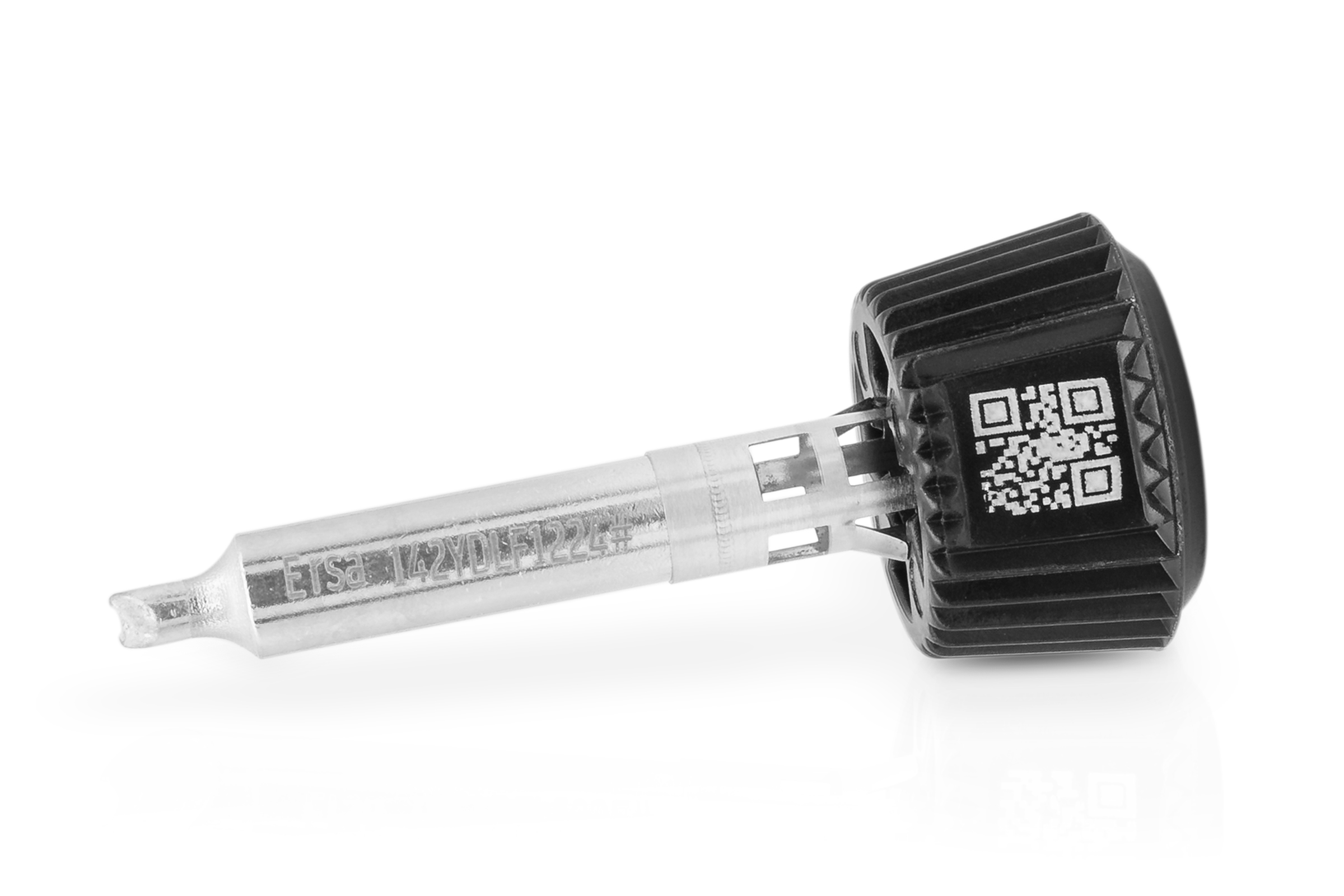

Ersadur Lötspitze i-Tool MK2 & Trace, THT-Spitze 1,2/2,4 mm - Ersa 0142YDLF1224

On multilayer through-hole work the heat ends up in the copper rather than in the joint. Touch only the pad with a flat tip and you wait for the lead to catch up. The THT shape with its 1.2 and 2.4 mm faces takes both at once, because the hollow ground hoof wraps the lead while still resting on the pad.

Features

• THT hoof geometry, 1.2 and 2.4 mm, heating lead and pad at the same time.
• The hollow face carries a solder reservoir that starts wetting right at the plated hole.
• ERSADUR long-life tip, galvanically iron plated and dimensionally stable in series production.
• Additional chrome layer protects the shank against corrosion and oxidation.
• Series 142 shank, 7.70 mm outside and 5.30 mm inside, hot change via the bayonet fitting.
• RoHS compliant.

Technical data

Application

Leaded components, pin headers and terminal blocks on multilayer boards, above all where inner layers pull heat away. Larger through-hole joints are covered by the 1.8 / 5.2 mm shape, flat pads by the chisel geometries in series 142.

Compatibility

For the i-Tool MK2 and the i-Tool TRACE and i-Con TRACE irons only. Series 142 does not fit the first generation i-Tool.
