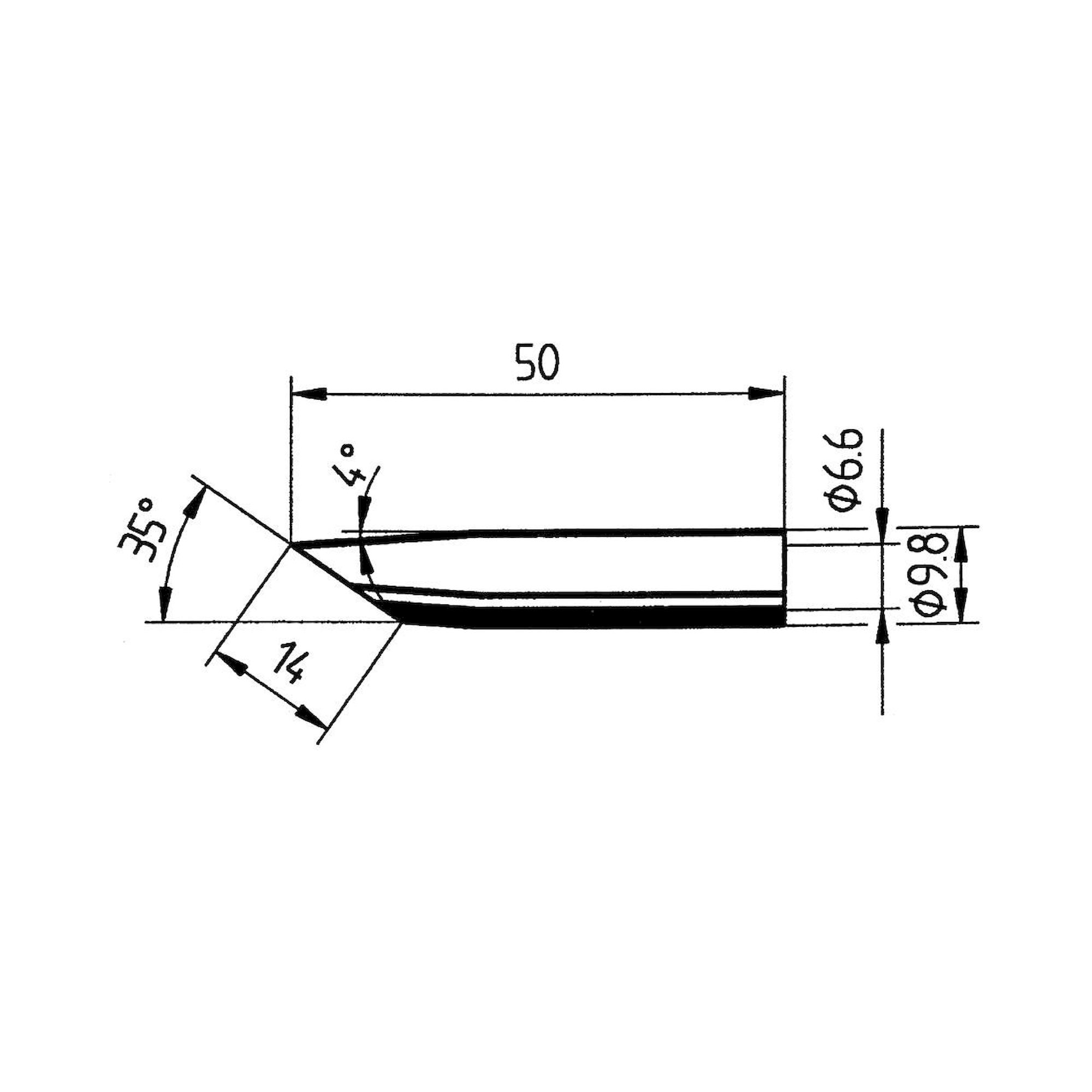

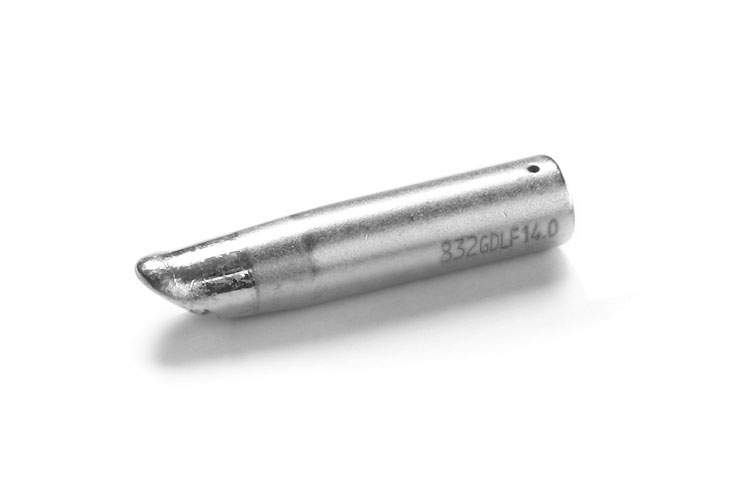

Ersadur-LF Long-Life Soldering Tip, straight, bevelled 35°, 14.0 mm - Ersa 0832GDLF
Straight, 35° bevelled long-life soldering tip (14.0 mm) with an Ersadur-LF coating for lead-free soldering. The galvanic iron and chrome plating delivers long service life and excellent heat transfer. Compatible with ERSA Series 832 soldering stations and irons.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Series 832 long-life soldering tip, straight and bevelled at a 35° angle, 14.0 mm wide, with an Ersadur-LF coating for lead-free soldering and extended service life. The tip is galvanically plated with an iron layer and protected against corrosion and oxidation by an additional chrome layer. Perfect heat transfer protects the soldering iron's heating element from overheating and premature wear.
Compatible with the soldering stations ANALOG60, ANALOG60A, DIGITAL80, DIGITAL80A, DIGITAL2000A, RDS80, MICRO-CON60, TWIN80A, ELS8000/M/D, MS6000 and MS8000, as well as the Power-Tool, Ergo-Tool, Multi-Pro, Multi-TC, PTC 70 and Multi-Sprint soldering irons.
Technical data
| RoHS compliant | Yes |
|---|---|
| Version | straight |
| Tip shape | bevelled (35°) |
| Tip diameter/width | 14.00 mm |
| Inner shaft diameter | 6.60 mm |
| Outer shaft diameter | 8.50 mm |
| Total length | 50 mm |
| Coating | Ersadur-LF long-life tip |
| Tip series | 832 |
| Weight | 0.1 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0832GDLF |
| EAN | 4003008075113 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Ausführung | gerade |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
| Certification | RoHS 2011/65/EU |
| Tip diameter/width [mm] | 14 |
| Soldering tip coating | Dauerlötspitze |
| Soldering tip shape | angeschrägt |
| Overall length [mm] | 50 |
| Shank outer diameter [mm] | 8.5 |
| Shank inner diameter [mm] | 6.6 |
| Series | 832 |
