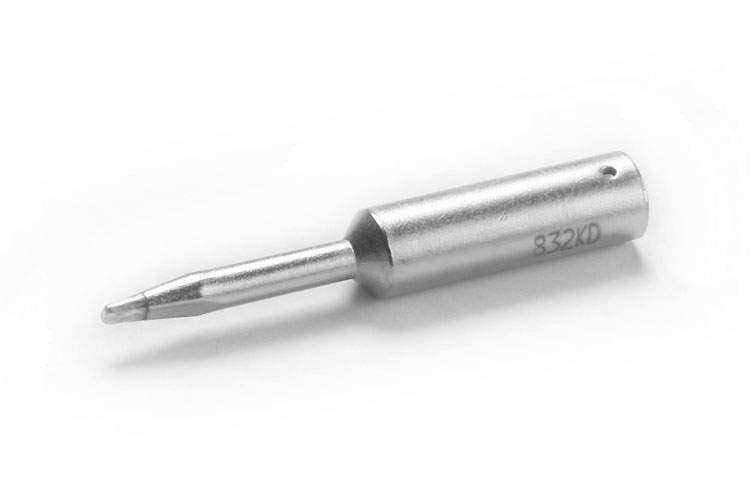

Ersadur Long-Life Soldering Tip, Chisel-Shaped, Straight, 2.2 mm - Ersa 0832KD
Ersadur long-life soldering tip, straight and extended, chisel-shaped with 2.2 mm tip width. The galvanic iron and chromium coating ensures long continuous operation and excellent heat transfer. Fits many Ersa soldering stations and irons (tip series 832).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Ersadur long-life soldering tip, straight, extended, chisel-shaped, with a 2.2 mm tip diameter and Ersadur coating. Ersadur soldering tips are high-quality and built for continuous operation: a special galvanic process plates them with an iron layer, while an additional chromium layer protects against corrosion and oxidation. The excellent heat transfer protects the iron's heating element from overheating and premature wear.
Compatible with: soldering stations ANALOG 60, ANALOG60A, DIGITAL80, DIGITAL80A, DIGITAL2000A, RDS80, MICRO-CON60, TWIN80A, ELS8000/M/D, MS6000 and MS8000, plus the Power-Tool, Ergo-Tool, Multi-Pro, Multi-TC, PTC 70 and Multi-Sprint soldering irons.

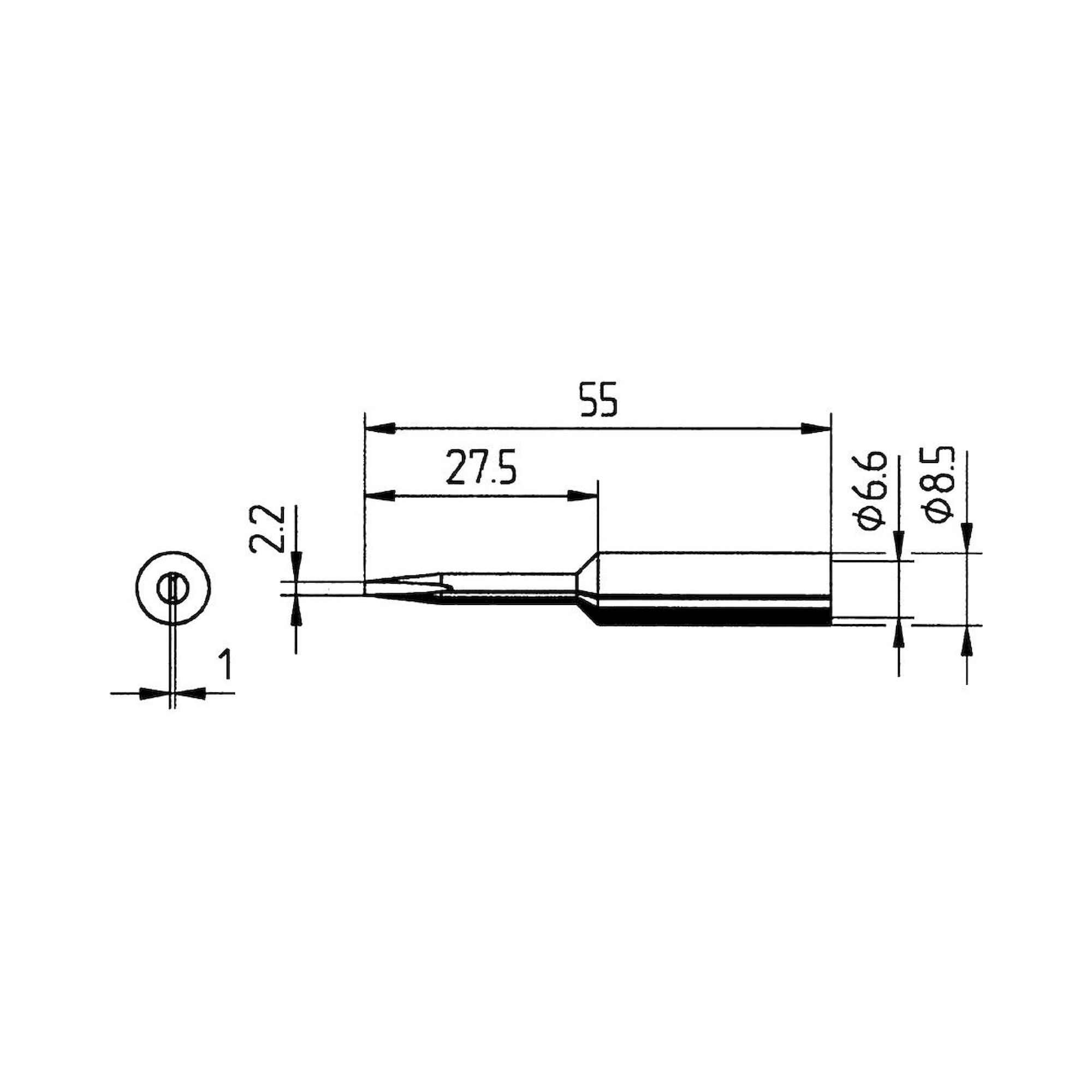

Technical data
| RoHS compliant | Yes |
|---|---|
| Design | straight |
| Tip coating | Long-life tip (Ersadur) |
| Tip shape | chisel-shaped |
| Tip diameter/width | 2.20 mm |
| Shaft inner diameter | 6.60 mm |
| Shaft outer diameter | 8.50 mm |
| Overall length | 55 mm |
| Tip series | 832 |
| Weight | 0.1 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0832KD |
| EAN | 4003008055627 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Ausführung | gerade |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
| Certification | RoHS 2011/65/EU |
| Tip diameter/width [mm] | 2.2 |
| Soldering tip coating | Dauerlötspitze |
| Soldering tip shape | meißelförmig |
| Overall length [mm] | 55 |
| Shank outer diameter [mm] | 8.5 |
| Shank inner diameter [mm] | 6.6 |
| Series | 832 |
