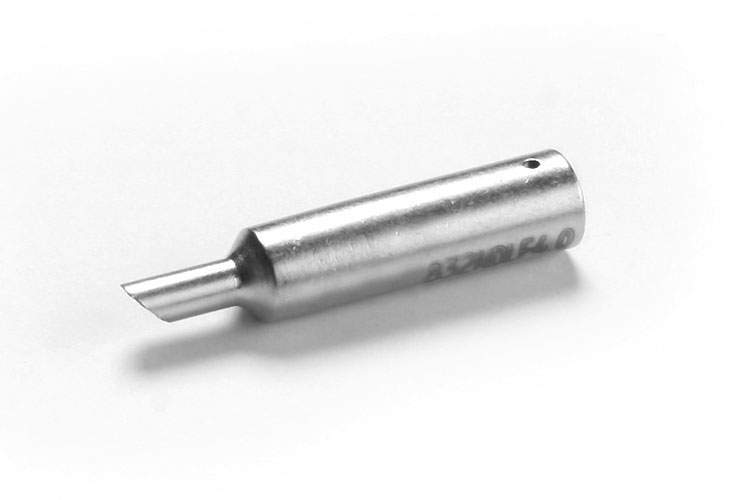

Ersadur-LF Soldering Tip, straight, bevelled 45°, 4.0 mm - Ersa 0832NDLF
Straight, 45° bevelled Ersadur-LF permanent soldering tip with a 4.0 mm diameter for lead-free soldering. The galvanic iron and chrome plating delivers long service life and even heat transfer. Compatible with a wide range of Ersa soldering stations and irons in the 832 series.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Ersadur-LF permanent soldering tip, straight, bevelled at a 45° angle, 4.0 mm diameter, with Ersadur-LF coating for lead-free soldering and extended service life. Ersadur tips are galvanically iron-plated and protected against corrosion and oxidation by an additional chrome layer. Excellent heat transfer protects the soldering iron's heating element from overheating and premature wear.
Suitable for the soldering stations ANALOG60, ANALOG60A, DIGITAL80, DIGITAL80A, DIGITAL2000A, RDS80, MICRO-CON60, TWIN80A, ELS8000/M/D, MS6000 and MS8000, as well as the soldering irons Power-Tool, Ergo-Tool, Multi-Pro, Multi-TC, PTC 70 and Multi-Sprint.
Technical data
| RoHS compliant | Yes |
|---|---|
| Version | straight |
| Tip coating | permanent soldering tip |
| Tip shape | bevelled (45°) |
| Tip diameter/width | 4.00 mm |
| Shaft inner diameter | 6.60 mm |
| Shaft outer diameter | 8.50 mm |
| Overall length | 40 mm |
| Tip series | 832 |
| Weight | 0.01 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0832NDLF |
| EAN | 4003008075212 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Ausführung | gerade |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
| Certification | RoHS 2011/65/EU |
| Tip diameter/width [mm] | 4 |
| Soldering tip coating | Dauerlötspitze |
| Soldering tip shape | angeschrägt |
| Overall length [mm] | 40 |
| Shank outer diameter [mm] | 8.5 |
| Shank inner diameter [mm] | 6.6 |
| Series | 832 |
