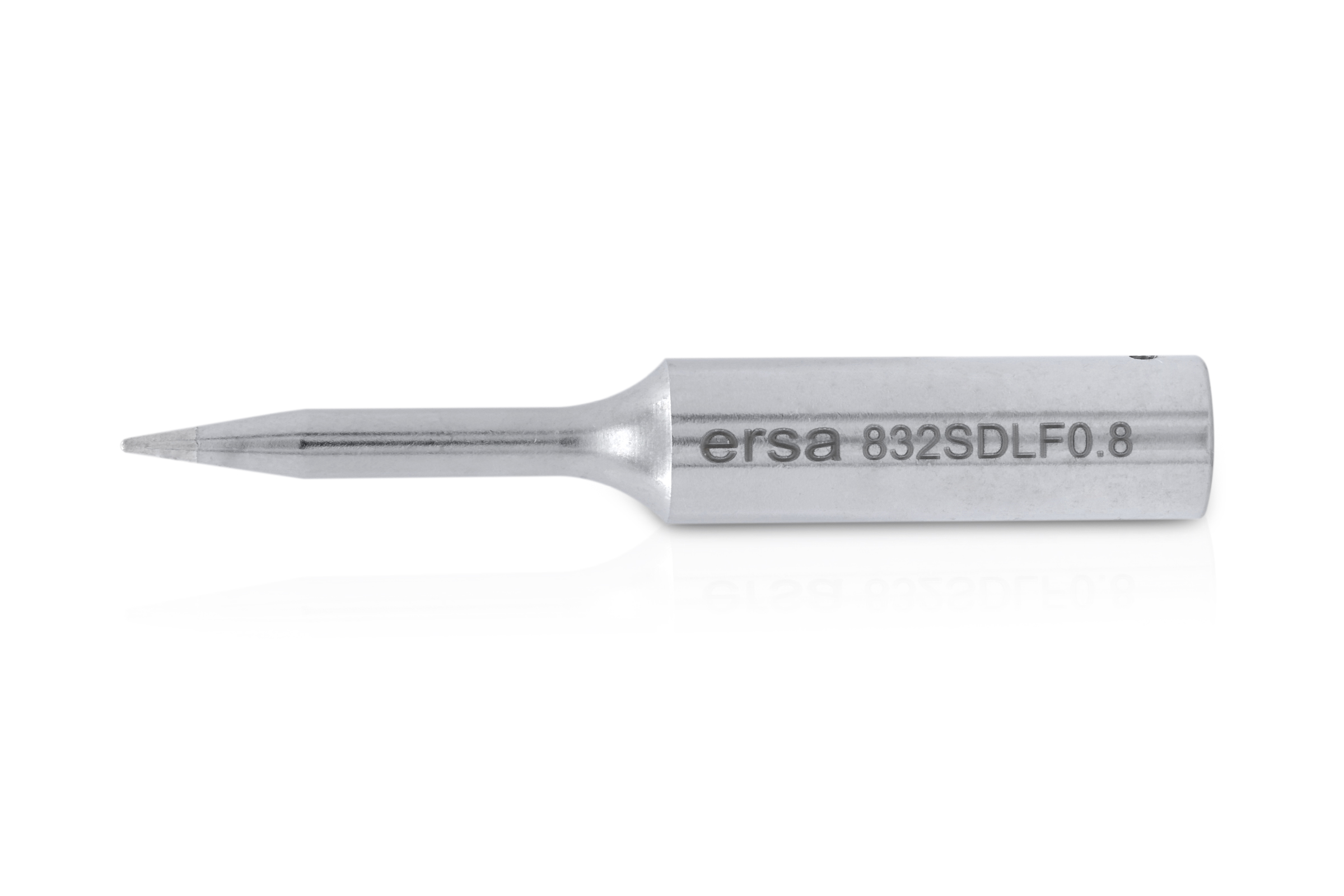

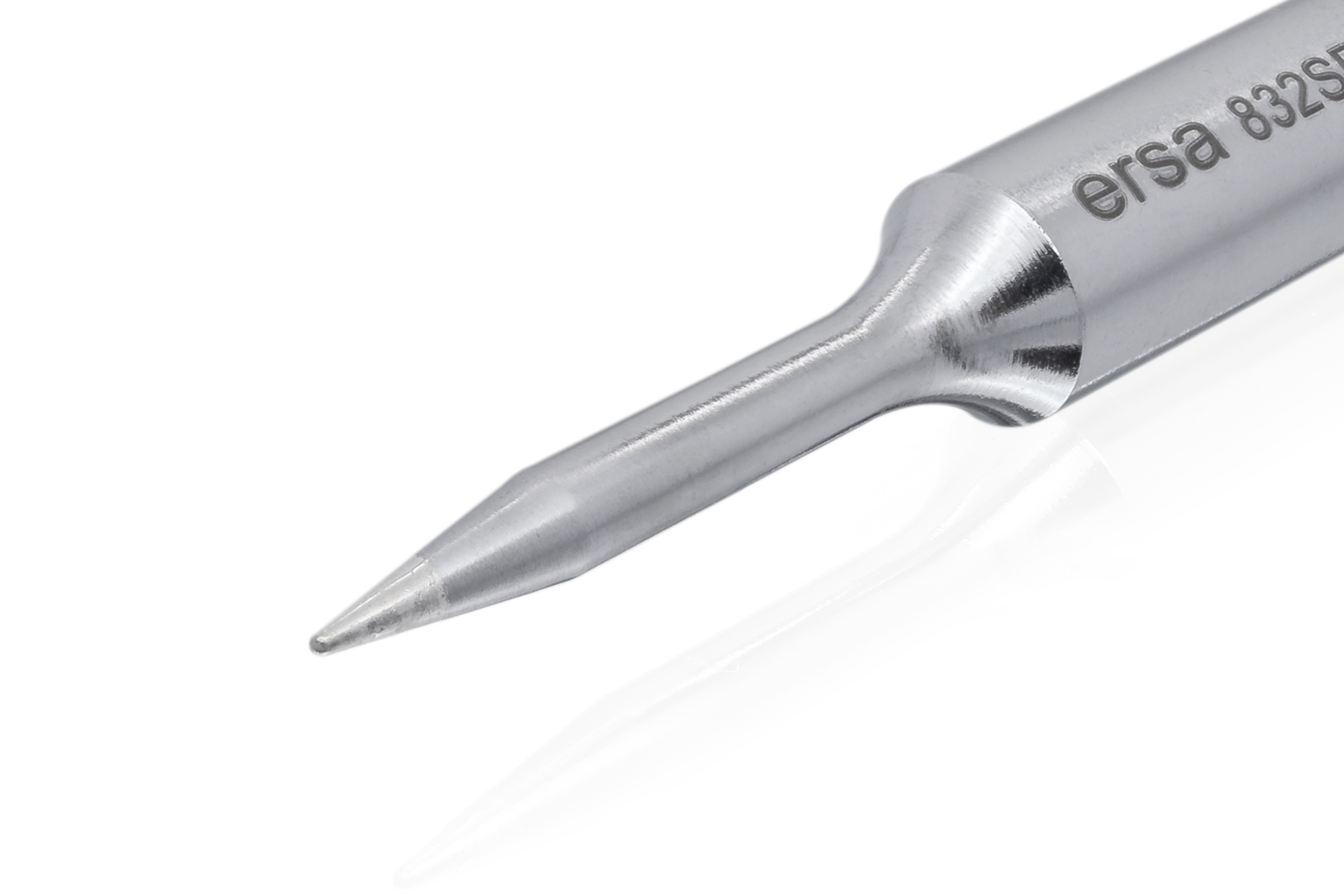

Ersadur-LF Soldering Tip, straight extended, pencil-point, 0.8 mm - Ersa 0832SDLF
Ersadur-LF permanent soldering tip, straight and extended with a pencil-point shape and 0.8 mm diameter for lead-free soldering. The galvanic iron and chromium plating ensures long service life and excellent heat transfer. Fits numerous Ersa soldering stations and irons in the 832 tip series.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Ersadur-LF permanent soldering tip, straight and extended, pencil-point, with a 0.8 mm diameter. The lead-free Ersadur-LF coating provides an extended service life. In a special galvanic process the tips are plated with an iron layer and protected against corrosion and oxidation by an additional chromium layer. The perfect heat transfer protects the heating element of the soldering iron from overheating and premature wear.
Compatible soldering stations: ANALOG60, ANALOG60A, DIGITAL80, DIGITAL80A, DIGITAL2000A, RDS80, MICRO-CON60, TWIN80A, ELS8000/M/D, MS6000 and MS8000, as well as the Power-Tool, Ergo-Tool, Multi-Pro, Multi-TC, PTC 70 and Multi-Sprint soldering irons.
Technical data
| RoHS compliant | Yes |
|---|---|
| Design | straight |
| Tip coating | Permanent tip (Ersadur-LF) |
| Tip shape | pencil-point |

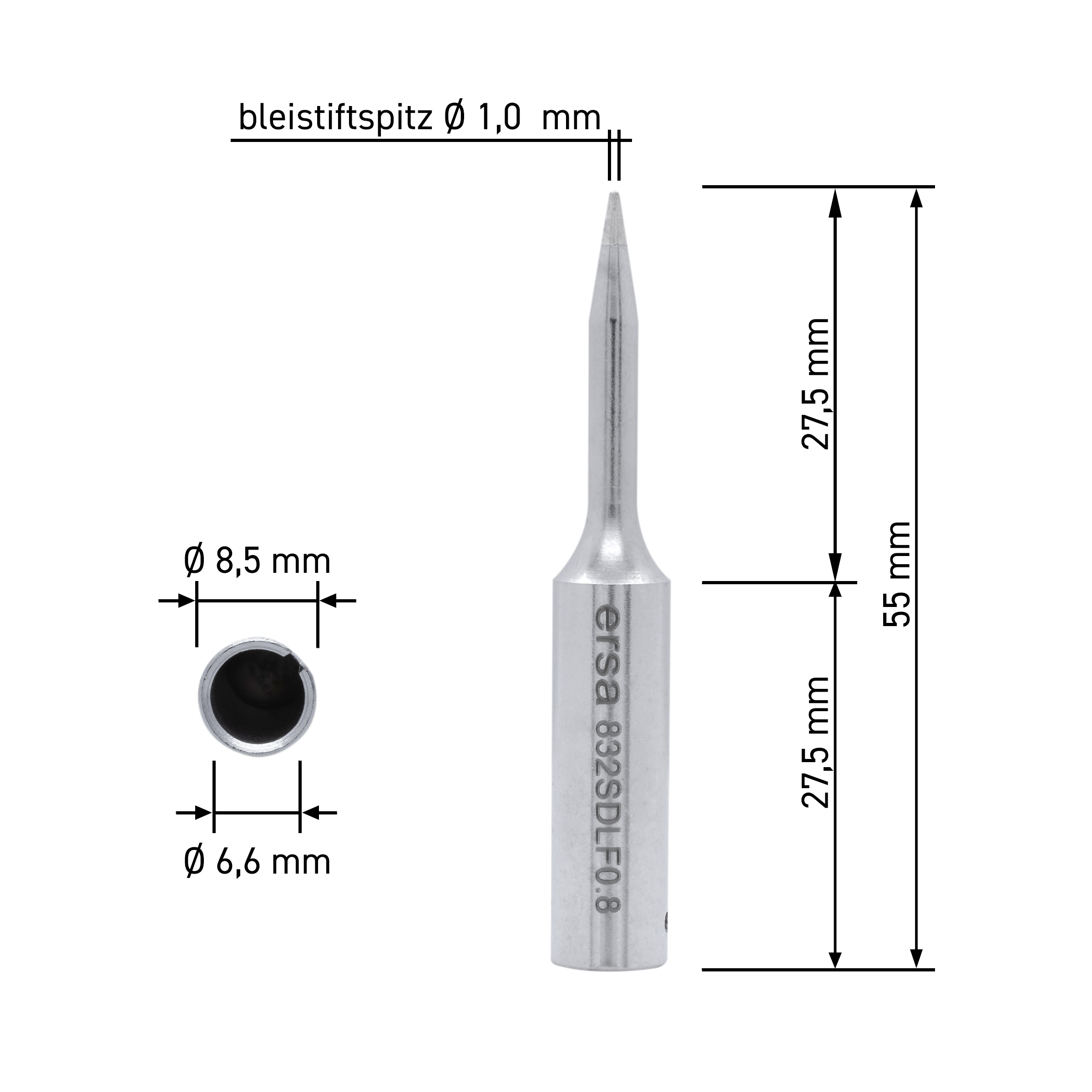

| Tip diameter/width | 0.80 mm |
| Shaft inner diameter | 6.60 mm |
| Shaft outer diameter | 8.50 mm |
| Total length | 55 mm |
| Tip series | 832 |
| Weight | 0.01 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0832SDLF |
| EAN | 4003008074703 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Ausführung | gerade |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
| Certification | RoHS 2011/65/EU |
| Tip diameter/width [mm] | 0.8 |
| Soldering tip coating | Dauerlötspitze |
| Soldering tip shape | bleistiftspitze |
| Overall length [mm] | 55 |
| Shank outer diameter [mm] | 8.5 |
| Shank inner diameter [mm] | 6.6 |
| Series | 832 |
