ESD bin rail 2000 mm, usable width 1995 mm, for storage bins size 2/3/4, 15 kg - Lista 93.591

This 2000 mm bin rail spans a long module width and provides 1995 mm of usable width. That is enough for 19-38 storage bins of size 2 or 13 large bins of size 4 above a long workbench.

Benefits

• Dissipative surface: The painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.

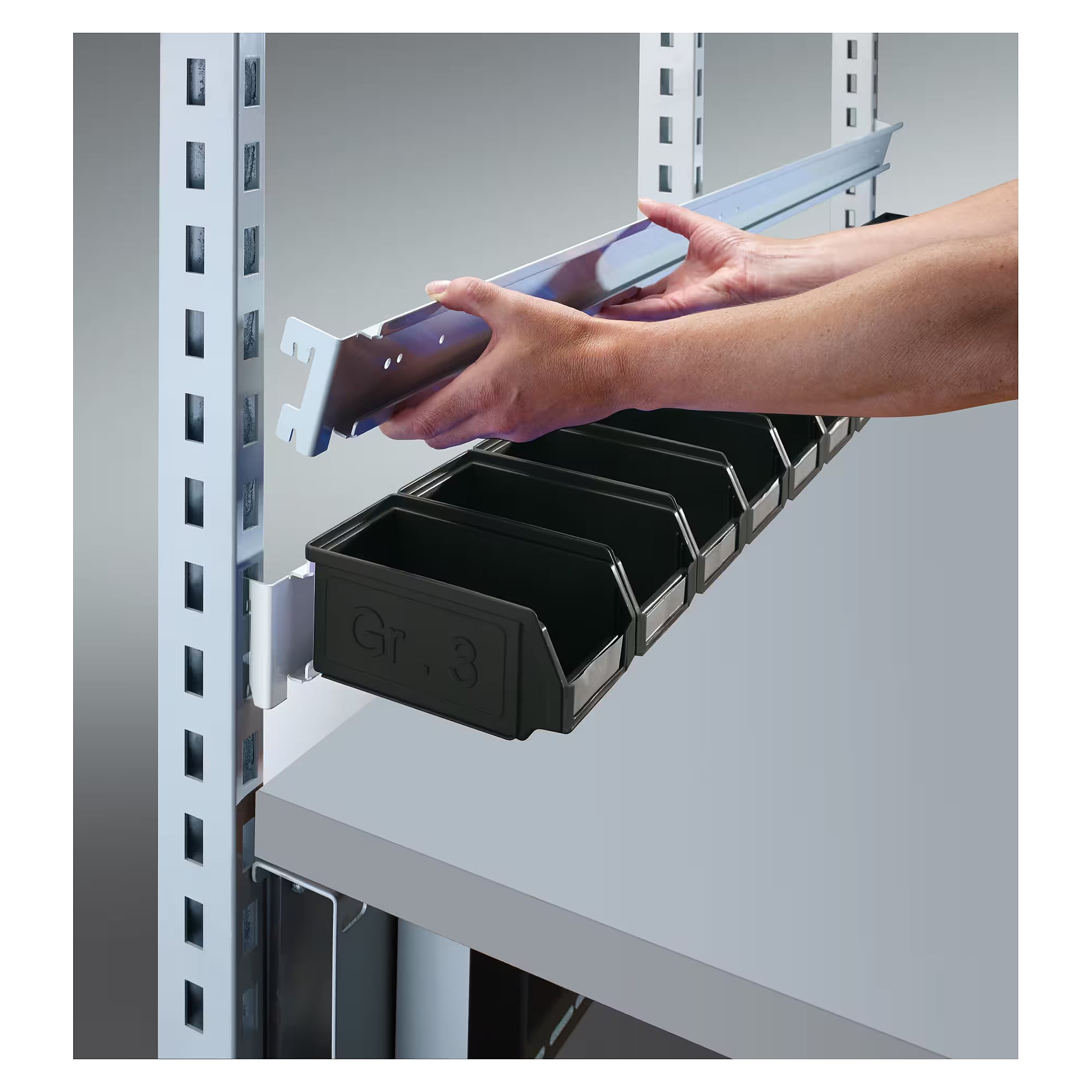

• Tool-free fitting: The rail hooks into the support columns without screws and can be repositioned in height at any time.
• Three bin sizes: size 2 (19-38 pieces), size 3 (19 pieces) or size 4 (13 pieces) on 1995 mm usable width.
• 15 kg load capacity: sheet steel design, rated for filled bins with small parts.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y

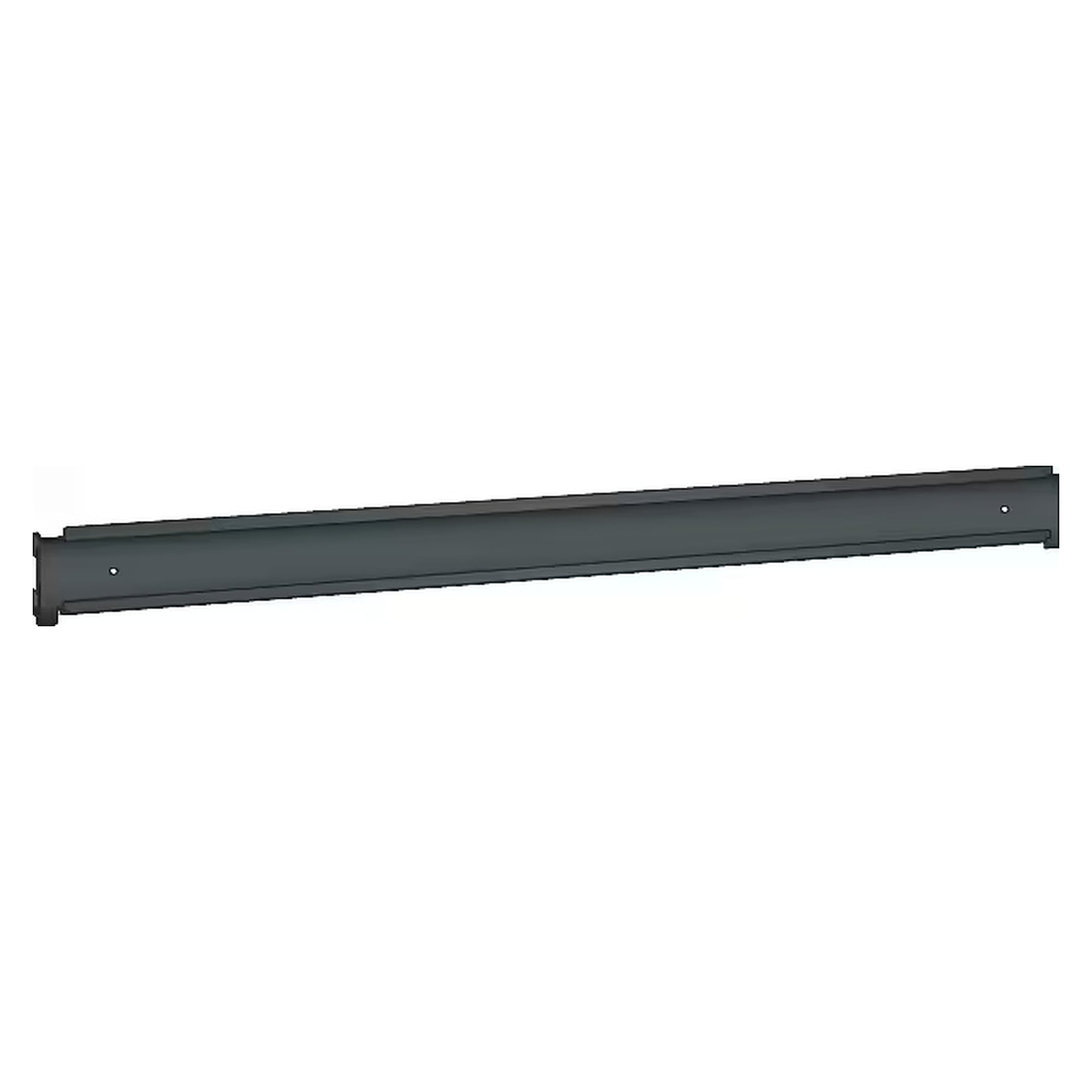

• Anthracite grey RAL 7016

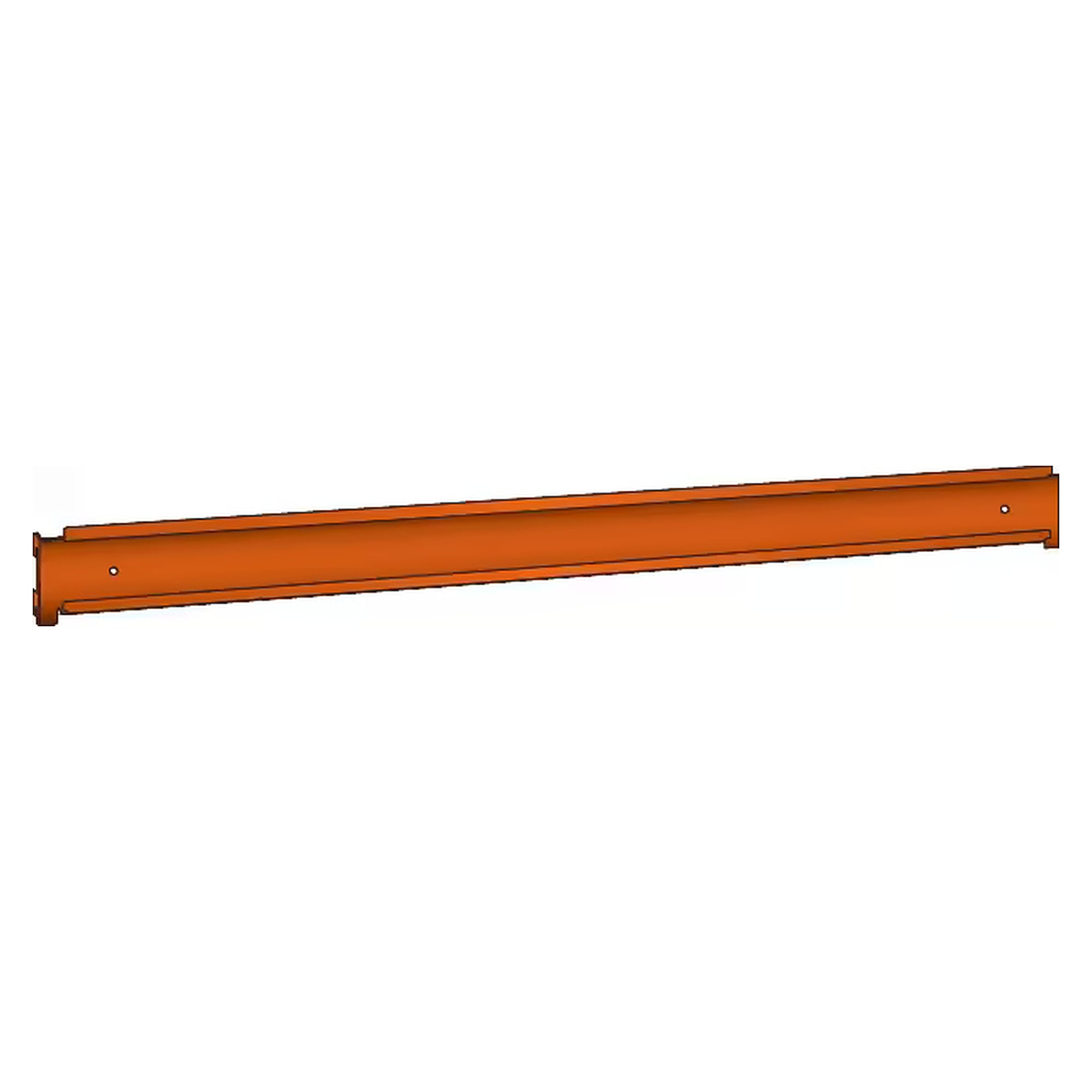

• Orange NCS S 1080-Y40R

Use and combination

The rail suits ESD workstation superstructures, mobile frames and assembly trolleys in electronics production, test stations and repair. It fits set-ups with a module width of 2000 mm and combines with back panels and adjustable shelves of the same width. The dissipative effect depends on the complete set-up being properly earthed. On mobile set-ups a safety angle of the same width is recommended to keep the bins from unhooking.
