ESD bin rail 1330 mm, usable width 1325 mm, for storage bins size 2/3/4, 15 kg - Lista 93.735

On wide assembly lines every centimetre of access counts: the 1330 mm bin rail carries up to 24 storage bins of size 2 and holds them at eye level with a maximum load of 15 kg.

Benefits

• Dissipative surface: The painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.

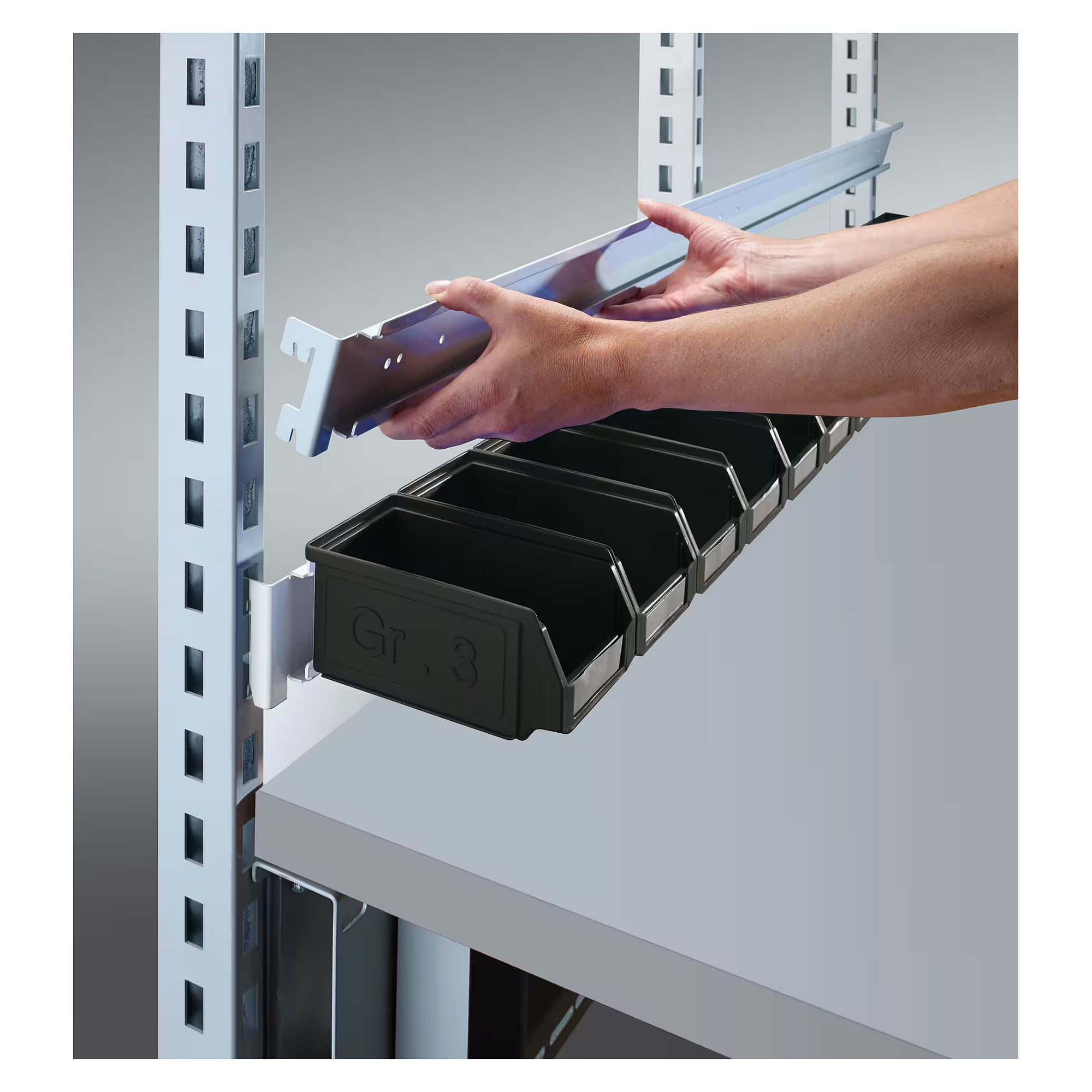

• Tool-free fitting: The rail hooks into the support columns without screws and can be repositioned in height at any time.
• Three bin sizes: size 2 (12-24 pieces), size 3 (12 pieces) or size 4 (8 pieces) on 1325 mm usable width.
• 15 kg load capacity: sheet steel design, rated for filled bins with small parts.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

The rail suits ESD workstation superstructures, mobile frames and assembly trolleys in electronics production, test stations and repair. It fits set-ups with a module width of 1330 mm and combines with back panels and adjustable shelves of the same width. The dissipative effect depends on the complete set-up being properly earthed. For assembly trolleys a matching 1330x85 mm safety angle is available, which stops the bins from unhooking on uneven floors.
