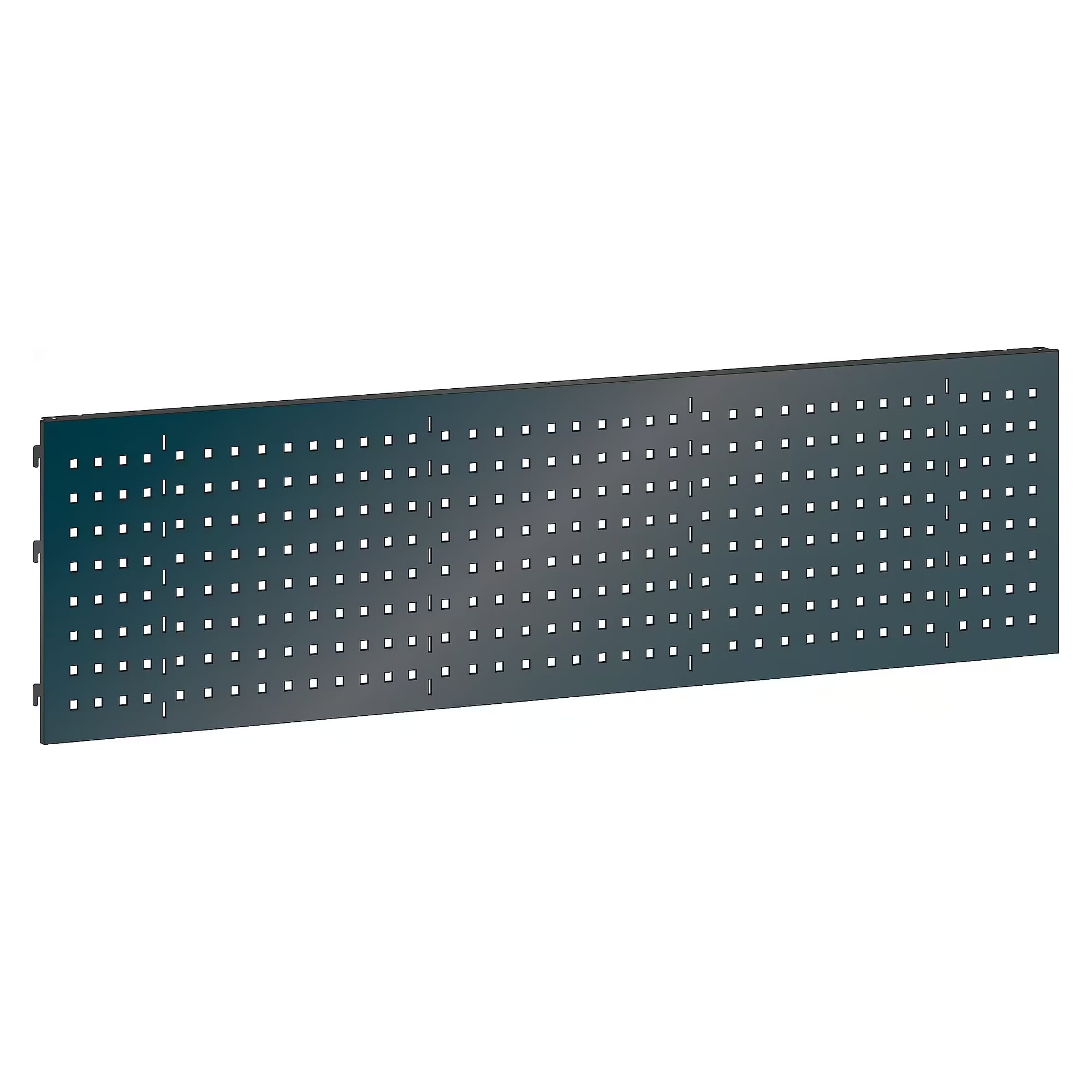

ESD rear panel, perforated, 665x500 mm (WxH), usable width 655 mm, for universal superstructure columns - Lista 92.373

On a superstructure with 665 mm module width, this perforated rear panel is hung between the support columns and creates a 655 mm wide, 500 mm high surface for tools and storage right above the workstation.

Benefits

• Dissipative surface: The sheet steel carries the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• Screwless mounting: The rear panel hangs into the support columns without screws.
• Square perforation and slots: take shelves, box holders and other accessories.
• Usable width 655 mm: at 665 mm module width and 500 mm height.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016

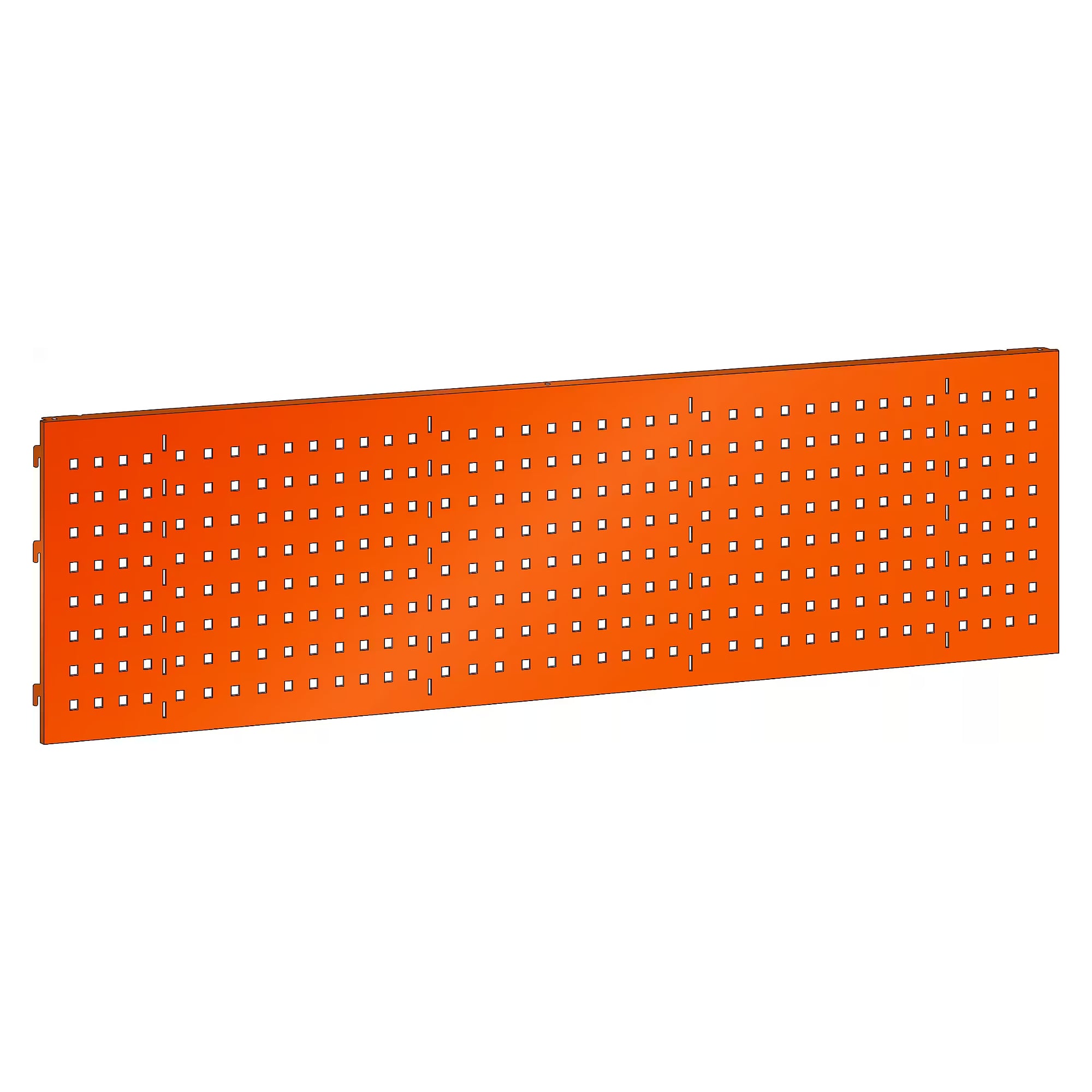

• Orange NCS S 1080-Y40R

Use and combination

Rear panels fill the support columns of universal superstructures partly or over their full height at assembly, test and repair stations in the EPA. This version fits superstructures with 665 mm module width. Tool holders, shelves and box holders hang in the perforation and slots. The dissipative effect depends on the workstation system being properly earthed.
