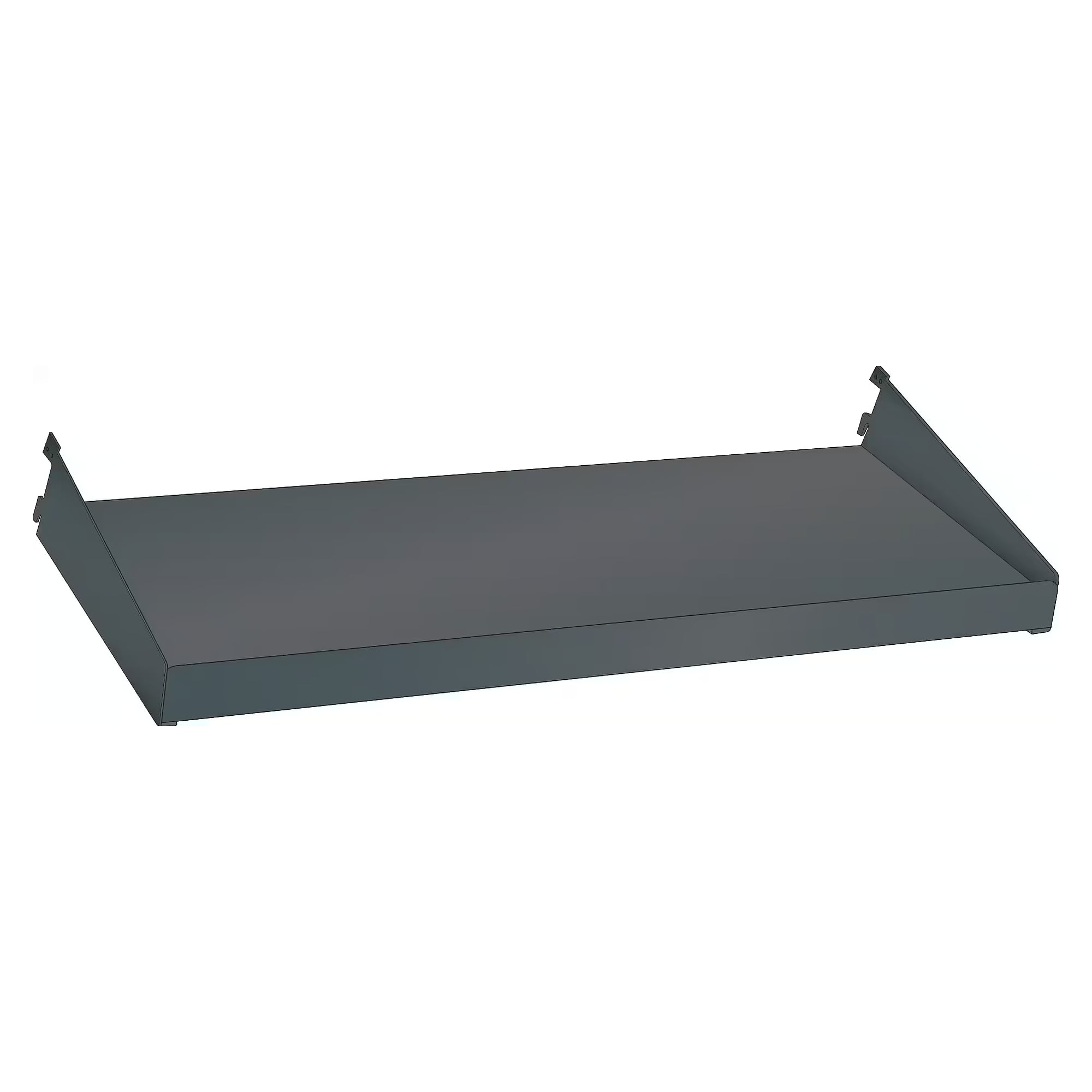

ESD adjustable shelf smooth with side wall, 665x200 mm, 50 kg, with 2 lift-out guards, for assembly trolleys - Lista 93.511

On assembly trolleys, loads shift at every floor joint. That is why this ESD adjustable shelf with 665 mm module width and 200 mm depth has a side wall and two lift-out guards that keep it in the support columns.

Benefits

• Dissipative surface: The painted surfaces carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• Moves without tools: with the 2 consoles supplied, the shelf hangs into the support columns without screws, level or tilted at 15 degrees.
• Stop edge and rim: the side wall stops goods from falling out on uneven floors, and 2 lift-out guards are included.
• 50 kg capacity: with 664 mm usable width, shelf height 25 mm plus 17 mm stop edge.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

The shelf is used on ESD assembly trolleys in electronics production, moving material between store, assembly and testing. It hangs in the trolley's support columns and combines with further shelves of matching module width to form several transport levels. The dissipative effect depends on the setup being properly earthed.
