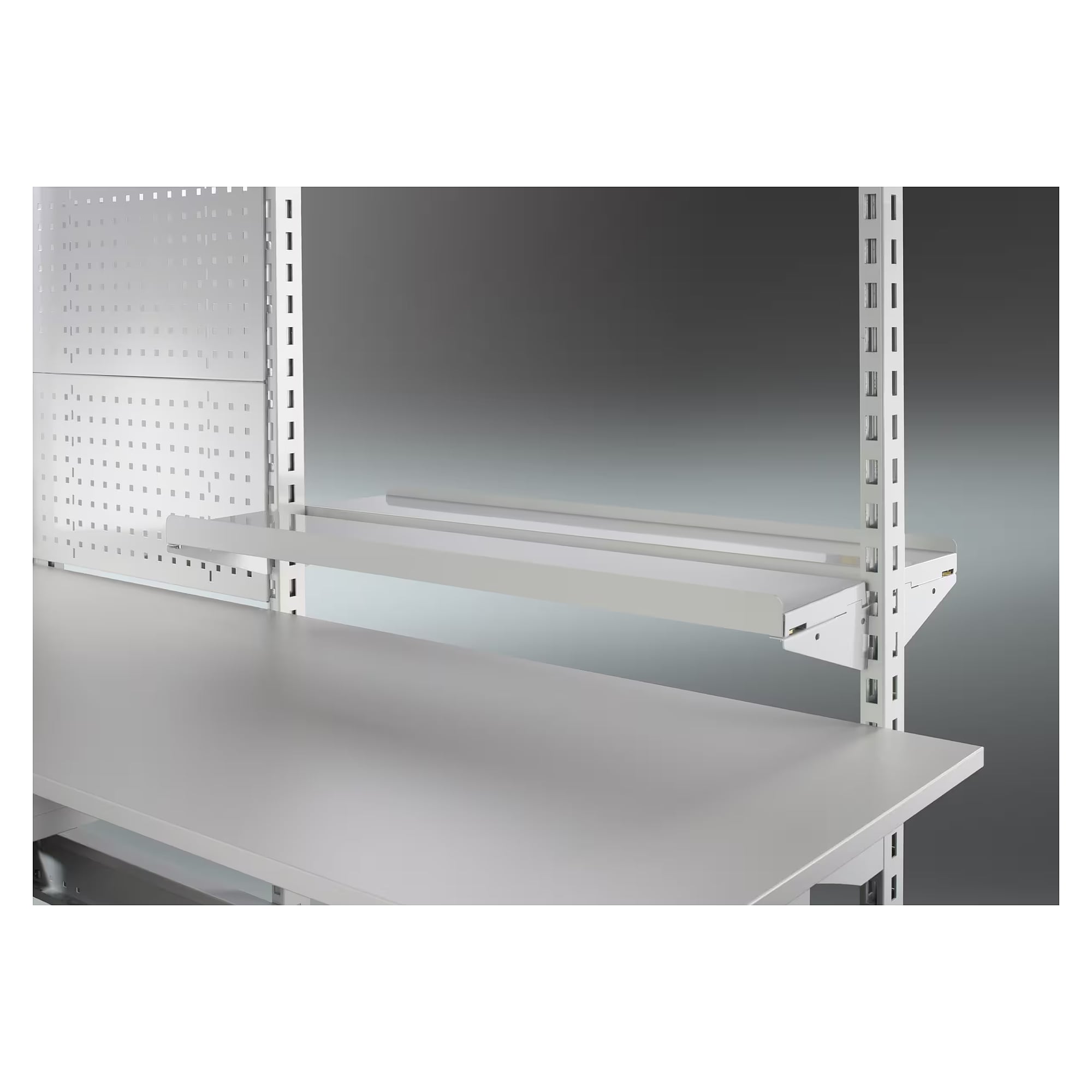

ESD adjustable shelf smooth 665x200 mm, usable width 664 mm, level or tilted 15°, 50 kg - Lista 93.757

Measuring instruments, soldering accessories or assemblies need a shelf above the work surface: this adjustable shelf offers 665 x 200 mm with 664 mm usable width and carries 50 kg.

Benefits

• Dissipative surface: The painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• Two angles: With the two brackets supplied, the shelf hangs in the support columns level or tilted by 15 degrees, without screws.
• Stop edge: The 17 mm edge on one long side is mounted at the front and keeps parts on the shelf.
• 50 kg load capacity: sheet steel shelf with 25 mm shelf height and a surface of 665 x 200 mm.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

The shelf complements ESD workstation superstructures, frames and assembly trolleys with a 665 mm module width in electronics production, test stations, labs and repair. It combines with bin rails and back panels of the same width. The dissipative effect depends on the complete set-up being properly earthed.
