ESD drawer 18x27E, 306x459 mm, front height 200 mm, 75 kg, single catch right - Lista 95.501

Order for test adapters, power supplies and larger assemblies: the ESD drawer Lista 95.501 offers 306 x 459 mm of usable area in the narrow format and 182.5 mm usable height behind a 200 mm front. Load capacity is 75 kg. The right-hand single catch prevents the drawer from opening unintentionally.

Benefits

• Dissipative paint coating: All painted surfaces carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• 17 mm slot grid: The inner drawer walls have a slot grid in 17 mm units on all sides, so dividers and partitions can be placed freely.
• 75 kg load capacity: Rated for evenly distributed loads up to 75 kg.

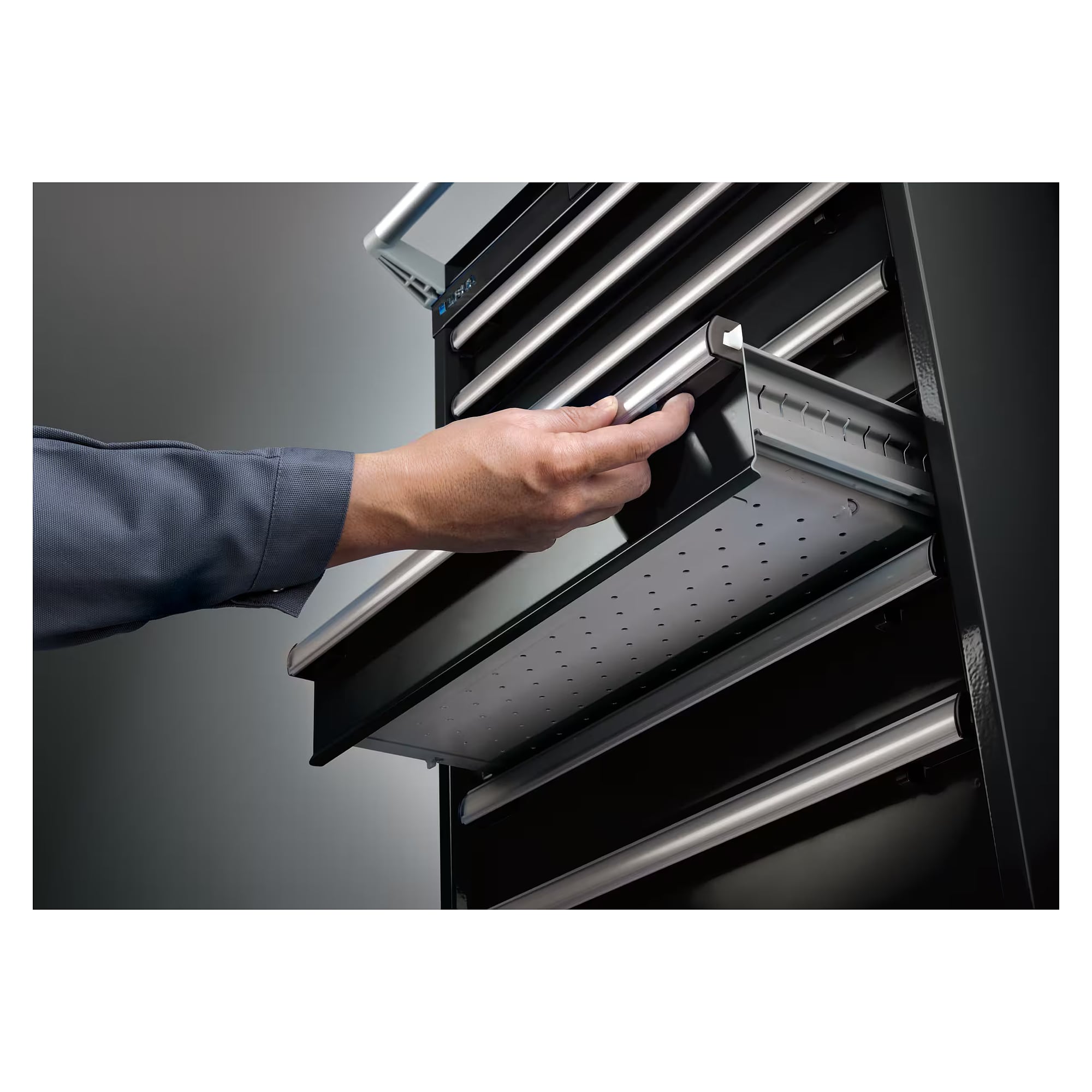

• Single catch right: Released with one hand, prevents unintended opening even when the cabinet is unlocked. Minimum requirement for mobile drawer cabinets.
• Any order: Drawers of different front heights can be fitted in any sequence in the same 18 x 27 E housing.

Colours

Choose the ESD colour of the front when ordering:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y

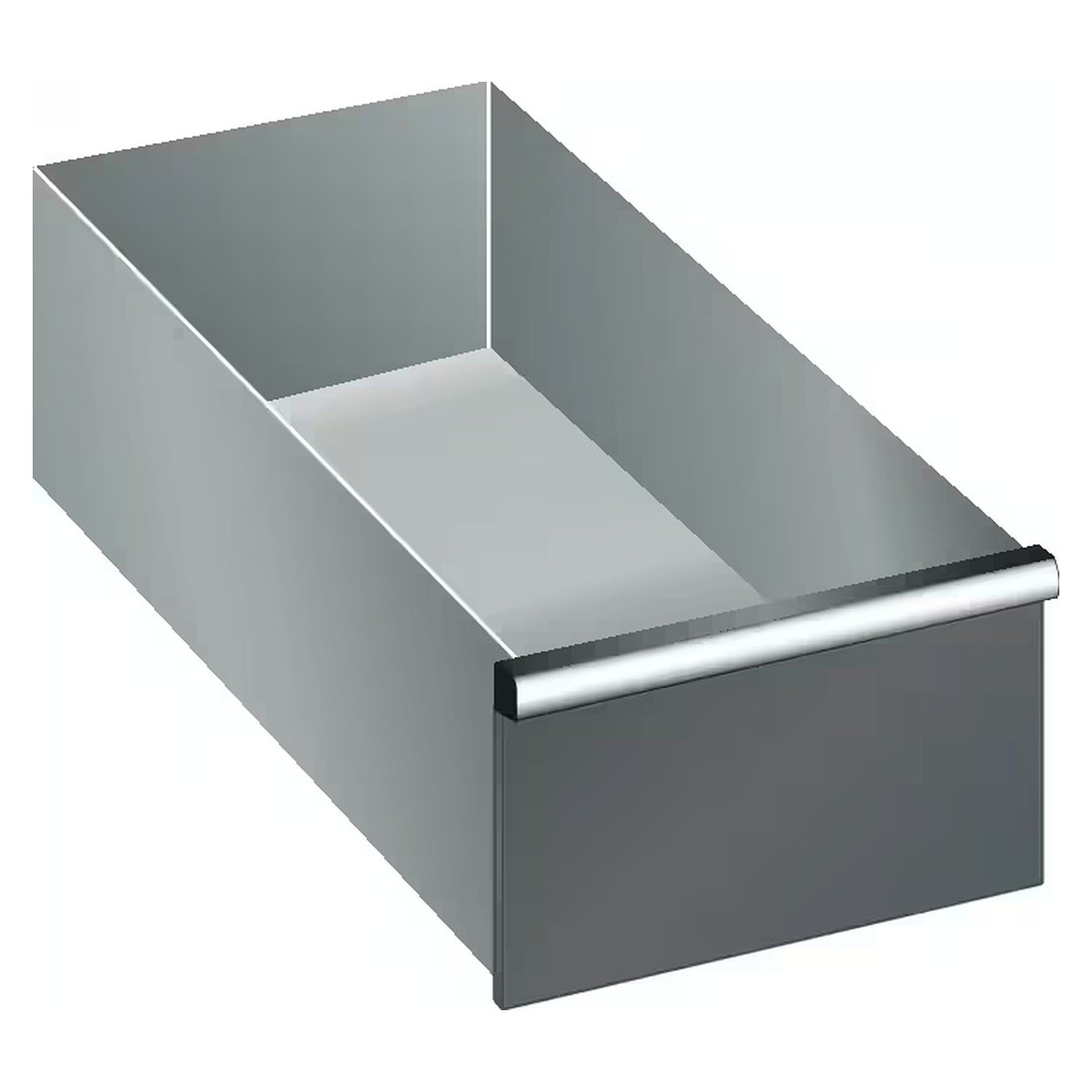

• Anthracite grey RAL 7016

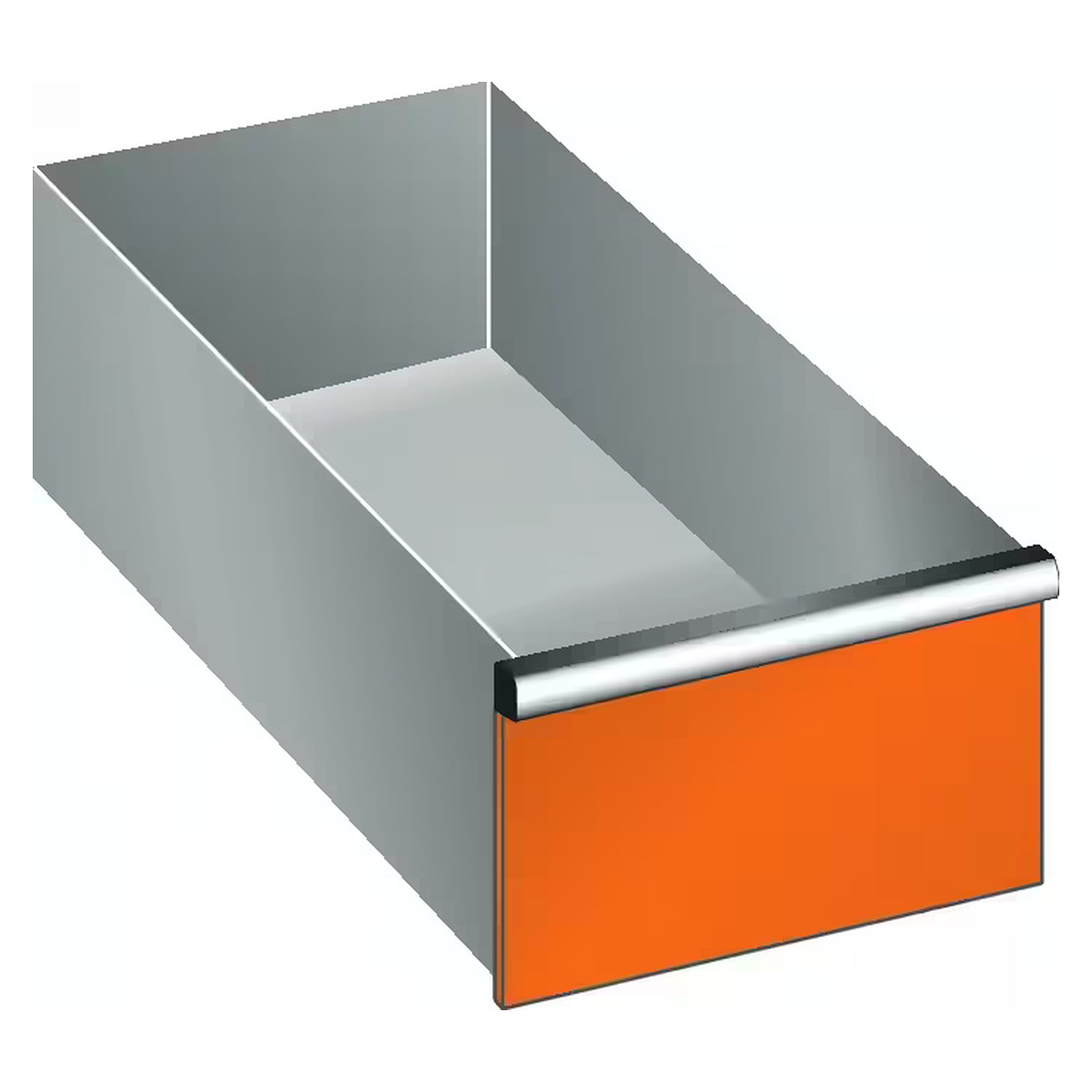

• Orange NCS S 1080-Y40R

Use and combination

The drawer is used in EPAs in electronics production, at test and repair stations and in component stores. It fits Lista cabinet housings in the 18 x 27 E grid and can be combined there with drawers of other front heights. Partitioning material in the 17 mm grid divides the interior to suit. The dissipative effect requires the cabinet to be properly grounded.

Notes

• For loading, follow the Lista assembly instructions and loading guidelines. Load capacity applies to evenly distributed loads.
• The clear height of the cabinet housing is decisive: the sum of the front heights must match it.
