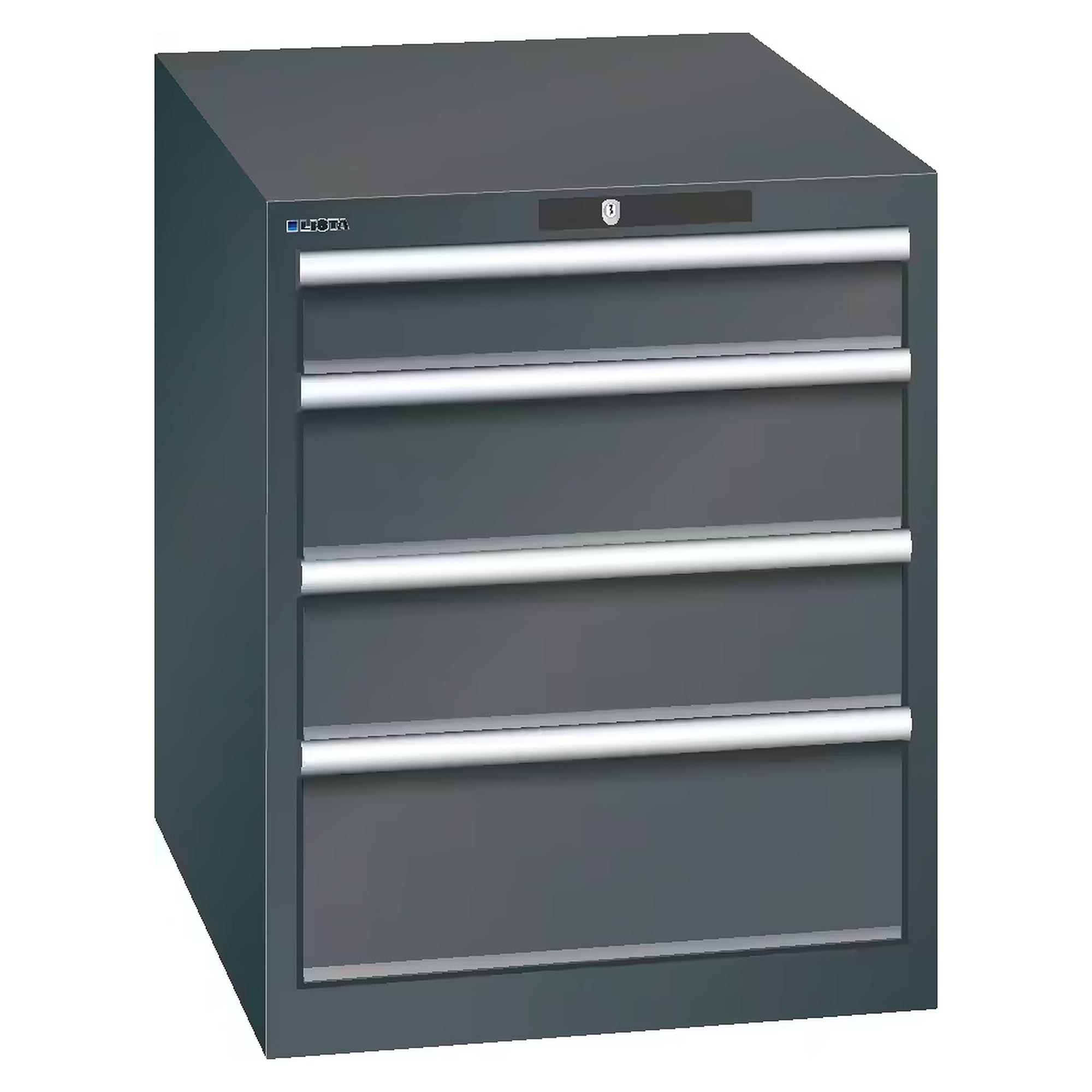

ESD drawer cabinet 27x36E, 564x725x700 mm, 4 drawers 1x100/2x150/1x200, 75 kg, KEY Lock - Lista 93.037

Bulky assemblies, measuring instruments and tool cases need tall drawers. This 700 mm high cabinet spreads its 4 drawers over front heights of 1x100/2x150/1x200 mm, each rated for 75 kg.

Benefits

• Dissipative surface: All painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• KEY Lock: Lista's standard lock with interchangeable cylinder, opened and closed manually by key.
• 75 kg per drawer: usable area of 459 x 612 mm per drawer.
• Single-drawer interlock: as standard only one drawer can be opened at a time, which keeps the cabinet stable when drawers are pulled out.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

Typical locations are EPA areas in electronics production and at EMS providers, test and repair stations, laboratories and component stores. The dissipative effect requires the cabinet to be properly earthed. Matching items in the 27 x 36 E format include an ESD resin cover plate that closes off the top and serves as a work surface, a grooved mat for the top and a rim on three sides so nothing rolls off.

Notes

For loading drawers and cabinets, follow Lista's assembly instructions and loading rules. The stated load capacity applies to an evenly distributed load.
