ESD drawer cabinet 36x36E, 717x725x1450 mm, 10 drawers 1x50/5x100/4x200, 75 kg, KEY Lock - Lista 95.192

For test and repair stations where sensitive components must be within reach yet secured, Lista 95.192 provides 10 drawers with front heights of 1x50/5x100/4x200 mm and 75 kg per drawer. It locks with KEY Lock, the Lista standard lock with an interchangeable cylinder, operated manually by key.

Benefits

• Dissipative paint coating: All painted surfaces carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• Load capacity: 612 x 612 mm usable area per drawer at 75 kg per drawer.
• Single-drawer interlock: Included as standard, only one drawer can be opened at a time.

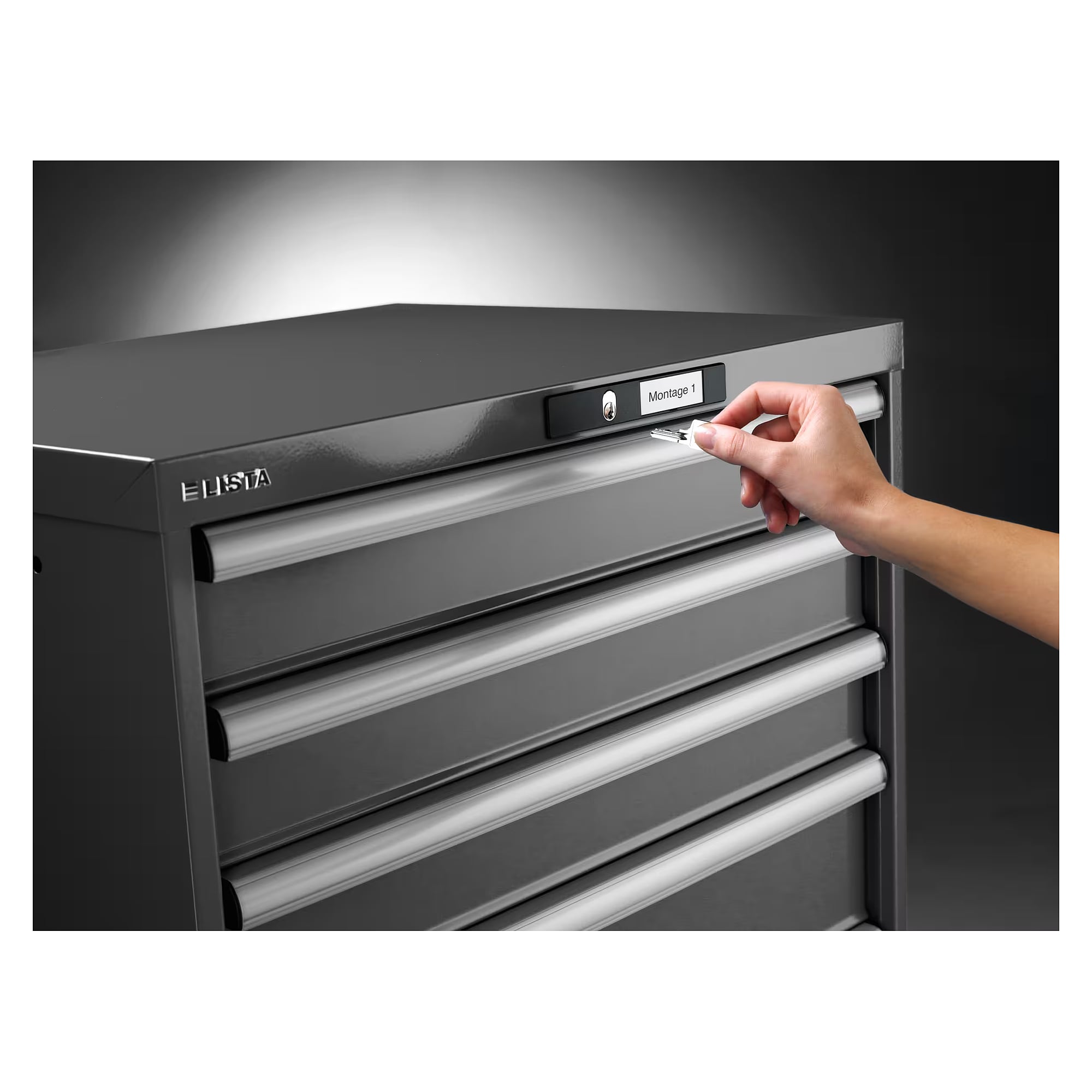

• KEY Lock: Standard lock with interchangeable cylinder, opened and closed manually by key.
• Layout: 10 drawers with 1x50/5x100/4x200 mm front heights use the full 1350 mm clear height.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y

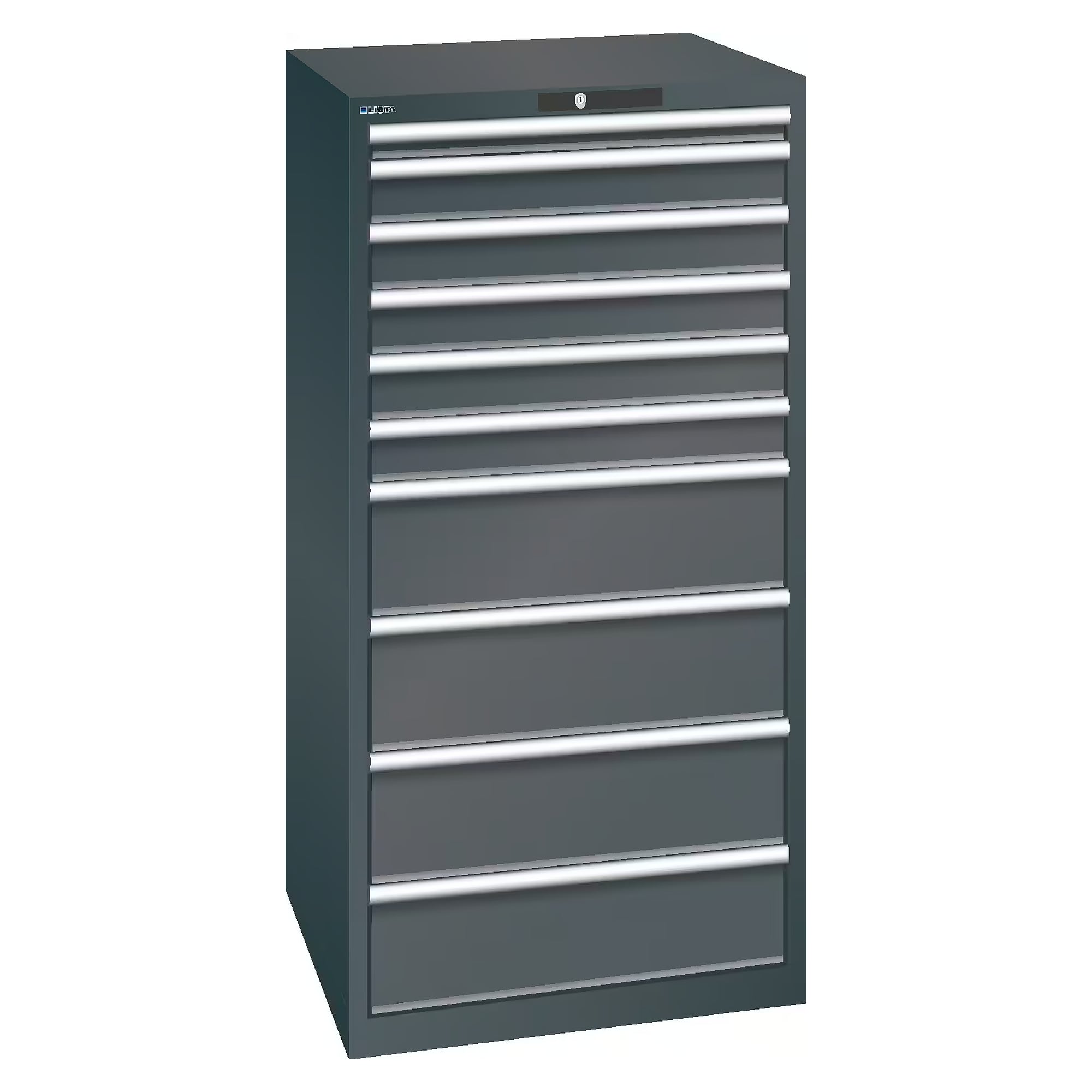

• Anthracite grey RAL 7016

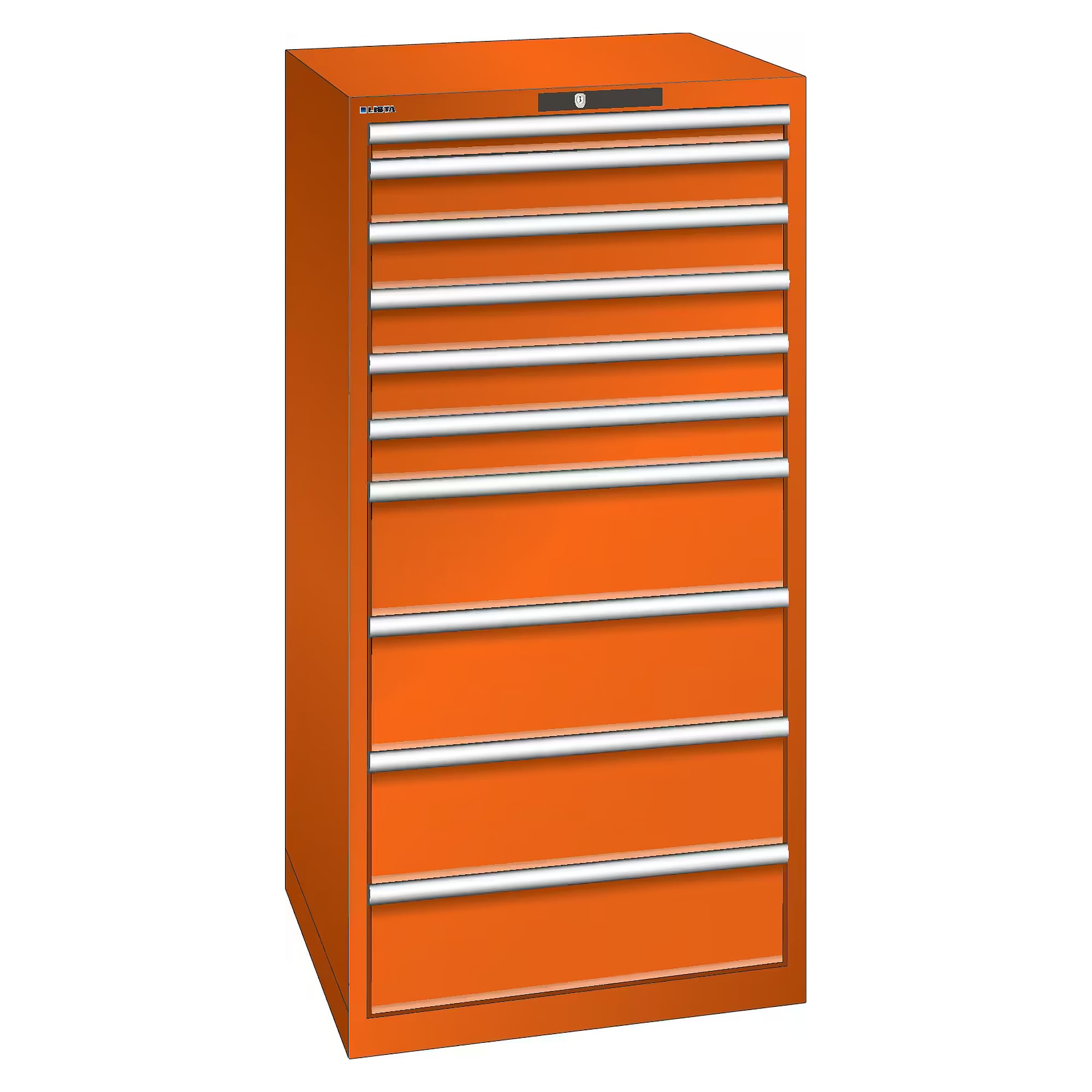

• Orange NCS S 1080-Y40R

Use and combination

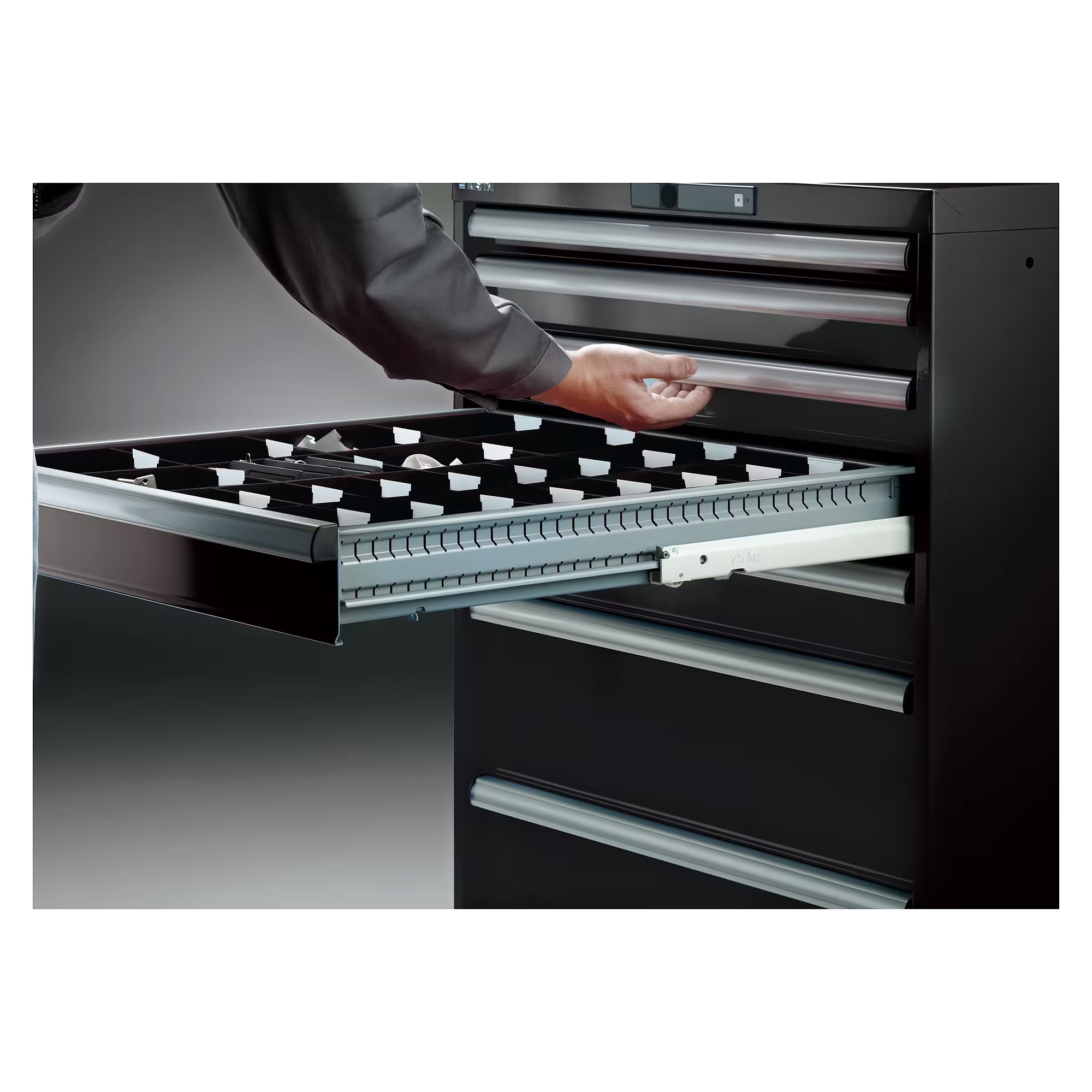

Typical locations are EPAs in electronics production and at EMS providers, test and repair stations, laboratories and component stores. The dissipative effect requires the cabinet to be properly grounded. At 1450 mm high it works as a storage cabinet against a wall or next to the line. Matching the 36 x 36 E format are an ESD resin cover plate that serves as a top surface, a grooved mat for the top and a three-sided roll-off edge that keeps parts from falling off. Matching Lista partitioning material is available for the drawers.

Notes

• For loading the drawers, follow the Lista assembly instructions and loading guidelines. The stated load capacity applies to evenly distributed loads.
