ESD drawer cabinet 54x36E, 1023x725x1000 mm, 7 drawers 1x50/2x75/2x100/1x200/1x300, 75 kg, 1x300 rated 200 kg, KEY Lock - Lista 95.204

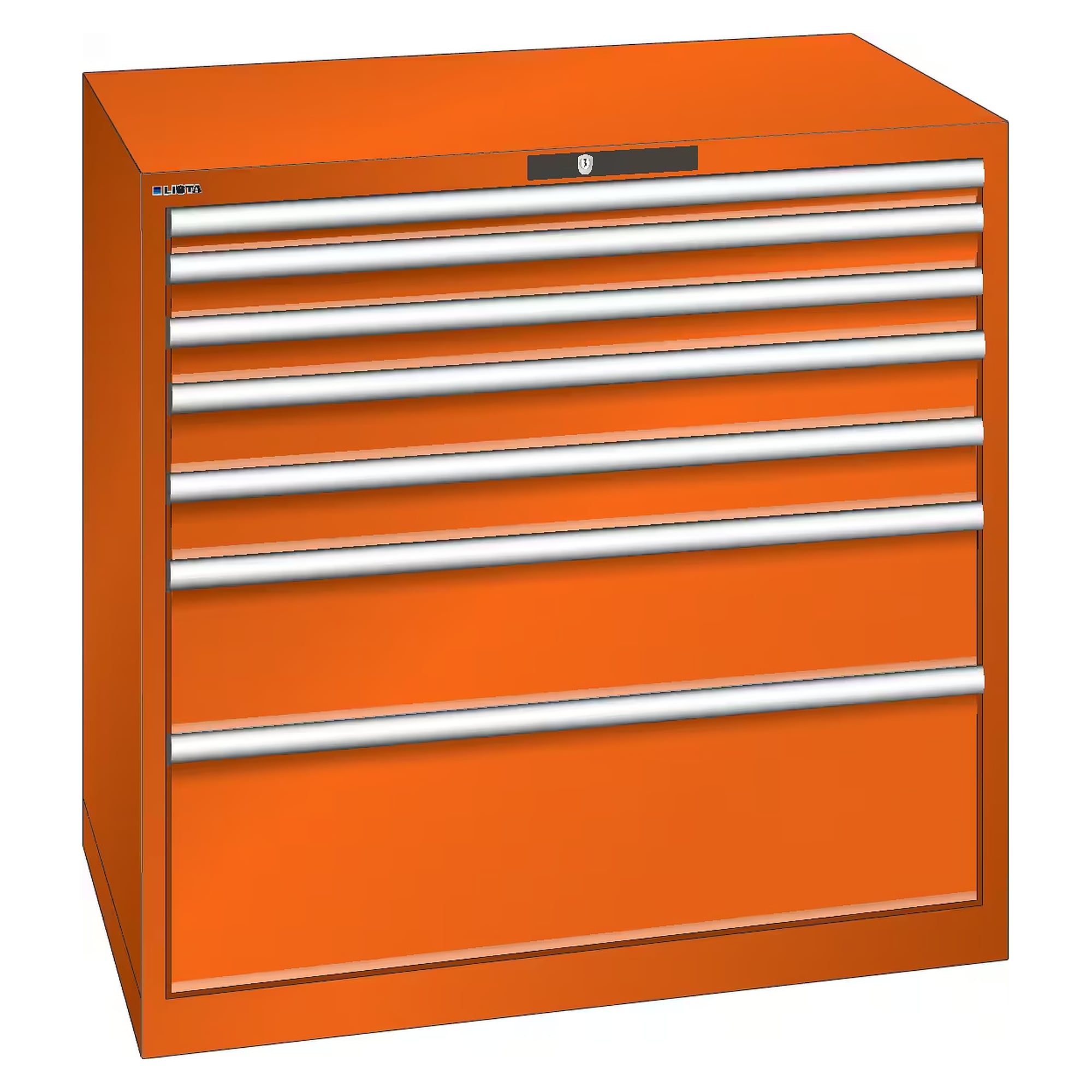

A component store in an ESD area depends on a clear layout. Lista 95.204 divides 900 mm clear height into 7 drawers (1x50/2x75/2x100/1x200/1x300 mm), each with inside dimensions of 900 x 600 mm and 75 kg per drawer, with the 300 mm front drawer rated at 200 kg. It locks with KEY Lock, the Lista standard lock with an interchangeable cylinder, operated manually by key.

Benefits

• Dissipative paint coating: All painted surfaces carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• Load capacity: 918 x 612 mm usable area per drawer at 75 kg per drawer, with the 300 mm front drawer rated at 200 kg.
• Single-drawer interlock: Included as standard, only one drawer can be opened at a time.

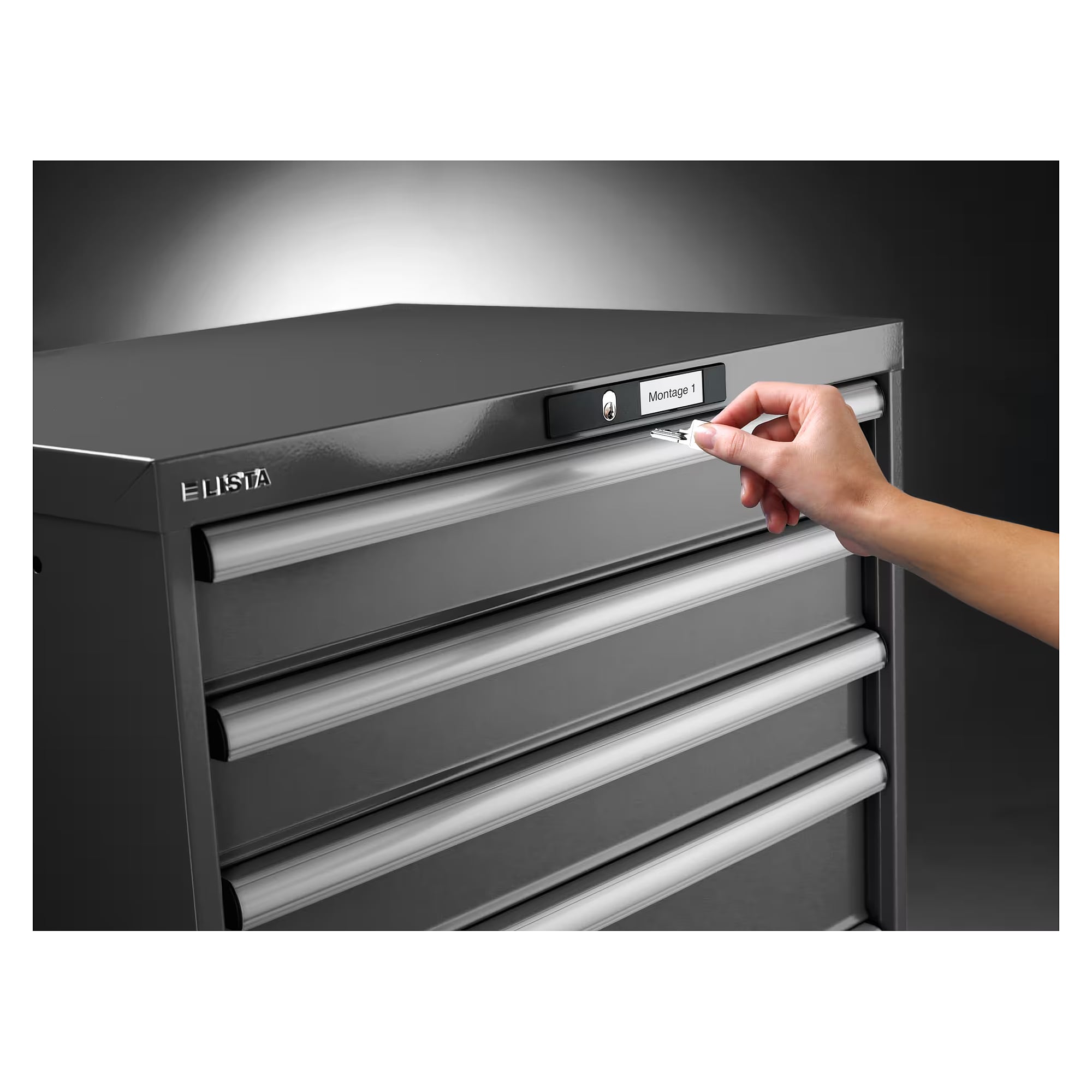

• KEY Lock: Standard lock with interchangeable cylinder, opened and closed manually by key.
• Layout: 7 drawers with 1x50/2x75/2x100/1x200/1x300 mm front heights use the full 900 mm clear height.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

Typical locations are EPAs in electronics production and at EMS providers, test and repair stations, laboratories and component stores. The dissipative effect requires the cabinet to be properly grounded. At 1000 mm high, the top can serve as an extra surface next to the workstation once a cover plate is fitted. Matching the 54 x 36 E format are an ESD resin cover plate that serves as a top surface, a grooved mat for the top and a three-sided roll-off edge that keeps parts from falling off. Matching Lista partitioning material is available for the drawers.

Notes

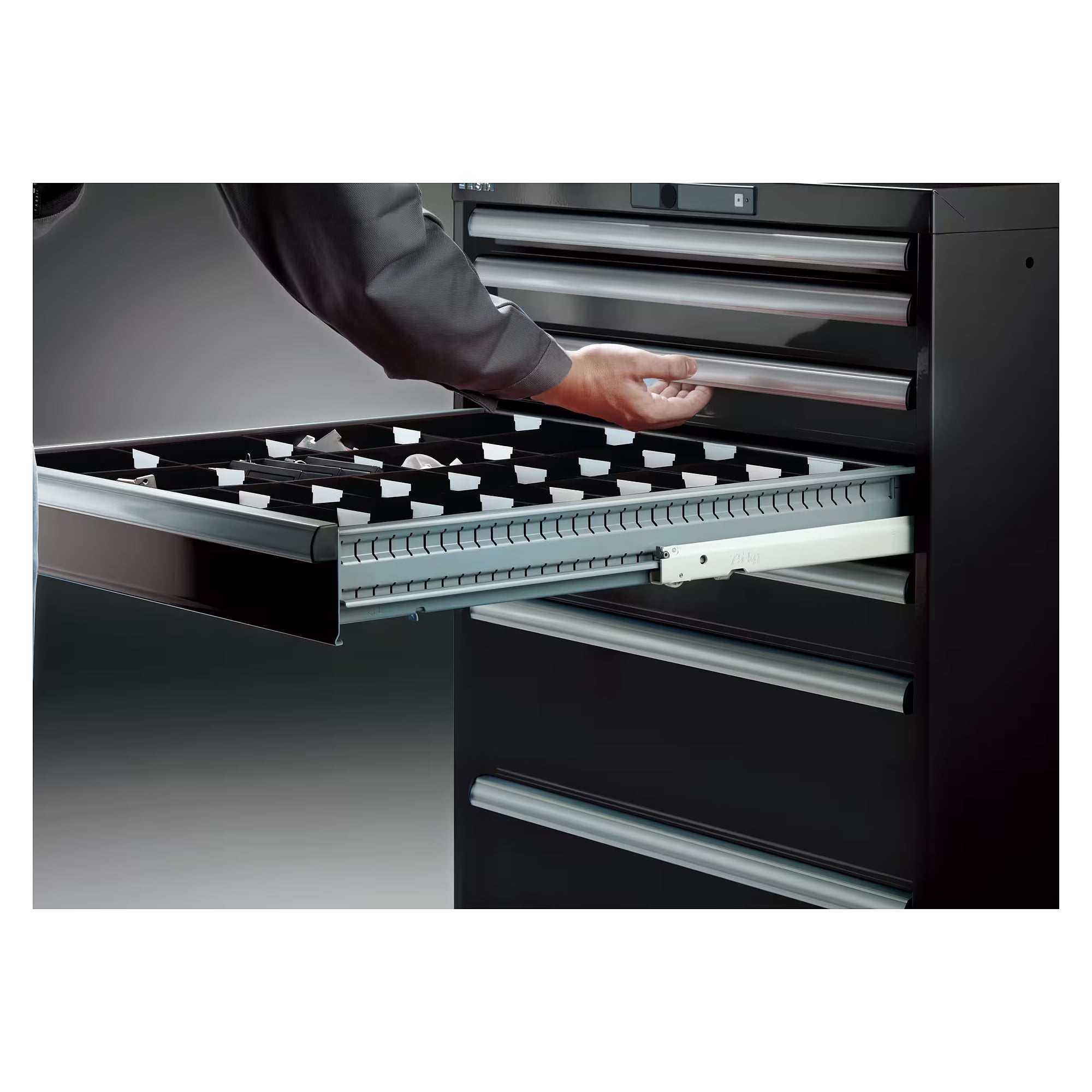

• For loading the drawers, follow the Lista assembly instructions and loading guidelines. The stated load capacity applies to evenly distributed loads.
