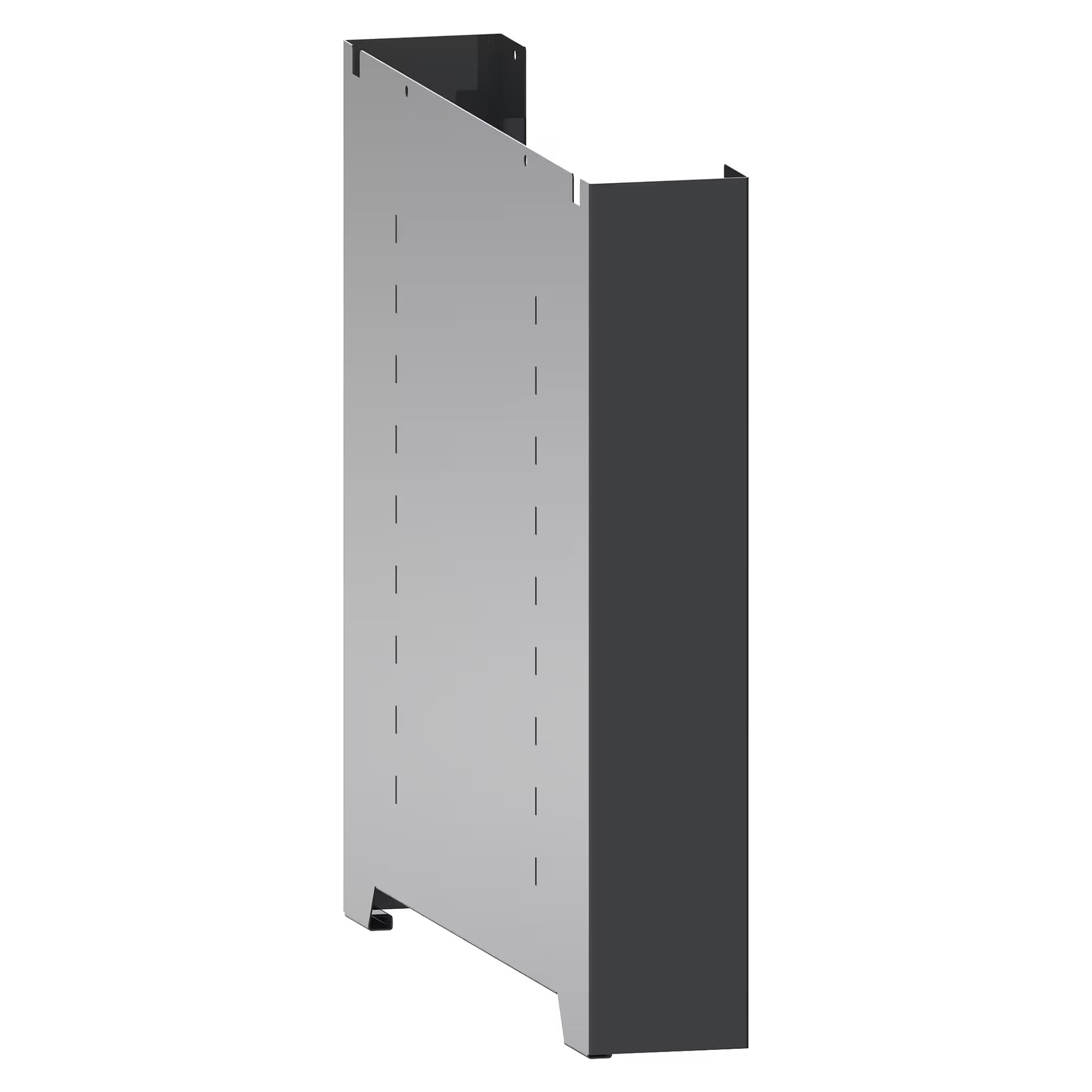

ESD side panel Quattro, slotted, 117x722x625 mm, for module depth 725 mm - Lista 93.910

For Quattro feet with 725 mm module depth, this slotted side panel of 117 x 722 x 625 mm provides a privacy screen and at the same time offers slots for hanging holders and other accessories.

Benefits

• Dissipative surface: The sheet steel carries the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• Hanging accessories: Slots in the panel take accessories directly on the side of the table.
• Matched to the depth: 722 mm deep for 725 mm module depth, 625 mm high, made of sheet steel.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

Side panels close off Quattro workstations at the side at assembly, test and repair stations in the EPA. The slotted version suits setups where accessories are to hang on the side. For 725 mm module depth the panel is available plain and slotted. The dissipative effect depends on the workstation system being properly earthed.
