Phillips screwdriver bit No. 00, 2 mm blade, 44 mm overall length, 4 mm shank - Delvo DLB2122

On a No. 00 screw the fit of the blade decides whether the joint holds or the recess tears out. This NK4D bit carries a 2 mm blade over an 11 mm blade length, so it fills the cross recess instead of widening it.

Benefits

• 2 mm blade matched to Phillips size No. 00, so the torque reaches the screw and not the rim of the head
• 44 mm overall length keeps the lever arm short and the runout of the bit axis low
• Hardness grade H, specified by Nitto Kohki for screw sizes from 1 to 3 mm
• Special alloy with controlled heat treatment and a narrow hardness tolerance
• Half round 4 mm shank with a collar at 20 mm, seats in the screwdriver without an adapter

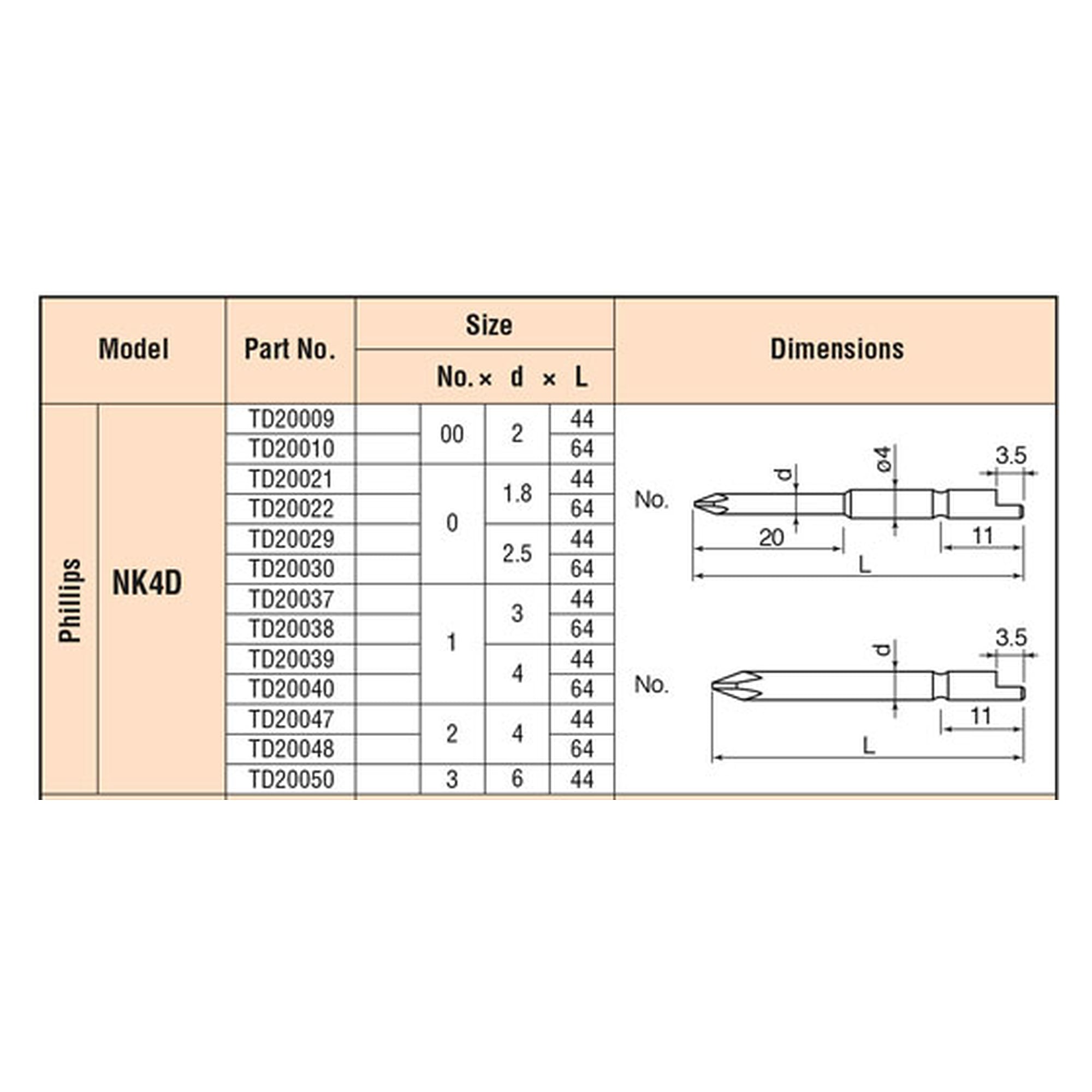

Technical data

Applications

Assembly of small screws in electronics manufacturing, instrument building and precision engineering, and in repair work on assemblies with tight screw patterns.

Matching accessories

• Electric screwdrivers with a 4 mm bit holder such as DLV-7410-BME6, DLV-7420A BME6 and DLV-7331-BME6
• Adapter ADA-HR4-D63 for screwdrivers with a 1/4 inch holder
• Ring magnets MAG-RING-4,7 and MAG-RING-6,0 hold the screw on the bit
• Same size in 64 mm length as DLB2123
