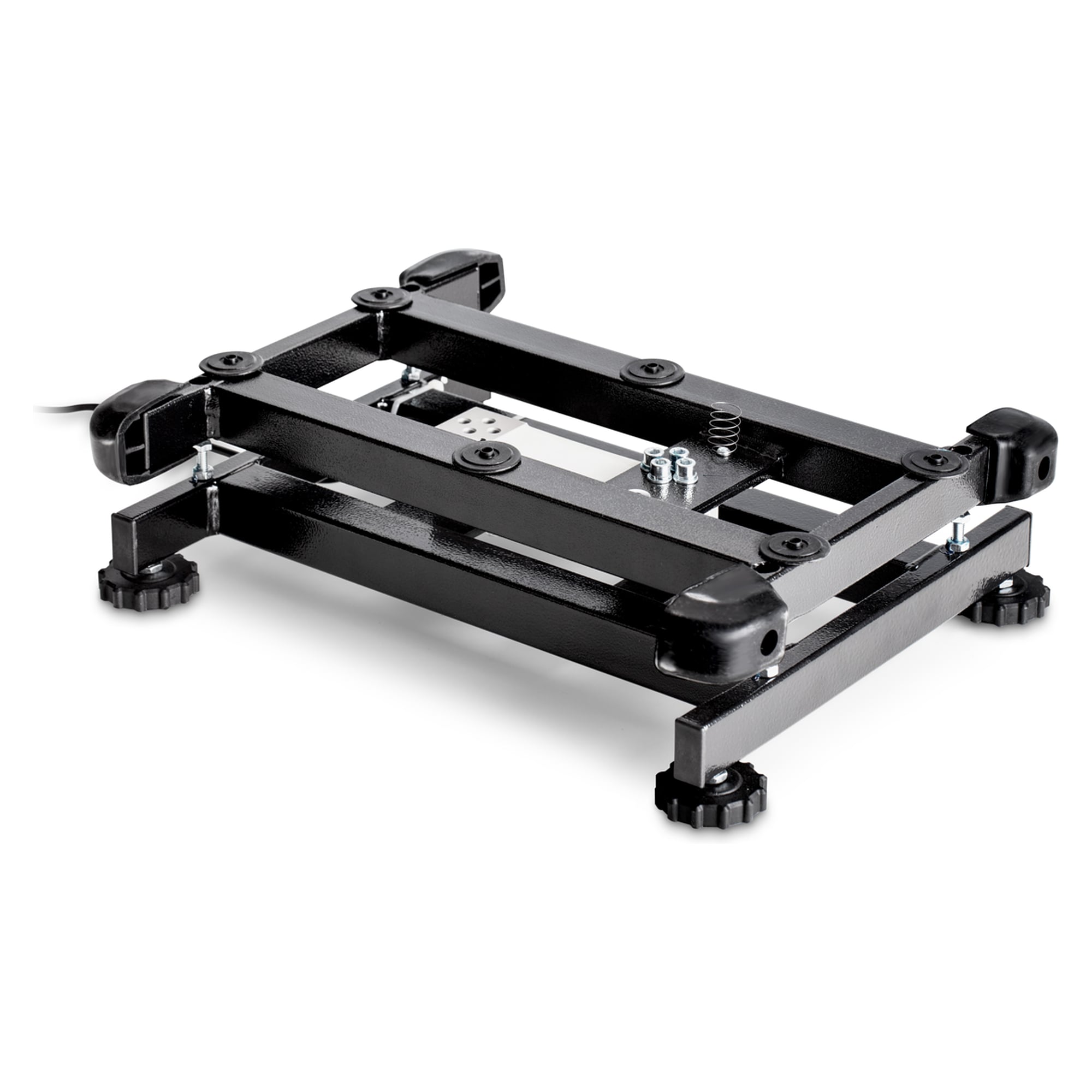

Counting System - KERN CCS 150K0.01L

The KERN CCS 150K0.01L is a counting system for series production and warehouse logistics. It counts small parts in large quantities by determining the single-piece weight on a precise reference scale (3 kg / 10 mg) and capturing the amount on the bulk scale up to 150 kg with 0,005 kg readability. One unit replaces a whole set of individual scales.

Benefits

• Two-scale counting principle: a high-resolution reference scale (3 kg / 10 mg) determines the part weight while the bulk scale (150 kg / 0,005 kg) counts large quantities.
• Fine counting resolution: smallest part weight 50 mg under laboratory conditions, 500 mg under normal conditions.
• Large batches at a glance: up to 999,999 counted parts can be displayed.

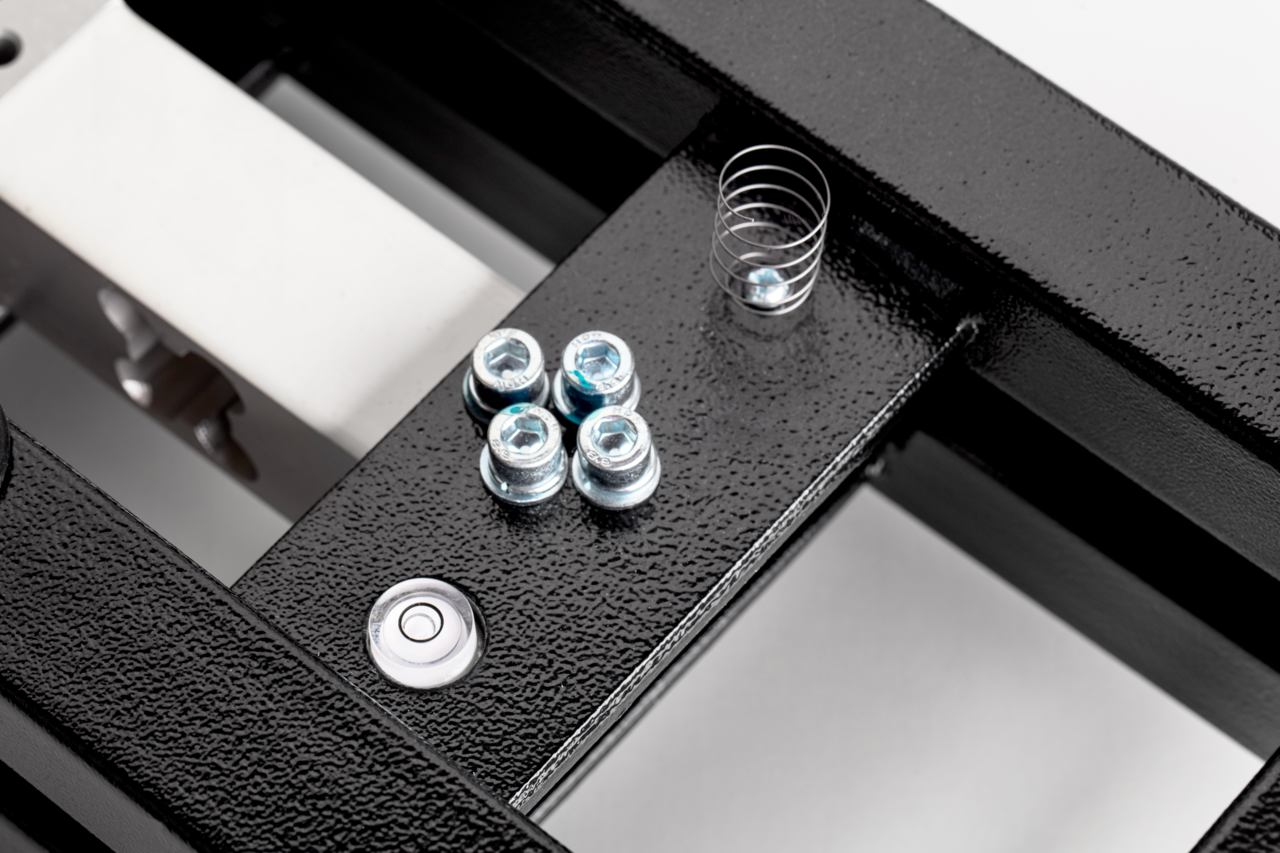

• Built for the shop floor: IP65 protection class and an aluminium single-point load cell handle rough use.
• Data connectivity: RS-232 serienmäßig lets you connect a printer or PC directly.
• Fill-to-target function: program a target count and reaching it is signalled acoustically and visually.

Technical data

• Bulk scale - weighing range (Max): 150 kg
• Bulk scale - readability (d): 0,005 kg
• Reference scale - weighing range (Max): 3 kg
• Reference scale - readability (d): 10 mg
• Repeatability: 0,00002 kg
• Smallest part weight (laboratory conditions): 50 mg
• Smallest part weight (normal conditions): 500 mg
• Weighing system: Dehnungsmessstreifen
• Weighing surface (W x D): 650×500 mm
• Display: LCD, digit height 20 mm
• Interface: RS-232 serienmäßig
• Protection class: IP65
• Ambient temperature: 0 °C to 40 °C
• Net weight approx.: 3,8 kg

Applications

Packaging industry, counting tasks, warehouse logistics, quality assurance as well as order picking and stocktaking.

Compliance and origin

Aluminium single-point load cell, IP65 protection class. Country of manufacture China. EAN 4045761148093, customs tariff number 84238220.
