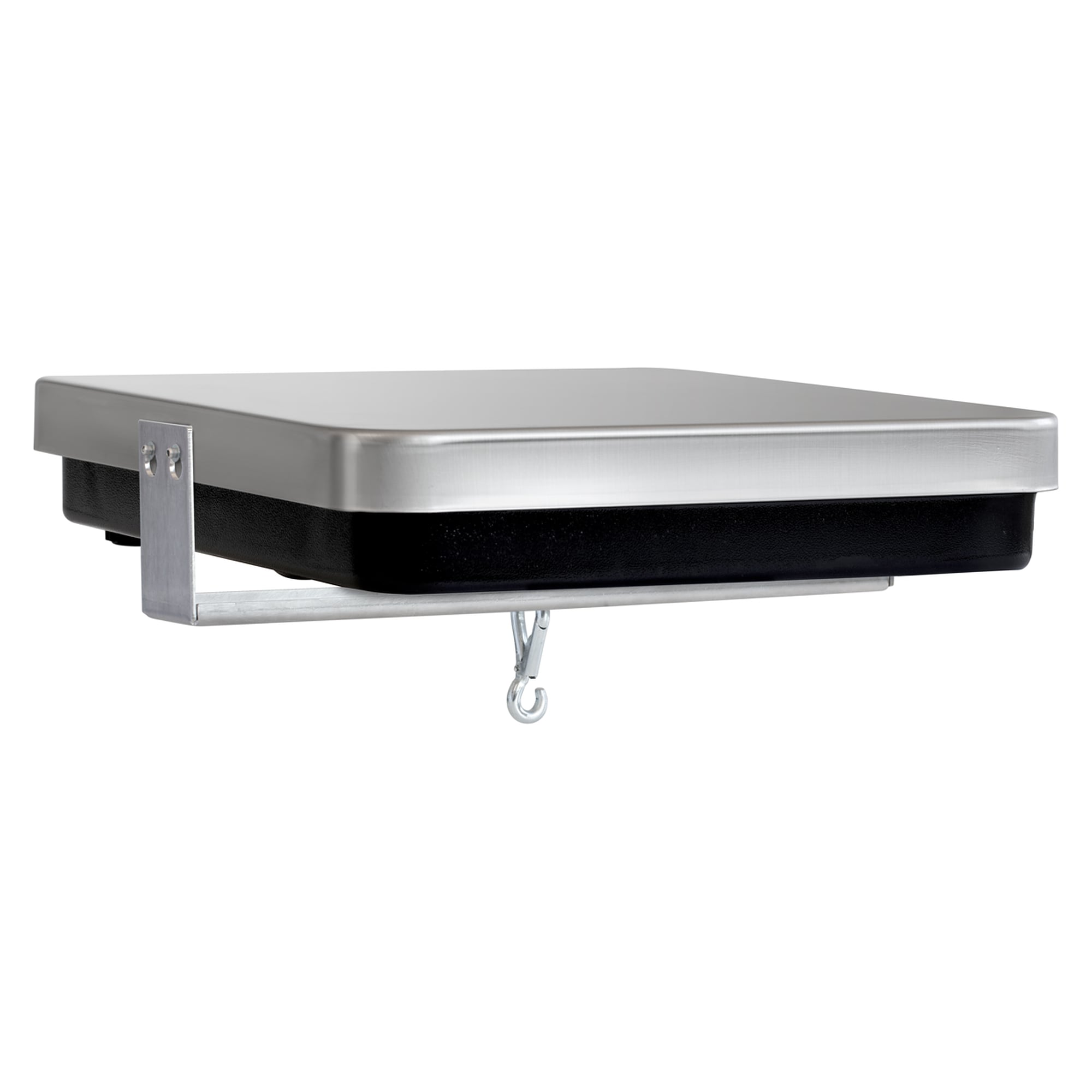

IoT-Line Platform Scale 36 kg Readability 0,0002 kg - KERN DS 36K0.2
The KERN DS 36K0.2 brings laboratory-grade accuracy to the industrial floor with a 36 kg weighing range and 0,0002 kg readability. The KERN Universal Port (KUP) lets you add RS-232, USB, Bluetooth, WLAN or Ethernet and tie the scale into digital processes.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
In quality assurance and test-equipment monitoring, even large or heavy samples have to be captured precisely. The KERN DS 36K0.2 pairs a 36 kg weighing range with 0,0002 kg readability and a 308×318 mm weighing surface.
Benefits
- Lab accuracy under load: 0,0002 kg readability at a linearity of ± 0,0006 kg
- KERN Universal Port (KUP): add RS-232, USB, Bluetooth, WLAN or Ethernet with no installation effort
- KERN Communication Protocol (KCP): query and remotely control the scale from a PC or controller
- Accurate counting: automatic reference optimisation gradually refines the average piece weight
- Mains-independent: optional internal battery (charge time 8 h, up to 48 h of operation)
- Freely programmable unit: readout directly in g/m or g/m², dust cover included
Applications
The KERN DS 36K0.2 supports quality assurance, test-equipment monitoring and digital processes in production. It is compatible with the KERN EasyTouch software for capturing and evaluating your weighing data.
Compliance and origin
EAN 4045761357013, customs tariff code 84238220, country of origin DE (Made in Germany).
Technical data
| Weighing range (max) | 36 kg |
|---|---|
| Readability (d) | 0,0002 kg |
| Repeatability | 0,0002 kg |
| Linearity | ± 0,0006 kg |
| Smallest part weight for counting (lab conditions) | 100 mg |
| Smallest part weight for counting (normal conditions) | 1 g |
| Weighing system | Strain gauge |
| Stabilization time | 3 s |
| Weighing surface (W×D) | 308×318 mm |
| Housing dimensions (W×D×H) | 225×115×60 mm |
| Display | LCD, digit height 21 mm |
| Interfaces | RS-232 (optional),Ethernet (optional),Bluetooth BLE (v4.0) (optional),USB-Device (optional),KUP,WLAN (optional) |
| Operating temperature | -10 °C to 40 °C |
| Net weight approx. | 10 kg |
| Weight | 12 kg |
| Manufacturer | Kern |
| EAN | 4045761357013 |
| HS-Code | 84238220 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Material | Plastic |
| Wägebereich max (g) | 36000 |
| Ablesbarkeit (g) | 0.2 |
| Display type | LCD |
| Interface | Bluetooth, Ethernet, KUP, RS-232, USB device, WLAN |
