Crane Scale 300 kg / 600 kg / 1500 kg Readability 0,1 kg / 0,2 kg / 0,5 kg - KERN HFD 1T-4

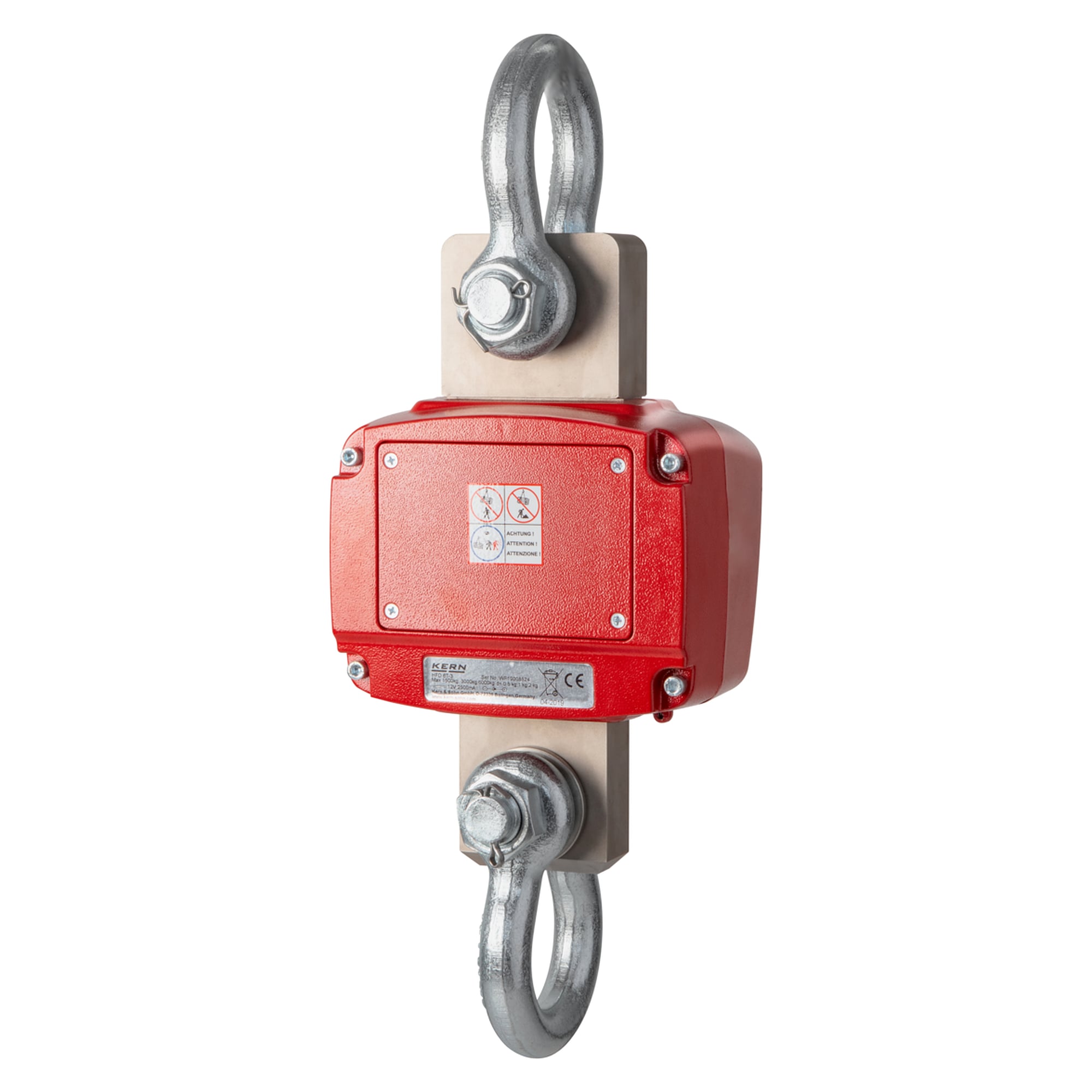

The KERN HFD 1T-4 is a multi-range crane scale: it switches automatically as the load grows (300 / 600 / 1500 kg) and offers the fine readability 0,1 kg at low loads. The cast-aluminium housing is built for continuous industrial use.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
To weigh accurately across a wide range, the KERN HFD 1T-4 uses multi-range switching: as the load increases the scale steps up to the next range (300 / 600 / 1500 kg) and returns to the finer one once unloaded, so readability 0,1 kg is available at low loads. The sturdy cast-aluminium housing and Li-Ion battery keep it usable from site to site.
Benefits
- Multi-range scale: automatic switching 300 / 600 / 1500 kg, fine readability 0,1 kg at low loads
- Sturdy cast-aluminium housing: torsion-resistant and designed for continuous industrial use

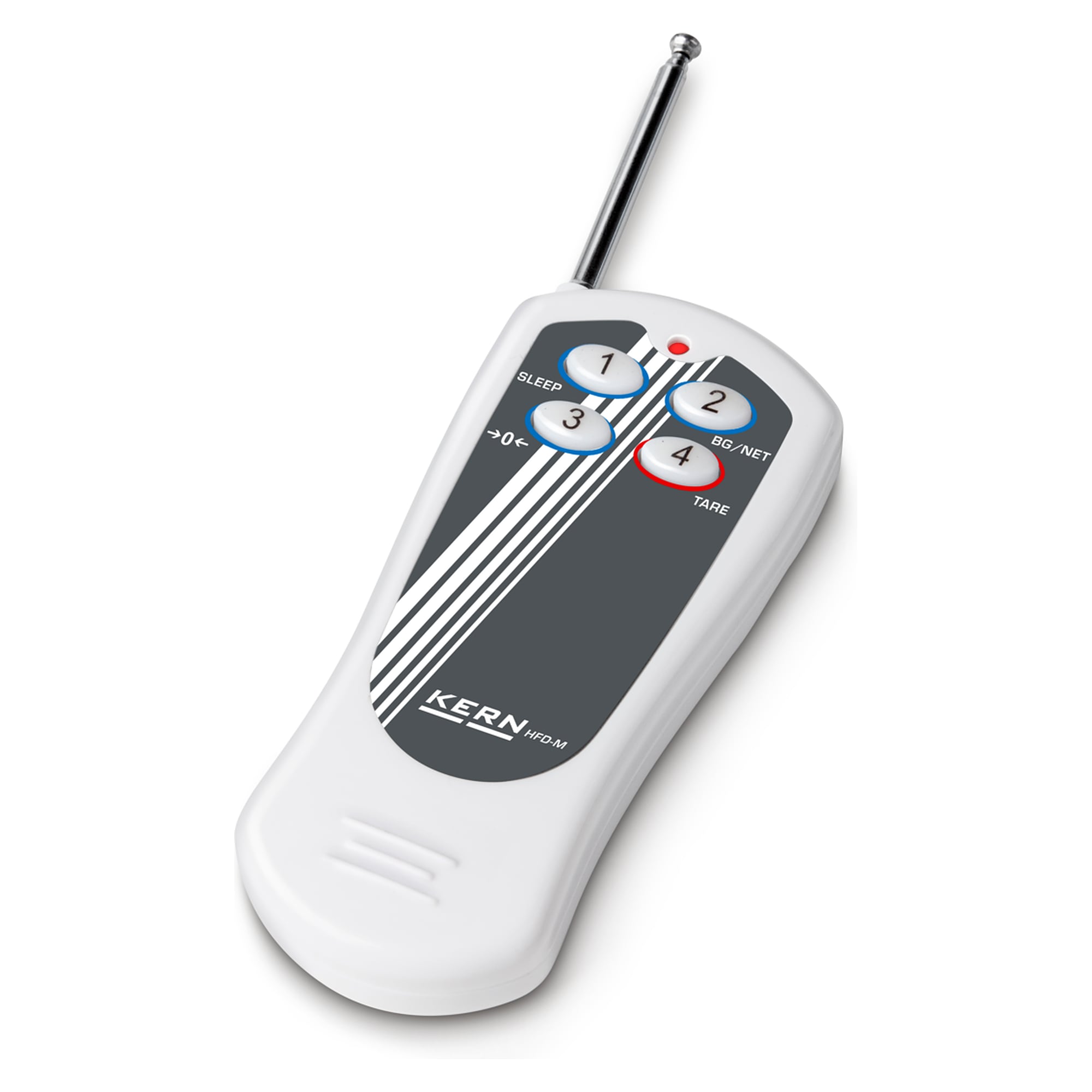

- Radio remote control as standard: all functions operable at up to 20 m
- Hold and tare: freeze the reading and tare to zero under load
- High mobility: Li-Ion battery for up to 70 h, compact and usable at several locations
Applications
Industry and production, construction and building sites, warehouse logistics, energy and raw materials, scrap and recycling.
Compliance and origin
TÜV-tested to EN 13155 (non-fixed load-lifting attachments, breaking safety) and EN 61010-1 (electrical safety). EAN 4045761202757, customs tariff number 84238220, country of origin China.
Technical data
| Weighing range (max) | 300 kg; 600 kg; 1500 kg |
|---|---|
| Readability (d) | 0,1 kg; 0,2 kg; 0,5 kg |
| Repeatability | 0,1 kg; 0,2 kg; 0,5 kg |
| Linearity | ± 0,2 kg; 0,4 kg; 1 kg |
| Weighing system | strain gauge |
| Radio range | up to 20 m |
| Housing material | cast aluminium |

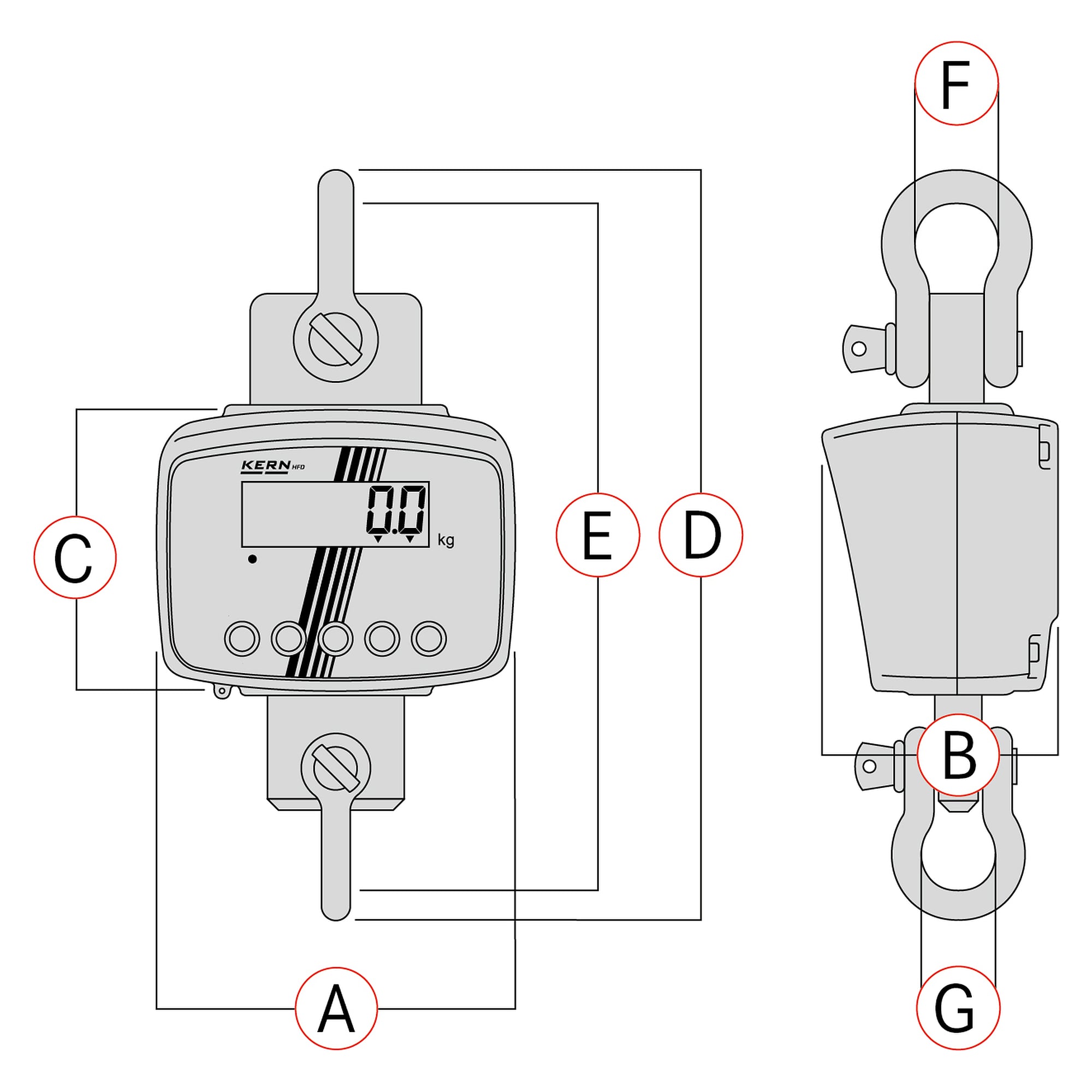

| Dimensions (W x D x H) | 422 x 194 x 129 mm |
| Display | LCD, 30 mm digit height |
| Units | kg |
| Power supply | Li-Ion battery and plug-in adapter, up to 70 h operation |
| Operating temperature | -10 °C to 40 °C |
| Net weight | 9 kg |
| Weight | 10 kg |
| Manufacturer | Kern |
| EAN | 4045761202757 |
| HS-Code | 84238220 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Material | Cast aluminium |
| Certification | EN 13155, EN 61010-1 |
| Wägebereich max (g) | 1500000 |
| Ablesbarkeit (g) | 100 |
| Display type | LCD |
