Crane Scale 1500 kg / 3000 kg / 6000 kg Readability 0,5 kg / 1 kg / 2 kg - KERN HFD 6T-3

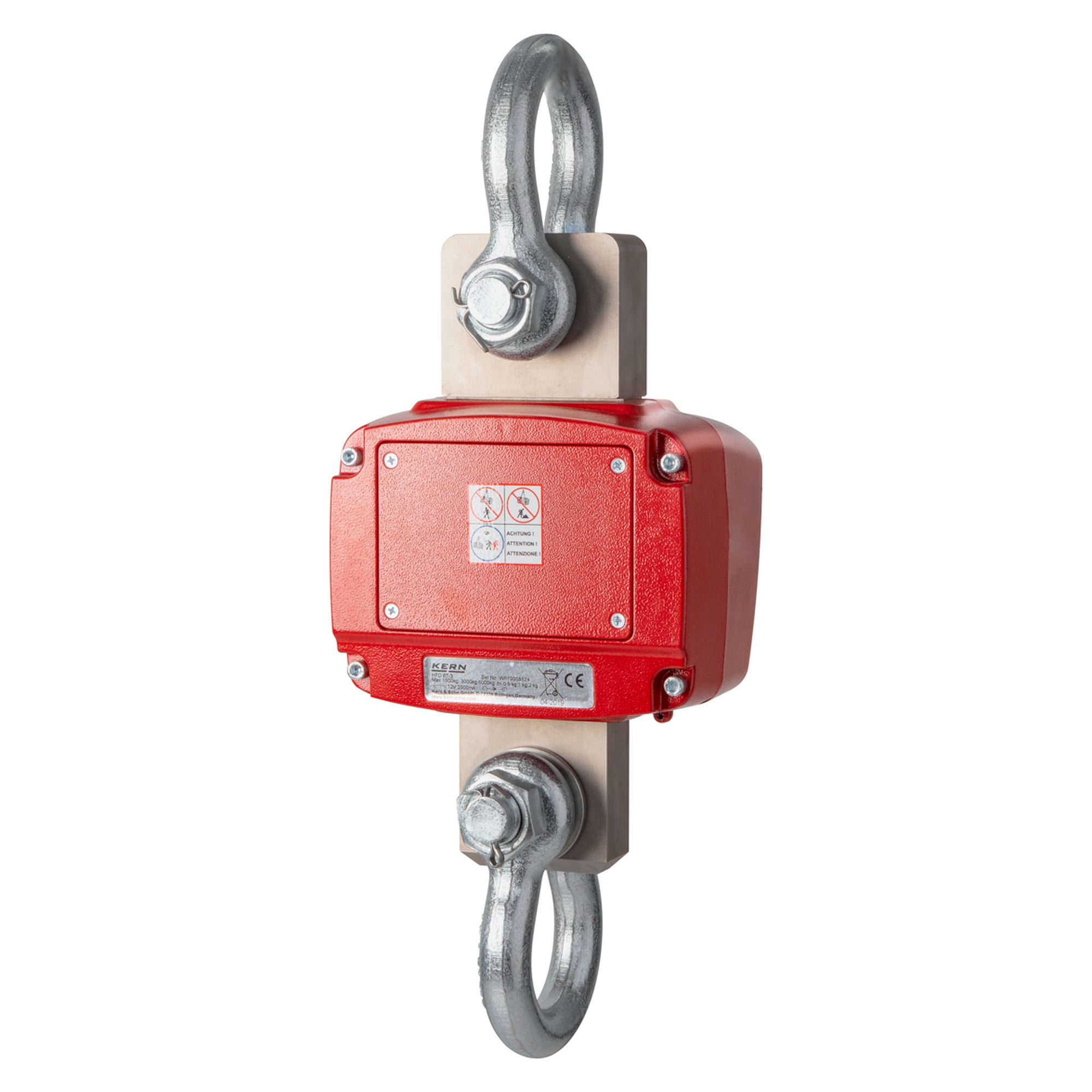

The KERN HFD 6T-3 weighs loads up to 6000 kg straight from the crane hook, resolving as fine as 0,5 kg at partial load. As a multi-range scale it switches range automatically and stays mobile thanks to battery power and radio remote control.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The KERN HFD 6T-3 hangs from the crane hook and weighs loads up to 6000 kg during the lift, with no separate weighing station. As a multi-range scale it resolves down to 0,5 kg in the lower range and switches to the next range automatically as the load grows.
Benefits
- Fine resolution in the partial-load range: readability from 0,5 kg across a range up to 6000 kg
- Automatic range switching: moves to the next range as the load increases and back once unloaded
- Mobile use: battery powered, only 15 kg net weight, dimensions 518×194×151 mm

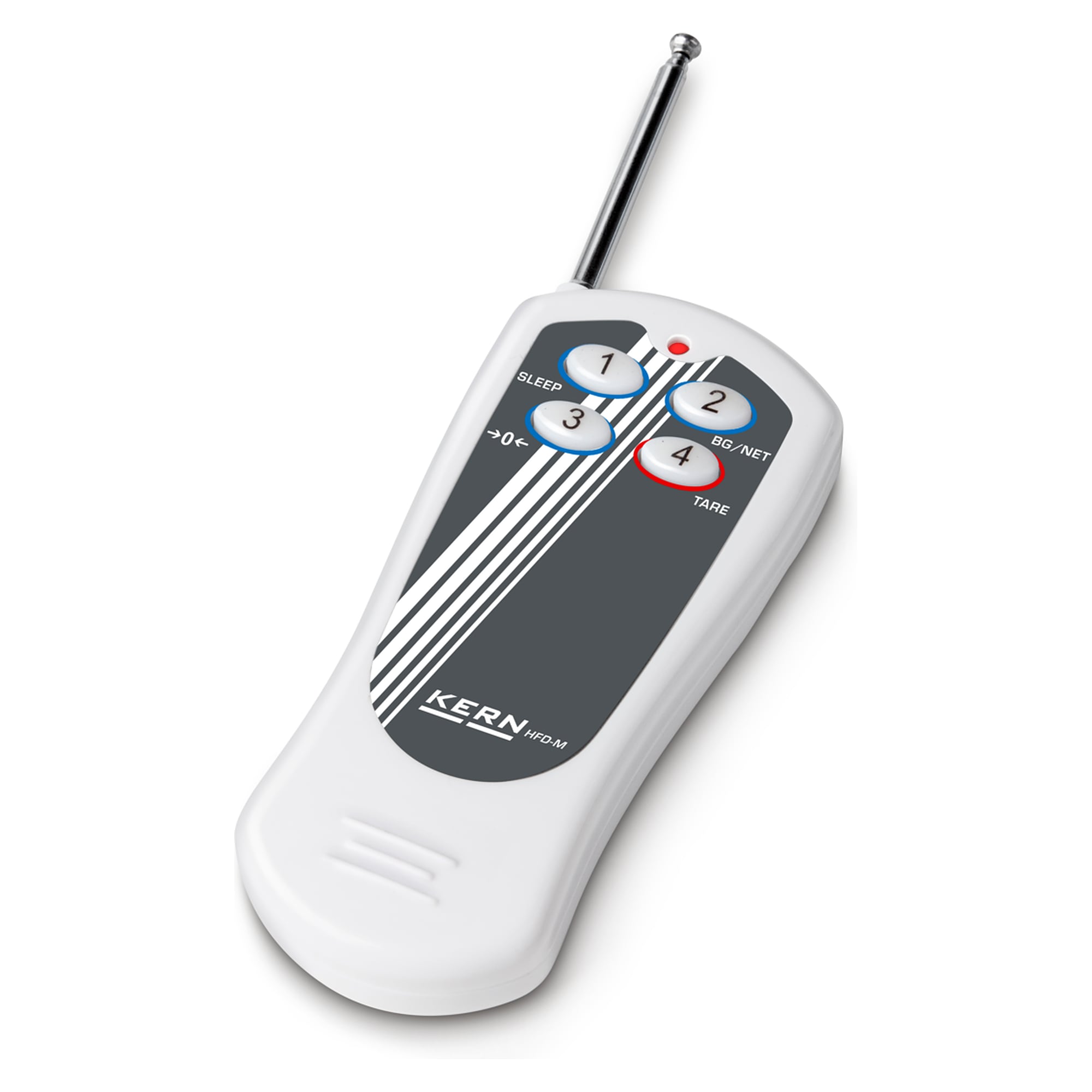

- Radio remote control as standard: all functions up to 20 m range, with hold and tare
- Tested safety: TÜV mark to EN 13155 (lifting accessories) and EN 61010-1 (electrical safety)
Applications
Designed for industry and production, construction and building sites, warehouse logistics, and the energy, raw materials and recycling sectors.
Compliance and origin
EAN 4045761202771, customs code 84238920, country of origin China.
Technical data
| Weighing range (Max) | 1500 kg; 3000 kg; 6000 kg |
|---|---|
| Readability (d) | 0,5 kg; 1 kg; 2 kg |
| Repeatability | 0,5 kg; 1 kg; 2 kg |
| Linearity | ± 1 kg; 2 kg; 4 kg |
| Weighing system | Strain gauge |
| Housing | Die-cast aluminium |
| Display | LCD, digit height 30 mm |

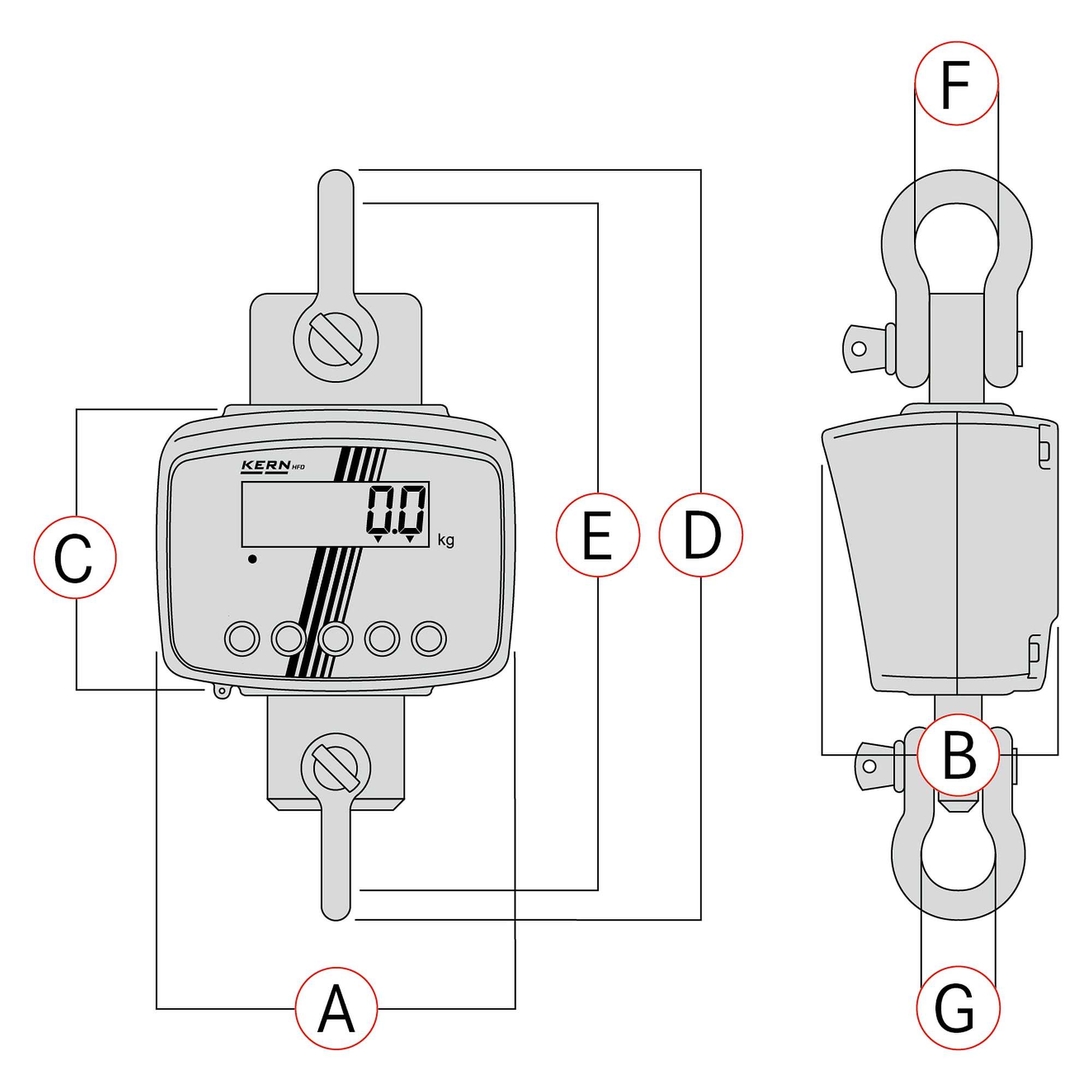

| Dimensions (W×D×H) | 518×194×151 mm |
| Net weight | 15 kg |
| Operating temperature | -10 °C to 40 °C |
| Weight | 16 kg |
| Manufacturer | Kern |
| EAN | 4045761202771 |
| HS-Code | 84238920 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Material | Cast aluminium |
| Certification | EN 13155, EN 61010-1 |
| Wägebereich max (g) | 6000000 |
| Ablesbarkeit (g) | 500 |
| Display type | LCD |
