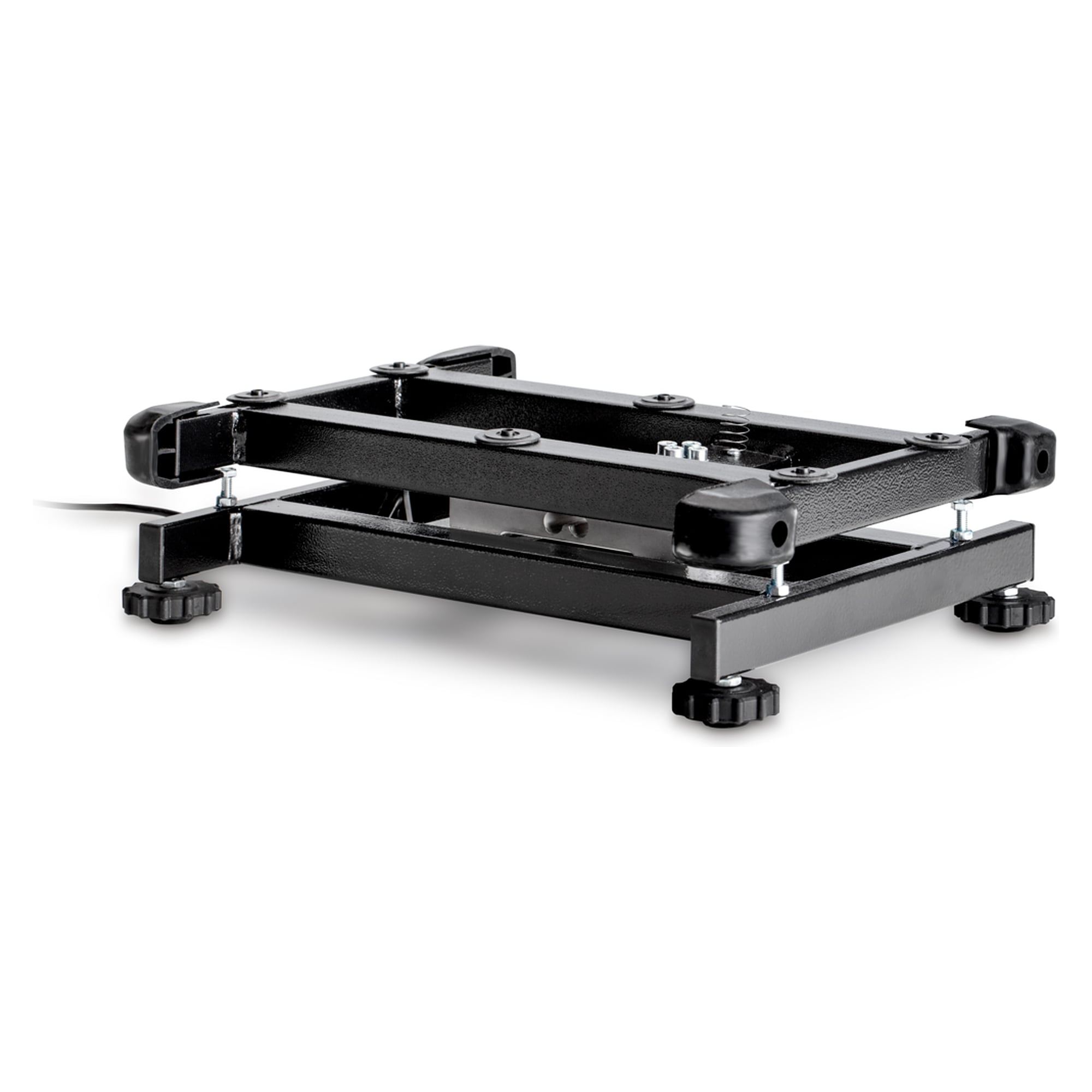

Counting Scale 12 kg / 30 kg Readability 0,0002 kg / 0,0005 kg - KERN IFS 30K0.2DL

The KERN IFS 30K0.2DL counts and weighs in a single step: the industrial counting scale resolves up to 60,000 points and recognises quantities from a part weight of 5 g under normal conditions. Its 12 kg to 30 kg weighing range switches automatically to the matching readability as the load increases.

Benefits

• High resolution: readability from 0,0002 kg across a weighing range up to 30 kg.
• Two weighing ranges: 12 kg at 0,0002 kg and 30 kg at 0,0005 kg, switching automatically under load.
• Counting resolution up to 60,000 points: accurate quantities thanks to manual reference optimisation of the part weight.
• Convenient operation: numeric keypad and three separate displays for weight, reference and piece count.
• Built for industry: RS-232 as standard, protective work cover for the terminal included.

Technical data

• Weighing range (Max): 12 kg; 30 kg
• Readability (d): 0,0002 kg; 0,0005 kg
• Repeatability: 0,0002 kg; 0,0005 kg
• Linearity: ± 0,0008 kg; 0,002 kg
• Smallest part weight (normal conditions): 5 g
• Weighing surface (W×D): 400×300 mm
• Display digit height: 16,5 mm
• Interfaces: RS-232 as standard
• Operating temperature: 0 °C to 40 °C
• Net weight: 7 kg

Applications

Designed for plastics processing, warehouse logistics and dispatch, as well as counting tasks in order picking and stocktaking.

Compliance and origin

EAN 4045761111912, customs code 84238129, country of origin China.
