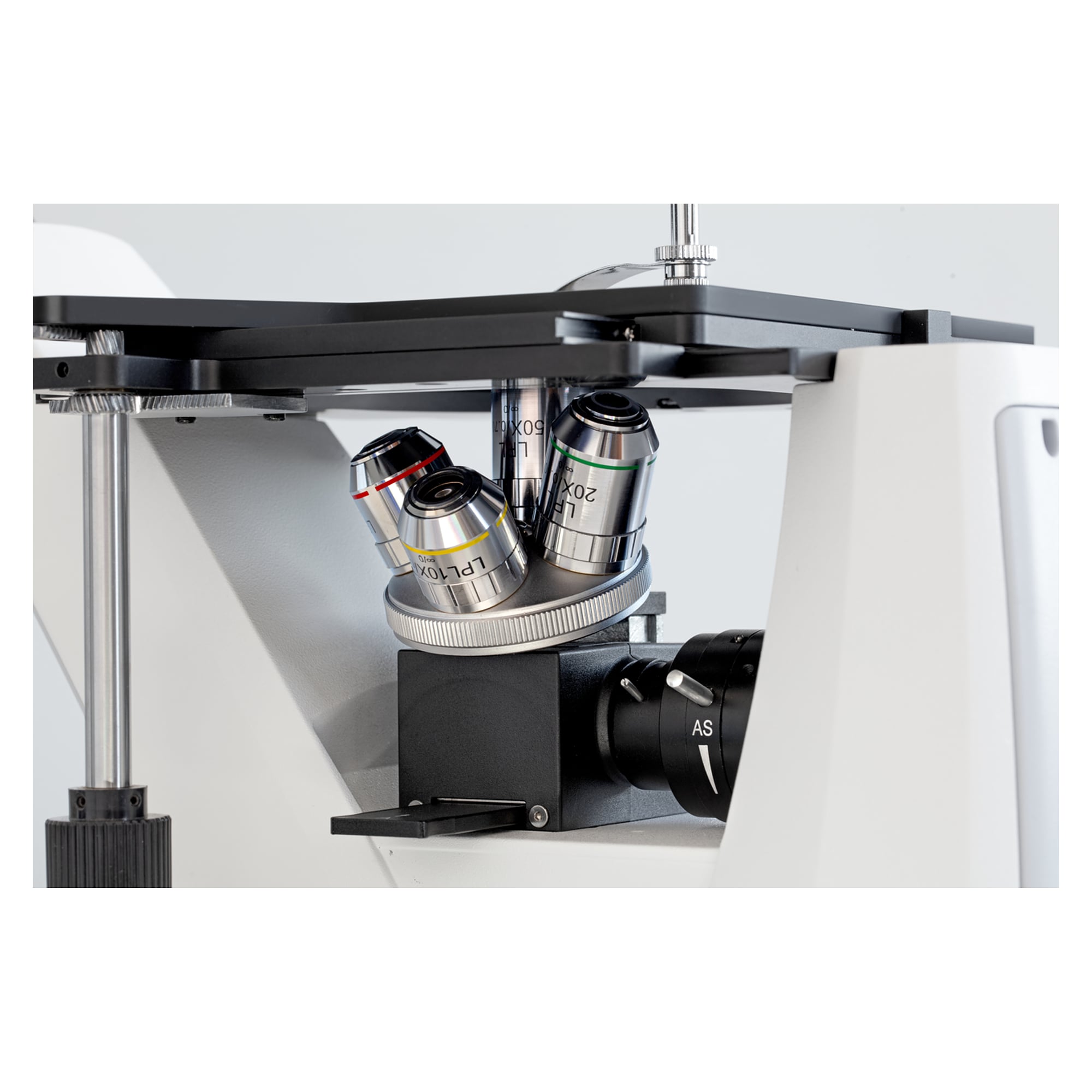

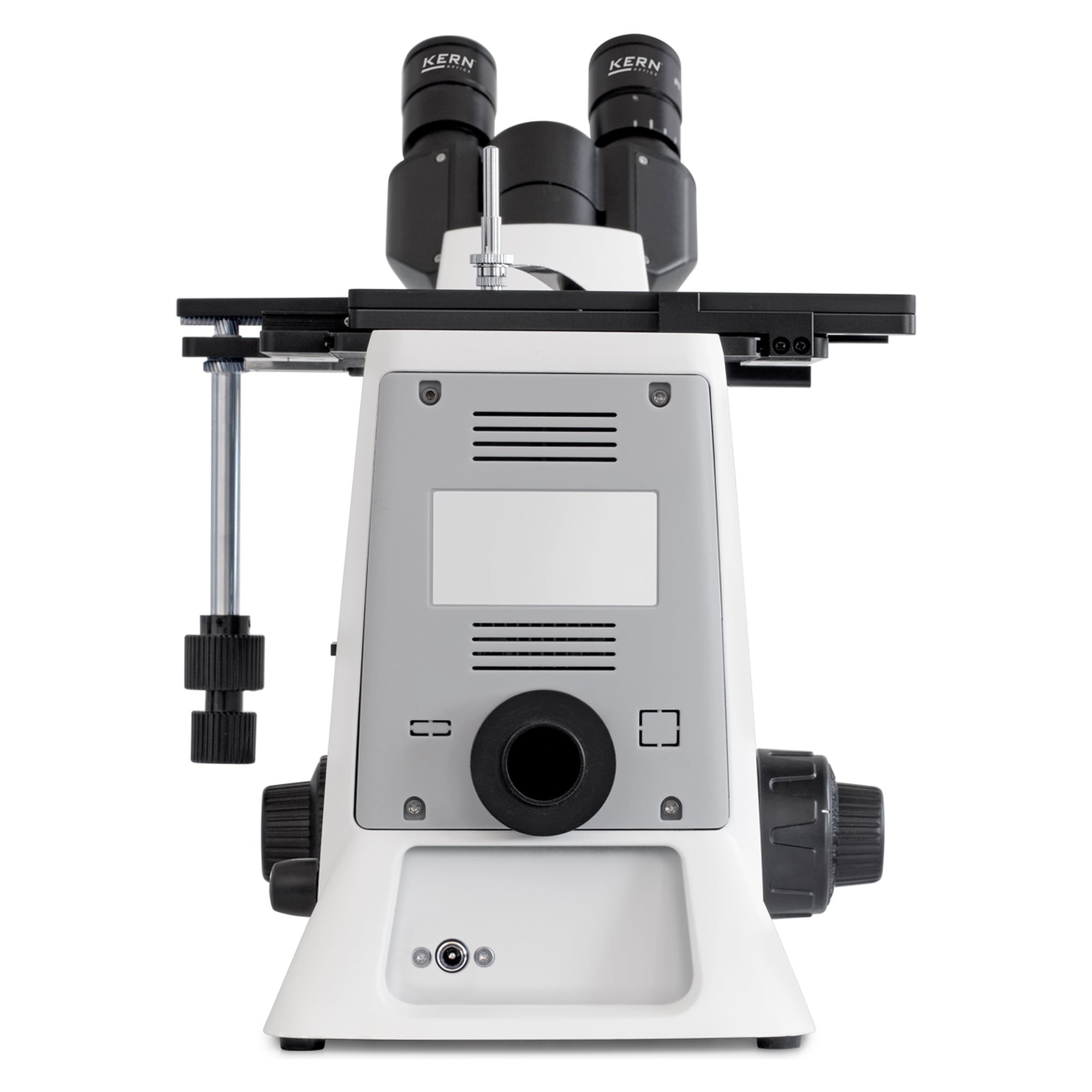

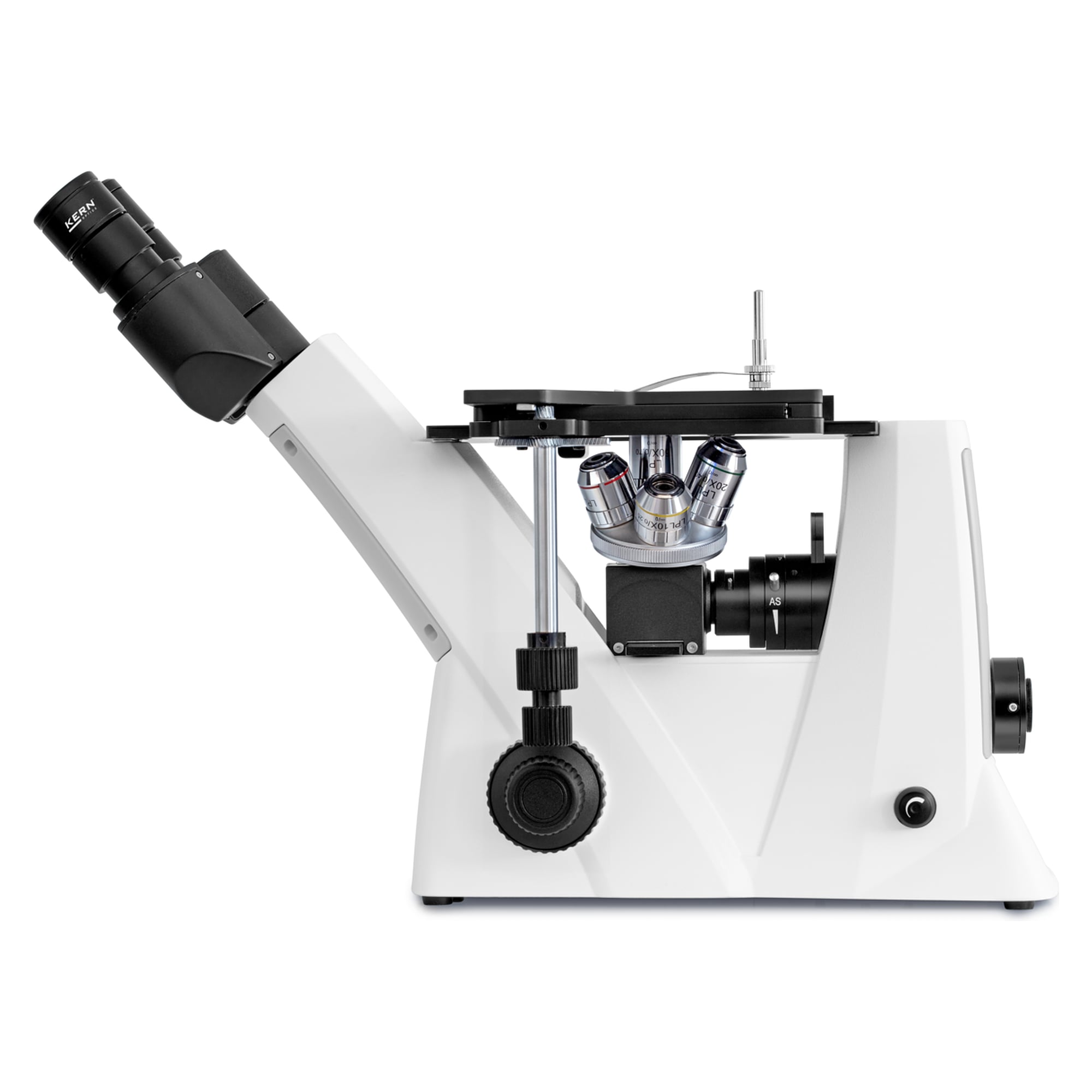

Inverted Microscope 5x - KERN OLM 170
The KERN OLM 170 is an inverted metallurgical microscope with a very large working distance for surface inspection of raw materials and finished parts. Its stepless 5W LED reflected light provides even illumination and the pre-mounted C-mount adapter simplifies camera connection. The compact design also suits mobile use.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For surface quality inspection of raw materials and finished parts, the KERN OLM 170 is an inverted metallurgical microscope with a very large working distance and a compact, stable design with 5W LED reflected light.
Benefits
- Inverted design with large working distance: ergonomic, stable and suited to inspecting large workpieces.
- Adjustable 5W LED reflected light: stepless control for even illumination of the materials.
- Pre-mounted C-mount adapter: convenient camera connection at the rear.
- Large mechanical stage: coarse and fine focus on both sides for fast, precise focusing.
- Compact and mobile: handy design suited to mobile use, polarisation unit included.
Applications
Metallurgy, materials testing and quality assurance on opaque and thick specimens such as surfaces, fracture edges and coatings.
Compliance and origin
EAN 4045761356665, customs tariff code 90118000, country of origin China.
Technical data
| Optical system | infinity |
|---|---|
| Objective quality | infinity plan |
| Tube | trinocular, 45° inclination |
| Objective magnification | 5x / 10x / 20x / 50x |
| Nosepiece | 4 threaded positions |
| Eyepiece | HWF 10x, 20 mm field of view |
| Interpupillary distance | 48 mm - 75 mm |
| Illumination | LED reflected light, 5W |
| Beam split | 20:80 |
| Power supply | mains adapter 100 V - 240 V, 50 / 60 Hz |
| Net weight | 7 kg |
| Weight | 9 kg |
| Manufacturer | Kern |
| EAN | 4045761356665 |
| HS-Code | 90118000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
