UNILED II articulated-arm workplace light Watchmaker, 380 mm head, 5700K, IP40 - LED2WORK 120910-01
LED articulated-arm light for watchmaking, jewellery, laboratory and quality-control benches. Two aluminium spring arms (400 + 250 mm) with 3D joints position homogeneous daylight (5700K, 2668 lm) exactly over the work, free of shadows and glare.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The UNILED II Watchmaker delivers shadow-free, glare-free area light right above the work zone through two long aluminium spring arms, with 2668 lm of daylight (5700K) and a colour rendering of Ra >90 for true assessment of materials and surfaces.
Key benefits

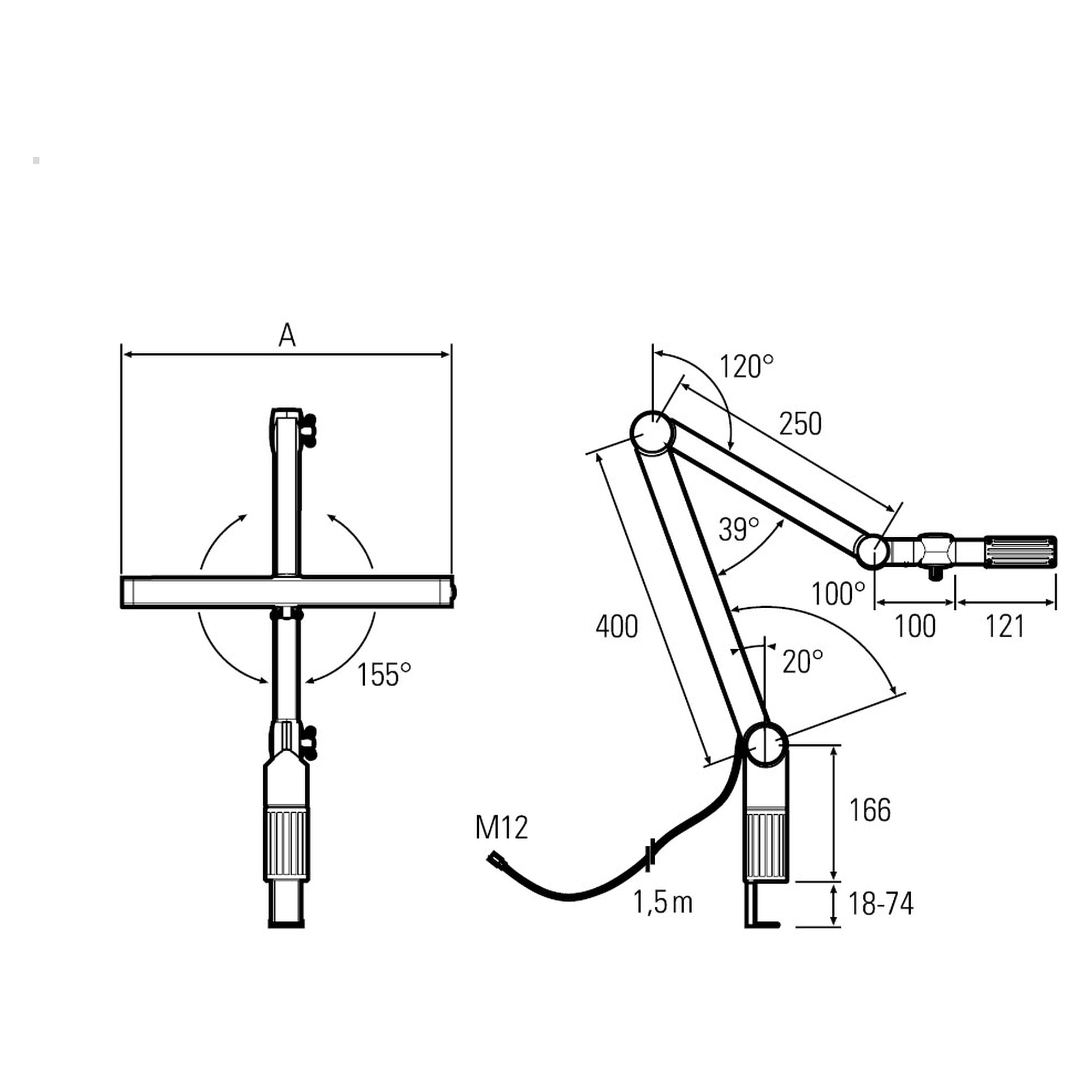

- Far-reaching spring arms (1x 400 mm, 1x 250 mm) with 3D joints for free positioning over the workpiece
- Homogeneous, shadow- and glare-free light thanks to the opal-white glare control, ideal for fine inspection
- High colour fidelity at Ra >90 for assessing jewellery, watch movements and surfaces
- Shortened front arm and medium 380 mm head width, purpose-built for watchmaking
- Long service life of more than 100,000 h (L80/B10) at only ~14.5 W
- Supplied complete with 100-240V AC power supply and table clamp
Applications
Watchmaking and jewellery benches, laboratories, quality control, workshops and industrial assembly stations that need ergonomic, glare-free lighting. Optional dimming via accessories.
Technical data
| Model | UNILED II articulated arm |
|---|---|
| Type | LED articulated-arm light |
| Light source | SMD LED |
| Power | ~14.5 W |
| Luminous flux | 2668 lm |
| Luminous efficacy | ~184 lm/W |
| Light colour | 5700K 3-step MacAdam |
| Colour rendering (Ra) | >90 |
| Supply voltage | 24V DC ± 10% |
| Power supply | 100-240V AC included |
| Connection | M12 A-coded |
| Protection rating | IP40 |
| Protection class | III |
| Beam angle | 100° |
| Operating temperature | -10 °C to +60 °C |
| Service life | > 100,000 h (L80/B10) |
| Housing | aluminium / plastic |
| Cover | matt plastic |
| Head length | 380 mm |
| Arms | 1x 400 mm, 1x 250 mm |
| Weight | 2900 g |
| Risk group (DIN EN 62471) | exempt group |
| Certifications | CE, UKCA |
| Mounting | table clamp included |
| Made in | Germany |
| Manufacturer | LED2WORK |
| Manufacturer Nr. | 120910-01 |
| HS-Code | 94054239 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Norm | DIN EN 62471 |
| Luminous flux (lumen) | 2668 lm |
| Power (W) | 14.5 W |
| Colour temperature | 5700K |
| Mounting type | Articulated arm, Table clamp |
| Operating voltage | 100-240 V |
| Protection class (IP) | IP40 |
